SEARS GAMEFISHER 15 HP - Cat.# 90-855599

> Mercury Marine [Updated: Aug. 16, 2018] > Outboard > Sears > 15 HP > [225.591500 THRU 225.591490] - USA - Cat.# 90-855599

COWL ASSEMBLY TOP AND BOTTOM
Diagram 36504

820154A10 TOP COWL ASSEMBLY (WITH DECALS) (PAINTED)
820154A8 TOP COWL ASSEMBLY (WITHOUT DECALS) (PAINTED)

820154A10, 820154A8
820154A10 820154A8

SEARS GAMEFISHER DECALS

10) 82634216 DECAL (REAR)
11) 82634214 DECAL (STARBOARD)
11) 82634215 DECAL (PORT)
12) 82408812 DECAL Shift
13) 8263425 DECAL (FRONT)-Starter Instructions

OTHER DECALS
31) 85557737 DECAL EPA Label Information (Applied Inside The Top Cowl)

STARTER COMPONENTS
Diagram 35719


23) 825149A1 DECAL KIT Shift to Neutral

STEERING HANDLE/TWIST GRIP THROTTLE
Diagram 35831


28) F712894 DECAL Speed/Shift Indicator

SWIVEL BRACKET COMPONENTS
Diagram 35832


22) 8302531 DECAL Tilt Release

MISCELLANEOUS PARTS - PAINT
82793336 PAINT Damascus Steel Gray 12 Oz. (355 ml)-Spray Can
82793337 PAINT Damascus Steel Gray .5 Oz. (15 ml)-Brush Bottle
81910712 PAINT Clear Acrylic 12 Oz. (355 ml)- Spray CANADA (For Cowl Only)

2 Stroke Carb, 5C M ML - ARCHIVE CAT 96387

> Mercury Marine [Updated: Dec. 20, 2018] > Outboard > 2 Stroke Carb > 5C > ARCHIVE CAT 96387


5 H.P. SERIAL NUMBER
5C . . . . . M 6E3-102151 AND UP
5C . . . . . ML 6E3-400101 AND UP

COWLING DIAGRAM 96387-6-P4

1
2168-811007M TOP COWLING ASS’Y SERIAL (M-162953 ML-435351) AND ABOVE
2168-9657M TOP COWLING ASS’Y SERIAL (M-162952 ML-435350) AND BELOW



MARINER DECALS

2
37-810933A90 DECAL, SIDE SET SERIAL (M-162953 ML-435351) AND ABOVE
37-11924M DECAL, SIDE SET SERIAL (M-136244 THRU 162952 ML-420839 THRU 435350)
37-98964M DECAL, SIDE SET SERIAL (M-136243 ML-420838) AND BELOW

3
NSS DECAL, FRONT (PART OF 37-810933A90) SERIAL (M-162953 ML-435351) AND ABOVE
37-11914M DECAL, FRONT SERIAL (M-162952 ML-435350) AND BELOW

OTHER DECALS

8 37-81202M DECAL, SHIFT

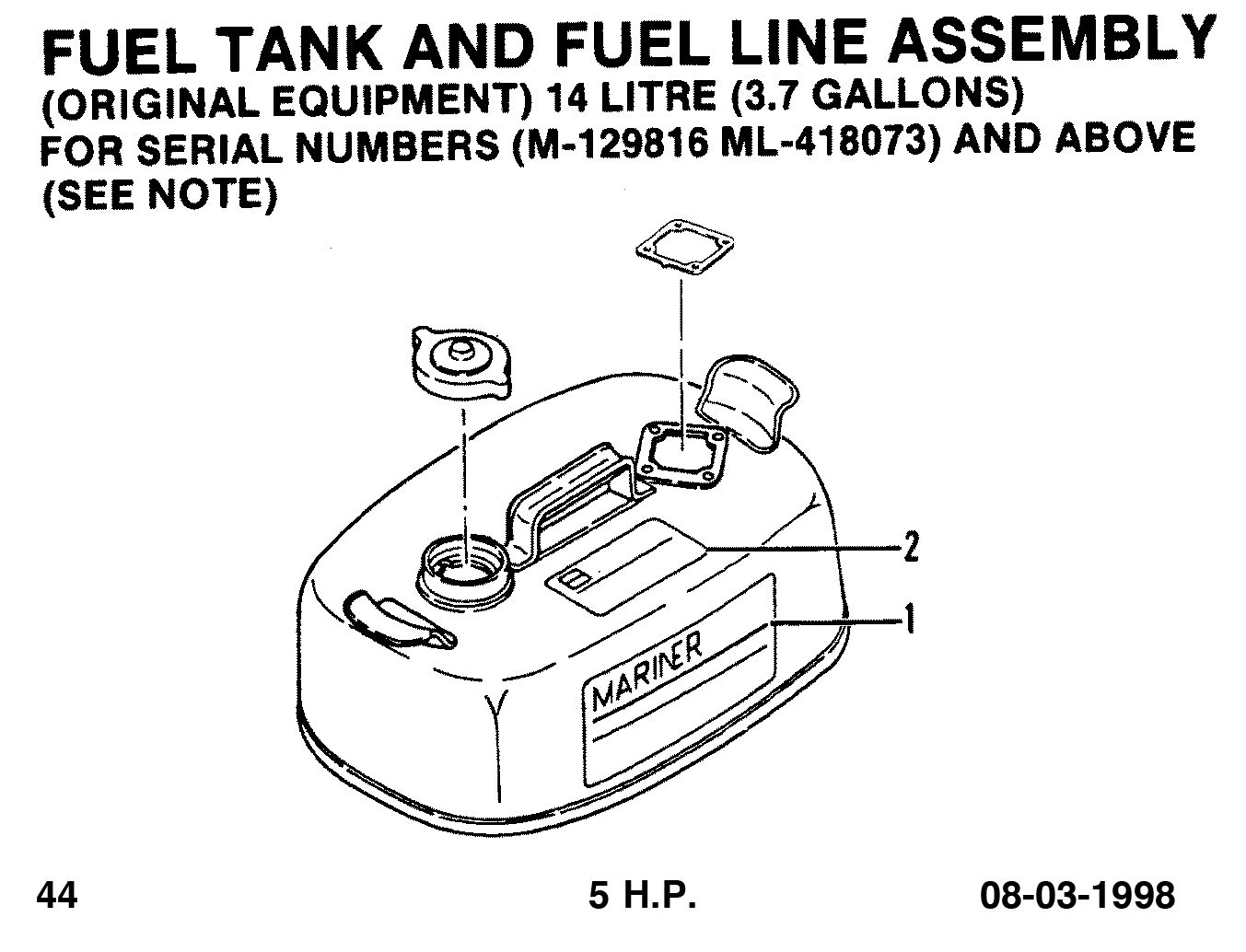

FUEL TANK AND FUEL LINE ASSEMBLY DIAGRAM 96387-46-P44


1
37-95539M DECAL, SIDE (ENGLISH)
37-95540M DECAL, SIDE (FRENCH)

2
37-95489M DECAL, TOP (ENGLISH)
37-95503M DECAL, TOP (FRENCH)

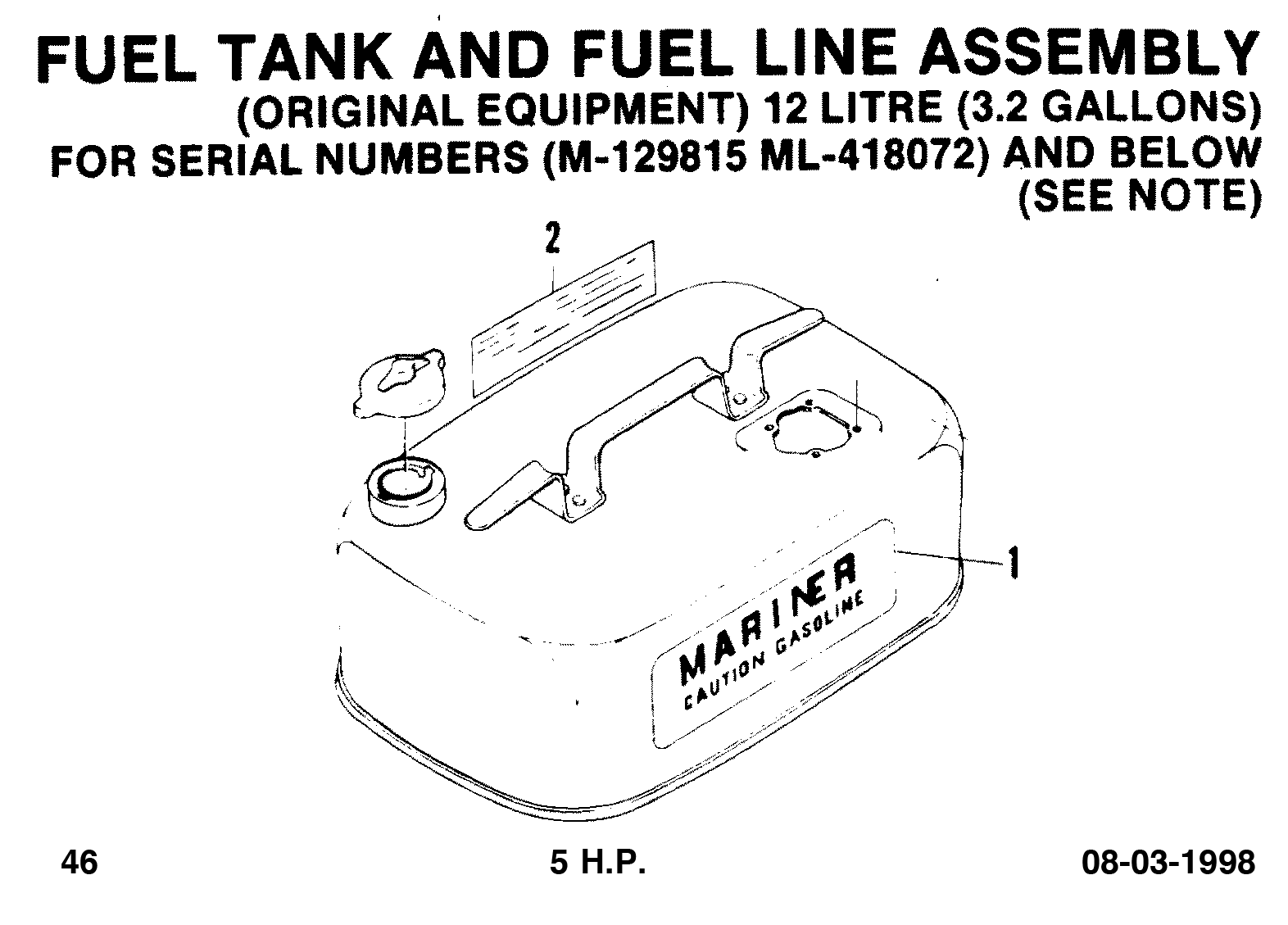

FUEL TANK AND FUEL LINE ASSEMBLY DIAGRAM 96387-48-P46

1
37-95488M DECAL, SIDE (MARINER) SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
37-83057M DECAL, SIDE (MARINER) SERIAL (M-006975 ML-304983) AND BELOW

2
37-95489M DECAL, SIDE (CAUTION) SERIAL (M-006976 THRU 129815 ML-304984 THRU 418072)
37-83765M DECAL, SIDE (CAUTION) SERIAL (M-006975 ML-304983) AND BELOW

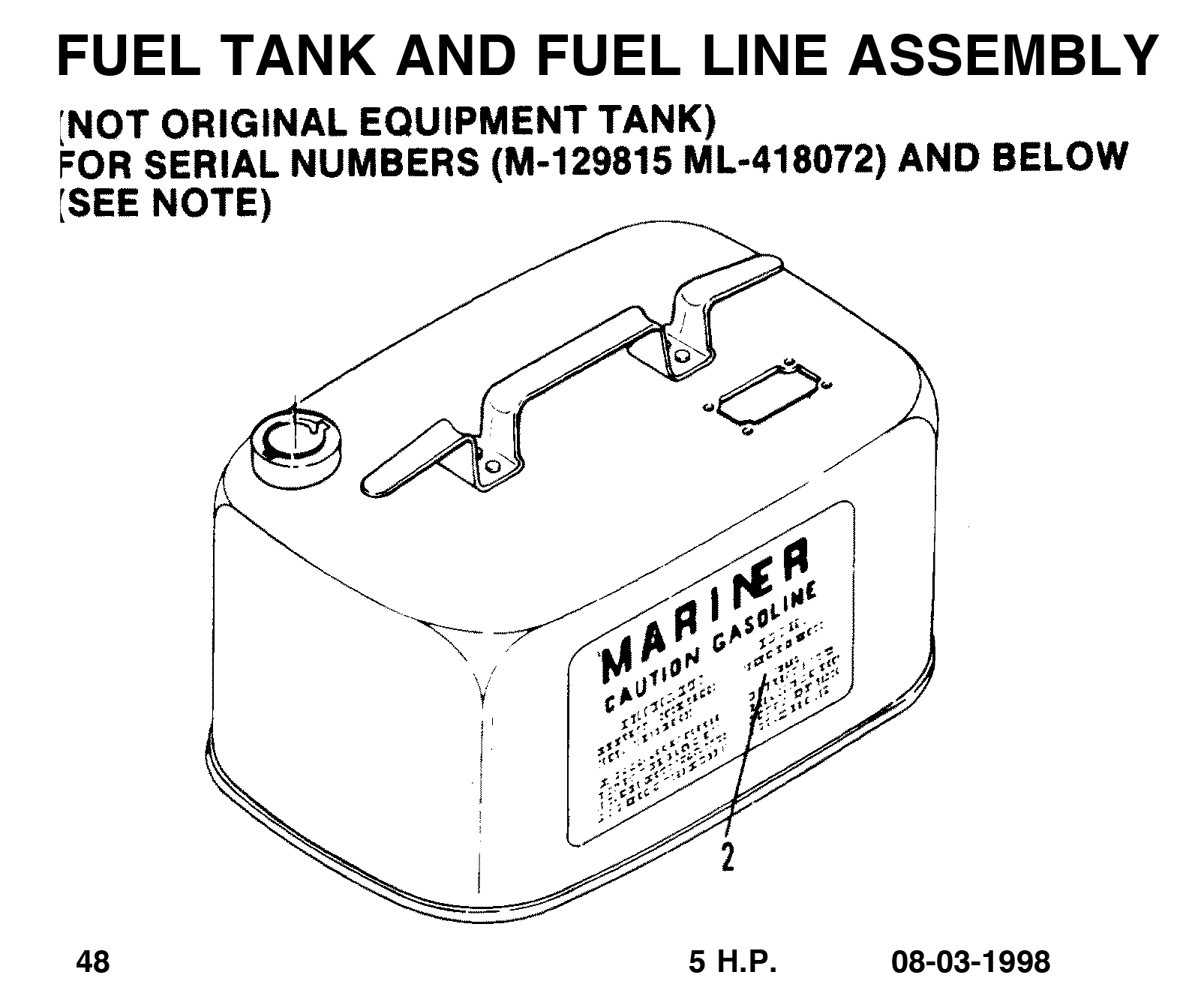

FUEL TANK AND FUEL LINE ASSEMBLY DIAGRAM 96387-50-P48

1) 1259-812410A1 FUEL TANK, COMPLETE
2) 37-13921 DECAL, FUEL TANK
3) 36-14223M FILLER CAP ASSEMBLY

30/40 EFI 4-STROKE (3 CYLINDER) - Cat.# 90-88394302

> Mercury Marine [Updated: Feb. 18, 2023] > Outboard > 4 Stroke > 30 HP EFI 3 CYL > [0T409000 THRU 1B226999] - USA - Cat.# 90-88394302
> Mercury Marine [Updated: Jan. 23, 2023] > Outboard > 4 Stroke > 30 HP EFI 3 CYL > [0P153500 THRU 0P400999] - Belgium - Cat.# 90-88394302
> Mercury Marine [Updated: May. 4, 2021] > Outboard > 4 Stroke > 40 HP EFI 3 CYL > [0T409000 THRU 1B226999] - USA - Cat.# 90-88394302
> Mercury Marine [Updated: Feb. 9, 2021] > Outboard > 4 Stroke > 40 EFI (3 CYL.)(4-STROKE) > [0T409000 THRU 1B226999] - USA - Cat.# 90-88394302
> Mercury Marine [Updated: Dec. 4, 2018] > Outboard > 4 Stroke > 30 EFI (3 CYL.)(4-STROKE) > [0T409000 THRU 1B226999] - USA - Cat.# 90-88394302
> Mercury Marine [Updated: Aug. 8, 2019] > Outboard > 4 Stroke > 40 EFI (3 CYL.)(4-STROKE) > [0T409000 THRU 1B226999] - USA - Cat.# 90-88394302

TOP COWL DIAGRAM 1747



834785T7 TOP COWL ASSEMBLY (BLACK)
+ 834785T22 TOP COWL ASSEMBLY (ELECTRIC - BLACK)

834785T8 TOP COWL ASSEMBLY (SILVER)

834785T22, 834785T7, 834785T8
834785T22 834785T7 834785T8


MERCURY DECALS

883530A02 DECAL SET (MERC 30)(2002 thru 2004)
883530A05 DECAL SET (MERC 30)(2005)
+ 8M0099557 DECAL SET-MERCURY

MERCURY/TRACKER DECALS

883524A02 DECAL SET (MERC 40)(TRACKER40)(2002 thru 2004)
883524A05 DECAL SET (MERC 40)(TRACKER 40)(2005)
+ 8M0099557 DECAL SET-MERCURY

MARINER DECALS

883531A02 DECAL SET (MARINER 30)(2002)
883531A03 DECAL SET (MARINER 30)(2003 and Up)

883532A02 DECAL SET (MARINER 40)(2002)
883532A03 DECAL SET (MARINER 40)(2003 and Up)


OTHER DECALS

883927A02 DECAL EPA Label Information (2002)
883927A03 DECAL EPA Label Information (2003)
883927A04 DECAL EPA Label Information (2004)
883927A05 DECAL EPA Label Information (2005)

Serial Number: 0T940952 - Model: 1A30412CD - Model Version: ELPT
2004 MERCURY 4 STROKE EFI 30EFI ELPT 4
Serial Number: 0T900874 - Model: N/A - Model Version:ELPT 4
2004 MERCURY 4 STROKE EFI 40EFI ELPT 4
Serial Number: 0T731362 - Model: 1A40411AD - Model Version: ELHPT 4
2003 MERCURY 4 STROKE EFI 747CC 40EFI ELHPT 4
Serial Number: 0T940285 - Model: 1A40412CC - Model Version: ELPT 4
2004 MERCURY 4 STROKE EFI BOSTON WHALER 40EFI ELPT 4
Serial Number: 0P244959 - Model: 1A40412CC - Model Version: 30PT4S
2003 MERCURY 4 STROKE EFI 30PT4S - BELGIUM MODEL

SN 0P244959
2003
30PT4S
6000 MAX RPM
HP 30,0 KW 22,4
LB 21,3 KG 96
MARINE POWER EUROPE, INC.
4800 VERVIERS
MEDE IN BELGIUM
CE [03]
Serial Number: 1B112492 - Model: 1A30412DD - Model Version: ELPT 4
2005 MERCURY 4 STROKE EFI 30EFI ELPT 4

75/90 (4-STROKE) - Cat.# 90-80485100

> Mercury Marine [Updated: Mar. 23, 2023] > Outboard > 4 Stroke > 75 HP Carb > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100
> Mercury Marine [Updated: Nov. 16, 2022] > Outboard > 4 Stroke > 90 HP Carb > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100
> Mercury Marine [Updated: Mar. 25, 2019] > Outboard > 4 Stroke > 90 (4-STROKE) > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100
> Mercury Marine [Updated: Apr. 18, 2018] > Outboard > 4 Stroke > 90 (4-STROKE) > [0G960500 THRU 0T800999] - USA - Cat.# 90-80485100

75/90 (4-STROKE) - Cat.# 90-80485100

TOP COWL DIAGRAM 2075



827328T9 TOP COWL ASSEMBLY (BLACK)
827328T10 TOP COWL ASSEMBLY (SILVER)

827328T9, 827328T10
827328T9 827328T10

MERCURY DECALS

804855A00 DECAL SET (Mercury 75)(2000 and Up)(Tracker 2002 and Up)
804857A00 DECAL SET (Mercury 90)(Long)(2002 and Up)(Tracker 2002 and Up)
881841A01 DECAL SET (Mercury 90)(XLong)( Saltwater)(2001/2002)
881841A03 DECAL SET (Mercury 90 Saltwater)

MARINER DECALS

804856A00 DECAL SET (Mariner 75)(2000)
804856A01 DECAL SET (Mariner 75)(2001/2002)
804856A03 DECAL SET (Mariner 75)(2003)
804858A01 DECAL SET (Mariner 90)(2000 thru 2002)
804858A03 DECAL SET (Mariner 90)(2003)

TRACKER DECALS

804859A00 DECAL SET (Tracker 75)(2000/2001)
804860A00 DECAL SET (Tracker 90)(2000/2001)

OTHER DECALS

827887 DECAL Unleaded Fuel - Bodensee

804656A00 DECAL EPA Label Information (2000)
804656A01 DECAL EPA Label Information (2001)
804656A02 DECAL EPA Label Information (2002)
804656A03 DECAL EPA Label Information (2003)

Read more: 75/90 (4-STROKE) - Cat.# 90-80485100

More Articles …

  1. 400/350 2.6L L6 VERADO 4S - PRO - 400R 2.6L L6 RACING - Cat.# 90-8M010372
  2. MARINER 3.5 HP 2 Stroke carb - ARCHIVE CAT 822366
  3. 150 PROXS (2.5L) 2 Stroke DFI (OptiMax) - Cat.# 90-8M0047641
  4. 135/150 H.P (V-6) - Cat.# 90-13752

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
