1998 EVINRUDE 150 BE150ELECD

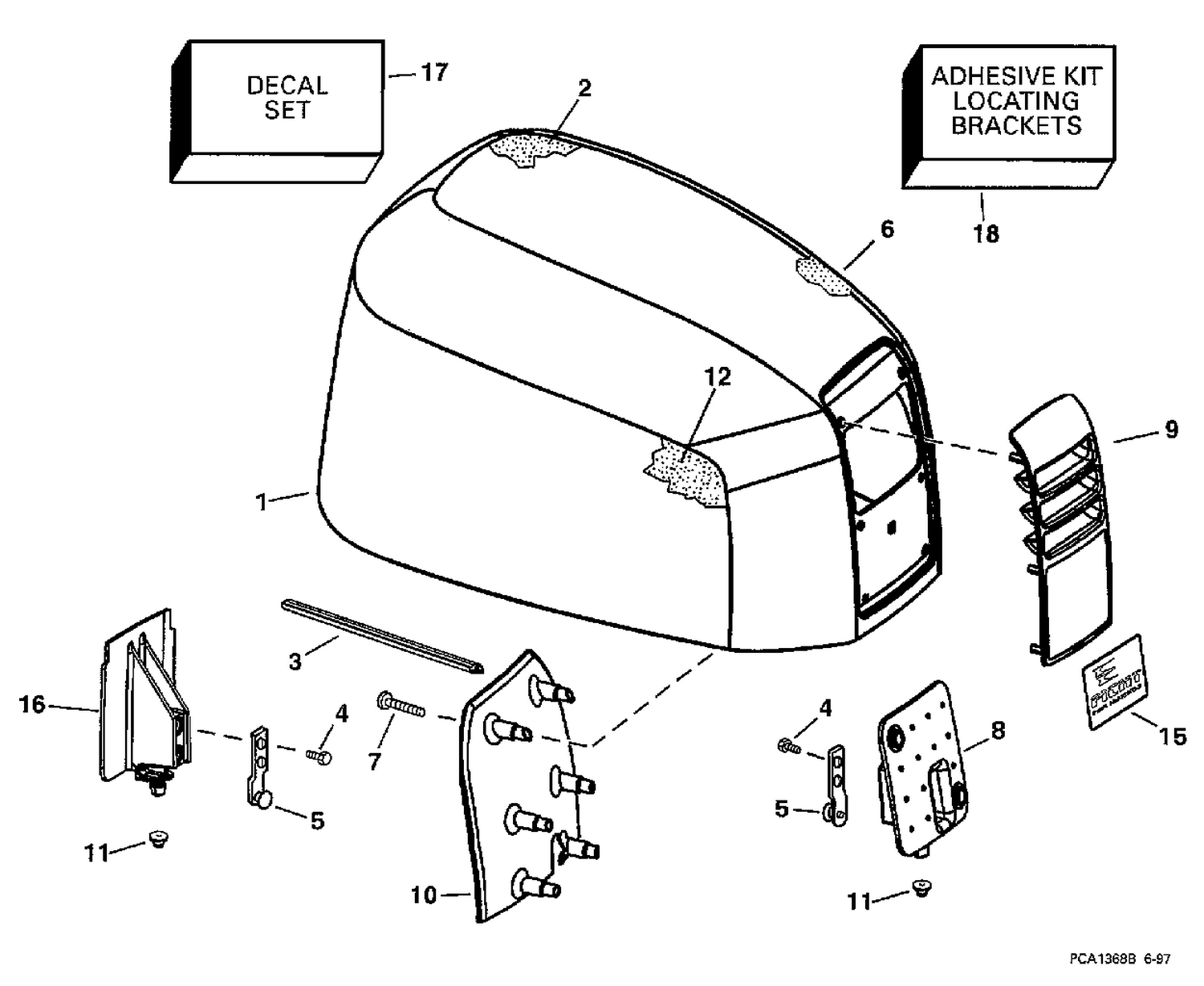

Evinrude/Johnson   1998 ENGINE COVER -- EVINRUDE Diagram

Ref:
1
0285016 ENGINE COVER ASSY.
0284440 ENGINE COVER ASSY.
0285019 ENGINE COVER ASSY.
0285017 ENGINE COVER ASSY.
0285018 ENGINE COVER ASSY.
0284441 ENGINE COVER ASSY.
0284954 ENGINE COVER ASSY.
0284856 ENGINE COVER ASSY.
0284955 ENGINE COVER ASSY.
0285102 ENGINE COVER ASSY.

0285016, 0284440, 0285019, 0285017, 0285018, 0284441, 0284954, 0284856, 0284955, 0285102,
0285016 0284440 0285019 0285017 0285018 0284441 0284954 0284856 0284955 0285102



19
0285063 DECAL SET
0284536 DECAL SET
0285065 DECAL SET
0285063 DECAL SET
0285064 DECAL SET
0284537 DECAL SET
0284964 DECAL SET
0284865 DECAL SET
0284965 DECAL SET
0284966 DECAL SET

Evinrude/Johnson 200/225 - E200TXEOC 1995  EVINRUDE





ENGINE COVER - EVINRUDE - 200STL, 225STL

0284760 ENGINE COVER ASSY., 200
0284761 ENGINE COVER ASSY., 225

0284760, 0284761, 0284442, 0284443, 0568528, 0435966, 0435967, 0568527, 0437293, 0437294,
0284760 0284761 0284442 0284443 0568528 0435966 0435967 0568527 0437293 0437294



EVINRUDE DECALS

11) 0212470 APPLIQUE, Front, V6
12) 0212478 APPLIQUE, Ev., port & stbd This part replaces 0212477.
18) 0212478 APPLIQUE, Ev., port & stbd
20) 0212479 LENS, Ev., port & stbd.
24) 0212468 LENS, 200 Rear
24) 0212469 LENS, 225 Rear
25) 0284889 DECAL SET, 200
25) 0284891 DECAL SET, 225

ENGINE COVER - EVINRUDE - 200TX, 200SL, 200CX, 225


0284442 ENGINE COVER ASSY., 200 White - Ocean Pro Styling
0284443 ENGINE COVER ASSY., 225 White - Ocean Pro Styling
0568528 ENGINE COVER ASSY., 200LE Blue - Limited Edition Styling

0284760, 0284761, 0284442, 0284443, 0568528, 0435966, 0435967, 0568527, 0437293, 0437294,
0284760 0284761 0284442 0284443 0568528 0435966 0435967 0568527 0437293 0437294

EVINRUDE DECALS (Ocean Pro)

19) 0284545 DECAL SET, 200
19) 0284546 DECAL SET, 225
19) 0284892 DECAL SET, 200SL
21) 0211076 DECAL, Counter rotation



ENGINE COVER - JOHNSON - 200STL, 225STL


0437293 ENGINE COVER ASSY., 200
0437294 ENGINE COVER ASSY., 225



JOHNSON DECALS

20) 0340311 APPLIQUE, Front, V6
21) 0340565 APPLIQUE, 200 Rear
21) 0340566 APPLIQUE, 225 Rear
22) 0340301 APPLIQUE, Johnson  This part replaces 0341310.
23) 0437893 DECAL SET, 200
23) 0437915 DECAL SET, 225




ENGINE COVER - JOHNSON - 200TX, 200SL, 200CX, 225

0435966 ENGINE COVER ASSY., 200
0435967 ENGINE COVER ASSY., 225
0568527 ENGINE COVER ASSY., 200LE



JOHNSON DECALS ( Ocean Runner )

20) 0436348 DECAL SET, 200
20) 0436349 DECAL SET, 225
20) 0437916 DECAL SET, 200SL
22) 0211076 DECAL, Counter rotation

2014 EVINRUDE AB Models 175 - (60° V6, 2.6 L) E175DPXABH

EVINRUDE AB Models 175 - (60° V6, 2.6 L) E175DPXABH



01-2_ENGINE COVER Diagram

0285819 ENGINE COVER | Blue Models, Standard Styling
0285821 ENGINE COVER | Blue Models, H.O. Styling
0285820 ENGINE COVER | White Models, Standard Styling
0285822 ENGINE COVER | White Models, H.O. Styling
0285849 ENGINE COVER | Graphite Models, H.O. Styling
0285863 ENGINE COVER | Graphite Models
1) 0351799 *CAP | Blue Models
1) 0351800 *CAP | White Models
1) 0354404 *CAP | Graphite Models



Diagram EPC4645

01-1_DECALS Diagram EPC4645

1) 0216438 EVINRUDE E-TEC - Port & Starboard | Blue Models
2) 0216371 DECAL, Stripe - Port | Blue Models
3) 0216369 DECAL, Stripe - Starboard | Blue Models
8) 0216433 EVINRUDE 150 HP - Blue (front)
14) 0216431 EVINRUDE 150 HP - Blue (rear)

10) 0216470 EVINRUDE 175 HP - Blue (front)
16) 0216444 EVINRUDE 175 HP - Blue (rear)

11) 0216434 EVINRUDE 200 HP - Blue (front)
17) 0216422 EVINRUDE 200 HP - Blue (rear)

4) 0216413 DECAL, Stripe HO - Port | Blue Models
5) 0216414 DECAL, Stripe HO - Starboard | Blue Models
7) 0216442 EVINRUDE 135 HO HP - Blue (front)
13) 0216429 EVINRUDE 135 HO HP - Blue (rear)

9) 0216471 EVINRUDE 150 HO HP - Blue (front)
15) 0216441 EVINRUDE 150 HO HP - Blue (rear)
1) 0216443 EVINRUDE E-TEC - Port & Starboard | White Models
2) 0216417 DECAL, Stripe - Port | White Models
3) 0216412 DECAL, Stripe - Starboard | White Models

8) 0216435 EVINRUDE 150 HP - White (front)
14) 0216432 EVINRUDE 150 HP - White (rear)

10) 0216436 EVINRUDE 175 HP - White (front)
16) 0216439 EVINRUDE 175 HP - White (rear)

11) 0216377 EVINRUDE 200 HP - White (front)
17) 0216437 EVINRUDE 200 HP - White (rear)

4) 0216445 DECAL, Stripe HO - Port | White Models
5) 0216446 DECAL, Stripe HO - Starboard | White Models

7) 0216447 EVINRUDE 135 HO HP - White (front)
13) 0216430 EVINRUDE 135 HO HP - White (rear)
9) 0216472 EVINRUDE 150 HO HP - White (front)
15) 0216440 EVINRUDE 150 HO HP - White (rear)
1) 0216518 EVINRUDE E-TEC - Port & Starboard | Graphite H.O. Models only

1) 0216698 EVINRUDE E-TEC - Port & Starboard | Graphite Models
2) 0216687 DECAL, Stripe - Port | Graphite Models
3) 0216688 DECAL, Stripe - Starboard | Graphite Models
8) 0216689 EVINRUDE 150 HP - Graphite (front)
14) 0216690 EVINRUDE 150 HP - Graphite (rear)
10) 0216691 EVINRUDE 175 HP - Graphite (front)
16) 0216692 EVINRUDE 175 HP - Graphite (rear)
11) 0216693 EVINRUDE 200 HP - Graphite (front)
17) 0216694 EVINRUDE 200 HP - Graphite (rear)

4) 0216563 DECAL, Stripe HO - Port | Graphite Models
5) 0216564 DECAL, Stripe HO - Starboard | Graphite Models
6) 0216799 Evinrude 105 Jet - Graphite (front)
12) 0216800 Evinrude 105 Jet - Graphite (rear)
7) 0216695 EVINRUDE 135 HO HP - Graphite (front)
13) 0216696 EVINRUDE 135 HO HP - Graphite (rear)
9) 0216560 EVINRUDE 150 HO HP - Graphite (front)
15) 0216561 EVINRUDE 150 HO HP - Graphite (rear)

18) 0217004 *LENS, Logo 68 mm | Included with Engine Cover Assembly This part replaces 0352505.
19) 0355633 DECAL, Owner Attention
20) 0216969 EU, RCD II Compliant – Lower This part replaces 0215558.
21) 0215774 3 Star | See Administrative Bulletin 2004-02(A) for order requirements
22) 0215896 APPROVED FOR SALTWATER
23) 0216515 DECAL, "Pontoon Series" | E150SNL only
