1970 Johnson 6 HP

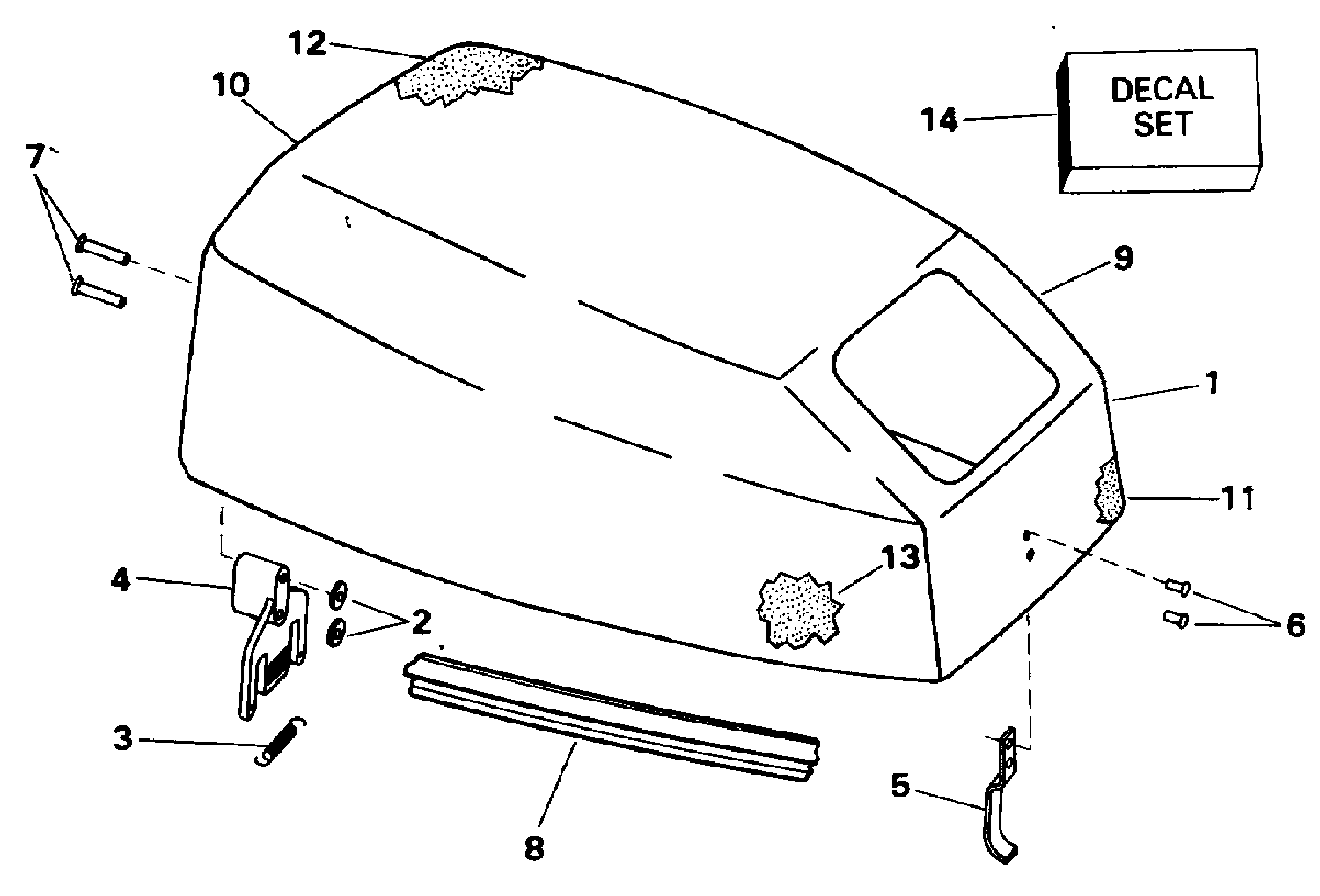

MOTOR COVER DIAGRAM: 384394-02
1) 0383881 MOTOR COVER ASSY. COMPLETE
0383881, 383881
0383881 383881
384422 0384422 DECAL SET
This DECAL SET fits the following models:
MOTOR COVER - JOHNSON/EVINRUDE & INTEGRAL FUEL TANK
Diagram PCA0313G 438185-02A
1 0115350 MOTOR COVER, Lower, stbd., Jo.. White
2 0115351 MOTOR COVER, Lower, port, Jo.. White
3 0115352 MOTOR COVER, Jo.. White Models with "E" or "A" Suffix
3 0115061 MOTOR COVER, Jo.. White Models with "F" or "--2" Suffix
4 0115353 MOTOR COVER, Rear, Jo.. White
5 0115354 MOTOR COVER PANEL, Jo.. White
1 0115026 MOTOR COVER, Lower, stbd., Jo.. Smoke
2 0115027 MOTOR COVER, Lower, port, Jo.. Smoke
3 0115028 MOTOR COVER, Jo.. Smoke Models with "E" or "A" Suffix
3 0115063 MOTOR COVER, Jo.. Smoke Models with "F" or "--2" Suffix
4 0115029 MOTOR COVER, Rear, Jo.. Smoke
5 0115030 MOTOR COVER PANEL, Jo.. Smoke
1 0115619 MOTOR COVER, Lower, stbd., Ev.. Blue
2 0115620 MOTOR COVER, Lower, port, Ev.. Blue
3 0115621 MOTOR COVER, Ev.. Blue Models with "E" or "A" Suffix
3 0115062 MOTOR COVER, Ev.. Blue Models with "F" or "--2" Suffix
4 0115622 MOTOR COVER, Rear, Ev.. Blue
5 0115623 MOTOR COVER PANEL, Ev.. Blue
0115350, 0115351, 0115352, 0115061, 0115353, 0115354,
0115026, 0115027, 0115028, 0115063, 0115029, 0115030,
0115619, 0115620, 0115621, 0115062, 0115622, 0115623
0115350 0115351 0115352 0115061 0115353 0115354
0115026 0115027 0115028 0115063 0115029 0115030
0115619 0115620 0115621 0115062 0115622 0115623
32 0114892 DECAL SET, Jo., 2.0. White
32 0114894 DECAL SET, Jo., 2.3. White
32 0114896 DECAL SET, Jo., 3.3. White
32 0115058 DECAL SET, Jo., 2.0. Smoke *
32 0115059 DECAL SET, Jo., 2.3. Smoke
32 0115060 DECAL SET, Jo., 3.3. Smoke
32 0115055 DECAL SET, Ev., 2.0. Blue
32 0115056 DECAL SET, Ev., 2.3. Blue
32 0115057 DECAL SET, Ev., 3.3. Blue
01-2_ENGINE COVER Diagram EPC4161
Includes all decals, except "HP" Decal
0285819 ENGINE COVER. Blue Models, Standard Styling.
0285821 ENGINE COVER. Blue Models, H.O. Styling.
0285820 ENGINE COVER. White Models, Standard Styling.
0285822 ENGINE COVER. White Models, H.O. Styling.
0285849 ENGINE COVER. Graphite Models, H.O. Styling.
0285863 ENGINE COVER. Graphite Models.
Decals Diagram EPC4645
1 0216438 EVINRUDE E-TEC - Port & Starboard. Blue Models. 2 Submit
2 0216371 DECAL, Stripe - Port. Blue Models.
3 0216369 DECAL, Stripe - Starboard. Blue Models
8 0216433 "EVINRUDE 150" HP - Blue (front)
14 0216431 "EVINRUDE 150" HP - Blue (rear)
10 0216470 "EVINRUDE 175" HP - Blue (front)
16 0216444 "EVINRUDE 175" HP - Blue (rear)
11 0216434 "EVINRUDE 200" HP - Blue (front)
17 0216422 "EVINRUDE 200" HP - Blue (rear)
4 0216413 DECAL, Stripe HO - Port. Blue Models
5 0216414 DECAL, Stripe HO - Starboard. Blue Models
7 0216442 "EVINRUDE 135 HO" HP - Blue (front)
13 0216429 "EVINRUDE 135 HO" HP - Blue (rear)
9 0216471 "EVINRUDE 150 HO" HP - Blue (front)
15 0216441 "EVINRUDE 150 HO" HP - Blue (rear)
1 0216443 EVINRUDE E-TEC - Port & Starboard. White Models. 2 Submit
2 0216417 DECAL, Stripe - Port. White Models.
3 0216412 DECAL, Stripe - Starboard. White Models
8 0216435 "EVINRUDE 150" HP - White (front)
14 0216432 "EVINRUDE 150" HP - White (rear)
10 0216436 "EVINRUDE 175" HP - White (front)
16 0216439 "EVINRUDE 175" HP - White (rear)
11 0216377 "EVINRUDE 200" HP - White (front)
17 0216437 "EVINRUDE 200" HP - White (rear)
4 0216445 DECAL, Stripe HO - Port. White Models
5 0216446 DECAL, Stripe HO - Starboard. White Models
7 0216447 "EVINRUDE 135 HO" HP - White (front)
13 0216430 "EVINRUDE 135 HO" HP - White (rear)
9 0216472 "EVINRUDE 150 HO" HP - White (front)
15 0216440 "EVINRUDE 150 HO" HP - White (rear)
1 0216518 EVINRUDE E-TEC - Port & Starboard H.O.. Graphite H.O. Models only. 2 Submit
1 0216698 EVINRUDE E-TEC - Port & Starboard. Graphite Models. 2 Submit
2 0216687 DECAL, Stripe - Port. Graphite Models.
3 0216688 DECAL, Stripe - Starboard. Graphite Models
6 0216799 "Evinrude 105 Jet" - Graphite (front)
12 0216800 "Evinrude 105 Jet" - Graphite (rear)
8 0216689 "EVINRUDE 150" HP - Graphite (front)
14 0216690 "EVINRUDE 150" HP - Graphite (rear)
10 0216691 "EVINRUDE 175" HP - Graphite (front)
16 0216692 "EVINRUDE 175" HP - Graphite (rear)
11 0216693 "EVINRUDE 200" HP - Graphite (front)
17 0216694 "EVINRUDE 200" HP - Graphite (rear)
4 0216563 DECAL, Stripe HO - Port. Graphite Models
5 0216564 DECAL, Stripe HO - Starboard. Graphite Models.
7 0216695 "EVINRUDE 135 HO" HP - Graphite (front)
13 0216696 "EVINRUDE 135 HO" HP - Graphite (rear)
9 0216560 "EVINRUDE 150 HO" HP - Graphite (front)
15 0216561 "EVINRUDE 150 HO" HP - Graphite (rear)
18 0352505 BRP LOGO. 2 Submit
19 0355633 DECAL, Owner Attention
20 0215558 EVINRUDE "EU" 2006
21 0215774 DECAL, Calif - 3 Star. See Administrative Bulletin 2004-02(A) for order requirements
22 0215896 "APPROVED FOR SALTWATER"
23 0216515 DECAL, "Pontoon Series". E150SNL only
1984 Evinrude - 150 TL/TX models
E150TLCRD 1984
E150TXCRD 1984
ENGINE COVER - EVINRUDE Diagram 394681-04
0282197 ENGINE COVER ASSY., 150
0282198 ENGINE COVER ASSY., 185
0282200 ENGINE COVER ASSY., 235
EVINRUDE DECALS
0292249 DECAL SET
23 0209859 APPLIQUE, Engine cover, rear, 150
23 0210032 APPLIQUE, Engine cover, rear, 185
23 0209863 APPLIQUE, Engine cover, rear, 235
0209857 PLATE, Applique, front
ENGINE COVER - JOHNSON Diagram 394681-06
1 0393700 ENGINE COVER ASSY., 150
1 0394390 ENGINE COVER ASSY., 185
1 0393703 ENGINE COVER ASSY., 235
JOHNSON DECALS
0393974 DECAL SET
0330233 PLATE, Applique front
23 0328943 PLATE, Applique, rear 150
23 0329715 PLATE, Applique, rear 185
23 0328946 PLATE. Applique, rear 235
E150STLCRD 1984
E150ANCRS 1984
ENGINE COVER - EVINRUDE Diagram 395067-04
0282459 ENGINE COVER ASSY., 150
0282316 ENGINE COVER ASSY., 2.6
21 0210034 PLATE, Applique, front, 150
21 0210034 PLATE, Applique, front, 2.6
8 0210161 PLATE, Outer applique, 150
8 0210045 PLATE, Outer applique, 2.6
ENGINE COVER - 150 ANNIVERSARY Diagram 395067-07
0282567 ENGINE COVER ASSY., 150ANCRS7
0210264 APPLIQUE, Port & starboard [ EVINRUDE ]
12 0210267 APPLIQUE, Rear --- [ V6 ]
13 0210259 APLIQUE, Front-----[ E ]
ENGINE COVER - JOHNSON Diagram 395067-08
0394964 ENGINE COVER ASSY., 150
0394406 ENGINE COVER ASSY., 2.6
21 0329724 PLATE, Applique front
27 0329153 PLATE, Outer, 150
27 0329726 PLATE, Outer, 2.6
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
NOTE:After completing installation, place these instructions with the product for the owner's future use.
IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.
Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
time for out gassing.
Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.
IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
surface cleaning preparation.
1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
2. Rinse cowl with clean water.
3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
4. Avoid detergents or preparations that contain waxes, oils, or lotions.
1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
isopropyl alcohol and water solution.
5. Ensure the surface has no contamination and is completely dry.
6. Start to apply the decals immediately after solvent cleaning.
1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.
90-8M0143239 eng MARCH 2018 © 2018 Mercury Marine - Page 1 / 16
