Sea-Doo Boats 2000 Challenger 2000, 5694/5695

Sea-Doo Boats 2000 Challenger 2000, 5694/5695

Diagram 29Jm2005

Sea-Doo Challenger 2000 Decals

1 204900598 <> Logo (2 Decals)
2 204900578 LH <> Logo
3 204900577 R.H. <> Logo
4 204900572 R.H. Front Decal
5 204900571 LH Front Decal
6 204900575 R.H. Deck Decal
7 204900574 LH Deck Decal
8 204900584 <> Logo
9 204900543 <> Decal. CHALLENGER 2000 (5694).
9 204900581 <> Decal. CHALLENGER 2000 (5695).
10 204900587 Outline Decal
11 204900592 Console Decal
12 204900595 Windscreen Decal (2 Decals)
13 204900134 Windscreen Support Decal (2 Decals)
14 204900243 Low Speed Control Decal
15 204900597 Bombardier Decal (2 Decals)
16 204900626 <> Logo
17 219901180 <> Logo
18 204900435 <> Logo
19 204900136 Shifter Decal
20 204900138 Shift Pointer
21 204900721 Capacity Label
22 204900462 Power Capacity Label. CHALLENGER 2000 (5695).
22 204900506 Power Capacity Label. CHALLENGER 2000 (5694).
23 204900423 Navigation Warning Label
24 204900226 Warning Label (Ladder)
25 204900224 Fuel Label
26 204900162 Warning Label (Gas Blower)
27 204900465 Warning Label (Bow Seat)
28 204900225 Battery Warning Label
29 204900359 Extinguish Decal
30 204900579 LH Hull Decal
31 204900580 R.H. Hull Decal
32 204900313 AWSA Decal
33 204900464 NMMA Decal
34 204900422 Warning Decal (Oil)





  • Category: Boats
  • Hits: 1049

Boston Whaler Boats - Decals - Stripes - logos - Labels

Other Models found

1998 - 130 GLS - 40th Anniversay Edition Assembly
here says it will be a Red 18 inches long logo

13' 40TH ANNIVERSARY EDITION


63) 0997999 1 DECAL. LOGO 18" FIRE RED
64) 1020064 1 PLATE NMMA 97-BW134SPORT



1998 - 130 GLS - Assembly
13' GLS



37) 0997999 2 DECAL, BW LOGO 18" FIRE RED
38) 0998559 1 DECAL, HARPOON PORT SIDE - FIRE RED
39) 0998609 1 DECAL, HARPOON STARBOARD FIRE RED
40) 1038009 1 TAPE SOLID 1' W/ PIN STRIPE
41) 0998401 3 DECAL FIRE RED EXP VINYL

80) 1020064 1 PLATE NMMA 97

1998 - 130 GLS - Base Assembly
13'BASE / BAREHULL



31)
0997999 DECAL, BW LOGO 18" FIRE RED
0998047 DECAL, BW LOGO 18" CORBIN DARK BLUE
0998054 DECAL, BW LOGO 18" DARK GREEN

32)
1038009 22' TAPE, SOLID 1" FIRE RED W/PIN
1037985 22' TAPE, SOLID 1" CORBIN DARK BLUE W/PIN
1037993 22' TAPE, SOLID 1" DARK GREEN W/PIN

1999 - 130 GLS - Assembly and Options
1999 - 130 GLS - Assembly and Options Parts List

2000 - 130 GLS - Assembly and Optional Equipment
2000 - 130 GLS - Assembly and Optional Equipment Parts List



Read more: Boston Whaler Boats - Decals - Stripes - logos - Labels

  • Category: Boats
  • Hits: 355

1995 Bayliner Trophy - 1802 FJ 1995

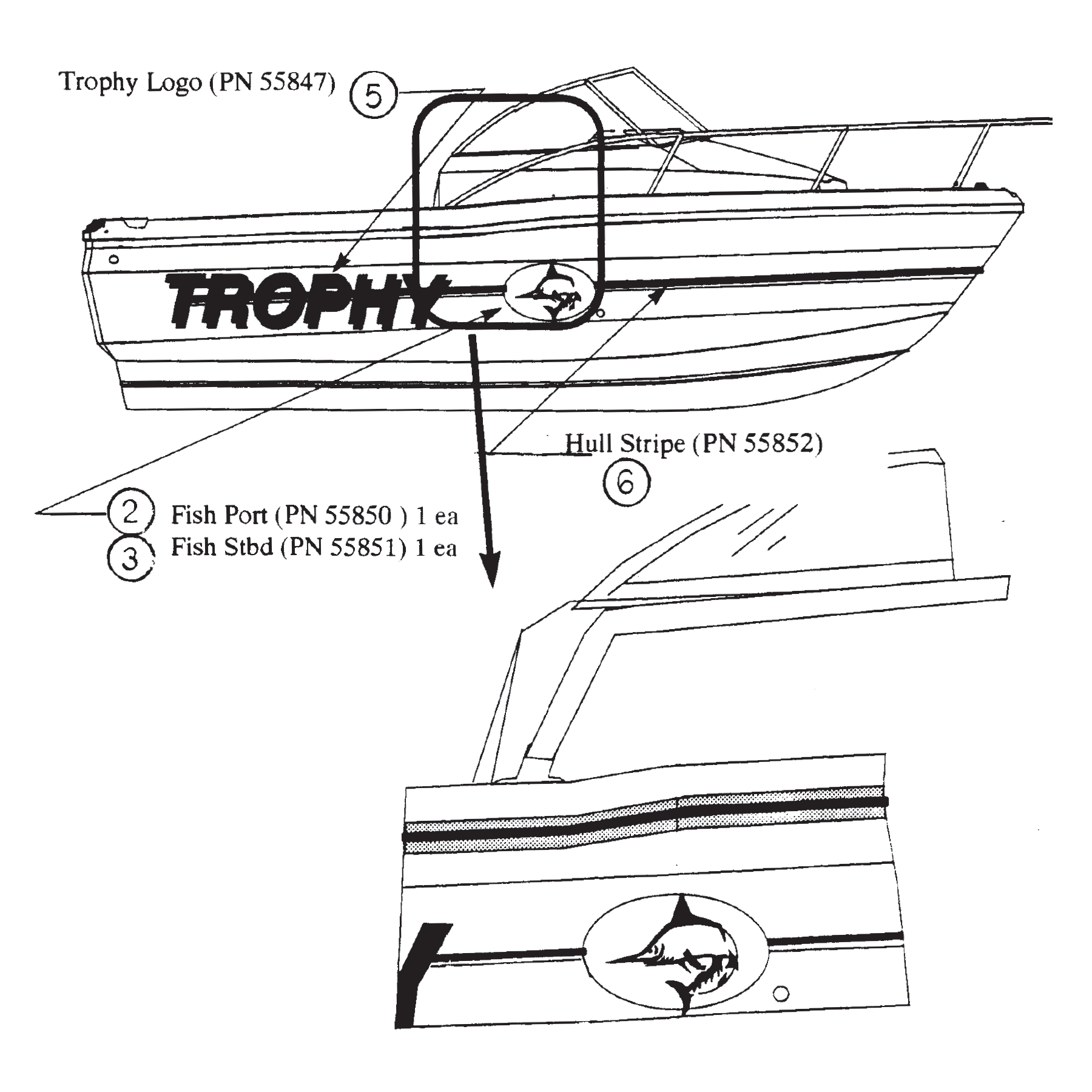

TAPES AND LABELS SECTION 8 Diagram P11

HULL INT LABELS
3885-A BATT INSTALLATION/COMPL LABEL EA 1
48034 USM SUBASSY QUALITY DECAL EA 1

HULL EXT TAPES & LABELS

1)  32220 FUEL WARNING LABEL EA 1
2)  58446 PORT FISH LOGO EA 1
3)  58445 STBD FISH LOGO EA 1
4)  55662 LABEL,USM THANKS/5YEAR/NMMA CLEAR EA 1
5)  58447 TROPHY LOGO EA 2
6)  55852 HULL/DECK TAPE FT 50

DECK TAPES & LABELS

7)  6336 LABEL SEQUT. LIFT HULL EA 2
8)  58448 BAYLINER LOGO EA 2
*) 57994 CAPACITY LABEL 150HP EA 1
9) 58444 HULL/DECK TAPE FT 25
*)  54634 LABEL,WARNING SIDE PANEL EA 1
*)  57702 CONSOLE TRIM TAPE 1/4" BLK FT 16

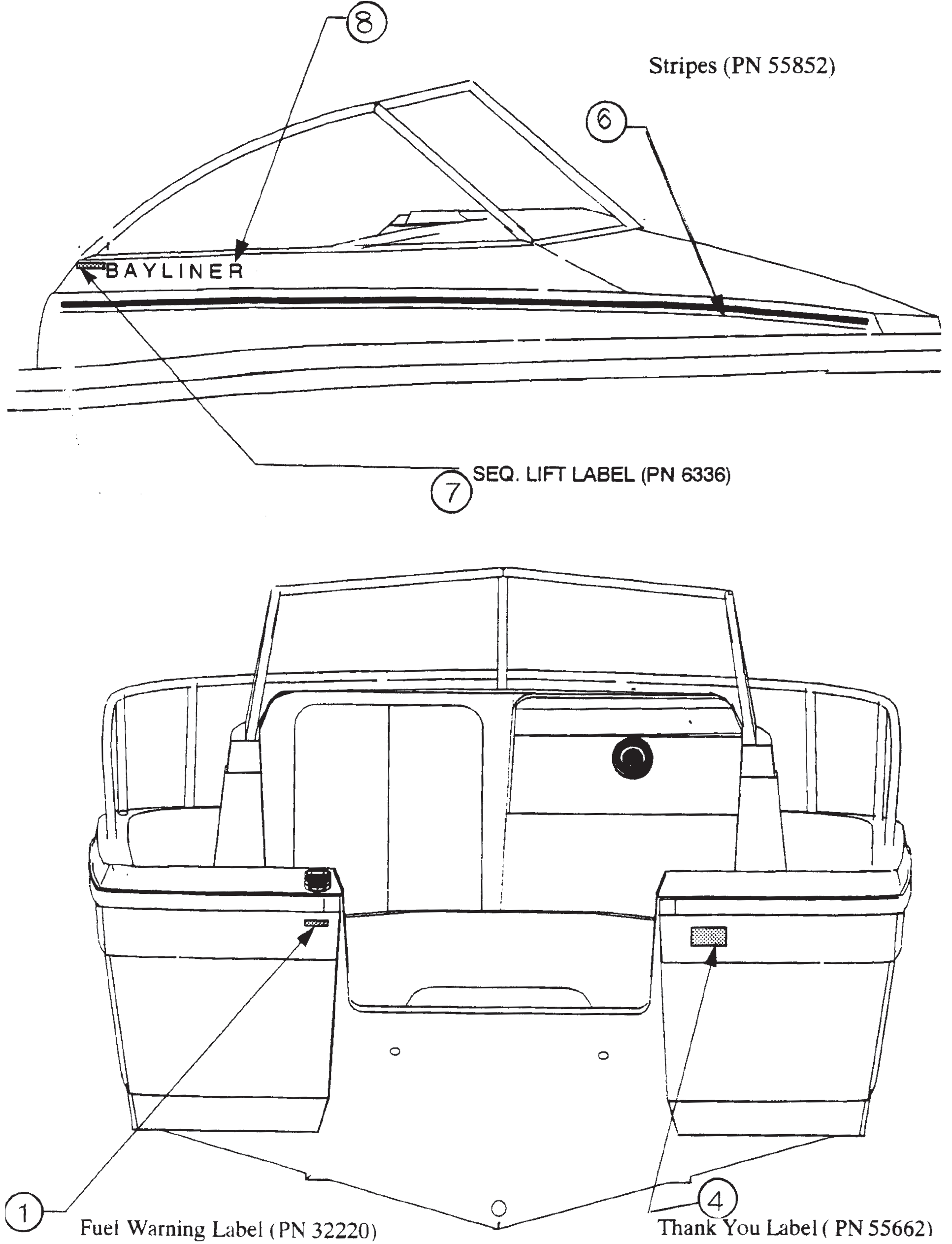

TAPES AND LABELS SECTION 8 Diagram P12

*NOT SHOWN
