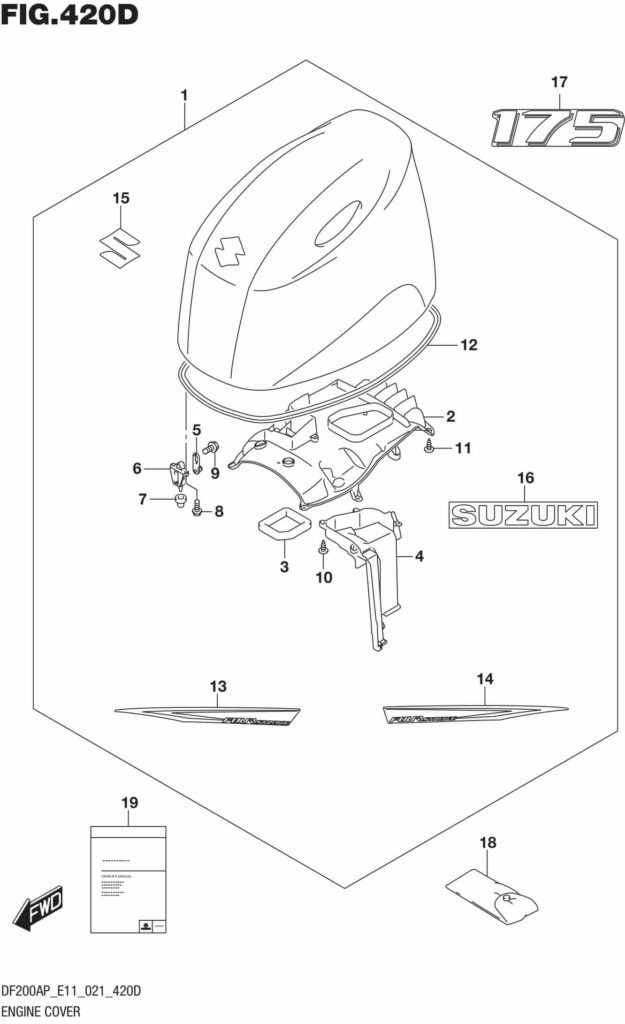

Diagram Engine Cover DF200AP_E11_021_420D

(DF175AP:021)

1-1) 61404-96830-YAY Engine Cover Set, Engine (Black)
1-2) 61404-96840-QTN Engine Cover Set, Engine (White)

13-1) 61443-96L30-0000 STBD Engine Cover Stripe, Engine Cover Starboard
13-2) 61443-96L40-0000 STBD Engine Cover Stripe, Engine Cover Starboard

14-1) 61453-96L30-0000 Port Engine Cover Stripe, Engine Cover Port
14-2) 61453-96L40-0000 Port Engine Cover Stripe, Engine Cover Port

15) 77811-54GC0-0PG Chrome "S" Badge

16) 61441-98L00-0000 Mark, Suzuki
17-1) 61435-96LC0-0000 Mark, Emblem Rear
17-2) 61435-96LD0-0000 Mark, Emblem Rear

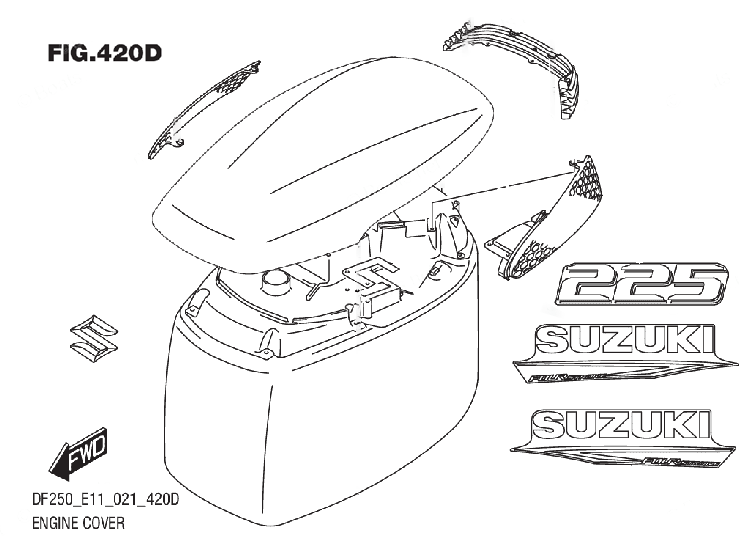

225HPDF 225T Beginning VIN# 140001 To 14XXXX

ENGINE COVER ((DF225T DF225Z):021) Diagram

1-2) 61430-93880-QTN COVER SET ENGINE (WHITE)
1-1) 61430-93870-YAY COVER SET ENGINE (BLACK)

61430-93880-QTN,  61430-93870-YAY, 61420-93890-YAY, 61430-93800-Y5S,

SUZUKI DECALS BLACK COVERS
23-1) 61443-96L10 .STRIPE ENGINE COVER STBD {FOR YAY}
24-1) 61453-96L10 .STRIPE ENGINE COVER PORT {FOR YAY}
26-1) 61435-93JM0 MARK EMBLEM REAR {FOR YAY}

SUZUKI DECALS WHITE COVERS
23-2) 61443-96L20 .STRIPE ENGINE COVER STBD {FOR QTN}
24-2) 61453-96L20 .STRIPE ENGINE COVER PORT {FOR QTN}
26-2) 61435-93JN0 MARK EMBLEM REAR {FOR QTN}

25) 68111-93J00 .EMBLEM S

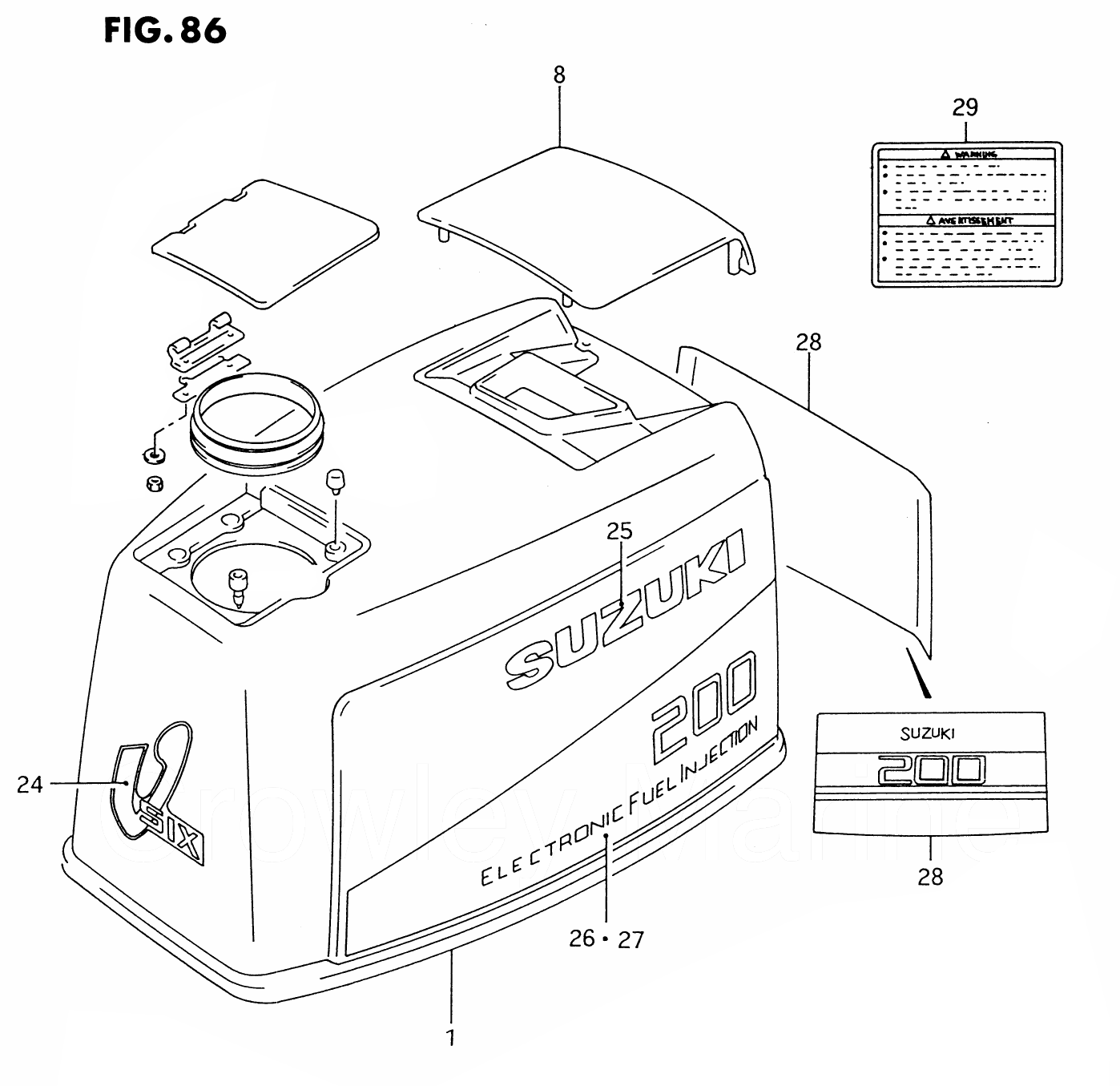

1. 61410-87852-0ED COVER SET, ENGINE

61410-87852-0ED

24. 61422-92E20-A8M MARK, EMBLEM FR
25. 68111-42031-1RR MARK, SUZUKI
26. 61443-88D60 DECAL, STBD
27. 61453-88D60 DECAL, PORT
28. 61463-88D60 DECAL, REAR

61422-92E20-A8M, 68111-42031-1RR, 61443-88D60, 61453-88D60, 61463-88D60, 61581-98610

29. 61581-98610 MARK, SAFETY WARNING

24-3 61240-87D10-70G DECAL SET, LOWER COVER *{MODEL:89~94,FOR 0ED}*
24-2 61240-87D10-8EH DECAL SET, LOWER COVER *{MODEL:87~90,FOR 01T}*
24-5 61240-88D10-39F DECAL SET, LOWER COVER *{DT200S}*
24-4 61240-92E20-A8L DECAL SET, LOWER COVER *{MODEL:94~99}*
24-1 61240-87D10-70G DECAL SET, LOWER COVER *{MODEL:87,88,FOR 02M}*
25-1 61231-87D01-26G DECAL, LOWER COVER PORT *{MODEL:87,88,FOR 02M}*
25-2 61231-87D01-26H DECAL, LOWER COVER PORT *{MODEL:87,88,FOR 01T}*

2002 DF 50QHLK2 Beginning VIN# 05001F-251001 Engine Cover (Model :10-)

DIAGRAM MTg5NTYy-0177d187

1. 61400-88800-0EP COVER SET, ENGINE

SUZUKI DECALS

9-2. 61453-88L01 STRIPE, ENGINE COVER PORT
9-1. 61443-88L01 STRIPE, ENGINE COVER STBD
10. 61446-87L10 DECAL, EFI
11. 68111-18G20 EMBLEM (S)
12. 61422-88L01 MARK, EMBLEM FRONT (40)
13. 61422-88L1 MARK, EMBLEM FRONT (50)
14. 61422-88L21 MARK, EMBLEM FRONT (60)
15. 61435-88L01 MARK, EMBLEM REAR (40)
16. 61435-88L11 MARK, EMBLEM REAR (50)
17. 61435-88L21 MARK, EMBLEM REAR (60)
18. 61458-99E31 LABEL, ENGINE COVER
