Evinrude-Johnson Outboard Decals

2000 Evinrude 90/115 HP - 75FPL

2000 Evinrude 115
E115FSLSSH FFI, Elec Start, TNT, 20 IN.shaft, wht 2000

ENGINE COVER diagram epc0468

0285386 ENGINE COVER ASSY. - V,Y,Z. 75FPL, 115FPL, 115FL, 90FPL
0285372 ENGINE COVER ASSY. - W,X. 115FSL, FS, FPX, FX

0285386, 0285372
0285386 0285372


EVINRUDE DECALS

13 0214756 *PLATE, Front - W,X. 115FSL, FS, FPX, FX
16 0214755 *DECAL, Wrap - W,X. 115FSL, FS, FPX, FX
15 0213591 *DECAL, Rear - W,X. 115FSL, FS, FPX, FX

0214756, 0214755, 0213591

13 0214747 *PLATE, Front - V,Y,Z. 75FPL, 115FPL, 115FL, 90FPL
16 0214746 *DECAL, Wrap - V,Y,Z. 75FPL, 115FPL, 115FL, 90FPL
15 0214772 *DECAL, Rear - V. 75FPL
15 0213585 *DECAL, Rear - Y. 115FPL, FL
15 0214608 *DECAL, Rear - Z. 90FPL

0214756, 0214746, 0214772 ----75FPL
0214756, 0214746, 0213585 ----115FPL, FL
0214756, 0214746, 0214608 90FPL

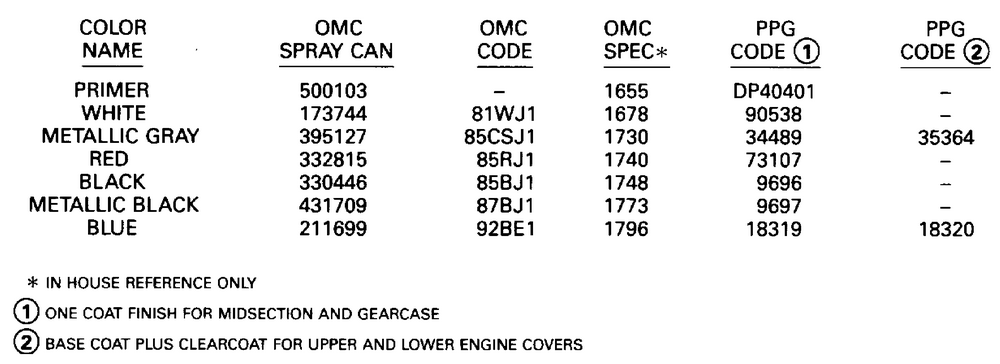

PAINT

771227 0771227 PRIMER
771234 0771234 BLACK
771226 0771226 WHITE
771230 0771230 BLUE
772414 0772414 CLEARCOAT

ONE COAT FINISH FOR MIDSECTION AND GEARCASE
BASE COAT PLUS CLEARCOAT FOR UPPER AND LOWER ENGINE COVERS.
