Evinrude/Johnson
EVINRUDE 1997 100 E100WTLEUA

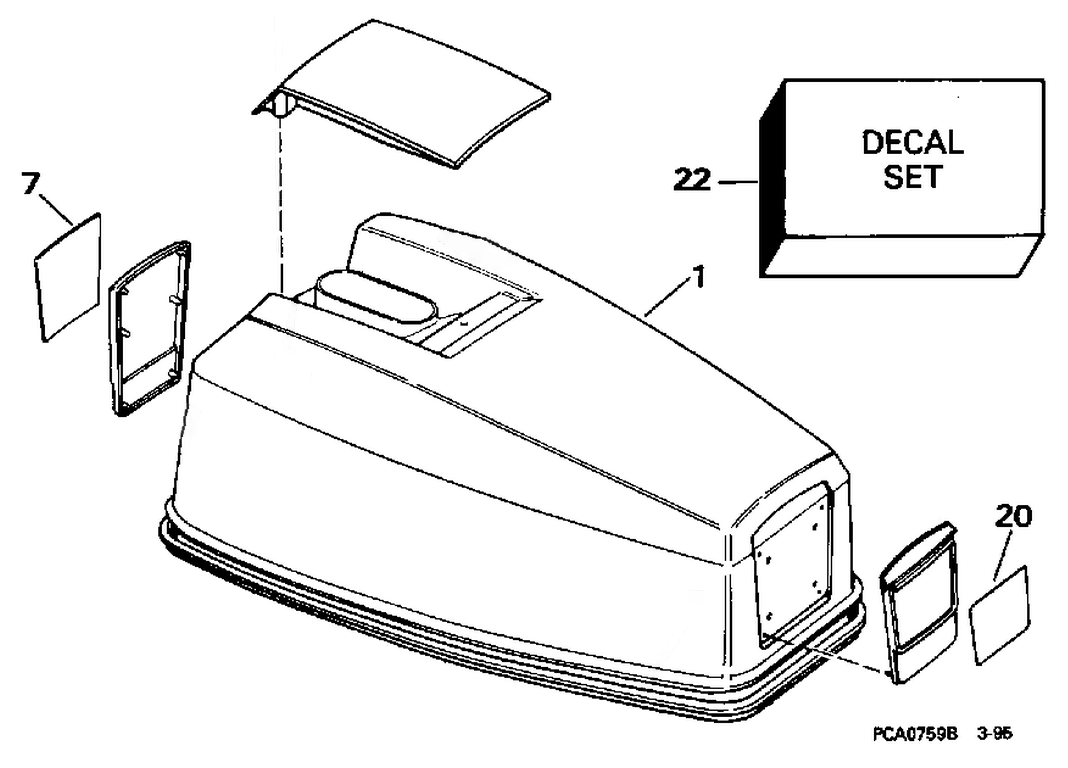

ENGINE COVER

0438774 ENGINE COVER ASSY., Johnson
0284740 ENGINE COVER ASSY., Evinrude

0438774, 0284740
0438774 0284740

OUTBOARD DECALS

0438778 DECAL SET, Johnson
0284842 DECAL SET, Evinrude

PAINT

* IN HOUSE REFERENCE ONLY
(1) ONE COAT FINISH FOR MIDSECTION AND GEARCASE
(2) BASE COAT PLUS CLEARCOAT FOR UPPER AND LOWER ENGINE COVERS

MOTOR COVER GROUP Diagram 91701

1) 0279020 MOTOR COVER & TRANSFER ASSEMBLY
21) 0279097 GAS TANK ASSEMBLY

0279104 DECAL SET

JOHNSON 1997 115 XJ115HLEUA

ENGINE COVER - JOHNSON

ENGINE COVER - JOHNSON Diagram PCA1083C 3-95

0438775 ENGINE COVER ASSY., 90
0438776 ENGINE COVER ASSY., 115

0438782 ENGINE COVER ASSY., 90 -  XJ Prefix Models Only
0438783 ENGINE COVER ASSY., 115 - XJ Prefix Models Only

13 0331856 APPLIQUE, Front

0438775, 0438776, 0438782, 0438783, - 0284939, 0284941, 0284940, 0284942,
0438775 0438776 0438782 0438783 - 0284939 0284941 0284940 0284942

13 0331856 APPLIQUE, Front

18 0438779 DECAL SET, 90

18 0438780 DECAL SET, 115

18 0437766 DECAL SET XJ Prefix Models Only
17 0343683 PLATE, Front & rear, 90 XJ Prefix Models Only
17 0343684 PLATE, Front & rear, 115 XJ Prefix Models Only

0437766, 0331856,0343683 90 XJ Prefix Models Only
0437766 0331856 0343683
0437766, 0331856, 0343684 115 XJ Prefix Models Only
0437766 0331856 0343684

MIDSECTION

102 0342192 DECAL, Exhaust housing

ENGINE COVER - EVINRUDE

0284939 ENGINE COVER ASSY., 90
0284941 ENGINE COVER ASSY., 90
0284940 ENGINE COVER ASSY., 115
0284942 ENGINE COVER ASSY., 115

0284939, 0284941, 0284940, 0284942,
0284939 0284941 0284940 0284942


13 0331856 APPLIQUE, Front
18 0343683 PLATE, Front & rear, 90
18 0343684 PLATE, Front & rear, 115

20 0284943 DECAL SET, 90
20 0284944 DECAL SET, 115
20 0284845 DECAL SET

This Johnson 0437766 DECAL SET. White Engine Cover fits the following models:

1995 Johnson 88HP J88TSLEOC, XJ88TSLEOC,
1996 Johnson 88HP J88TSLEDR, XJ88TSLEDR,

1997 Johnson 90HP J90TSLEUA, XJ90TSLEUA,
1998 Johnson 90HP J90TSLECM, XJ90TSLECM,

1996 Johnson 112HP J112TSLEDR, J112TSXEDR, XJ112TSLEDR, XJ112TSXEDR,
1995 Johnson 112HP J112TSLEOC, J112TSXEOC, XJ112TSLEOC, XJ112TSXEOC,

1997 Johnson 115HP J115TSLEUA, J115TSXEUA, XJ115HLEUA, XJ115HXEUA,
1998 Johnson 115HP J115TSLECM, J115TSXECM, XJ115HLECM, XJ115HXECM,

ENGINE COVER - EVINRUDE - ELECTRIC START ONLY

Diagram PCA1079G 696

1
0284721 ENGINE COVER ASSY. - 50ES, 50TS
0284722 ENGINE COVER ASSY. - 50TL Only
0284724 ENGINE COVER ASSY. - 50JE Only
0284921 ENGINE COVER ASSY. - 40 Models
0284970 ENGINE COVER ASSY. - X50ESL Only

0284721, 0284722, 0284724, 0284921, 0284970

EVINRUDE DECALS

23 0284830 DECAL SET - 40 Models 50TL Only 50JE Only
3 0212497 LENS, Ev. Port & Stbd. 40 Models, 50TL Only, 50JE Only

20 0212769 PLATE, Applique - 40 Models
7 0212270 PLATE, Rear - 40 Models

0284830, 0212497, 0212769, 0212270

20 0212895 PLATE, Front This part replaces 0212771. 50TL Only
7 0212772 PLATE, Rear - 50TL Only

0284830, 0212497, 0212895, 0212771, 0212772

20 0212767 PLATE, Front - 50JE Only
7 0212768 PLATE, Rear - 50JE Only

0284830, 0212497, 0212767, 0212768

23 0284835 DECAL SET - 50ES, 50TS
20 0212895 PLATE, Front - 50ES, 50TS
7 0212896 PLATE, Rear - 50ES, 50TS

0284835, 0212895, 0212896

23 0284923 DECAL SET - X50ESL Only - (See Also E48ESLEDC )
20 0212914 PLATE, Front - X50ESL Only
7 0212915 PLATE, Rear - X50ESL Only

0284923, 0212914, 0212915

This Evinrude 0284923 DECAL SET. X50ESL Only fits the following models:

1996 48HP E48ESLEDC,
1997 35HP E50JEUC (JET)
1997 40HP BE40EEUC, BE40ELEUC, BE40TLEUC, BJ40EEUC, E40ELEUC, E40REUC, E40RLEUC, E40TEEUC, E40TELEUC, E40TLEUC, E40TTLEUC, HE40REUC, HE40RLEUC,
1997 50HP BE50RLEUC, BE50TLEUC, BE50TSLEUS, E50ESLEUR, E50TLEUC, E50TSLEUS,
1998 40HP BE40EECR, BE40ELECR, BE40TLECR, E40ELECR, E40RECR, E40RLECR, E40TEECR, E40TELECR, E40TLECR, E40TTLECR,
1998 50HP BE50ESECC, BE50RLECR, BE50TLECR, BE50TSLECC, E50ESLECC, E50TLECR, E50TSLECC,

ENGINE COVER - EVINRUDE - ROPE START ONLY
Diagram PCA0733B 1-96

0284797 ENGINE COVER ASSY. - 40RL Only
0284922 ENGINE COVER ASSY. - 50RL Only

16 0212478 APPLIQUE, Ev., port & stbd

17 0284834 DECAL SET - 40RL Only
17 0284924 DECAL SET - 50RL Only

Read more: EVINRUDE 1997 50 - E50ESLEUR
