Chrysler 25 H.P.
SERIAL NUMBER

25 (1978) . . . . . . . . . . . . . . . . . . . . . 252H8D
25 (1978) . . . . . . . . . . . . . . . . . . . . . 253H8D
25 (1978) . . . . . . . . . . . . . . . . . . . . . 256H8C
25 (1978) . . . . . . . . . . . . . . . . . . . . . 257H8C
25 (1978) . . . . . . . . . . . . . . . . . . . . . 252H8C
25 (1978) . . . . . . . . . . . . . . . . . . . . . 253H8C

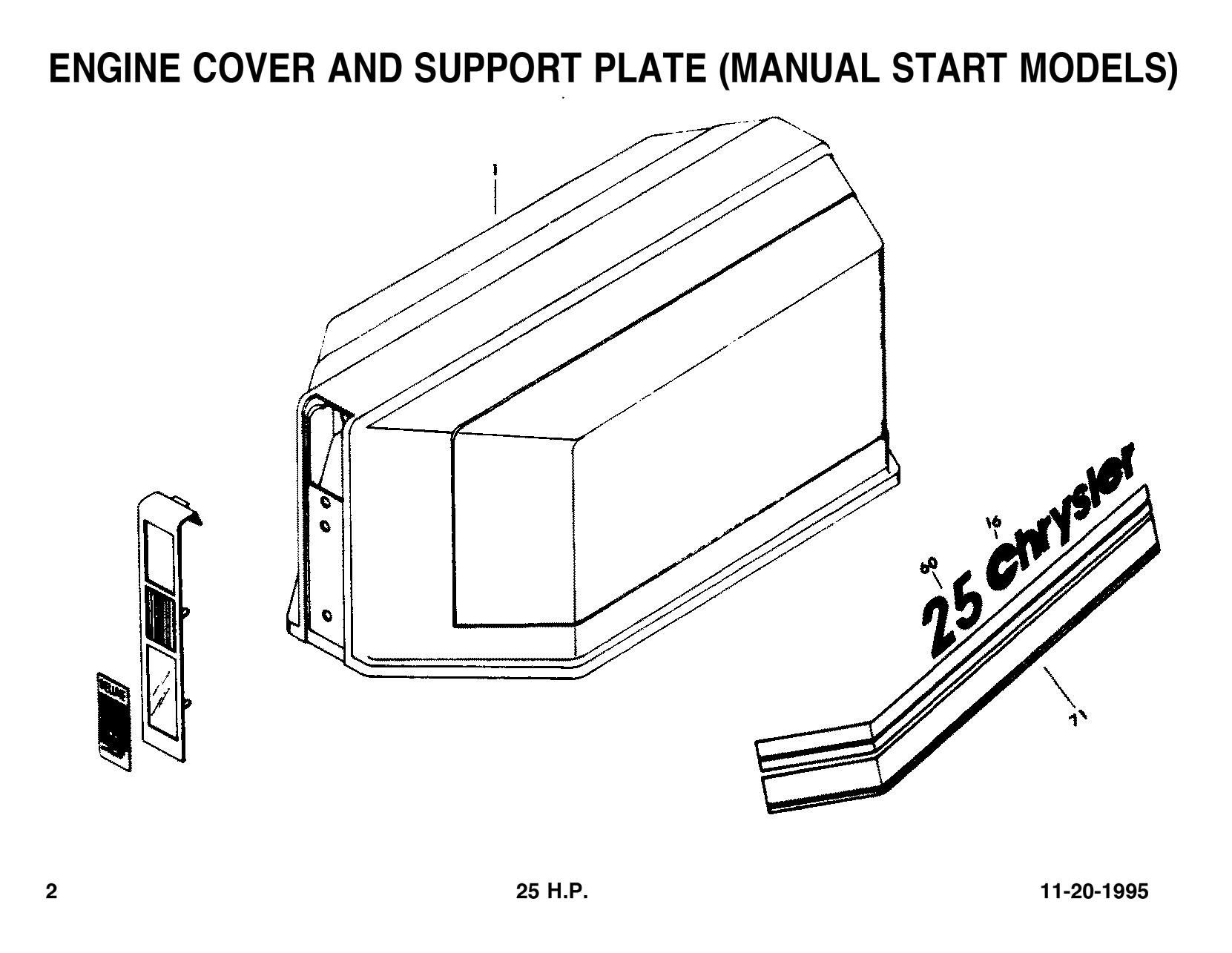

ENGINE COVER AND SUPPORT PLATE (MANUAL START MODELS)/ (ELECTRIC START)

Diagram FOB2496-4-2

(1) FS529712 ENGINE COVER W/FRONT AND REAR RETAINERS

CHRYSLER DECALS

(16) 505392 DECAL, "CHRYSLER" (2 decals)

(39-60) 505386-1 DECAL, NUMERAL (2 decals)

(45-71) 505397 DECAL, STRIPE PORT

        505396 DECAL, STRIPE STARBOARD

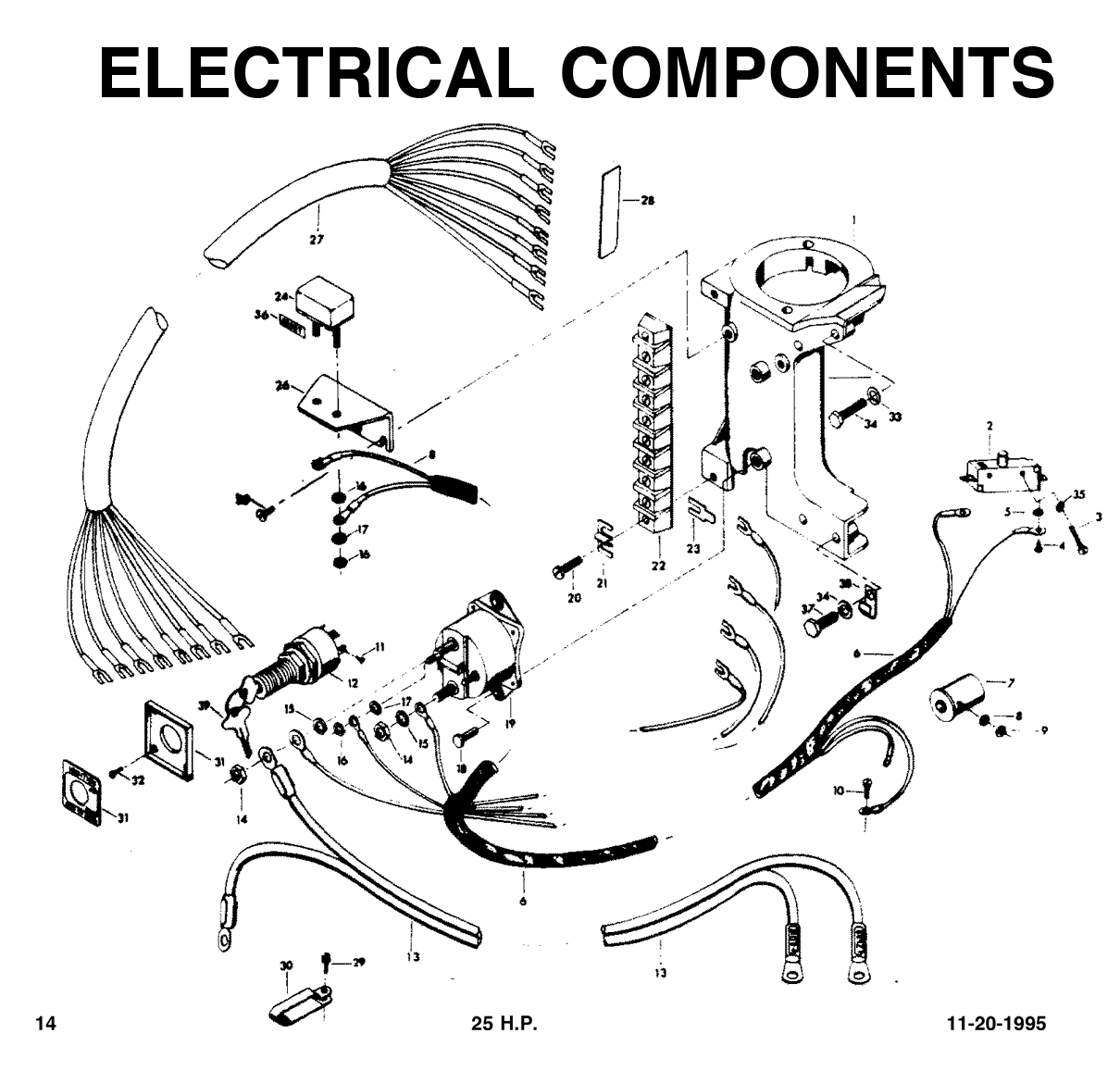

ELECTRICAL COMPONENTS

Diagram FOB2496-16-14

(28) F529398 DECAL, WIRING

(36) F510374 DECAL, CIRCUIT BREAKER

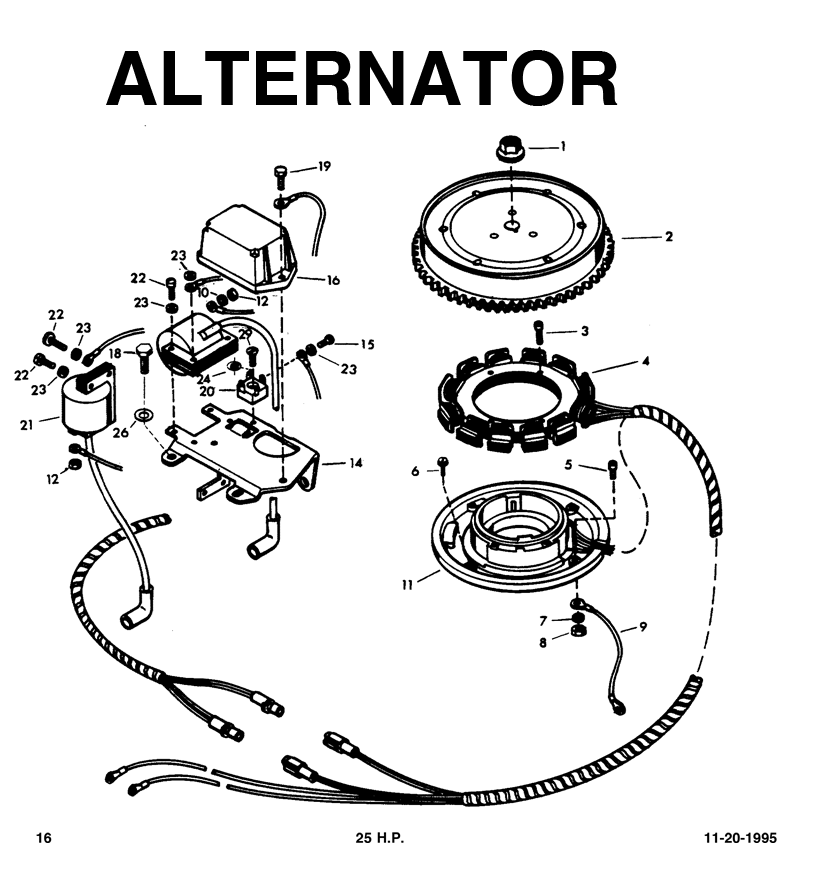

ALTERNATOR

Diagram FOB2496-18-16

(17) 510373-1 DECAL, MAGNAPOWER (NOT SHOWN)

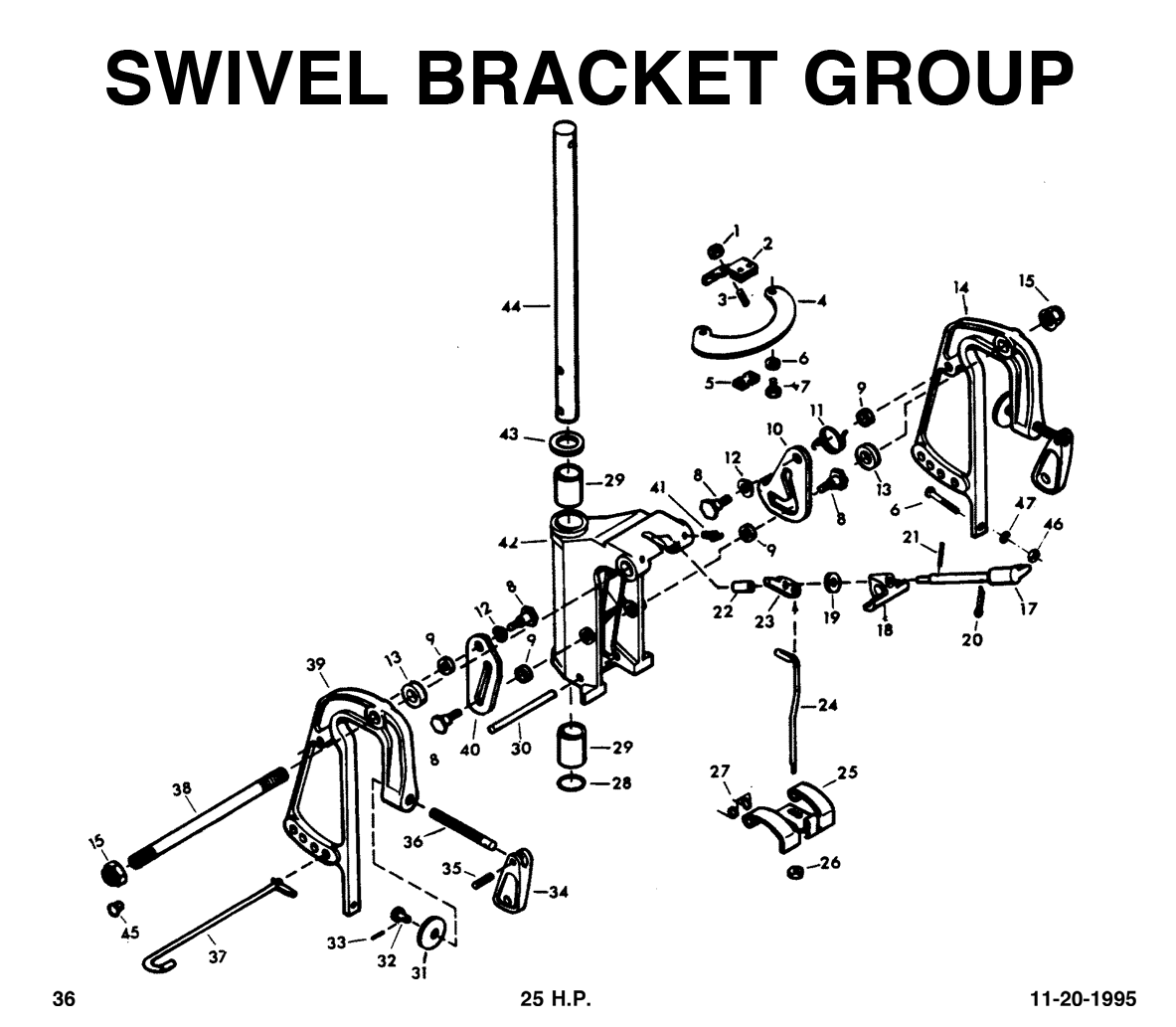

SWIVEL BRACKET GROUP

Diagram FOB2496-38-36

F529390 DECAL, REVERSE LOCK (NOT SHOWN)

F369390-1 DECAL, REVERSE LOCK (NOT SHOWN)

ACCESSORIES

5H067 PORT SIDE DECAL KIT CONVERTS 72H36 CONTROL BOX TO PORT SIDE MOUNTING.
