> Mercury Marine [Updated: Oct. 2, 2023] > Outboard > 4 Stroke > 350 HP 2.6L L6 Pro Verado > [2B141124 THRU 3B342962] - USA - Cat.# 90-8M0103727
> Mercury Marine [Updated: Jan. 23, 2023] > Outboard > 4 Stroke > 350 HP 2.6L L6 Verado > [2B141617 & Up] - USA - Cat.# 90-8M0103727
> Mercury Marine [Updated: Aug. 24, 2022] > Outboard > 4 Stroke > 400R HP 2.6L L6 Racing > [2B141124 & Up] - USA - Cat.# 90-8M0103727
> Mercury Marine [Updated: Jul. 7, 2022] > Outboard > 4 Stroke > 400 HP 2.6L L6 Verado > [2B618256 & Up] - USA - Cat.# 90-8M0103727

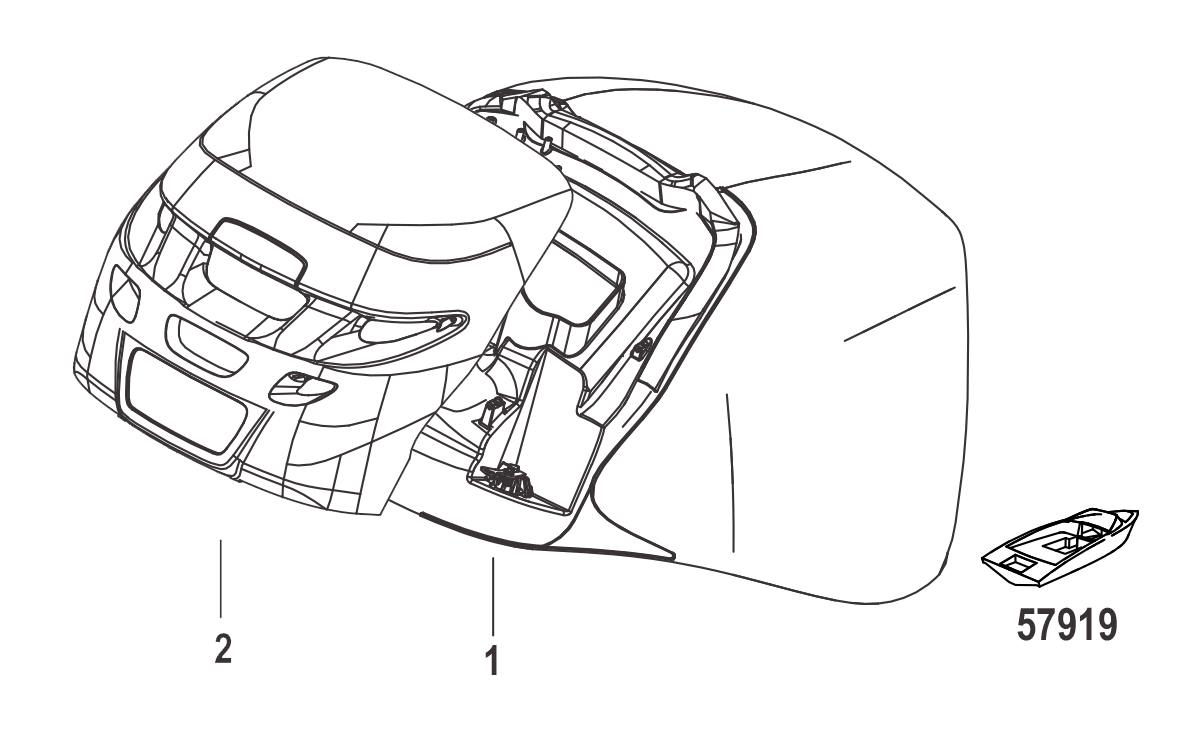

TOP COWL DIAGRAM 57919

1
8M0100167 TOP COWL ASSEMBLY Mercury, Decaled 350
+ 8M0113905 TOP COWL, MERCURY

8M0103307 TOP COWL ASSEMBLY Mercury Racing, Black, Decaled 400R
+ 8M0113911 TOP COWL, MERCURY

8M0100170 TOP COWL ASSEMBLY Cold Fusion, Decaled 350
+ 8M0113906 TOP COWL CFWH

8M0103308 TOP COWL ASSEMBLY Mercury Racing, Cold Fusion 400R
+ 8M0113912 TOP COWL CFWH

8M0100171 TOP COWL ASSEMBLY Warm Fusion, Decaled 350
+ 8M0113907 TOP COWL - WFWH

8M0119291 TOP COWL ASSEMBLY Pearl Fusion, Decaled 350
8M0134719 TOP COWL ASSEMBLY Carbon Edition, Decaled 400R

8M0100220 TOP COWL ASSEMBLY Mercury, Non-Decaled
+ 8M0113902 TOP COWL NONDECAL

8M0100222 TOP COWL ASSEMBLY Warm Fusion, Non-Decaled
+ 8M0113904 TOP COWL - WFWH

8M0100221 TOP COWL ASSEMBLY Cold Fusion, Non-Decaled
+ 8M0113903 TOP COWL CFWH

8M0119289 TOP COWL ASSEMBLY Pearl Fusion, Non-Decaled

8M0100167, 8M0113905, 8M0103307, 8M0113911, 8M0100170, 8M0113906, 8M0103308, 8M0100171, 8M0113907, 8M0119291, 8M0134719, 8M0100220, 8M0113902, 8M0100222, 8M0113904, 8M0100221, 8M0113903, 8M0119289,
8M0100167,8M0113905,8M0103307,8M0113911,8M0100170,8M0113906,8M0103308,8M0100171,8M0113907,8M0119291,8M0134719,8M0100220,8M0113902,8M0100222,8M0113904,8M0100221,8M0113903,8M0119289,
8M0100167 8M0113905 8M0103307 8M0113911 8M0100170 8M0113906 8M0103308 8M0100171 8M0113907 8M0119291 8M0134719 8M0100220 8M0113902 8M0100222 8M0113904 8M0100221 8M0113903 8M0119289

2
885354T01 CAP, Air Dam Mercury, Black
8M0024870 DECAL (Mercury Verado) Air Dam Cap Decal
8M0090474 CAP, Air Dam Cold Fusion
8M0090475 CAP, Air Dam Warm Fusion
8M0119293 CAP, Air Dam Pearl Fusion

MERCURY DECALS

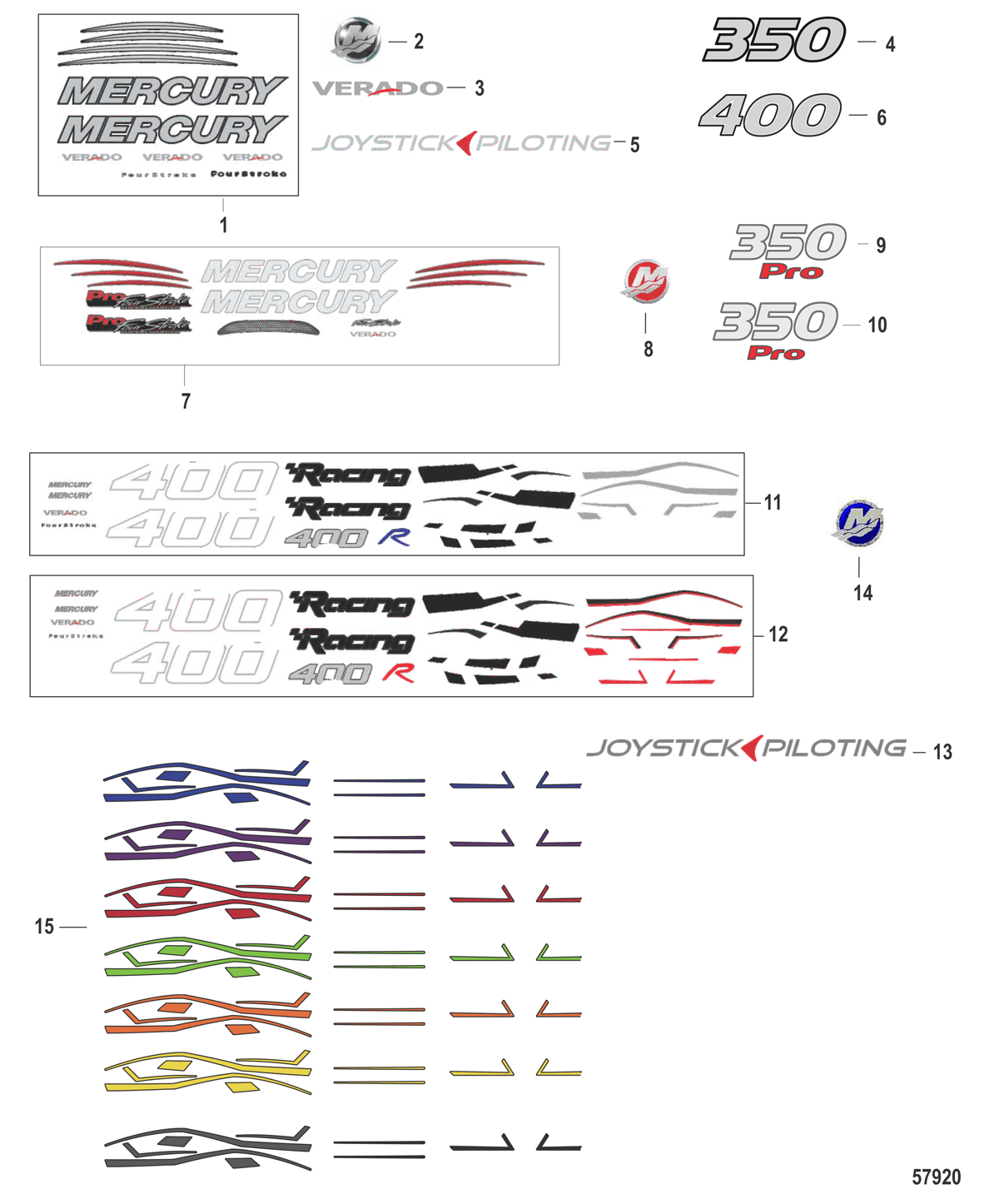

Decals - Top Cowl DIAGRAM 57920 (2022)

Verado Decals

1 8M0102448 DECAL SET Mercury
2 8M0043703 DECAL M-Icon, 66 MM, Black
3 8M0024870 DECAL Mercury Verado (order 3)
4 8M0085367 DECAL 350 HP, Rear
5 8M0075217 DECAL Joystick Piloting 350/400 (2022)
6 8M0156650 DECAL 400 HP, Rear (2022)
7 8M0103041 DECAL SET MERCURY Verado Pro
8 8M0043699 DECAL M-Icon, 66mm Red
9 8M0090899 DECAL 350 Pro, Top
10 8M0090898 DECAL 350 Pro, Rear

Racing Decals

11 8M0103043 DECAL SET MERCURY Verado Racing, White 400R
12 8M0103042 DECAL SET MERCURY Verado Racing, Black (Does Not Include Carbon Decals) 400R
13 8M0099017 DECAL Joystick Piloting, Silver 400R
14 8M0080153 DECAL M-ICON 66 MM Racing
15 8M0096286 DECAL KIT 400R Racing Blue
15 8M0096287 DECAL KIT 400R Racing Purple
15 8M0096288 DECAL KIT 400R Racing Red
15 8M0096289 DECAL KIT 400R Racing Green
15 8M0096290 DECAL KIT 400R Racing Orange
15 8M0096291 DECAL KIT 400R Racing Yellow
15 8M0097812 DECAL KIT 400R Racing Carbon

OTHER DECALS

DECAL, EPA (2009 & Up) (Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18

Serial Number: 2B207485P Unable to validate serial with Mercury part Books by Serial
Model: 1350V131D by model found
Model Version: L

Model Number
1350V131D
Serial Number:
2B207485P
350L
HP 350 KW 257
LB 684 KG 310
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
 [00]

Serial Number: 2B547297 - Model: 1354V332F - Model Version: 4S XXL
MERCURY 350XXL W EU2 350 4S XXL
MERCURY  350 VERADO (4-Stroke)(6 CYL.)

Serial Number: 3B152236 - Model: 14000034A - Model Version: 4S CXL 4
2022 MERCURY 400CXL VER COLD 5.44HD CS JOY 400 4S CXL 4

Serial Number: 3B152231 - Model: 14000034A - Model Version: 4S CXL 4
2022 MERCURY 400XL VER COLD 5.44HD CS JOY 400 4S XL 4

Serial Number: 3B192636 - Model: 14000003A - Model Version: 4S XL
HIGH PERFORMANCE 400R XL HD 1.75 RC JPO BL 400 4S XL

Serial Number: 3B192976 - Model: 14000003A - Model Version: 4S XL
HIGH PERFORMANCE 400R CXL HD 1.75 LC JPO BL 400 4S CXL

Previous catalog version

> Mercury Marine [Updated: Aug. 2, 2021] > Outboard > 4 Stroke > 350 HP 2.6L L6 Pro Verado > [2B141124 & Up] - USA - Cat.# 90-8M0103727
> Mercury Marine [Updated: Jun. 7, 2018] > Outboard > 4 Stroke > 350 VERADO (4-Stroke)(6 CYL.) > [2B141617 & Up] - USA - Cat.# 90-8M0103727

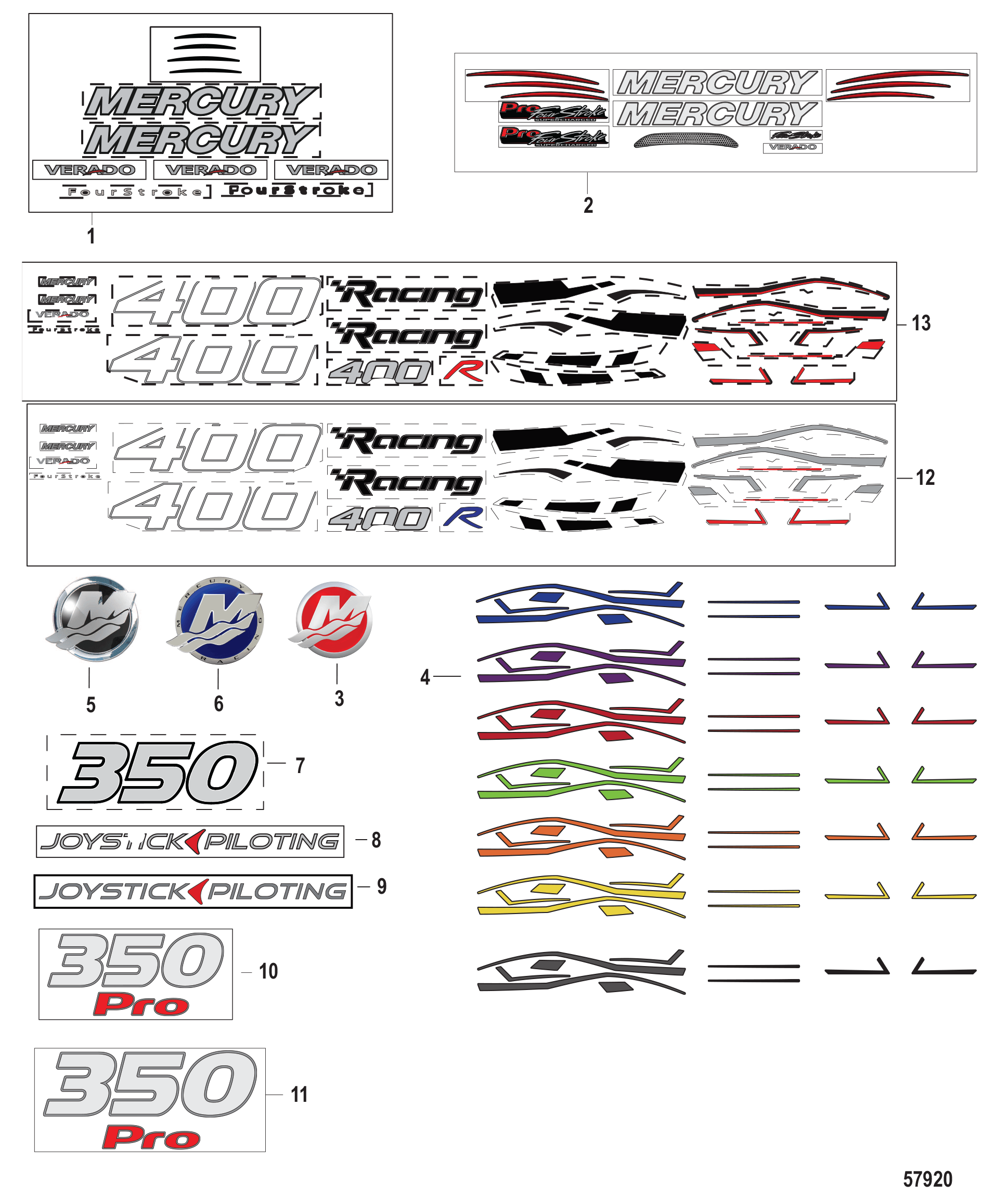

 Decals - Top Cowl DIAGRAM 57920 - (2018-2021)

VERADO DECALS

1 8M0102448 DECAL SET Mercury
2 8M0103041 DECAL SET ME Verado Pro
7 8M0085367 DECAL 350 HP, Rear
8 8M0075217 DECAL Joystick Piloting 350
9 8M0099017 DECAL Joystick Piloting, Silver 400R
10 8M0090899 DECAL 350 Pro, Top
11 8M0090898 DECAL 350 Pro, Rear

MERCURY RACING DECALS

13 8M0103042 DECAL SET ME Verado Racing, Black - (Does Not Include Carbon Decals)
12 8M0103043 DECAL SET ME Verado Racing, White

COLOR STRIPES

4
8M0096286 DECAL KIT 400R Racing Blue
8M0096287 DECAL KIT 400R Racing Purple
8M0096288 DECAL KIT 400R Racing Red
8M0096289 DECAL KIT 400R Racing Green
8M0096290 DECAL KIT 400R Racing Orange
8M0096291 DECAL KIT 400R Racing Yellow
8M0097812 DECAL KIT 400R Racing Carbon

MERCURY M LOGOS

5 8M0043703 DECAL M-Icon, 66 MM, Black
6 8M0080153 M-ICON 66 MM Racing (BLUE)
3 8M0043699 DECAL M-Icon, 66mm Red

Serial Number: 3B072797 - Model: 1350V231D - Model Version: XL
MERCURY 350 XL VERADO 5.44" HD 1.75 350 4S XL

Serial Number: 2B577231 - Model: 1350V231D - Model Version: XL
MERCURY 350 XL VERADO 5.44" HD 1.75 350 4S XL
