> Mercury Marine [Updated: Feb. 26, 2019] > Outboard > 4 Stroke > 5 (4-STROKE) > [0R411838 & Up] - USA - Cat.# 90-8M0056559
> Mercury Marine [Updated: May. 7, 2020]  > Outboard > 4 Stroke > 6 (4-STROKE) > [0R411838 & Up] - USA - Cat.# 90-8M0056559

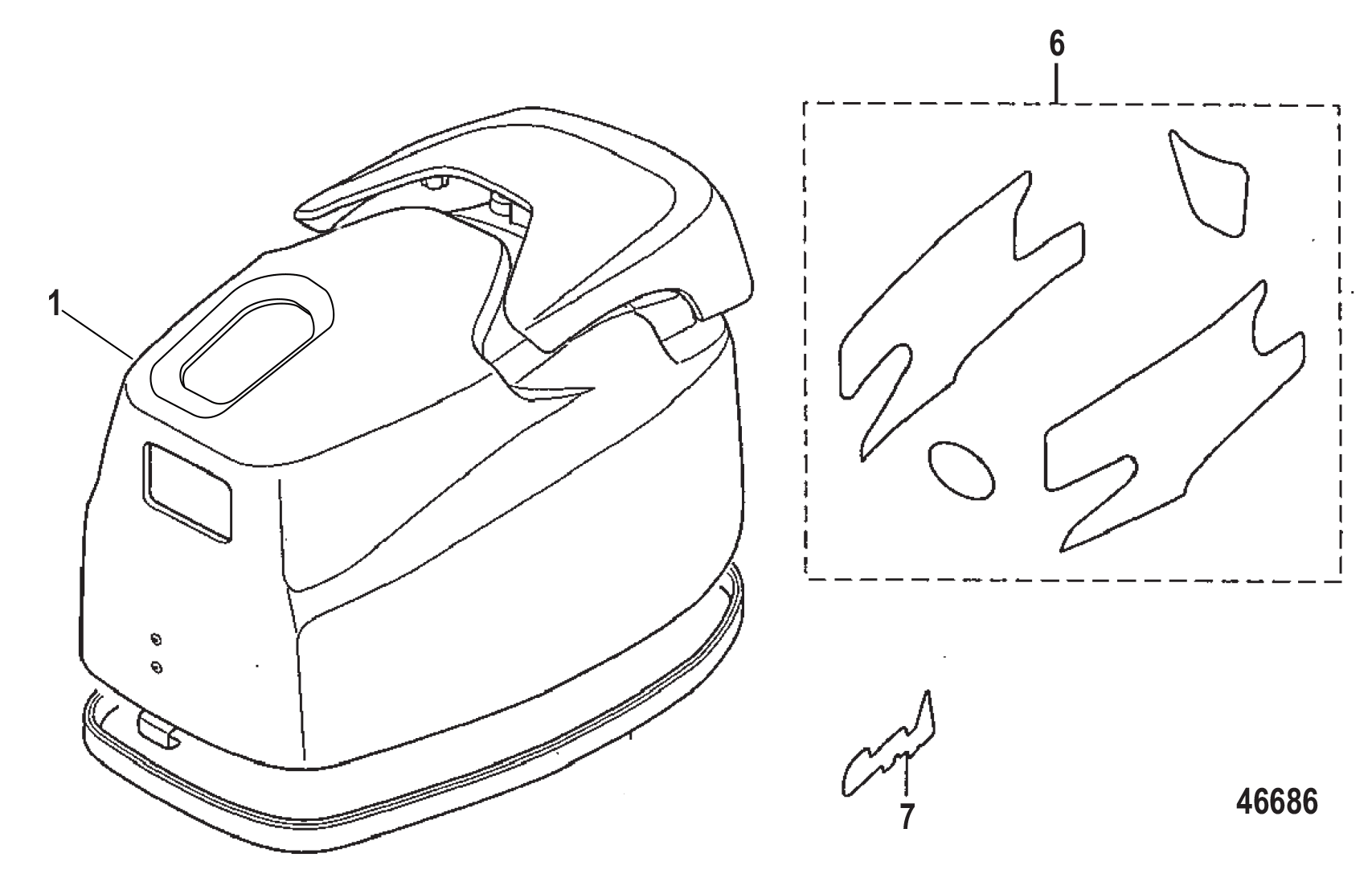

Cowling Top Diagram 46686

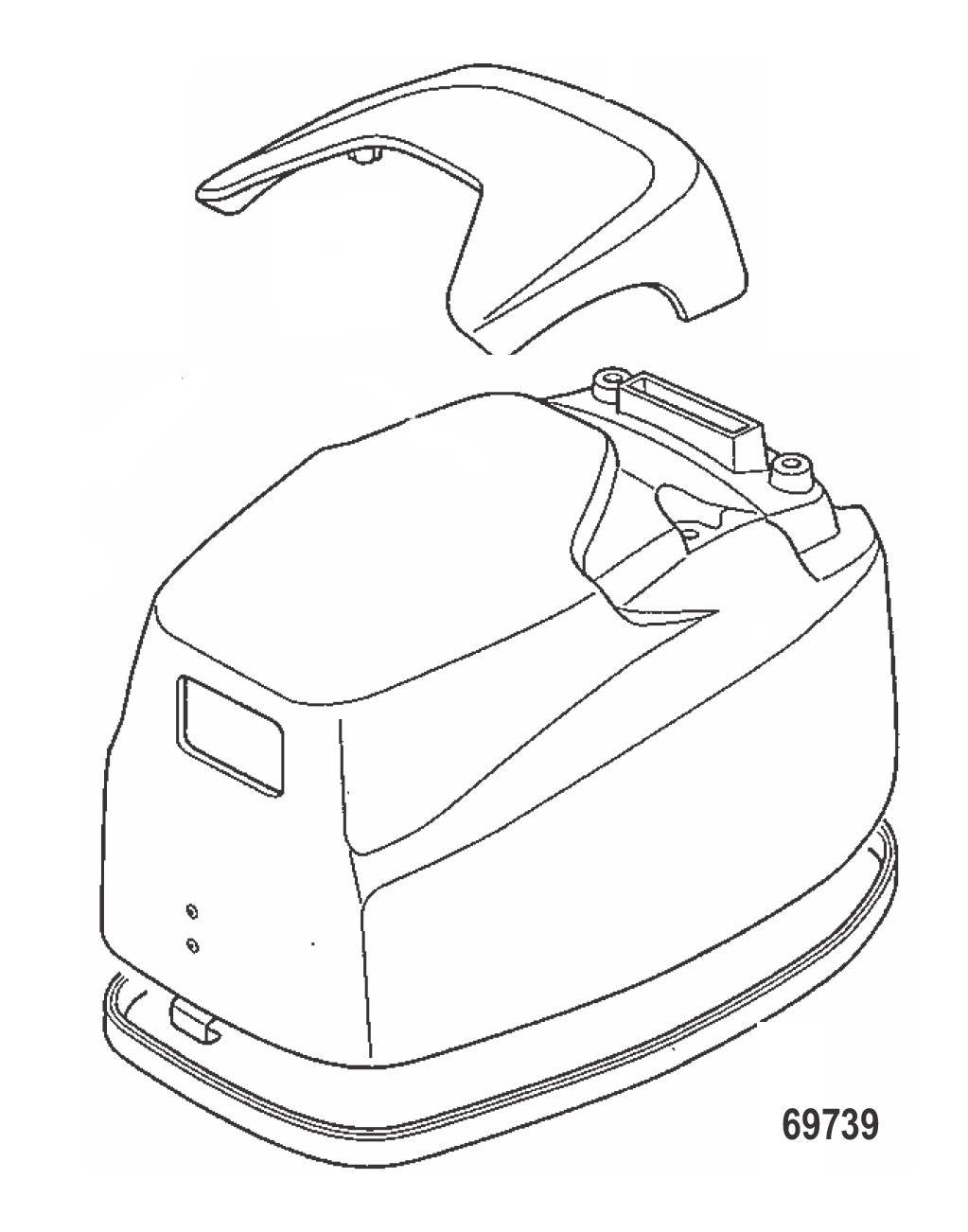

Cowling Top Diagram 69739

1 8M0056433 COWL ASSEMBLY Black Mercury
1 8M0056434 COWL ASSEMBLY Silver Mariner

Cowling Top Diagram 68784 (69739)

1. 8M0155483 COWL ASSEMBLY Top Non- decaled

8M0155483, 8M0056433, 8M0056434
8M0155483 8M0056433 8M0056434

MERCURY DECALS - MARINER DECALS

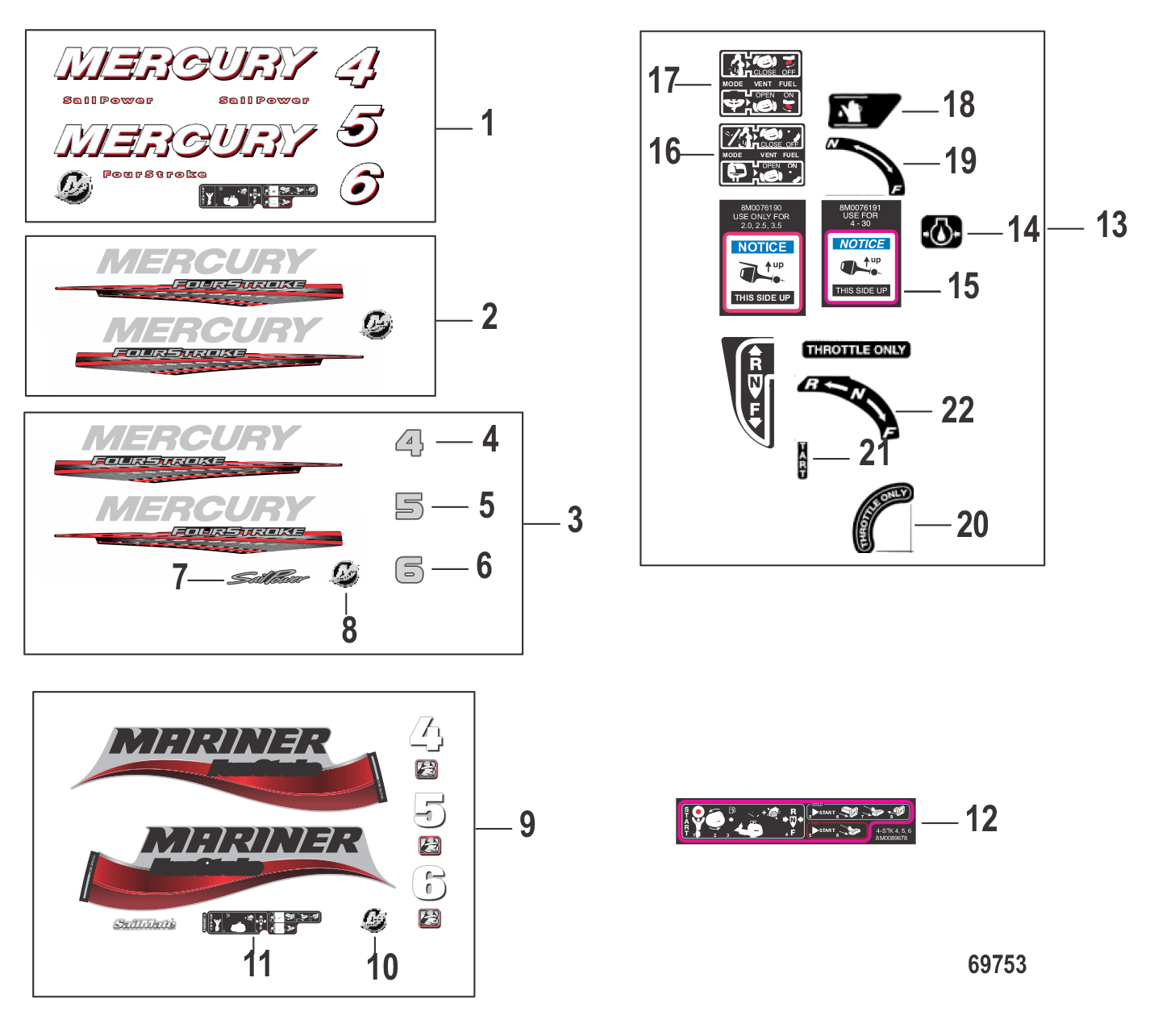

Decals Serial #0R991812 and Below Diagram 69753

2016-2012 Mercury Decals

- 8M0057104 DECAL SET Mercury [0R549315] & Below
1 8M0098720 DECAL SET Mercury

2013-2019 Mercury Decals

2 8M0081470 DECAL SET Mercury, Top Cowl [0R549316] & Up

3 8M0161226 DECAL SET Mercury
4 8M0073674 DECAL Horsepower 4 [0R549316] & Up
5 8M0073675 DECAL Horsepower 5 [0R549316] & Up
6 8M0073676 DECAL Horsepower 6 [0R549316] & Up
7 8M0073679 DECAL Sailpower [0R549316] & Up
8 8M0050645 DECAL M-icon Mercury

Mariner decals

9 8M0057105 DECAL SET Mariner
10 8592711 DECAL M-Icon Mariner
+ 8M0085745 DECAL M-ICON

11 8M0046013 DECAL Start Procedure [0R549315] & Below
12 8M0076193 DECAL Start Procedure [0R549316] & Up
+ 8M0089678 DECAL-START

13 8M0081456 DECAL SET Mercury Lower Cowl
14 896854007 DECAL Oil Pressure

15 892904010 DECAL Notice-This Side Up
+ 8M0157275 DECAL Notice-This Side Up

16 8M0089676 DECAL Fuel Valve
17 8M0089675 DECAL Fuel Lever
18 896851013 DECAL Oil Lever
19 896851012 DECAL Shift (N-R)
20 859278003 DECAL Throttle Only
21 859278004 DECAL Start
22 8M0012079 DECAL Shift

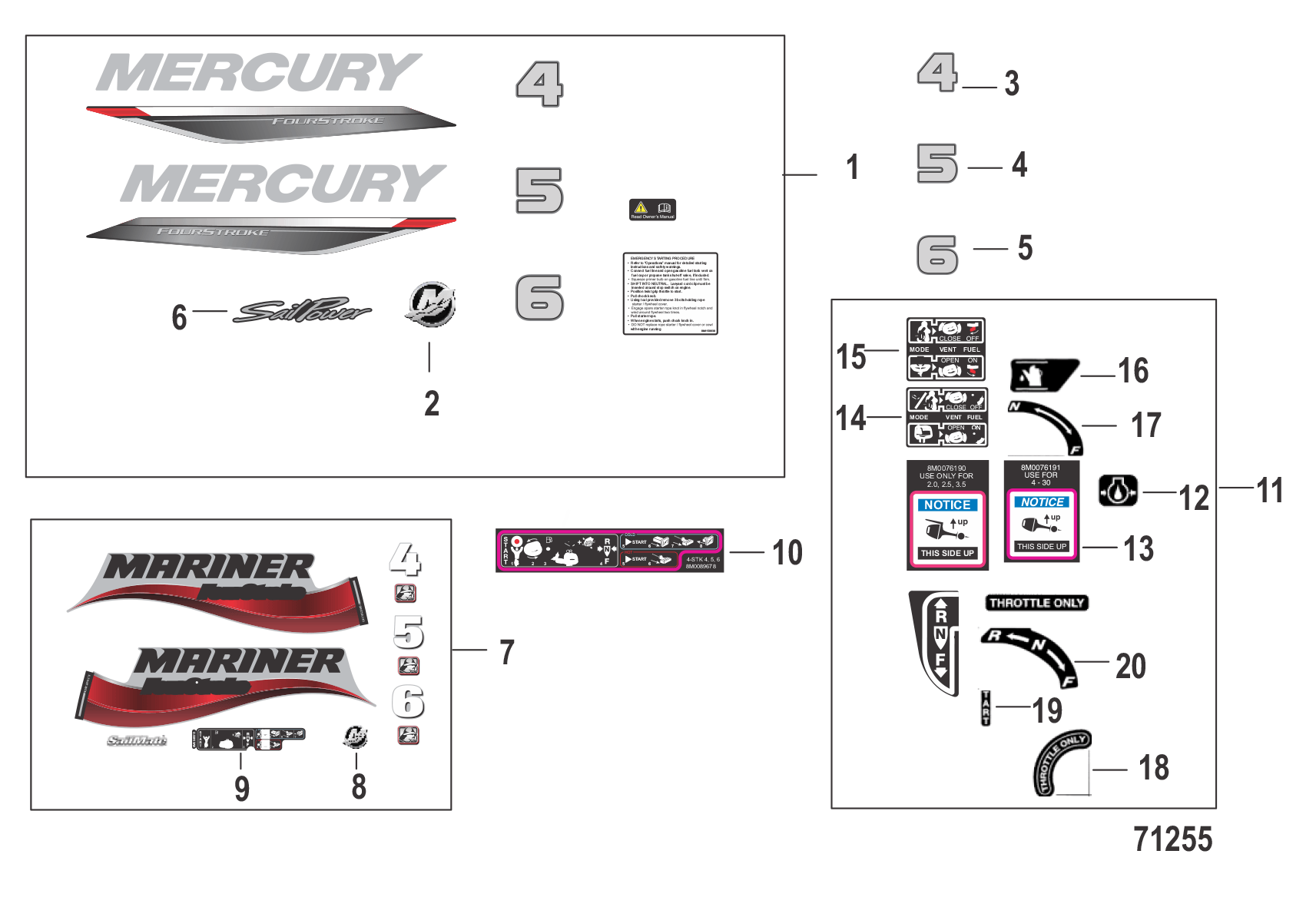

Decals Serial #0R991813 and Above Diagram 71255

1 8M0170755 DECAL SET 4,5,6 HP
2 8M0050645 DECAL M-icon Mercury
3 8M0073674 DECAL Horsepower 4
4 8M0073675 DECAL Horsepower 5
5 8M0073676 DECAL Horsepower 6
6 8M0073679 DECAL Sailpower

7 8M0057105 DECAL SET Mariner
8 8592711 DECAL M-Icon Mariner
9 8M0046013 DECAL Start Procedure [0R549315] & Below

10 8M0076193 DECAL Start Procedure [0R549316] & Up

11 8M0081456 DECAL SET Mercury, Lower Cowl
12 896854007 DECAL Oil Pressure
13 892904010 DECAL Notice-This Side Up
14 8M0089676 DECAL Fuel Valve
15 8M0089675 DECAL Fuel Lever
16 896851013 DECAL Oil Lever
17 896851012 DECAL Shift (N-R)
18 859278003 DECAL Throttle Only
19 859278004 DECAL Start
20 8M0012079 DECAL Shift

Serial Number: 0R886659 - Model: 1F1X5201EK - MH
2017 2018 MERCURY ME 5MH 5 MH

Model number
1F1X5201EK
Serial Number
0R886659
F5MH
HP 5 KW 3.68
LB 57 KG 26.2
Mercury Marine
Brunswick Corp.
Made in Japan
CE 0098 [AH]

Serial Number: 0R930282 - Model: 1FX6201EK
2019 MERCURY ME 6MH 6 MH

Serial Number: 0R500734 - Model:1F06201HL
2006 MERCURY 4 STROKE TMC 6 M 4

Model Number
1F06201HL
0R500734
F6M
HP 6 KW 4.41
LB 57 KG 26.2
Mercury Marine
Brunswick Corp.
Made in Japan
CE [12]
