> Mercury Marine [Updated: Mar. 12, 2018] > Outboard > 2 Stroke Carb > 4A > ARCHIVE CAT 96332

4 H.P.
SERIAL NUMBER

4A . . . . . . . . . . . . . .M 6E0-001011 AND UP
4A . . . . . . . . . . . . . .ML 6E0-300101 AND UP

Cat# 90-96332 - 4 H.P. 4A M ML

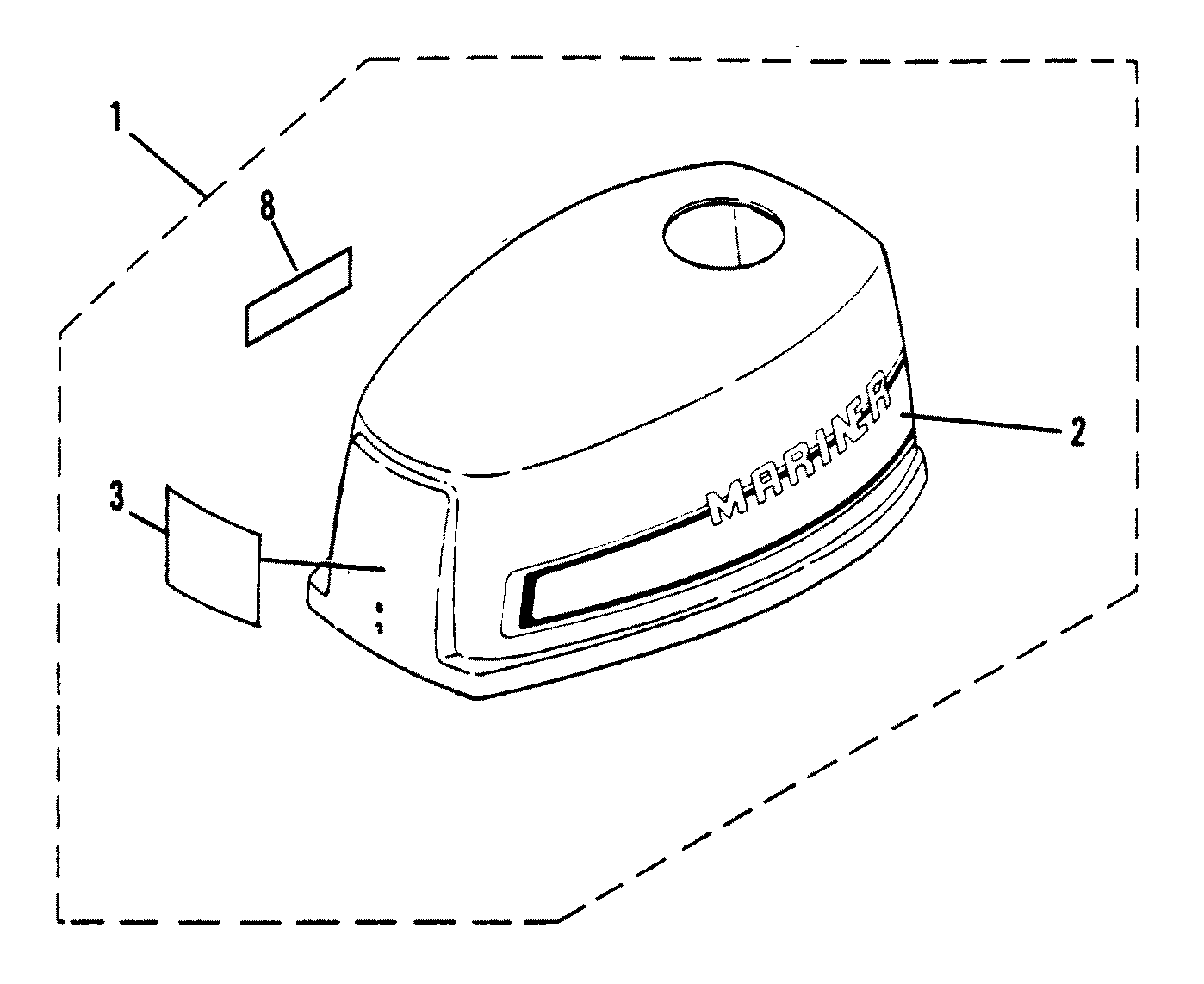

COWLING diagram 96332-3

MARINER DECALS

1 - 9339M  TOP COWLING ASS’Y

2 - 810932A90  DECAL, SIDE SET SERIAL (M-114253 ML-338166) AND ABOVE

2 - 11913M  DECAL, SIDE SET SERIAL (M-114252 ML-338165) AND BELOW

3 - NSS-N.S.S.  DECAL, FRONT (PART OF 37-810932A90) SERIAL (M-114253 ML-338166) AND ABOVE

3 - 11914M DECAL, FRONT SERIAL (M-114252 ML-338165) AND BELOW

8 - 81202M INDICATOR, SHIFT SERIAL (M-070824 ML-325784) AND ABOVE

OTHER DECALS

28 -  91671M GRAPHIC, FUEL SHUT OFF

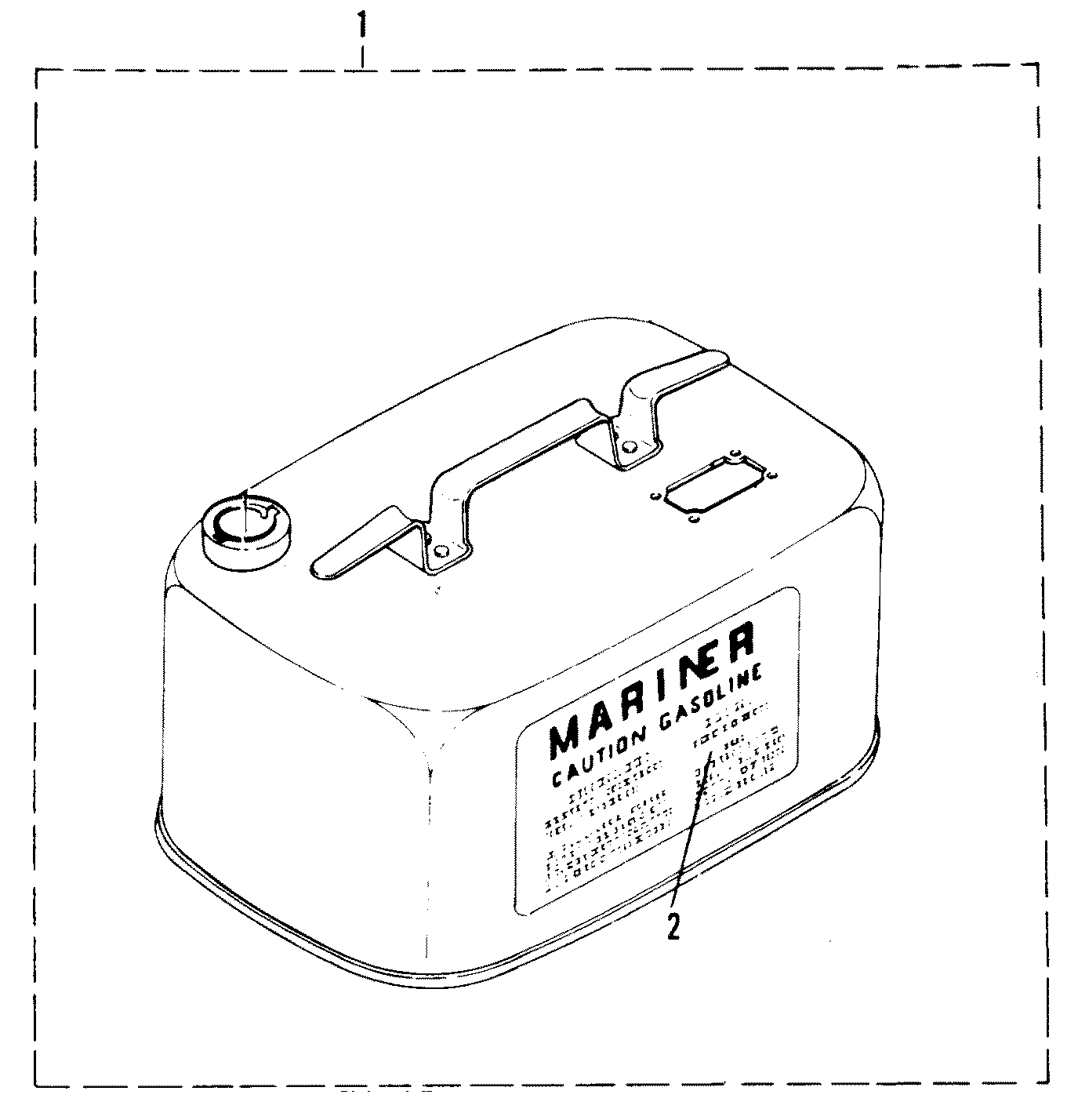

OPTIONAL FUEL TANK ASSEMBLY

DIAGRAM 96332-27

1 - 1529A26 FUEL TANK, COMPLETE

2  - 13921 DECAL, FUEL TANK

6EO   S 042337
810932A90  DECAL, SIDE SET SERIAL (M-114253 ML-338166) AND ABOVE
This Mercury Marine DECAL, SIDE SET is used on these models:

1981 7004201, 7004221.
1985 7004205, 7004225.
1988 7004201NU, 7004201NW, 7004211NU, 7004211NW.
1989 7004201PU, 7004201PW, 7004211PU, 7004211PW.
