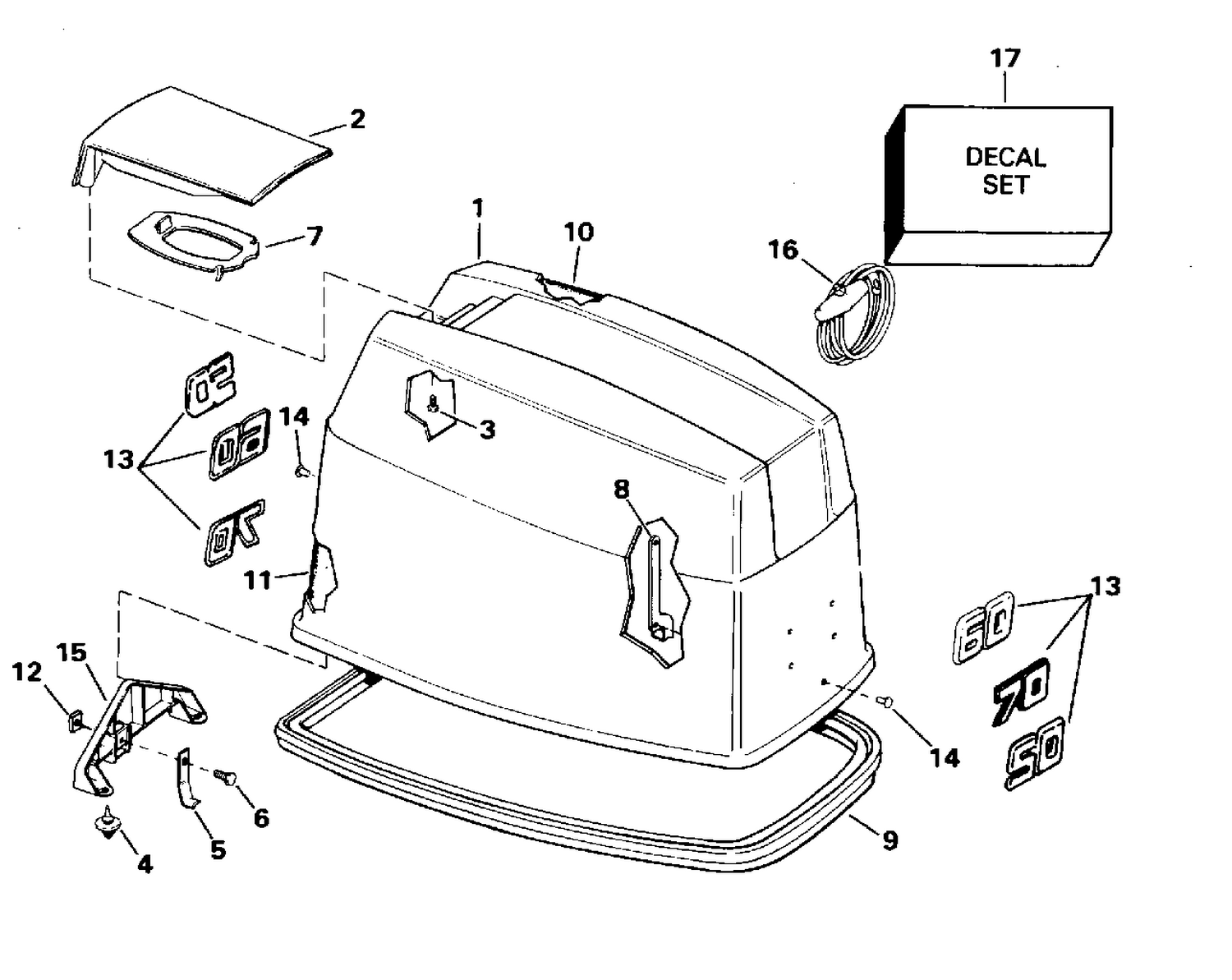

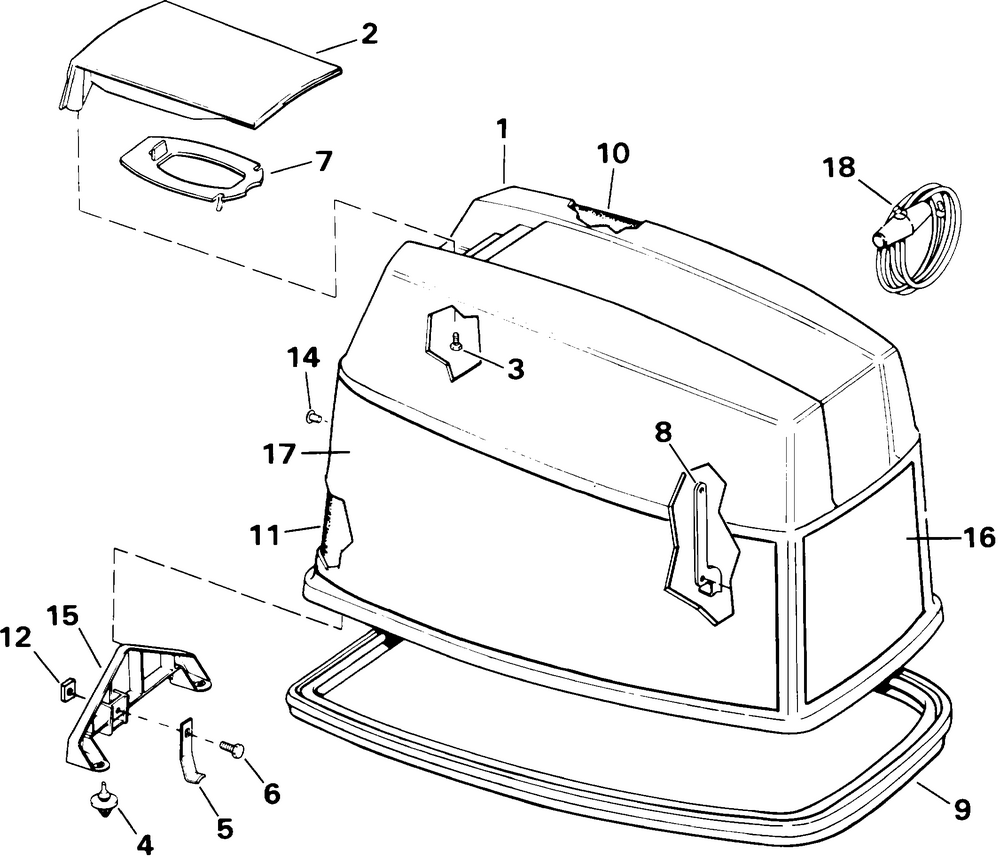

Engine Cover - Johnson 25-40
1
0433661 ENGINE COVER ASSY.
0433688 COVER AY,MOTOR-UPR
7
0334406 PLATE
0335757 PLATE, Rear
20
0334405 PLATE
0335755 PLATE, Applique
23
0433117 DECAL SET
0433205 DECAL AY, SET
1
0433663 ENGINE COVER ASSY.
0433689 ENGINE COVER ASSY.
7
0334418 PLATE
0335756 PLATE, Rear
23
0433118 DECAL SET
0433205 DECAL AY,SET
ENGINE COVER - JOHNSON ROPE START ONLY
EVINRUDE 2008 55 E55MJRLSCC
1) 0285643 ENGINE COVER ASSEMBLY
5006351 DECAL SET
1) *EVINRUDE 55 MFE - Port | Included with "ENGINE COVER Assy"
2) *EVINRUDE 55 MFE - Stbd | Included with "ENGINE COVER Assy"
3) 0352506 *BRP LOGO | Included with "ENGINE COVER Assy"
4) 350360 *DE-WATER INSTRUCTIONS | Included with "ENGINE COVER Assy"
5) *DE-WATER VALVES
6) 0333979 SHIFT, Instruction *AUTOCOLLANT, sens de marche
7) 0334435 **DECAL
8) 0352948 *DECAL, Fuel selector
Evinrude/Johnson EVINRUDE 1995 15 E15REOD 1995
ENGINE COVER - EVINRUDE
1) 0284795 ENGINE COVER ASSY. 9.9 & 10SEL Models
1) 0284796 ENGINE COVER ASSY. 15 Models (Except 15RG)
1) 0284685 ENGINE COVER ASSY. 15RG Models
ENGINE COVER - JOHNSON
1) 0435237 ENGINE COVER ASSY.. 15 Models White This part replaces 0437218.
1) 0437218 ENGINE COVER ASSY.. 15RG Models White
1) 0435236 ENGINE COVER ASSY.. 9.9 Models White This part replaces 0435238.
1) 0435238 ENGINE COVER ASSY.. 10SEL Models White
1) 0437619 ENGINE COVER ASSY.. 9.9 Models 10SEL Models Smoke
1) 0437182 ENGINE COVER ASSY.. 15 Models Smoke J15BA Models
0284795, 0284796, 0284685 - 0435237, 0437218, 0435236,0435238,0437619, 0437182,
0284795 0284796 0284685 - 0435237 0437218 0435236 0435238 0437619 0437182
EVINRUDE DECALS
14) 0212497 LENS, Ev. This part replaces 0212687. port & stbd.. 9.9 & 10SEL Models 15 Models (Except 15RG)
15) 0284817 DECAL SET 9.9 & 10SEL Models
15) 0284819 DECAL SET 15 Models (Except 15RG)
15) 0284792 DECAL SET 15RG Models
JOHNSON DECALS
14) 0437733 DECAL SET 9.9 Models Smoke
14) 0436262 DECAL SET 9.9 Models White
14) 0437037 DECAL SET 15 Models Smoke
14) 0436263 DECAL SET 15 Models White
14) 0437558 DECAL SET 15RG Models
14) 0436264 DECAL SET 10SEL Models White
ENGINE COVER - EVINRUDE
ENGINE COVER - EVINRUDE
1) 0284870 ENGINE COVER ASSY. - 9.9 Models, Except 10SEL
1) 0284871 ENGINE COVER ASSY. - 15 Models
1) 0284872 ENGINE COVER ASSY. - 10SEL Models
ENGINE COVER - JOHNSON
1) 0438312 ENGINE COVER ASSY. - 15 Models
1) 0438309 ENGINE COVER ASSY. - 9.9 Models - This part replaces 0438310.
1) 0438310 ENGINE COVER ASSY. - 10SEL Models
0284870, 0284871, 0284872 - 0438312, 0438309, 0438310
0284870 0284871 0284872 0438312 0438309 0438310
OTHER POSSIBLE PART NUMBERS: 0284795, 0284796, 0284685 - 0435237, 0437218, 0435236,0435238,0437619, 0437182,
0284795 0284796 0284685 - 0435237 0437218 0435236 0435238 0437619 0437182
EVINRUDE DECALS
14) 0212497 LENS, Ev. -port & stbd
15) 0284929 DECAL SET - 9.9 Models, Except 10SEL 10SEL Models
15) 0284930 DECAL SET - 15 Models
JOHNSON DECALS
14) 0438433 DECAL SET - 9.9 Models 10SEL Models
14) 0438434 DECAL SET - 15 Models
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
NOTE:After completing installation, place these instructions with the product for the owner's future use.
IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.
Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
time for out gassing.
Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.
IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
surface cleaning preparation.
1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
2. Rinse cowl with clean water.
3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
4. Avoid detergents or preparations that contain waxes, oils, or lotions.
1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
isopropyl alcohol and water solution.
5. Ensure the surface has no contamination and is completely dry.
6. Start to apply the decals immediately after solvent cleaning.
1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.
90-8M0143239 eng MARCH 2018 © 2018 Mercury Marine - Page 1 / 16
