ENGINE COVER - JOHNSON 175STL ONLY

Diagram 55f3e674-0a70-4d21-b69d-4f2d0a8cb406

1 0432780 ENGINE COVER ASSY., 175STL

Johnson decals

10 0330456 APPLIQUE GT, rear
10A 0334581 PLATE, GT, rear
16 0330413 APPLIQUE, Front & rear
18 0334839 PLATE, Rear
19 0330410 APPLIQUE, Front & rear
21 0334582 PLATE, Applique front
27 0334582 PLATE, Applique front
28 0334715 APPLIQUE, Rear
29 0433145 DECAL SET, 175STL

MIDSECTION Diagram

106 0332731 DECAL Exh. hsg., Jo.

MOTOR COVER Diagram 05b33149-da53-4028-94b4-59bd75109a39
1 0384369 MOTOR COVER ASSY.

0384952 DECAL SET

2 0316412 APPLIQUE, Sides
11 0314771 APPLIQUE, "johnson"
12 0316414 APPLIQUE, Rear
13 0315151 APPLIQUE, Rear
14 0316430 PLATE, Applique rear
15 0316432 PLATE, Applique port
21 0316433 PLATE, Applique stbd.

26 0316431 PLATE, Allpique. front
27 0317106 APPLIQUE, Front

REMOTE CONTROL Diagram 3c203488-ef84-4fe5-b9a8-8240b7a34e09

49 0384850 CONTROL HOUSING & PIN ASSEMBLY. MECH HALF
65 0384695 HOUSING, Electrical half
73 0316580 SWITCH PLATE

FUEL TANK DIAGRAM cfc8fa6d-a4e8-4d4b-b58e-f10df73e3093

1 5008623 FUEL TANK - This part replaces 0381015.

0379780 DECAL SET

Evinrude/Johnson EVINRUDE 1984 150 E150TLCRD 1984

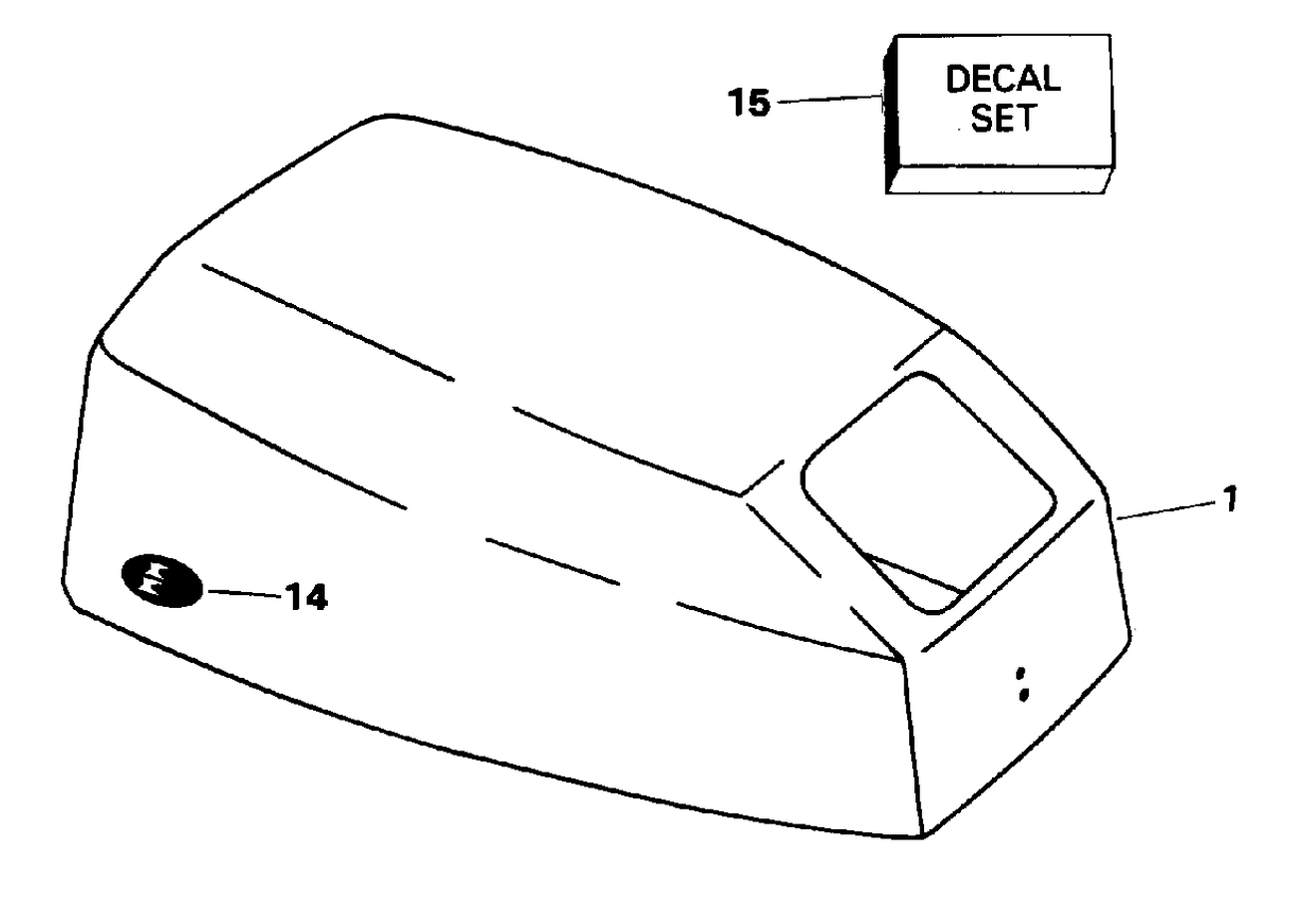

ENGINE COVER - EVINRUDE

0282197 ENGINE COVER ASSY., 150
0282198 ENGINE COVER ASSY., 185
0282200 ENGINE COVER ASSY., 235

0282197, 0282198, 0282200
0282197 0282198 0282200

12) 0209493 APPLIQUE, Evinrude, stbd. & port.
13) 209492 APPLIQUE, Front

23) 0209859 APPLIQUE, Engine cover, rear, 150
23) 0210032 APPLIQUE, Engine cover, rear, 185
23) 0209863 APPLIQUE, Engine cover, rear, 235

0292249 DECAL SET

ENGINE COVER - JOHNSON

0393700 ENGINE COVER ASSY., 150
0394390 ENGINE COVER ASSY., 185
0393703 ENGINE COVER ASSY., 235

0393700, 0394390, 0393703
0393700 0394390 0393703

21) 0330233 PLATE, Applique front
22) 0328942 APPLIQUE, Engine cover, rear

23) 0328943 PLATE, Applique, rear 150
23) 0329715 PLATE, Applique, rear 185
23) 0328946 PLATE. Applique, rear 235

0393974 DECAL SET

ENGINE COVER

1) 0285658 ENGINE COVER Assy | (BLUE - Engine Cover., New P/N for 2004 This part replaces 0285623.
1) 0285657 ENGINE COVER Assy | (WHITE - Engine Cover., New P/N for 2004 This part replaces 0285612.
1) 0285659 ENGINE COVER Assy | FHL Models Only, New P/N for 2004 This part replaces 0285614.

DECALS BLUE MODELS

1) 0215238 BOMBARDIER - Front/Rear
2) 0215270 EVINRUDE Port/Stbd
3) 0215268 *DECAL, Stripe, Stbd
4) 0215269 *DECAL, Stripe, Port
5) 0215555 DIRECT INJECTION Port/Stbd | New P/N for 2004
6) 0215226 135 HP F/R
7) 0215227 150 HP F/R
8) 0215228 175 HP F/R
9) 0215243 EVINRUDE - Front
10) 0215555 DIRECT INJECTION Port/Stbd | New P/N for 2004

DECALS WHITE MODELS

1) 0215287 BOMBARDIER - Front/Rear
2) 0215288 EVINRUDE Port/Stbd
3) 0215291 *DECAL, Stripe, Strb
4) 0215292 *DECAL, Stripe, Port
5) 0215554 DIRECT INJECTION Port/Stbd | New P/N for 2004
6) 0215294 135 HP F/R
7) 0215295 150 HP F/R
8) 0215296 175 HP F/R
9) 0215279 EVINRUDE - Front
10) 0351222 SALTWATER EDITION - Port | New P/N for 2004
11) 0351237 SALTWATER EDITION - Starboard | New P/N for 2004
12) 0216969 EU, RCD II Compliant – Lower | New P/N for 2004 This part replaces 0215558.
