Evinrude/Johnson EVINRUDE 1995 70 E70TLEOR 1995

EVINRUDE ENGINE COVER DIAGRAM PCA0374B 3-95

1 0284670 ENGINE COVER ASSEMBLY, 25SI
1 0284805 ENGINE COVER ASSEMBLY, 50
1 0284732 ENGINE COVER ASSEMBLY, 60
1 0284733 ENGINE COVER ASSEMBLY, 70

0284670, 0284805, 0284732, 0284733
0284670 0284805 0284732 0284733

EVINRUDE DECALS

5 0212478 APPLIQUE, Ev., port & stbd This part replaces 0212477.
7 0211717 APPLIQUE, Ev., port & stbd, 60/70
18 0212870 LENS, 70JL
18 0212678 LENS, Front & rear, 60
18 0212679 LENS, Front & rear, 70

21 0284770 DECAL SET, 25SI models
18 0212614 APPLIQUE, Front & rear, 25SIK

21 0284837 DECAL SET

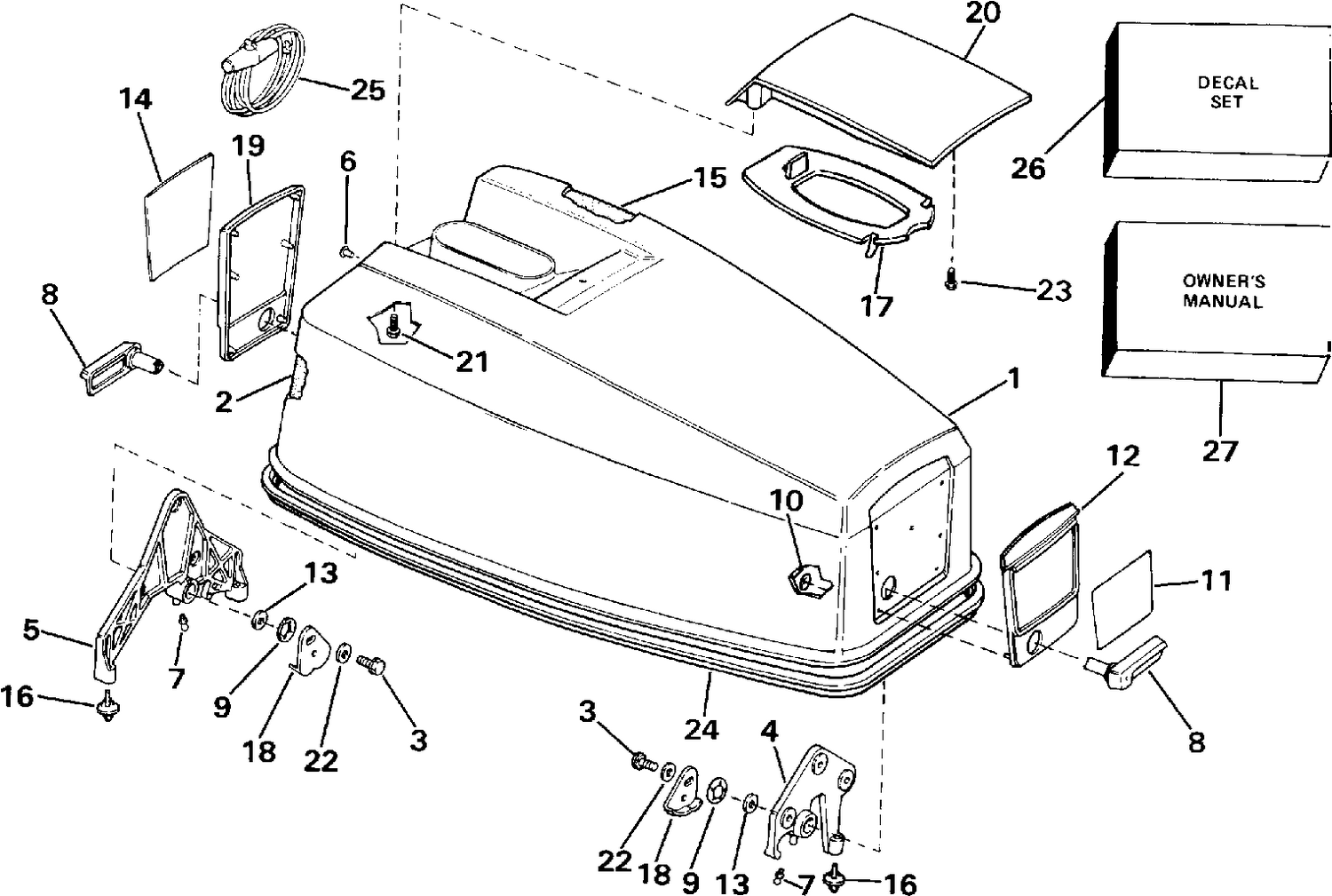

JOHNSON ENGINE COVER - DIAGRAM

1 0437116 ENGINE COVER ASSEMBLY, 25SIK
1 0438346 ENGINE COVER ASSEMBLY, 50 This part replaces 0437630.
1 0437629 ENGINE COVER ASSEMBLY, 50
1 0438343 ENGINE COVER ASSEMBLY, 60 This part replaces 0435727.
1 0437193 ENGINE COVER ASSEMBLY, 60
1 0438345 ENGINE COVER ASSY., 70 This part replaces 0435728.
1 0437194 ENGINE COVER ASSY., 70
1 0438062 ENGINE COVER ASSY., 70

0437116, 0438346, 0437629, 0438343, 0437193, 0438345, 0437194, 0438062,
0437116 0438346 0437629 0438343 0437193 0438345 0437194 0438062

JOHNSON DECALS

17 0437375 DECAL SET, 25SI models
17 0437762 DECAL SET, 50EL
13 0341993 LENS, Front & rear, 50

17 0437083 DECAL SET

17 0435630 DECAL SET, 60
13 0341142 LENS, Front & rear, 60

17 0435631 DECAL SET, 70 Models
17 0437081 DECAL SET, 70 models
13 0340568 APPLIQUE, 70

FUEL TANK

0332815 0332815 SPRAY PAINT, 12 oz., dark red

PAINT

Engine Cover - Johnson 25-40

1

0433661 ENGINE COVER ASSY.
0433688 COVER AY,MOTOR-UPR

7
0334406 PLATE
0335757 PLATE, Rear

20
0334405 PLATE
0335755 PLATE, Applique

23
0433117 DECAL SET
0433205 DECAL AY, SET

ENGINE COVER - JOHNSON 50

1
0433663 ENGINE COVER ASSY.
0433689 ENGINE COVER ASSY.

7
0334418 PLATE
0335756 PLATE, Rear

23
0433118 DECAL SET
0433205 DECAL AY,SET

ENGINE COVER - JOHNSON ROPE START ONLY

1 0433660 ENGINE COVER ASSY.

16 0334266 PLATE

18 0334267 PLATE

22 0433115 DECAL SET

SHROUD GROUP MODEL QD -QDL 18C & 18H Diagram P2

376951 Shroud and Transfer and Bumper Assembly

JOHNSON DECALS

Part No. 377053 Decal Set Assembly (decal version)

304335 Transfer - Johnson - Port and Star (2) (decal version)
304844 Transfer -Sea Horse - Port and Star (2) (decal version)
304349 Transfer - Gear Shift (decal version)
301866 Medallion - Sea Horse - Front (decal version)
304822 Transfer - Starting Inst. (decal version)
304833 Transfer - Control Panel (decal version)

377053, 304335, 304844, 304349, 301866, 304822, 304833,

1973 JOHNSON 9.50: 9R73B  9RL73B

Diagram 1973 johnson 9.50 9R73B MOTOR COVER
1
0385432 MOTOR COVER ASSEMBLY

13
0317084 PLATE

385938
0385938 DECAL SET

385938, 0385938, 317084, 0317084,
