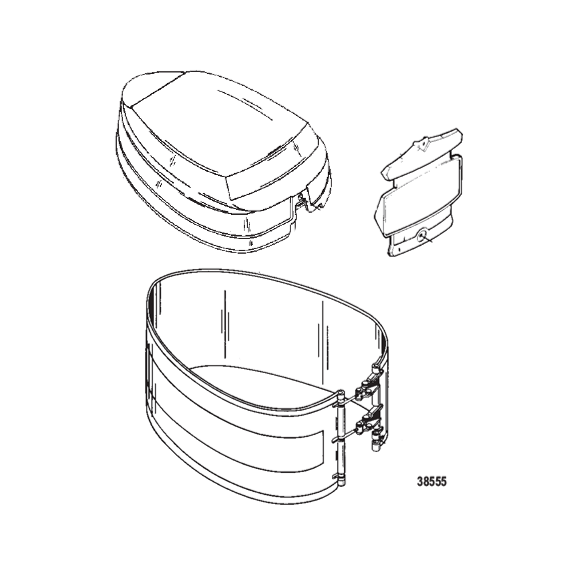

COWLING DIAGRAM 38555

1)
7938 TOP COWL ASSEMBLY (MANUAL) (MERCURY)
7937A8 TOP COWL ASSEMBLY (ELECTRIC) (MERCURY)
7938F2 TOP COWL ASSEMBLY (MANUAL) (DARK GRAY)(MARINER)
7938F4 TOP COWL ASSEMBLY (MANUAL) (LIGHT GRAY)(MARINER)
7937F2 TOP COWL ASSEMBLY (ELECTRIC) (DARK GRAY) (MARINER)
7937F4 TOP COWL ASSEMBLY (ELECTRIC) (LIGHT GRAY) (MARINER)

15)
 5642A13 COVER ASSEMBLY Cowl - Front [USA-5796395/Aus-8069214/Bel-9291995/Can-7165752] & Below
7927A5 FRONT COVER MERCURY [USA-5796396/Aus-8069215/Bel-9291996/Can-7165753] & Up
7927A12 FRONT COVER MARINER DARK GRAY [USA-5796396/Aus-8069215/Bel-9291996/Can-7165753] & Up
7927A19 FRONT COVER MARINER LIGHT GRAY  [USA-5796396/Aus-8069215/Bel-9291996/Can-7165753] & Up

25)
3247A3 TOP COWL ASSEMBLY Wrap Around - Mercury
8181A2 WRAP AROUND COWL MARINER DARK GRAY
8181A4 TOP COWL ASSEMBLY Wrap Around - Mariner LIGHT GRAY

MERCURY DECALS

93151A81 DECAL SET (BLUE)(MERC 50) (1981)
43198A84 DECAL SET (BROWN)(MERC 50) (1984)
13482A86 DECAL SET (MERC 45) (1986)

MARINER DECALS

94260A81 DECAL SET (DARK GRAY COWLS)(MARINER 50) (1981)
11621A85 DECAL SET (LIGHT GRAY COWLS)(MARINER 50) (1985)
11621A86 DECAL SET (MARINER 45) (1986)

This Mercury Marine 43198A84 DECAL SET (BROWN)(MERC 50) 1984 is used on these models and components:

1980 1050200, 1050220, 1050500, 1050520, 1050530, 1050550, 1050620, 7050200, 7050220, 7050500, 7050520, 7050550.
1982 1050202, 1050222, 1050502, 1050522, 1050532, 1050552, 1050622, 7050622.
1983 1050203, 1050223, 1050243, 1050503, 1050523, 1050533, 1050553, 1050623, 7050503, 7050523, 7050553, 7050623.
1984 1050204, 1050224, 1050504, 1050524, 1050534, 1050554, 1050624.
1985 1050205, 1050225, 1050525, 1050555, 1050625, 7050225, 7050525, 7050555, 7050625.
1986 7050716, 7050726.

This Mercury Marine 13482A86 DECAL SET (MERC 45) 1986 is used on these models and components:
1986 1045216, 1045236, 1045716, 1045726, 1045776, 7045226, 7045716, 7045726, 7045776.

Serial Number: 6488535 - Model: 1050624  - Model Version: ELPT
1984 MERCURY 50 ELPT

Serial Number: 0A915842 - Model: 1045726 - Model Version: ELPTO
1986 MERCURY 45 ELPTO

> Mercury Marine [Updated: Nov. 19, 2019] > Outboard > 2 Stroke DFI (OptiMax) > 225 (DFI) > [0T178500 THRU 0T598999] - USA - Cat.# 90-80348501
> Mercury Marine [Updated: Jul. 24, 2018] > Outboard > 2 Stroke DFI (OptiMax) > 225 (DFI) > [0T178500 THRU 0T598999] - USA - Cat.# 90-80348501

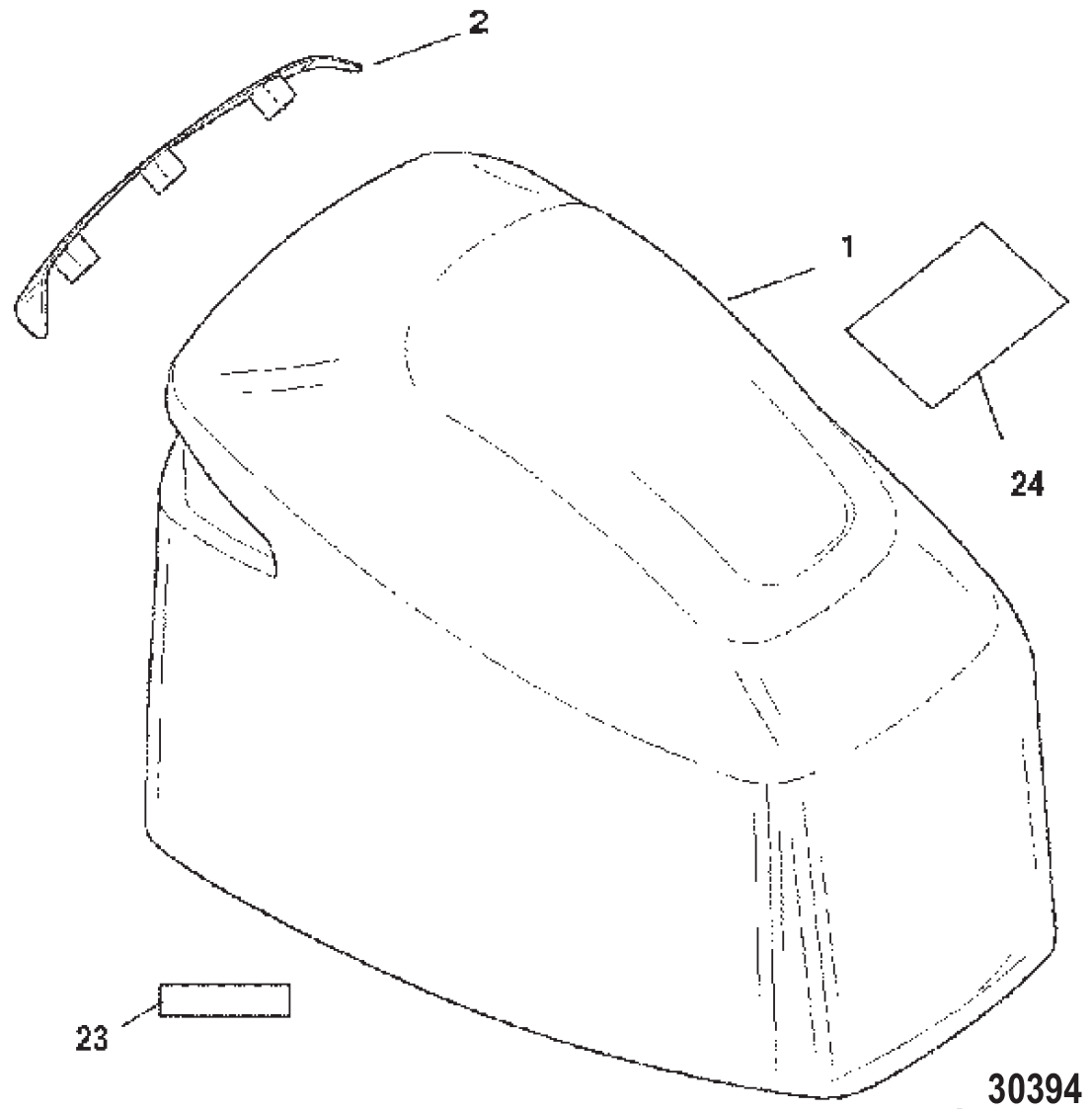

TOP COWL DIAGRAM 30394
