Outboard decal Replicas - Find them here!

Mercury Outboard Decals

40/50 /45 Bodensee/50 Bigfoot 4-Stroke

Catalog No: 809559 95 - 40/50 /45 Bodensee/50 Bigfoot 4-Stroke

TOP COWL DIAGRAM 34688



825239A3 TOP COWL ASSEMBLY (BLACK)

825239A4 TOP COWL ASSEMBLY (SILVER)



MERCURY DECALS

826337A95 DECAL SET (BLACK 50) DESIGN I

826337A96 DECAL SET (BLACK 50) DESIGN II

826337A98 DECAL SET (BLACK 50/50 BIGFOOT) SN# 0G590000 & Up

830259A96 DECAL SET (BLACK 45) SN# 0G589999 & Below

830259A98 DECAL SET (BLACK 45) SN# 0G590000 & Up



854695A98 DECAL SET (BLACK 40 ITALIAN)



MARINER DECALS

826338A97 DECAL SET (GRAY 50) SN# 0G589999 & Below

826338A98 DECAL SET (GRAY 50/50 BIGFOOT) SN# 0G590000 & Up

828786A96 DECAL SET (GRAY 45 ) SN# 0G437999 & Below

828786A97 DECAL SET (GRAY 45 ) SN# 0G438000 THRU 0G589999

828786A98 DECAL SET (GRAY 45 ) SN# 0G590000 & Up

854694A98 DECAL SET (GRAY 40 ITALIAN)





OTHER DECALS

85557739 DECAL, EPA Label Information (1998)

MARINER 4 STROKE 50 ELPT 4
MARINER - ( 50  H.P. (1995 ))



Model No: 7F50412DD

135/150/175 DFI (2.5L) - Cat.# 90-803502006

> Mercury Marine [Updated: Apr. 26, 2021] > Outboard > 2 Stroke DFI (OptiMax) > V-150 DFI (2.5L) > [1B227000 THRU 1B417701] - USA - Cat.# 90-803502006
> Mercury Marine [Updated: Dec. 12, 2020] > Outboard > 2 Stroke DFI (OptiMax) > V-135 DFI (2.5L) > [1B227000 THRU 1B417701] - USA - Cat.# 90-803502006



 Top Cowl Diagram 2113

883013T1  TOP COWL ASSEMBLY (BLACK)(2001-2006,2010 (110JET,135,150,175)
883058T1  TOP COWL ASSEMBLY (SILVER)(2001-2006 (110JET,135,150,175)

883013T1, 883058T1
883013T1 883058T1



MERCURY DECALS

854292A06 DECAL SET  (Black 135)
854294A06 DECAL SET (Black 150)
879756A06 DECAL SET (Black 175)



MARINER DECALS:

854295A03 DECAL SET (GRAY 135)
854297A03 DECAL SET (GRAY 150)
879757A03 DECAL SET(GRAY 175)



OTHER DECALS:

23 NSS NOT SOLD SEPARATE Decal-Counter Rotation
24 NSS NOT SOLD SEPARATE Decal-Break-In

Read more: 135/150/175 DFI (2.5L) - Cat.# 90-803502006

100/115/125 HP 80 JET (4 CYLINDER)

MERCURY BLUEWATER SALTWATER 125 EXLPTO SW
MERCURY SALTWATER 125 EXLPTO SW
MERCURY 115 ELPTO

MERCURY - (125  H.P. (2002 ))
MERCURY - (125  H.P. (2005 ))
MARINER - (115 H.P.  ELPTO)

Model No: 1125422ZY 2002
Model No: 1125422DY 2005
Model No: 1115412RD 1995

Catalog No: 803168  - 100/115/125 Hp 80 Jet (4 CYL)
Catalog No: 803168001  - 115/125 Hp Jet 80 (4 Cylinder)(2-Stroke)
Catalog No: 100/115/125 HP 80 JET (4 CYLINDER)

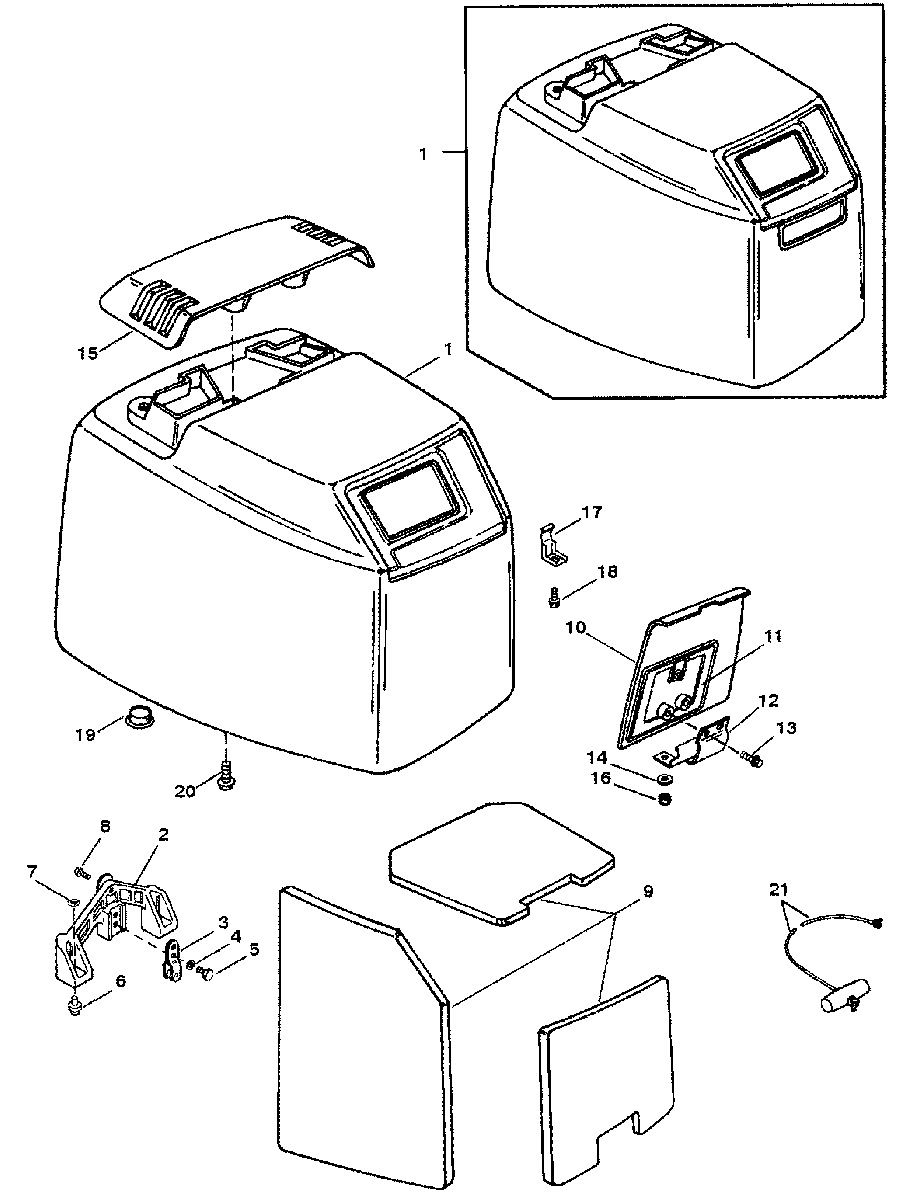

TOP COWL(S/N-USA-0G301750/ BEL-9885504 AND BELOW)

Diagram 37308
https://xfer.mercmarine.com/pximages/partscatalog/COMMON//37308_x2.gif

1

TOP COWL ASSEMBLY (828354A11) (BLACK)
Supersedes: 822361A17, 822361A 6

TOP COWL ASSEMBLY (828354A12)(SILVER)
Supersedes: 822361A18, 822361A 7

TOP COWL ASSEMBLY (828354A13) (TRACKER GRAPHITE GRAY)
Supersedes: 822361A19, 822361A10

MERCURY SALTWATER 115 ELPTO SW
SERIAL NUMBER: 0T564521
MERCURY 2002 115 ELPTO
Model: 1115412ZY
Model Version : ELPTO SW
PARTS CATALOGS: 803168 - 100/115/125 HP 80 JET (4 CYLINDER)

MARINER 2 STROKE MOTOR IS 115ELPTO
MARINER 115 ELPTO
MERCURY - (125  H.P. (2002 ))
Serial No: 0T480856
Model No: 1125422ZY
Catalog No: 803168  - 100/115/125 Hp 80 Jet (4 CYL)

MERCURY SALTWATER 125 EXLPTO SW
MERCURY - (125  H.P. (2005 ))
Serial No: 1B065982
Model No: 1125422DY
Catalog No: 803168001  - 115/125 Hp Jet 80 (4 Cylinder)(2-Stroke)

TOP COWL DIAGRAM 4038

TOP COWL(S/N-USA-0G301751/BEL-9885505 AND UP)




828354T8 TOP COWL ASSEMBLY, Black
Supersedes:  828354A8 TOP COWL ASSEMBLY, Black

828354T9 TOP COWL ASSEMBLY, Silver
Supersedes: 828354A9 TOP COWL ASSEMBLY, Silver

827328T10 TOP COWL ASSEMBLY (Silver)
828354A10  TOP COWL ASSEMBLY (Silver Cowl And Black Cap) Tracker



OUTBOARD DECALS

Diagram 37307

MERCURY OUTBOARD DECALS


823404A96 DECAL SET (BLACK 100)
Supersedes:

1994-1995 MERCURY 100 HP DECAL SET 823404A94
823404A94 (MERCURY 100) DESIGN I


823407A00  DECAL SET, (Black 115 - Red)
Supersedes:


823407A96 (MERCURY 115) DESIGN II

1994-1995 MERCURY 115 HP DECAL SET 823407A94
823407A94 (BLACK 115 - RED)(MERCURY 115) DESIGN I



1999-2006 MERCURY 125 HP DECAL SET RED 823410A00
823410A00  DECAL SET, (Black 125 - Red)
Supersedes:

1994-1999 MERCURY 125 HP DECAL SET RED 823410A96
823410A96 (MERCURY 125) DESIGN II

1994-1995 MERCURY 125 HP DECAL SET 823410A94
823410A94 (BLACK 125 - RED)(MERCURY 125) DESIGN I

1999-2006 MERCURY 80 HP JET DECAL SET 826321A00
826321A00  DECAL SET, (Black 80 Jet) (BLACK 80 JET)
Supersedes:
826321A96 (MERCURY 80 JET) DESIGN II

1994-1995 MERCURY 80 HP JET DECAL SET 826321A95
826321A95 (MERCURY 80 JET) DESIGN I


803165A00 DECAL SET, (Black 115 - Blue)
Supersedes:
803164A99
803165A99


803166A00 DECAL SET, (Black 125 - Blue)
Supersedes:
803166A99 DECAL SET

897515A01 DECAL SET, (Black 115) (2006 and Up)

897515A02 DECAL SET, (Black 125) (2006 and Up)

809718A96 DECAL SET (MERCURY 115 OFFSHORE) DESIGN II

809719A96 DECAL SET (MERCURY 125 OFFSHORE) DESIGN II



MARINER OUTBOARD DECALS

823412A01 DECAL SET (GRAY 115)(2001/2002)

823412A03  DECAL SET (GRAY 115)(2003 AND ABOVE)(MARINER 115) SN# USA-0G437999/BEL-9926999 & Below
Supersedes: 803167A00, 803167A99, 823412A97, 823412A94, 850445A97,

823413A01  DECAL SET (GRAY 125)(2001/2002)

823413A03  DECAL SET (GRAY 125)(2003 AND ABOVE)(MARINER 125) SN# USA-0G437999/BEL-9926999 & Below
Supersedes: 803167A00, 803167A99, 850445A97, 823412A94
Supersedes: 823413A01, 823413A97, 850446A97, 823413A94

823411A97  DECAL SET (GRAY 100)(Also Order 37-824911A25 Stripe Decal) SN# USA-0G437999/BEL-9926999 & Below
Supersedes: 823411A94

823412A97  DECAL SET (GRAY 115 - RED)(Also Order 37-824911A25 Stripe Decal)
Supersedes: 37-823412A01, 803167A99, 823412A94, 850445A97, 803167A00

803167A99  DECAL SET (GRAY 115 COASTAL - RED (Also Order 37-824911A25 Stripe Decal)
Supersedes: 37-823412A01, 37-803167A99, 37-823412A97, 37-823412A94, 37-850445A97, 37-803167A00

850445A97  DECAL SET (GRAY 115 COASTAL - BLUE) (Also Order 37-824911A25 Stripe Decal)
Supersedes: 37-823412A01, 37-803167A99, 37-823412A97, 37-823412A94, 37-850445A97, 37-803167A00

823413A97  DECAL SET (GRAY 125)(Also Order 37-824911A25 Stripe Decal)
Supersedes: 37-823413A01, 37-823413A94, 37-850446A97

850446A97  DECAL SET (GRAY 125 OFFSHORE)(Also Order 37-824911A25 Stripe Decal)
Supersedes: 37-823413A01, 37-823413A97, 37-823413A94, 37-850446A97

826330A97  DECAL SET (GRAY 80 JET)(Also Order 37-824911A25 Stripe Decal)(MARINER 80 JET) SN# USA-0G437999/BEL-9926999 & Below
Supersedes: 826330A95

824911A25  DECAL, Striping, STRIPE (BULK ROLL) SN# USA-0G438000/BEL-9927000 & Up



TRACKER OUTBOARD DECALS

824735A96  DECAL SET (TRACKER 115) SN# 0G301751 & Up

808623A96  DECAL SET (TRACKER 125)

824735A94  DECAL SET (TRACKER 115) SN# 0G301750 & Below

808623A94  DECAL SET (TRACKER 125) SN# 0G301750 & Below



OTHER DECALS

856985A 9  DECAL, EPA Label Information (1999)

804667A00  DECAL, EPA Label Information (2000)

804667A01  DECAL, EPA Label Information (2001)

804667A02  DECAL, EPA Label Information (2002)

804667A03  DECAL, EPA Label Information (2003)

804667A04  DECAL, EPA Label Information (2004)

804667A05   DECAL, EPA Label Information (2005)

804667A06   DECAL, EPA Label Information (2006)





100 hp

1999
ELPTO: 1100412VB,1100412VD,1100412VE.
EXLHPTO: 1100421VD
7100412HB, 7100412HD, 7100421HD

2000
7100412JB, 7100412JD, 7100421JD.
ELPTO: 1100412WB, 1100412WD
EXLHPTO: 1100421WD



JET 80

1999 1115472VD
2001 1115472YD
2000 1115472WD
2002 1115472ZD
2003 1115472AD
2004 1115472CD
2005 1115472DD


115 HP

1999
7115412HB, 7115412HD, 7115412HY, 7115422HD, 7115472HD.
ELPTO:1115412VB,1115412VD,1115412VE,1115412VN
ELPTO CSTL: 1115412VY
EXLPTO: 1115422VD.

2000
71154120B, 7115412JB, 7115412JD, 7115412JY, 7115422JD, 7115472JD.
ELPTO:11154120B, 1115412WB, 1115412WD, 1115412WN
ELPTO CSTL: 1115412WY
EXLPTO SW: 1115422WD

2001
7115412KB, 7115412KD, 7115412KY, 7115422KD, 7115472KD.
ELPTO: 1115412YB, 1115412YD, 1115412YN
ELPTO SW: 1115412YY
EXLPTO SW: 1115422YD
ELPT 4: 1115F13YE

2002
7115412LB, 7115412LD, 7115412LY, 7115422LY.
ELPTO: 1115412ZB, 1115412ZD ELPTO, 1115412ZN ELPTO
ELPTO SW:1115412ZY
EXLPTO SW: 1115422ZD, 1115422ZY

2003
ELPTO: 1115412AB, 1115412AD, 1115412AN.
ELPTO SW: 1115412AC,1115412AY.
EXLPTO SW: 1115422AY
115 :7115412MB, 7115412MD, 7115412MY, 7115422MY.

2004
71154124B, 7115412RB, 7115412RD, 7115412RY
ELPTO: 11154124B, 1115412CB ELPTO, 1115412CD ELPTO, 1115412CN.
ELPTO SW: 1115412CC, 1115412CY.
EXLPTO SW: 1115422CY.

2005
ELPTO: 1115412DB, 1115412DD, 1115412DN, 7115412TB, 7115412TD, 7115412TY.
ELPTO SW: 1115412DC, 1115412DY.
EXLPTO SW: 1115422DY.

2006
ELPTO: 1115412FB, 7115412UB, 7115412UY.
ELPTO SW: 1115412FY.
EXLPTO SW: 1115422FY.


125 HP

1999:1125412VB, 1125412VD, 1125412VE, 1125412VN, 1125422VD, 7125412HB, 7125412HD, 7125422HD.

2000
ELPTO: 11254120B.
1125412WB, 1125412WD, 1125412WN, 1125422WD, 7125412JB, 7125412JD, 7125422JD.

2001: 1125412YB, 1125412YD, 1125412YN, 1125412YY, 1125422YD, 7125412KB, 7125412KD, 7125422KD.
2002: 1125412ZB, 1125412ZD, 1125412ZN, 1125412ZY, 1125422ZD, 1125422ZY, 7125412LB, 7125412LD.

2003
ELPTO: 1125412AB, 1125412AD, 1125412AN.
ELPTO SW: 1125412AY.
1125422AC, 1125422AY, 7125412MB, 7125412MD.

2004
ELPTO: 11254124B, 1125412CB, 1125412CD, 1125412CE.
1125412CN, 1125412CY, 1125422CC, 1125422CY, 71254124B, 7125412RB, 7125412RD.

2005
ELPTO: 1125412DB, 1125412DD, 1125412DN, 1125412DY, 7125412TB, 7125412TD.
EXLPTO SW: 1125422DC, 1125422DY.

2006
ELPTO : 1125412FB, 1125412FY, 7125412UB.
EXLPTO SW: 1125422FY.
ELPTO SW: 7125412UY.

115 EFI (4-STROKE) - Cat.# 90-88183801

> Mercury Marine [Updated: Jun. 29, 2024] > Outboard > 4 Stroke > 115 HP EFI > [0T178500 THRU 0T800999] - USA - Cat.# 90-88183801
> Mercury Marine [Updated: Feb. 24, 2024] > Outboard > 4 Stroke > 115 HP EFI > [0T178500 THRU 0T800999] - USA - Cat.# 90-88183801
> Mercury Marine [Updated: Jul. 2, 2018] >  Outboard > 4 Stroke >  > [0T178500 THRU 0T800999] - USA - Cat.# 90-88183801



Top Cowl Diagram 12452



1
827328T9 TOP COWL ASSEMBLY (Black)

827328T10 TOP COWL ASSEMBLY (Silver)

827328T9, 827328T10
827328T9 827328T10



MERCURY DECALS

881649A01 DECAL SET (Black-Long) (Tracker)[2002] & Up

881840A01 DECAL SET (Black-X-Long) (Saltwater)(2001/2002)

881840A03 DECAL SET (Black-X-Long) (Saltwater)(2003)





MARINER DECALS

881650A01 DECAL SET (Gray) (2001/2002)

881650A03 DECAL SET (Gray) (2003)



NITRO-TRACKER DECALS

881702A01 DECAL SET (Tracker - 2001) - Reference issues - Possible Mercury Tracker wraparound 4Stroke EFI, provide pictures and tracings for accuracy.



OTHER DECALS

881839A01 DECAL EPA Label Information (2001)
881839A02 Decal EPA Label Information (2002)
881839A03 DECAL EPA Label Information (2003)

7115F13MD - 2003 MARINER 4 STROKE EFI 115EFI ELPT 4
Serial Number
0T480511
2002
115ELPTS
Max RPM 6000
HP 115 KW 84.6
LB 386 KG 175
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE [01]

Serial Number: 0T480511 - Model: 7115F13LD - Model Version: ELPT 4
2002 MARINER 4 STROKE EFI 115EFI ELPT 4
Serial Number
0Т362291
2001
115 ELPT
Max RPM 6000
HP 115 KW 84.6
LB 386 KG 175
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from US and foreign components
CE [00]

Serial Number: 0Т362291 - Model: 1115F13YN - Model Version: ELPT 4
2001 MERCURY 4 STROKE NITRO TRACKER 115EFI ELPT 4
