> Mercury Marine [Updated: Mar. 27, 2023] > Outboard > 4 Stroke > 6 HP Carb > [0R067090 THRU 0R411837] - USA - Cat.# 90-803599006

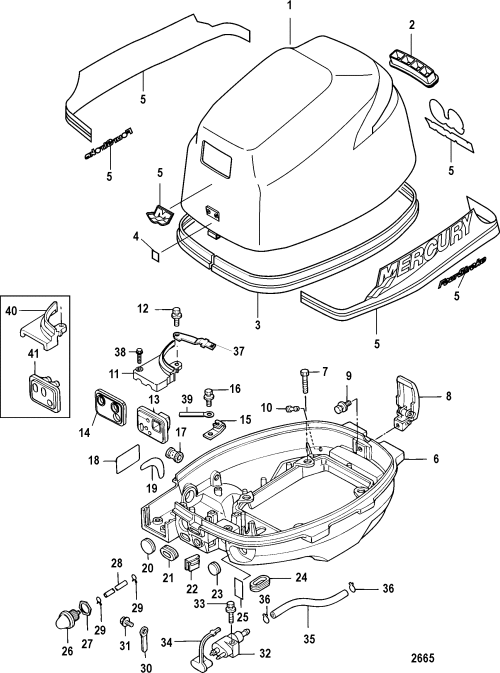

TOP COWLING DIAGRAM 14503

1
803580T1 TOP COWL ASSEMBLY (Black)
803580T4 TOP COWL ASSEMBLY (Black)(Use With Integral Fuel Tank)
803580T2 TOP COWL ASSEMBLY (Silver)
803580T5 TOP COWL ASSEMBLY (Silver)(Use With Integral Fuel Tank)

803580T1, 803580T4, 803580T2, 803580T5,
803580T1 803580T4 803580T2 803580T5

MERCURY DECALS

803635A06 DECAL SET Black 4 HP/4 HP Sailpower
803634A06 DECAL SET Black 5 Horsepower
804769A06 DECAL SET Black 6 Horsepower

MARINER DECALS

803638A03 DECAL SET Gray 4 Horsepower (2003 and Above)
888723A03 DECAL SET 4 Sailmate (Gray 4 Sailmate)(2003 and Above)

803637A03 DECAL SET Gray 5 Horsepower (Gray 5 H.P.)(2003 and Above)
803639A03 DECAL SET Gray 6 Horsepower (Gray 6 H.P.)(2003 and Up)

OTHER DECALS

5) 8156931 DECAL Fuel Lever Remote Fuel Shut-Off (Use With Integral Fuel Tank)

6
879706 DECAL Fuel Lever (Use With Integral Fuel Tank)
8240877 DECAL, Fuel Lever

8592669 DECAL Bodensee 1 or 2

827887 DECAL Unleaded Fuel - Bodensee

892904010 DECAL Notice-This Side Up

8834338 DECAL CA Very Low Emission
+ 8592758 DECAL CA Very Low Emission

23 0037 804651A06 DECAL EPA Label Information (2006)
23 0037 804651A07 DECAL EPA Label Information (2007)
23 0037 804651A08 DECAL EPA Label Information (2008)
23 NSS NOT SOLD SEPARATE DECAL, EPA (2009 & Up) Contact Mercury Marine Warranty Administration for Replacement (Service Bulletin 2009-18)

Model: 1225423YD MERCURY 3.0L EFI SALTWATER 225EFI XL SW

1

Mercury Marine [Updated: Jun. 16, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) > [0G590000 THRU 0G760299] - USA - Cat.# 90-85553698
Mercury Marine [Updated: Sep. 19, 2017] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) > [0G590000 THRU 0G760299] - USA Cat.# 90-85553698

TOP COWL Diagram 12455

1
850299A1 TOP COWL ASSEMBLY (BLACK)
+ 850299T1 TOP COWL ASSEMBLY (Black)

850299A2 TOP COWL ASSEMBLY (SILVER)
+ 850299T2 TOP COWL ASSEMBLY (Silver)

850299A1, 850299T1, 850299A2, 850299T2,
850299A1 850299T1 850299A2 850299T2

MERCURY DECALS

855405A98 DECAL SET (BLACK LONG) 225
+ 855405A00 DECAL SET
++ 8M0065126 DECAL SET (Black - Red) (225)
+++ 8M0099561 DECAL SET-MERCURY

855408A98 DECAL SET (BLACK XL/XXL/CXL/CXXL 225)
+ 855405A00 DECAL SET
++ 8M0065126 DECAL SET (Black - Red) (225)
+++ 8M0099561 DECAL SET-MERCURY

855410A98 DECAL SET (BLACK LONG 200)
+ 855410A00 DECAL SET (BLACK LONG 200)
+++ 8M0099561 DECAL SET-MERCURY

855412A98 DECAL SET (BLACK XL/XXL/CXL/CXXL 200)
+ 855412A00 DECAL SET (BLACK XL/XXL/CXL/CXXL 200)
++ 8M0099562 DECAL SET MERCURY (Black - Blue) (225)

MARINER DECALS

855409A98 DECAL SET (GRAY LONG 225)
+ 855409A03 DECAL SET (225)(Mariner)
++ 8M0065129 DECAL SET (GRAY LONG 225)

855411A98 DECAL SET (GRAY XL/XXL/CXL/CXXL 225)
+ 855409A03 DECAL SET (225)(Mariner)
++ 8M0065129 DECAL SET (GRAY LONG 225)

855413A98 DECAL SET (GRAY LONG 200)
+ 855413A03 DECAL SET (200)(Mariner)

855414A98 DECAL SET (GRAY XL/XXL/CXL/CXXL 200)
+ 855413A03 DECAL SET


TRACKER DECALS

802641A98 DECAL SET (BLACK 225 TRACKER)(MERCURY)
802642A98 DECAL SET (BLACK 200 TRACKER)(MERCURY)

802644A98 DECAL SET (GRAY 225 TRACKER)(Mariner)
802645A98 DECAL SET (GRAY 200 TRACKER)(Mariner)

OTHER DECALS

21 - NSS NOT SOLD SEPARATE Decal-Counter Rotation (Left Hand)
21 - NSS NOT SOLD SEPARATE Decal-Counter Rotation (Right Hand)

22 - NSS NOT SOLD SEPARATE Decal-Break-In

804658A00 DECAL, EPA Label Information(2000)
855577A27 DECAL, EPA Label Information - Supersedes: 85557727
85557727 DECAL EPA Label Information
85698514 DECAL, EPA Label Information

Serial Number: 0G724639 - Model: 1200483UD - Model Version: XL
MERCURY 3.0L DFI OPTIMAX OFFSHORE 200DFI XL
MERCURY 1998 & Newer 200DFI 200/225 (3.0L DFI)

Serial Number:
0G724639
1998
200XL OP
5750 Max RPM
HP 200 KW 149
LB 526 KG 239
MERCURY MARINE
BRUNSWICK CORP.
FOND DU LAC, WI 54935
MADE IN USA
CE [98]

Serial Number: 0G725884 - Model: 7200483GD - Model Version: XL
1998 & Newer MARINER 3.0L DFI OPTIMAX OFFSHORE 200DFI XL

MERCURY 3.0L DFI OPTIMAX DIGITAL SALT 200DFI XL DIG
2000 Mercury 200XLOPTI/CXL - MERCURY 2000 200DFI - MODEL: 1200D83WD

TOP COWL DIAGRAM 34836

Find your outboard decals here,  select your brand and search for that part number you are looking for.
