Cat.# 90-80913195 9.9 (4-STROKE)(232 cc)

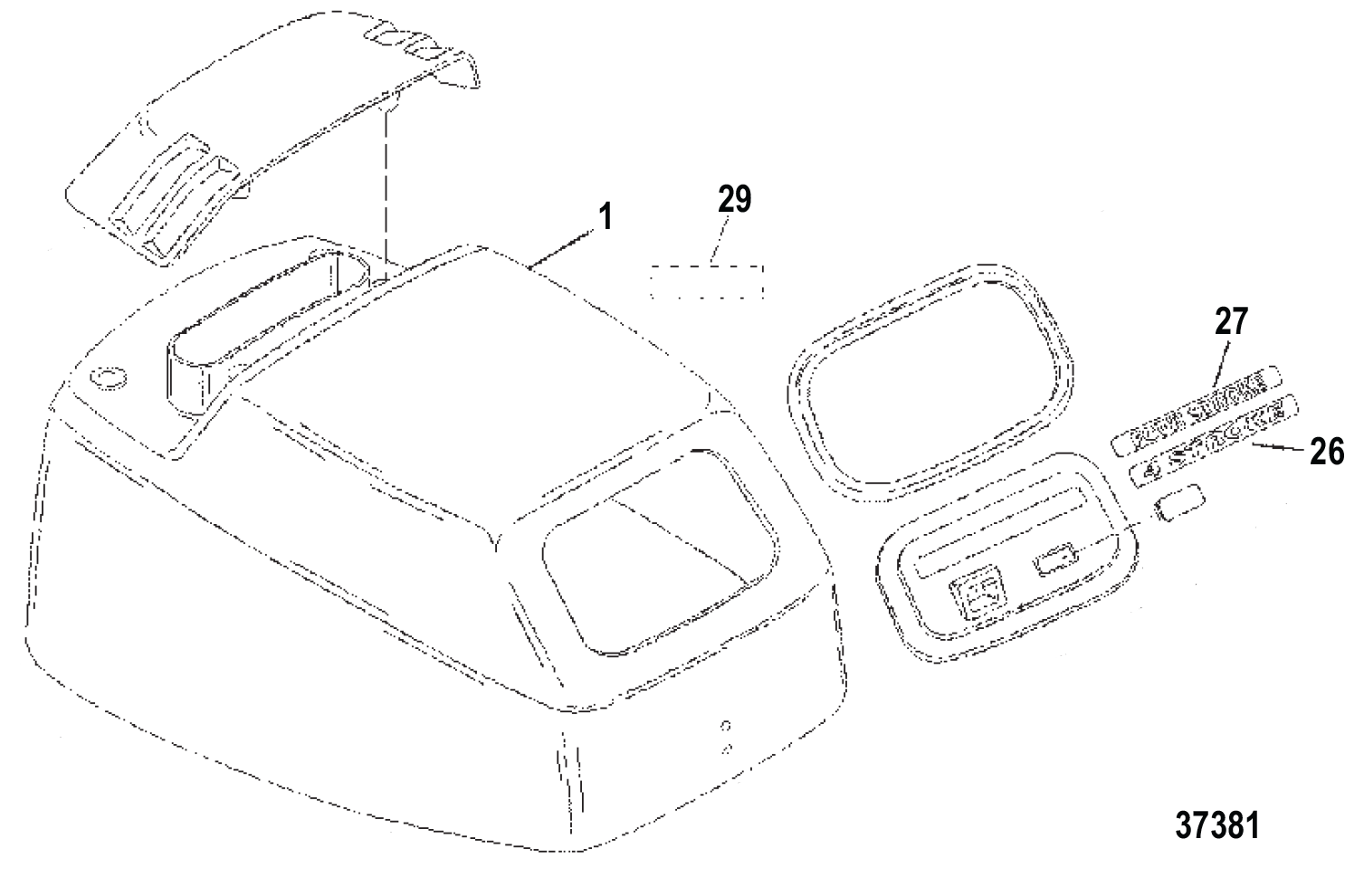

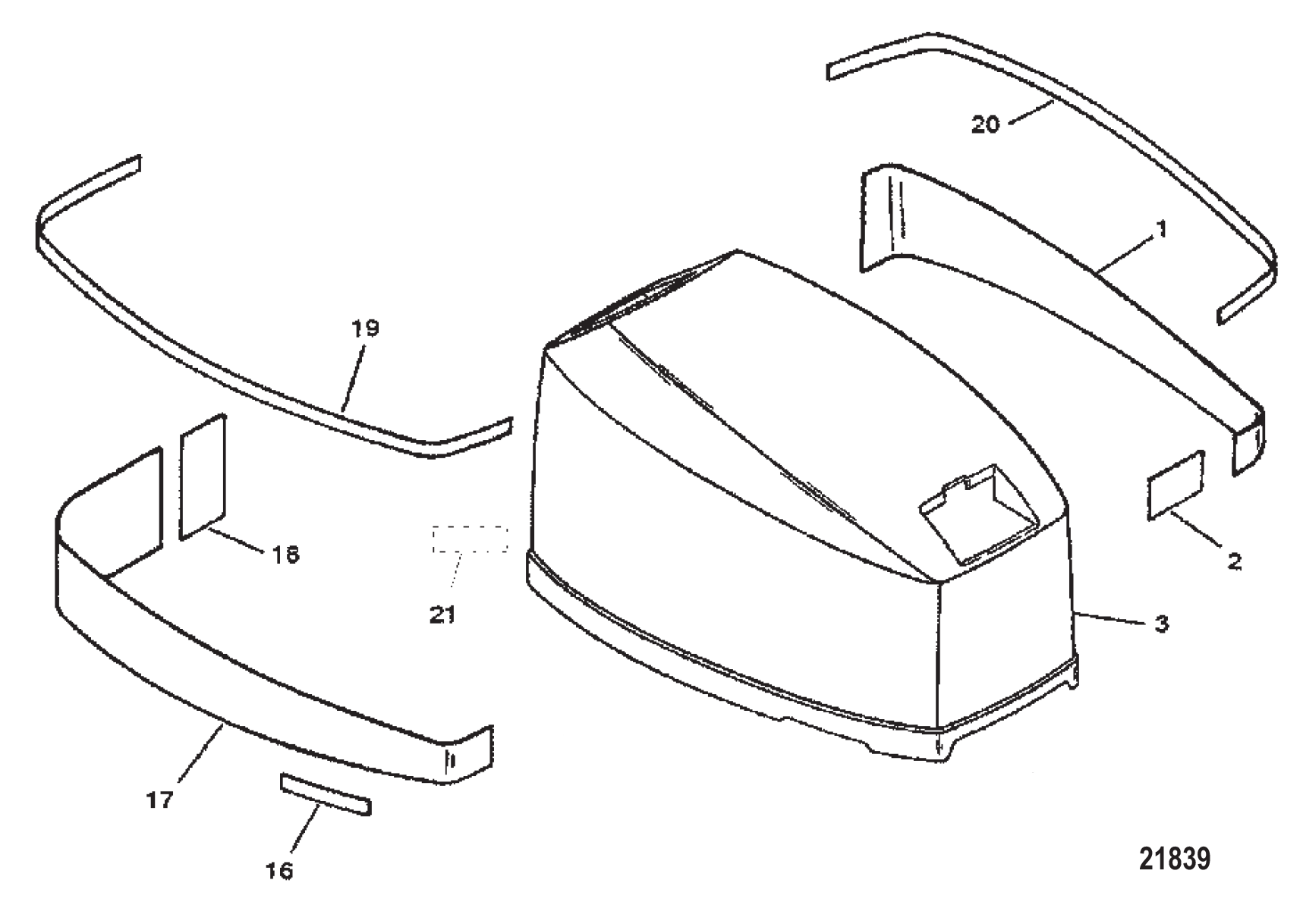

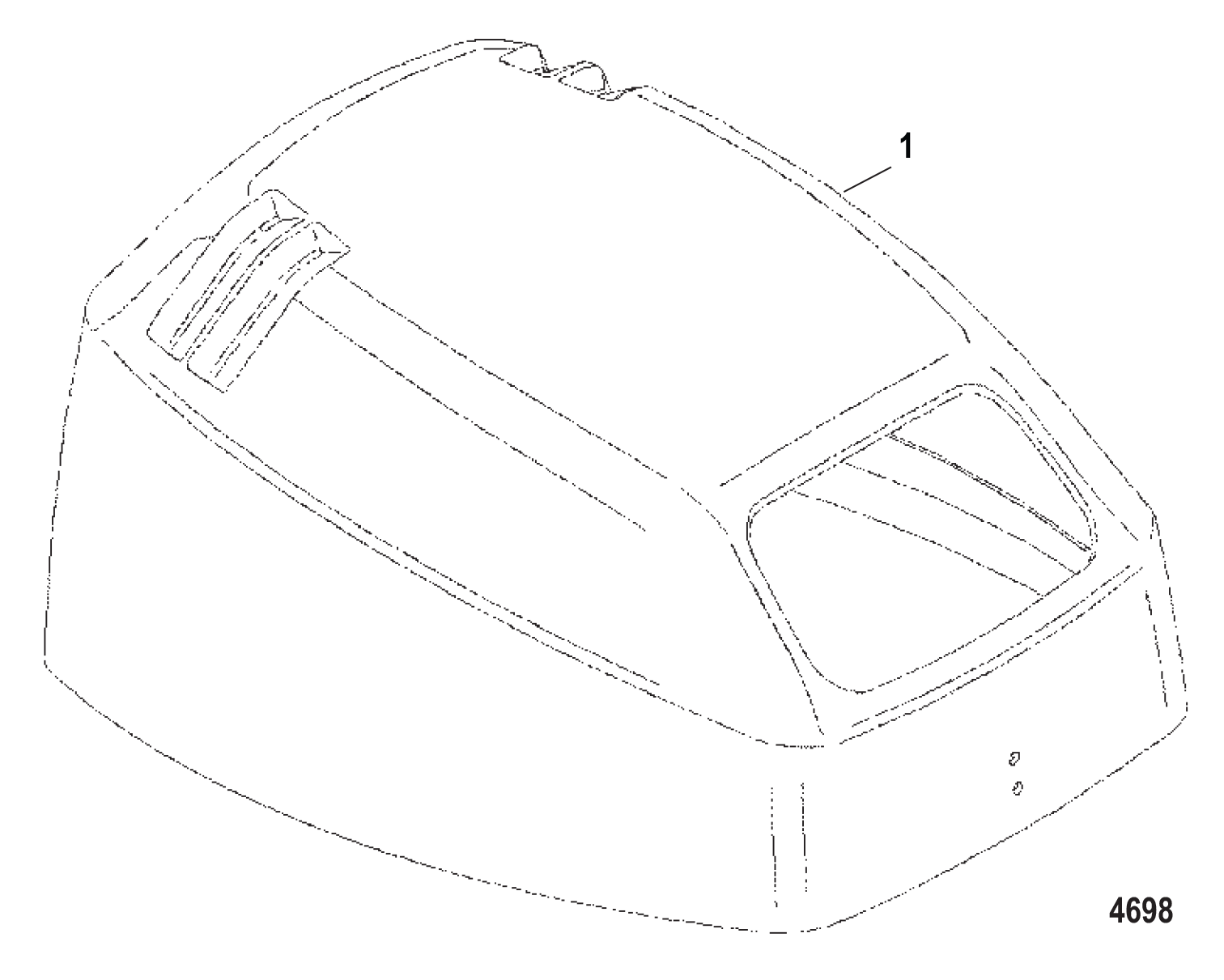

TOP COWL DIAGRAM 37381

1

854654A3 TOP COWL ASSEMBLY (BLACK) [0H013400] & Up

854654A4 TOP COWL ASSEMBLY (SILVER) [0H013400] & Up

825553A4 TOP COWL ASSEMBLY (BLACK) [0H013399] & Below

825553A5 TOP COWL ASSEMBLY (SILVER) [0H013399] & Below

852413T3 TOP COWL ASSEMBLY (Black)

852413T4 TOP COWL ASSEMBLY (Silver)

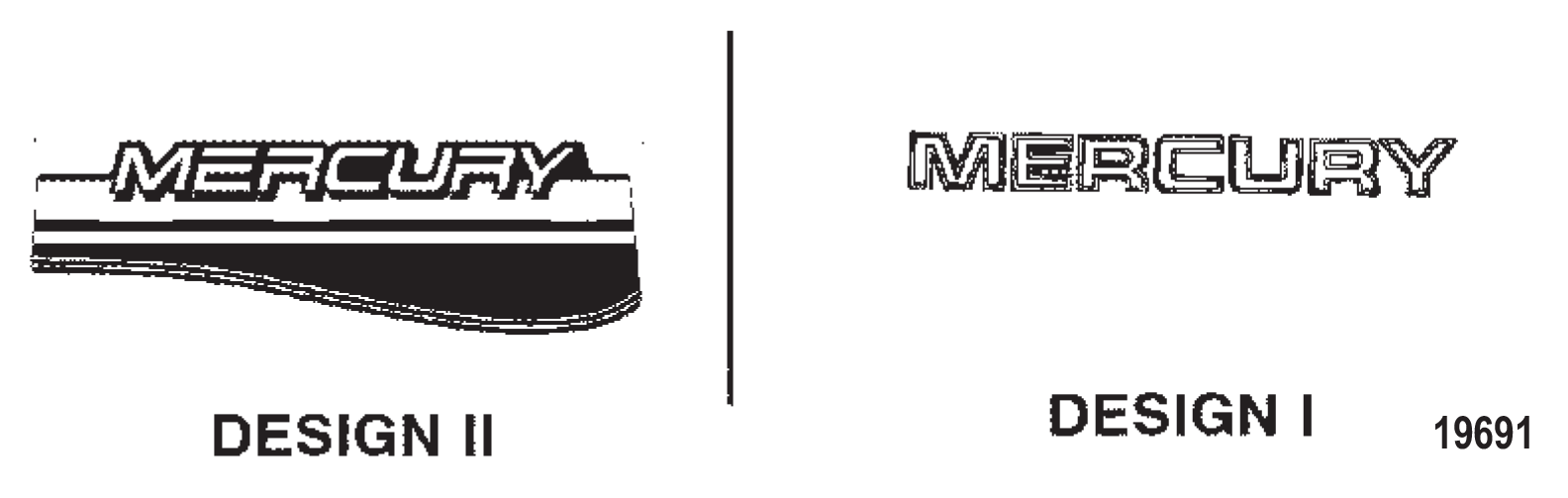

MERCURY DECALS

8302584 DECAL (BLACK/TRACKER)[0H013399] & Below (4 STROKE)

8500534 DECAL (BLACK/TRACKER)[0H013399] & Up (4 STROKE)

826335A96 DECAL SET (BLACK 9.9) [0H013399] & Below

809727A96 DECAL SET (BLACK 8 BODENSEE)[0H013399] & Below

826335A98 DECAL SET (BLACK 9.9) [0H013400] & Below

809727A98 DECAL SET (BLACK 8 BODENSEE) [0H013400] & Below

MARINER DECALS

8500534 DECAL (GRAY) [0H013400] & Up (FOUR STROKE)

8263367 DECAL (GRAY) [0H013400] & Below (FOUR STROKE)

826336A95 DECAL SET (GRAY 9.9) [0H009514] & Below

809710A96 DECAL SET (GRAY 8 BODENSEE) [0H009514] & Below

826336A97 DECAL SET (GRAY 9.9) [0H009515] THRU [0H013399]

809710A97 DECAL SET (GRAY 8 BODENSEE)[0H009515] THRU[0H013399]

826336A98 DECAL SET (GRAY 9.9) [0H013400] & Up

809710A98 DECAL SET (GRAY 8 BODENSEE) [0H013400] & Up

TRACKER DECALS

853556A97 DECAL SET (9.9 TRACKER)

OTHER DECALS

85557723 DECAL EPA Label Information (1998)

1998 MERCURY 9.9 EL 4S

Serial Number: 0H016381 - Model: 1F10312UD - Model Version: ELRC 4
1998 & Newer MERCURY 4 STROKE 9.9 ELRC 4
Cat.# 90-80913195 9.9 (4-STROKE)(232 cc) 0H00058 THRU OH016909 - USA

Serial Number
0H016381
1998
9.9EL 4ST
5500 max rpm
LB 9.9 KG 7.4
LB 103 KG 47MERCURY MARINE
BRUNSWICK CORP.
FOND DU LAC, WI 54935
MADE IN USA
CE [98]

 > Mercury Marine [Updated: Jun. 4, 2021] > Outboard > 2 Stroke DFI (OptiMax) > 300XS (3.2L DFI) > [1E052058 & Up] - USA - Cat.# 90-8M0039651

TOP COWL DIAGRAM 22280

881288T64 TOP COWL ASSEMBLY Includes all Decals [1E053148] & Below - Supersedes: 898103T93

8M0121265 TOP COWL ASSEMBLY Includes all Decals [1E053149] & Up

881288T64, 898103T93, 8M0121265
881288T64 898103T93 8M0121265

MERCURY DECALS

842782A04 DECAL SET [1E053148] & Below

This Mercury Marine 842782A04 DECAL SET is used on these Top Cowl models:
2006 MERCURY - 193241BHH, 193241CHH, 193241DHH, 193241EHH, 193241PHH, 193241QHH, 193247BHH, 193247DHH, 193247FHH, 193247GHH, 193248GHH, 19324B3HH, 19324B4HH, 19324BCHH, 19324BEHH, 19324BPHH, 19324BQHH, 19324C3HH, 19324C4HH, 19324CCHH, 19324CEHH, 19324CPHH, 19324CQHH.

8M0121263 DECAL SET [1E053149] & Up - 300XS

8M0065117 DECAL SET

Serial Number: 1E052541 - Model: 193247GIH - Model Version: L TM
RACE OUTBOARD 2013 300 XS HIGH PERFORMANCE 3.2L 300XS OPTIMAXH 1.75:1 300 XS L TM

Serial Number:1E052099 - Model: 193247BIH - Model Version: L SM - 300XS (3.2L)
RACE OUTBOARD 2013 300 XS HIGH PERFORMANCE 3.2L 300XS OPTIMAX 1.62:1 300 XS L SM

Model Number:
193247BIH
Serial Number:
1E052099
300XS L
HP 300 KW 221
LB 505 KG 229
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
 [13]

Serial Number: 1E053049 - Model:193247DIH
2016 HIGH PERFORMANCE 3.2L 300XS OPTIMAX 1.75:1 300 XS L SM

Model Number
193247DIH
Serial Number:
1E053049
300XS L
HP 300 KW 221
LB 505 KG 229
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
[16]

> Mercury Marine [Updated: Oct. 2, 2023] > Outboard > 4 Stroke > 300 HP Verado 6 CYL > [1B517434 THRU 2B144122] - USA - Cat.# 90-896280008
> Mercury Marine [Updated: Aug. 30, 2023] > Outboard > 4 Stroke > 300 HP Verado 6 CYL > [1B517434 THRU 2B144122] - USA - Cat.# 90-896280008
> Mercury Marine [Updated: Apr. 13, 2023] > Outboard > 4 Stroke > 225 HP Verado 6 CYL > [1B517434 THRU 2B144122] - USA - Cat.# 90-896280008
> Mercury Marine [Updated: Feb. 13, 2023] > Outboard > 4 Stroke > 250 HP Verado 6 CYL > [1B517434 THRU 2B144122] - USA - Cat.# 90-896280008
> Mercury Marine [Updated: Nov. 12, 2019] > Outboard > 4 Stroke > 250 VERADO (4-STROKE)(6 CYL.) > [1B517434 THRU 2B144122] - USA - Cat.# 90-896280008
Serial Number: 1B793618 - Model: 1250V34ED - Model Version: CXXL 4
> Mercury Marine [Updated: Mar. 14, 2019] > Outboard > 4 Stroke > 250 VERADO (4-STROKE)(6 CYL.) > [1B517434 THRU 2B144122] - USA - Cat.# 90-896280008

TOP COWL DIAGRAM 29510

885355T05 TOP COWL ASSEMBLY Mercury, Black
+ 8M0049999 ORD 100-8M0063711
8M0090472 TOP COWL ASSEMBLY Mercury, Cool White
8M0090473 TOP COWL ASSEMBLY Mercury, Warm White
885355T04 TOP COWL ASSEMBLY Mariner
+ 8M0050000 COWL-TOP MARINER
8M0075364 TOP COWL ASSEMBLY Mercury, Black, Without decals
+ 8M0113902 TOP COWL NONDECAL
8M0075366 TOP COWL ASSEMBLY Mariner, Without decals
+ 8M0100223 TOP COWL ASSEMBLY Mariner, Non-Decaled
8M0100221 TOP COWL ASSEMBLY Cold Fusion, Non-Decaled
+ 8M0113903 TOP COWL CFWH
8M0100222 TOP COWL ASSEMBLY Warm Fusion, Non-Decaled
+ 8M0113904 TOP COWL WFWH

885355T05, 8M0049999, 8M0063711, 8M0090472, 8M0090473, 885355T04, 8M0050000, 8M0075364, 8M0113902, 8M0075366, 8M0100223, 8M0100221, 8M0113903, 8M0100222, 8M0113904
885355T05 8M0049999 8M0063711 8M0090472 8M0090473 885355T04 8M0050000 8M0075364 8M0113902 8M0075366 8M0100223 8M0100221 8M0113903 8M0100222 8M0113904

MERCURY DECALS

892565A09 DECAL SET (Generic)(Mercury) [2B034180] & Below
8M0091493 DECAL SET (Generic)(Mercury) [2B034181] & Up

8M0024870 DECAL Mercury Verado Air Dam
8M0024873 DECAL (Mercury 200)
8M0024874 DECAL (Mercury 225)
8M0024875 DECAL (Mercury 250) [1B701706] & Below
8M0034101 DECAL (Mercury 250) [1B701707] & Up
8M0024876 DECAL (Mercury 275)
8M0024877 DECAL (Mercury 300) [1B700024] & Below
8M0034103 DECAL (Mercury 300) [1B700025] & Up

MARINER DECALS

892870A02 DECAL SET Mariner

8M0025965 DECAL (Mariner Verado) Air Dam
899324003 DECAL (Mariner 200)
899324004 DECAL (Mariner 225)
899324005 DECAL (Mariner 250)
899324006 DECAL (Mariner 275)
8M0025964 DECAL (Mariner 300)

TOP COWL CCT DIAGRAM 51444

8M0074520 TOP COWL ASSEMBLY CCT

8M0024870 DECAL Mercury Verado
8M0043703 DECAL M-Icon, 66 MM, Black
- NSS NOT SOLD SEPARATE Generic Decal Set

REAR COWL 9937

885358T04 COWL ASSEMBLY Rear, Black (WITHOUT DECALS)
+ 8M0050001 ORD 100-8M0100175

8M0090476 COWL ASSEMBLY Rear, Cool White
+ 8M0100176 REAR COWL ASSEMBLY Cold Fusion, Non-Decaled

8M0090477 COWL ASSEMBLY Rear, Warm White
+ 8M0100177 REAR COWL ASSEMBLY Warm Fusion, Non-Decaled

8M0075217 DECAL Joystick Piloting

Read more: 200/225/250/275/300 4-STROKE VERADO (6 CYLINDER) - Cat.# 90-896280008
