> Mercury Marine [Updated: Mar. 21, 2023] > Outboard > 2 Stroke Carb > 25 (2 CYL.) > [1B000001 & Up] - USA - Cat.# 90-803127001
 > Mercury Marine [Updated: Jun. 6, 2018] > Outboard > 2 Stroke Carb > 25 (2 CYL.) > [0T980000 THRU 0T999999] - USA - Cat.# 90-803127001

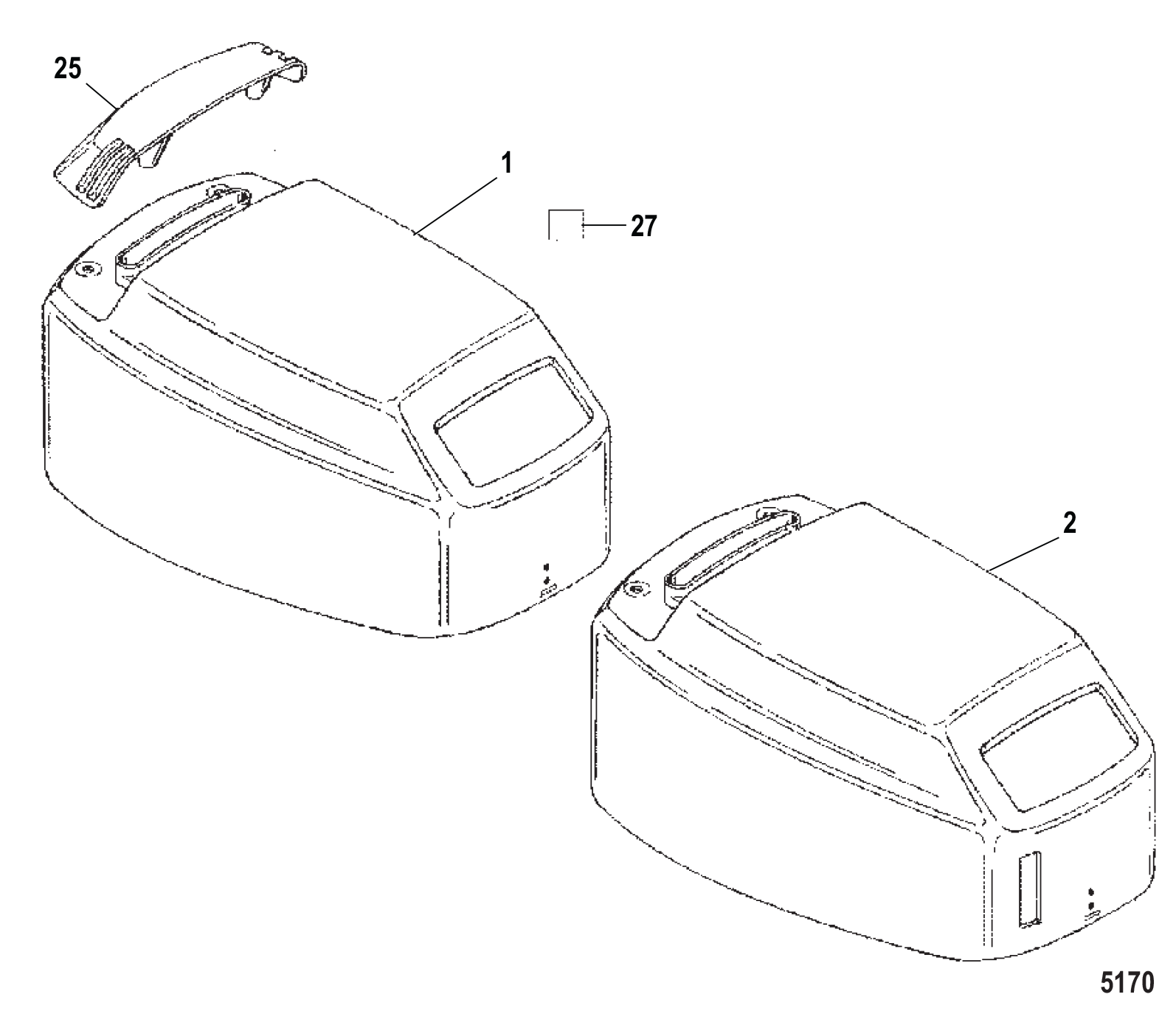

TOP COWL DIAGRAM 7415

9163T19 TOP COWL ASSEMBLY (Black)
9163T21 TOP COWL ASSEMBLY (Silver)

9163T19, 9163T21
9163T19 9163T21

MERCURY DECALS

824091A00 DECAL SET (Black 20/Jet 20) (2005)
897508A01 DECAL SET (Mercury 20) (2006 and up)
897508A03 DECAL SET (Mercury-Jet 20) (2006 and up)
808499A00 DECAL SET (Black 25) (2005)
897508A02 DECAL SET (Mercury 25) (2006 and up)
+ 8M0098675 DECAL SET
811304A00 DECAL SET (Black SeaPro 25)
+ 8M0098711 DECAL-SERVICE KIT

MARINER DECALS

824092A03 DECAL SET (Gray 20)
824088A03 DECAL SET (Gray 25)

TRACKER DECALS

824731A96 DECAL SET (Tracker) (Tracker 25) (2005)

OTHER DECALS

(15) 134254 DECAL Starting Procedures

(15) 111851 SHIFT DECAL (Jet)

804663A05 DECAL EPA Label Information (2005)
804663A06 DECAL EPA Label Information (2006)
804663A07 DECAL EPA Label Information (2007 and up)

Starter Assembly (Manual) Diagram 5085

(27) 8272822 DECAL Warning High Voltage
(28) NSS NOT SOLD SEPARATE Decal-Servicing Referrral
(29) 37 881865 DECAL Caution-Start in Gear (Start In Gear) (Remote Control)
(30) NSS NOT SOLD SEPARATE Decal-Emergency Start Procedure

Tiller Handle Assembly diagram 5121

(16) 8242002 DECAL (Tiller Handle Shift)
(16) 8242004 DECAL (Side Shift)

Serial Number: 1B207986 - Model: 1025302DD - Model Version: E
2005 MERCURY 25 E
Cat.# 90-803127001 20/25/JET 20 - 20/25 SEAPRO/MARATHON (2-STROKE)

Serial Number: 1B258555 - Model: 1025201FD - Model Version: M
2006 MERCURY 25 M

Serial Number:
1B258555
2006
25 M
Max RPM 6000
HP 25 KW 18.4
LB 114 KG 51.8
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE [ 05 ]

> Mercury Marine [Updated: Jan. 1, 2024] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > [6436123 & Up] - USA - Cat.# 90-13290
> Mercury Marine [Updated: Feb. 23, 2023] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > [6436123 & Up] - USA - Cat.# 90-13290
> Mercury Marine [Updated: May. 20, 2022] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > [6436123 & Up] - USA - Cat.# 90-13290
> Mercury Marine [Updated: Apr. 13, 2022] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > [6436123 & Up] - USA - Cat.# 90-13290
> Mercury Marine [Updated: Oct. 3, 2017] > Outboard > 2 Stroke Carb > 115 (6 CYL.) > [7208848 & Up] - Canada Cat.# 90-13290 90/115 H.P. (INLINE)
P
** PROBLEMS DEFINING DECAL SET YEAR WITH THIS CATALOG. MANUAL INSPECTION IS SUGGESTED.

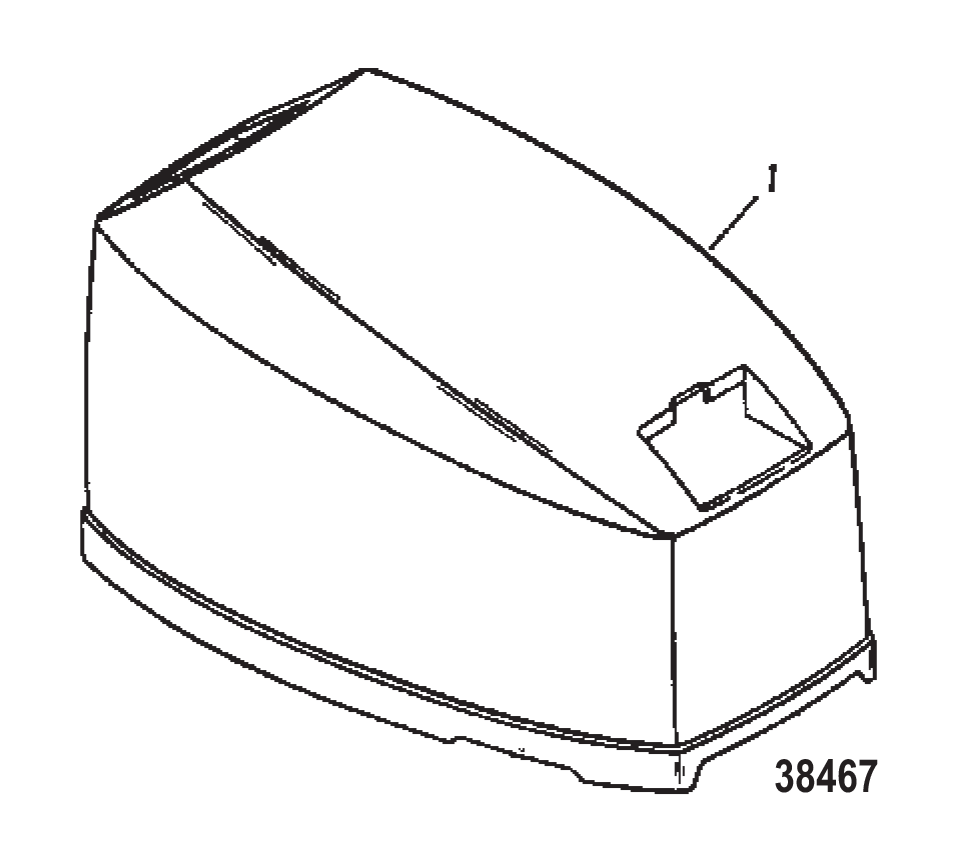

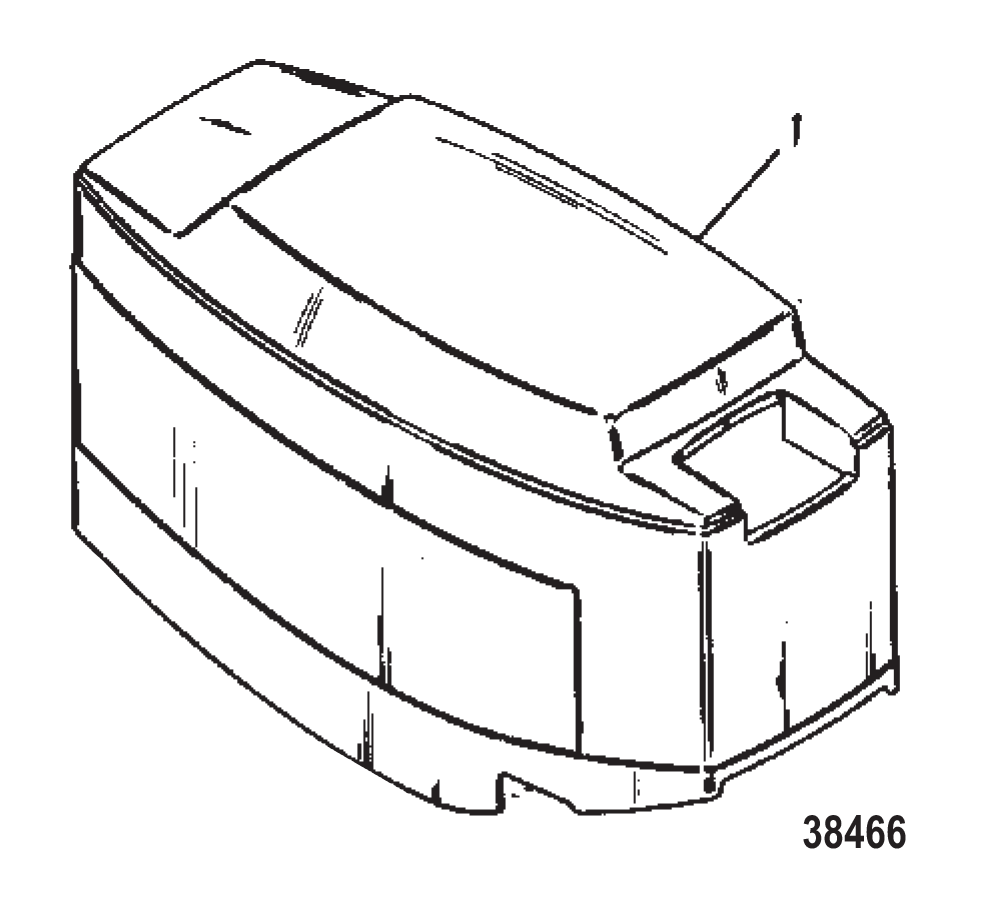

TOP COWL AND SUPPORT BRACKETS DIAGRAM 38408

1- 7934 TOP COWL ASSEMBLY (BLACK)
+ 7934T TOP COWL
1- 6392T6 TOP COWL ASSEMBLY (GRAY)

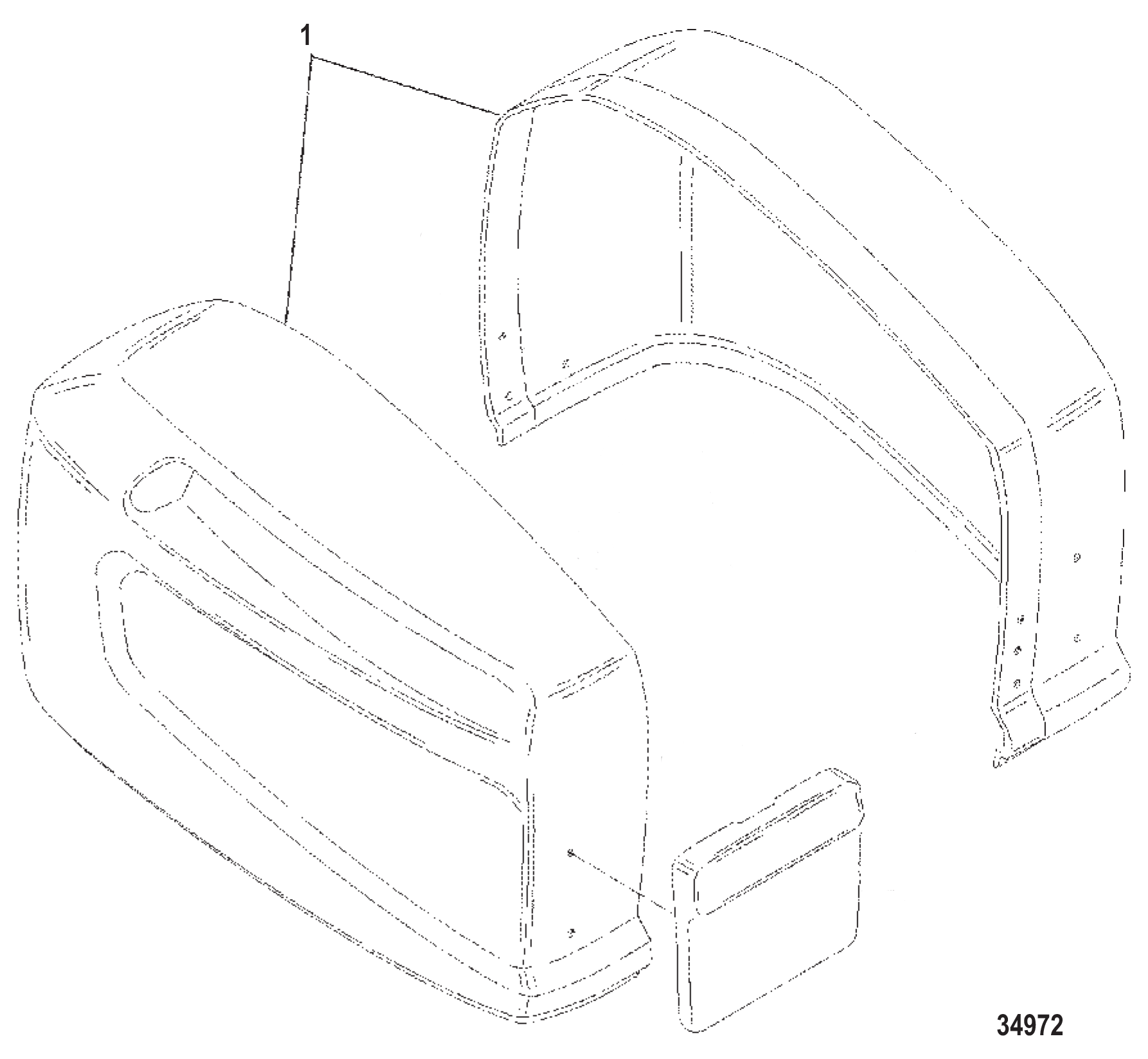

COWLING AND FRONT COVER (BLACK) DIAGRAM 38409

1 - 7928A3 FRONT COVER ASSEMBLY
9 - 4660A4 WRAP AROUND COWL ASSEMBLY

7934, 7934T, 6392T6, 7928A3, 4660A4

MERCURY DECALS

13137A87 DECAL SET (90)(BLACK)
12832A87 DECAL SET (115)(BLACK)

MARINER DECALS

94937A87 DECAL SET (90)(GRAY)
87132A87 DECAL SET (115)(GRAY)

Read more: 90/115 H.P. (INLINE) (6 CYL.) - Cat.# 90-13290

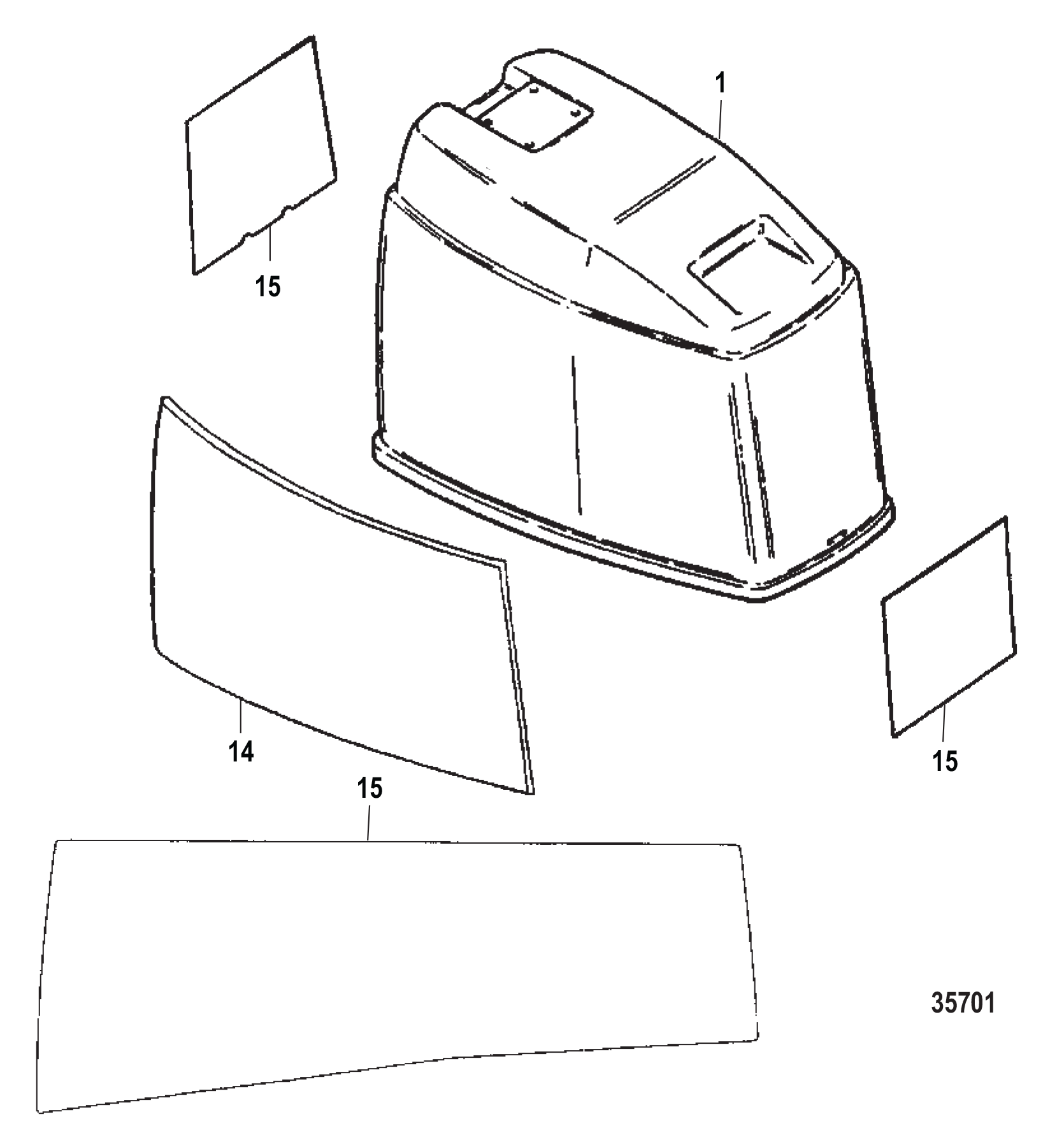

TOP COWL DIAGRAM 1122

885355T03 TOP COWL ASSEMBLY (Mercury)

+ 8M004999 ORD 100-8M0063711

885355T02 TOP COWL ASSEMBLY (Mariner)

+ 8M0050000 COWL-TOP MARINER

MERCURY DECALS

892564A05 DECAL SET (Mercury 200)

859271A05 DECAL SET (Mercury 225)

895252A05 DECAL SET (Mercury 250)

895253A05 DECAL SET (Mercury 275)

MARINER DECALS

892571A05 DECAL SET (Mariner 200)
+ 892571A07 DECAL SET (Mariner 200)

892871A05 DECAL SET (Mariner 225)
+ 892871A05 DECAL SET (Mariner 225)

895254A05 DECAL SET (Mariner 250)
+ 895254A07 DECAL SET (Mariner 250)

895255A05 DECAL SET (Mariner 275)
+ 895255A07 DECAL SET (Mariner 275)

Serial Number:

1B230501 MERCURY 2006 275 1275V23FD  200/225/250/275 4-STROKE VERADO XL 4   - MERCURY 06MY 4 STROKE VERADO L6SC 275 XL 4
1B231860 MERCURY 2006 275 1275V33FD  200/225/250/275 4-STROKE VERADO XXL 4 - MERCURY 06MY 4 STROKE VERADO L6SC 275 XXL 4
1B232339 MERCURY 2006 275 1275V24FD  200/225/250/275 4-STROKE VERADO CXL 4 - MERCURY 06MY 4 STROKE VERADO L6SC 275 CXL 4

Cat.# 90-896280006 200/225/250/275 4-STROKE VERADO

> Mercury Marine [Updated: Aug. 18, 2025] > Outboard > 4 Stroke EFI > 200 HP Verado 4 CYL > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008
> Mercury Marine [Updated: Jan. 30, 2024] > Outboard > 4 Stroke > 200 HP Verado 4 CYL > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008
> Mercury Marine [Updated: Jan. 13, 2022] > Outboard > 4 Stroke > 200 HP Verado 4 CYL > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008
> Mercury Marine [Updated: Jun. 4, 2021]  > Outboard > 4 Stroke > 135 HP EFI Verado 4 CYL > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008
> Mercury Marine [Updated: Sep. 21, 2020] > Outboard > 4 Stroke > 135 VERADO (4-STROKE)(4 CYL.) > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008

Top Cowl Parts (Diagram 29429)

• 895844T09 - TOP COWL ASSEMBLY, Mercury
• 8M0050003 - TOP COWL, Mercury (Order 100-8M0063714)
• 8M0063714 - TOP COWL, Mercury
• 8M0113898 - TOP COWL, Mercury
• 895844T10 - TOP COWL ASSEMBLY, Mariner
• 8M0113901 - COWL ASSY, TOP
• 8M0075362 - TOP COWL ASSEMBLY, Mercury
• 8M0113899 - TOP COWL, NON-DECAL
• 8M0075363 - TOP COWL ASSEMBLY, Mariner
• 8M0113900 - TOP COWL, NON-DECAL

895844T09, 8M0050003, 8M0063714, 8M0113898, 895844T10, 8M0113901, 8M0075362, 8M0113899, 8M0075363, 8M0113900

Mercury Decals

• 892565A08 - DECAL SET (Generic), Mercury
• 8M0063728 - DECAL SET, Mercury
• 8M0102449 - DECAL SET, SERVICE
• 8M0024865 - DECAL, Rear Mercury 135
• 8M0034095 - DECAL, Rear 135
• 8M0110604 - DECAL, Rear
• 8M0024866 - DECAL, Rear Mercury 150 [1B699945 & Below]
• 8M0034096 - DECAL, Rear Mercury 150 [1B699946 & Up]
• 8M0110605 - DECAL, 150 Rear
• 8M0024867 - DECAL, Rear Mercury 175 [1B700324 & Below]
• 8M0034097 - DECAL, Rear Mercury 175 [1B700325 & Up]
• 8M0110606 - DECAL, 175 Rear
• 8M0024868 - DECAL, Rear Mercury 200 [1B689452 & Below]
• 8M0034098 - DECAL, Rear Mercury 200 [1B689453 & Up]
• 8M0110607 - DECAL, 200 Rear

8M0024865, 8M0034095, 8M0110604, 8M0024866, 8M0034096, 8M0110605, 8M0024867, 8M0034097, 8M0110606, 8M0024868, 8M0034098, 8M0110607

Mariner Decals

• 892870A08 - DECAL SET (Generic), Mariner
• 892870A01 - DECAL SET, Port and Starboard, Mariner
• 892870003 - DECAL, Rear Mariner 135
• 892870004 - DECAL, Rear Mariner 150
• 892870005 - DECAL, Rear Mariner 175
• 8M0024880 - DECAL, Rear Mariner 200

Other Decals

• 8M0024861 - DECAL, Vinyl Lenz Air Dam Cap, Mercury (Qty: 2)

Compatible Models for Decal Set 892565A08

• 2006 Mercury Verado 135: 1135V13ED, 1135V13ER, 1135V23ED, 1135V23ER, 1135V24ED, 1135V24ER, 7135V13ID, 7135V13IR, 7135V23ID, 7135V23IR
• 2006 Mercury Verado 150: 1150V13ED, 1150V13ER, 1150V23ED, 1150V23ER, 1150V24ED, 1150V24ER, 7150V13IR, 7150V23ID, 7150V23IR, 7150V24ID, 7150V24ZB
• 2006 Mercury Verado 175: 1175V13ED, 1175V13ER, 1175V13HB, 1175V23ED, 1175V23ER, 1175V23HB, 1175V24ED, 1175V24ER, 1175V24HB, 7175V13ID, 7175V13IR, 7175V13ZB, 7175V23ID, 7175V23IR, 7175V23ZB, 7175V24ZB
• 2006 Mercury Verado 200: 1201V13ED, 1201V13ER, 1201V23ED, 1201V23ER, 1201V24ED, 1201V24ER, 7201V13ID, 7201V13IR, 7201V23ID, 7201V23IR, 7201V24IR
• 2007 Mercury Verado 135: 1135V13EB, 1135V13EF, 1135V23EB, 1135V23EF, 1135V24EB, 1135V24EF, 7135V13IB, 7135V23IB
• 2007 Mercury Verado 150: 1150V13EB, 1150V13EF, 1150V23EB, 1150V23EF, 1150V24EB, 1150V24EF, 7150V13IB, 7150V23IB, 7150V24IB, 7150V24IR
• 2007 Mercury Verado 175: 1175V13EB, 1175V23EB, 1175V24EB, 7175V13IB, 7175V23IB, 7175V24IB, 7175V24IR
• 2007 Mercury Verado 200: 1201V13EB, 1201V13EF, 1201V23EB, 1201V23EF, 1201V24EB, 1201V24EF, 7201V13IB, 7201V23IB, 7201V24IB

Example Serial Numbers and Models

• Serial: 2B416184, 2B416698, Model: 1201V23ED ( MERCURY GEN 2 4 STROKE VERADO L4SC 200 XL 4 )
• Serial: 1B552296, Model: 1201V24ED, Version: CXL 4 (2006 Mercury Gen 2 4-Stroke Verado L4SC 200 CXL 4)
• Serial: 1B552813, Model: 1135V23ED, Version: XL 4 (2006 Mercury 4-Stroke Verado L4SC 135 XL 4)
• Serial: 2B131165, Model: 1201V23ED, Version: XL 4 (2006 Mercury Gen 2 4-Stroke Verado L4SC 200 XL 4)
• Serial: 2B025011, Model: 1201V23ED, Version: 200 XL 4 (2006 Mercury Gen 2 4-Stroke Verado L4SC 200 XL 4)

Tips for Ordering Parts

• Locate your engine’s serial number on the transom bracket. Use Mercurymarine.com for parts lookup.
• Match part numbers exactly, as designs vary by serial number range.
• Clean the cowling thoroughly before applying decals for strong adhesion.
• Apply decals in a dry, shaded area to avoid bubbles.
• Verify your engine model (135, 150, 175, or 200 HP) and serial number range (1B517159 to 2B576734) for compatibility.
• Check if your engine requires Mercury or Mariner-specific decals based on branding.
