Cat.# 90-88876503 225 EFI 4-STROKE

TOP COWL DIAGRAM 1463

887913T1 TOP COWL ASSEMBLY

MERCURY DECALS

859276A03 DECAL SET (Mercury)

MARINER DECALS

8848751 DECAL Wrap Around (Mariner)(Export Only)

8592712 DECAL M Icon (Mariner)(Export Only)

OTHER DECALS

12 NSS NOT SOLD SEPARATE Decal-Clean Cling-On

889307A03 DECAL EPA Label Information (2003)

889307A04 DECAL EPA Label Information (2004)

889307A05 DECAL EPA Label Information (2005)

889307A06 DECAL EPA Label Information (2006)

88343311 DECAL California-Very Low Emission

88343312 DECAL California Ultra Low Emissions

Serial Number:  1B264844 - Model: 1225F23FK - Model Version: XL 4
MERCURY 4 STROKE EFI SWB 225EFI XL 4 - MERCURY 2006 225EFI

 > Mercury Marine [Updated: Mar. 12, 2018] > Outboard > 2 Stroke Carb > 4A > ARCHIVE CAT 96332

4 H.P.
SERIAL NUMBER

4A . . . . . . . . . . . . . .M 6E0-001011 AND UP
4A . . . . . . . . . . . . . .ML 6E0-300101 AND UP

Cat# 90-96332 - 4 H.P. 4A M ML

COWLING diagram 96332-3

MARINER DECALS

1 - 9339M  TOP COWLING ASS’Y

2 - 810932A90  DECAL, SIDE SET SERIAL (M-114253 ML-338166) AND ABOVE

2 - 11913M  DECAL, SIDE SET SERIAL (M-114252 ML-338165) AND BELOW

3 - NSS-N.S.S.  DECAL, FRONT (PART OF 37-810932A90) SERIAL (M-114253 ML-338166) AND ABOVE

3 - 11914M DECAL, FRONT SERIAL (M-114252 ML-338165) AND BELOW

8 - 81202M INDICATOR, SHIFT SERIAL (M-070824 ML-325784) AND ABOVE

OTHER DECALS

28 -  91671M GRAPHIC, FUEL SHUT OFF

OPTIONAL FUEL TANK ASSEMBLY

DIAGRAM 96332-27

1 - 1529A26 FUEL TANK, COMPLETE

2  - 13921 DECAL, FUEL TANK

6EO   S 042337
810932A90  DECAL, SIDE SET SERIAL (M-114253 ML-338166) AND ABOVE
This Mercury Marine DECAL, SIDE SET is used on these models:

1981 7004201, 7004221.
1985 7004205, 7004225.
1988 7004201NU, 7004201NW, 7004211NU, 7004211NW.
1989 7004201PU, 7004201PW, 7004211PU, 7004211PW.

> Mercury Marine [Updated: Mar. 17, 2021] > Outboard > 2 Stroke Carb > 100 (4 CYL.) > [0D283222 THRU 0G760299] - USA - Cat.# 90-1779394
> Mercury Marine [Updated: Nov. 4, 2019]  > Outboard > 2 Stroke Carb > 125 (4 CYL.) > [0D283222 THRU 0G760299] - USA - Cat.# 90-1779394
> Mercury Marine [Updated: Feb. 20, 2018] > Outboard > 2 Stroke Carb > 115 (4 CYL.) > [0D283222 THRU 0G760299] - USA - Cat.# 90-1779394

TOP COWL (S/N-USA-0G301750/ BEL-9885504 AND BELOW) DIAGRAM 37308

828354A11 TOP COWL ASSEMBLY (BLACK)
828354A12 TOP COWL ASSEMBLY (SILVER)
828354A13 TOP COWL ASSEMBLY (TRACKER GRAPHITE GRAY)

828354A11, 828354A12, 828354A13
828354A11 828354A12 828354A13

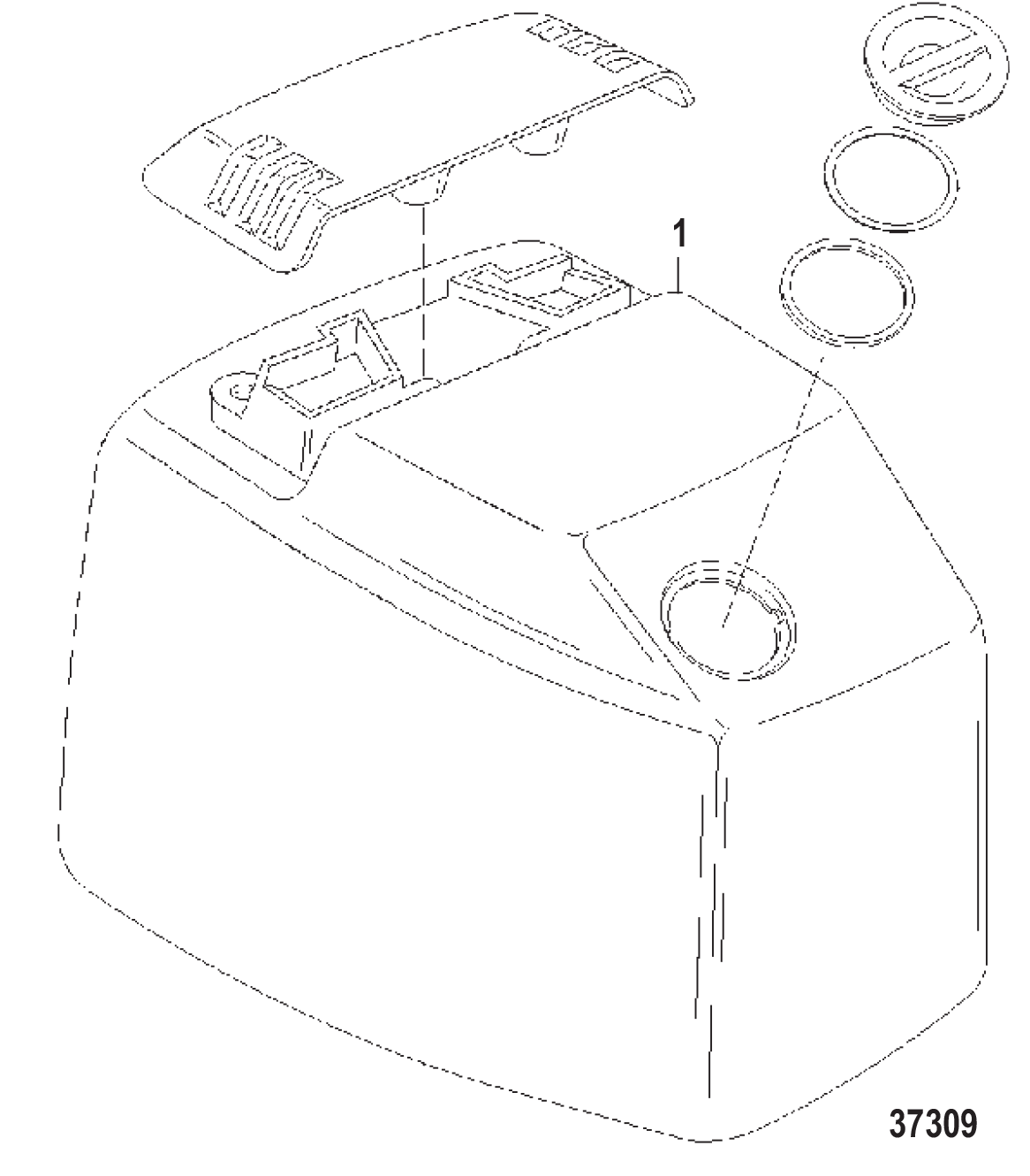

TOP COWL (S/N-USA-0G301751/BEL-9885505 AND UP) DIAGRAM 37309

828354A8 TOP COWL ASSEMBLY (BLACK)
828354A9 TOP COWL ASSEMBLY (SILVER)
828354A10 TOP COWL ASSEMBLY Silver Cowl And Black Cap (TRACKER)

828354A11, 828354A12, 828354A13, 828354A8, 828354A9, 828354A10
828354A11 828354A12 828354A13 828354A8 828354A9 828354A10

Service/Support Material DIAGRAM 37307

MERCURY DECALS

823404A94 DECAL SET (MERCURY 100) DESIGN I

823407A94 DECAL SET (MERCURY 115) DESIGN I

823410A94 DECAL SET (MERCURY 125) DESIGN I

826321A95 DECAL SET (MERCURY 80 JET) DESIGN I

823404A96 DECAL SET (MERCURY 100) DESIGN II

823407A96 DECAL SET (MERCURY 115) DESIGN II

809718A96 DECAL SET (MERCURY 115 OFFSHORE) DESIGN II

823410A96 DECAL SET (MERCURY 125) DESIGN II

809719A96 DECAL SET (MERCURY 125 OFFSHORE) DESIGN II

826321A96 DECAL SET (MERCURY 80 JET) DESIGN II

MARINER DECALS

823411A94 DECAL SET (MARINER 100) [USA-0G437999/BEL-9926999] & Below

823412A94 DECAL SET (MARINER 115) [USA-0G437999/BEL-9926999] & Below

823413A94 DECAL SET (MARINER 125) [USA- 0G437999/BEL-9926999] & Below

826330A95 DECAL SET (MARINER 80 JET) [USA-0G437999/BEL-9926999] & Below

823411A97 DECAL SET (MARINER 100)(Also Order bulk roll of striping decal) [USA- 0G438000/BEL-9927000] & Up

823412A97 DECAL SET (MARINER 115)(Also order bulk roll of striping decal) [USA- 0G438000/BEL-9927000] & Up

850445A97 DECAL SET (MARINER 115 OFFSHORT)(Also order bulk roll of striping decal)[USA-0G438000/BEL-9927000] & Up

823413A97 DECAL SET (MARINER 125)(Also order bulk roll of striping decal) [USA-0G438000/BEL-9927000] & Up

850446A97 DECAL SET (MARINER 125 OFFSHORE)(Also order bulk roll of striping decal)[USA-0G438000/BEL-9927000] & Up

826330A97 DECAL SET (MARINER 80 JET)(Also order bulk roll of striping decal) [USA-0G438000/BEL-9927000] & Up

824911 DECAL STRIPE (BULK ROLL) [USA-0G438000/BEL-9927000] & Up

TRACKER DECALS

824735A94 DECAL SET (TRACKER 115) [0G301750] & Below

808623A94 DECAL SET (TRACKER 125) [0G301750] & Below

824735A96 DECAL SET (TRACKER 115) [0G301751] & Up

808623A96 DECAL SET (TRACKER 125)[0G301751] & Up

OTHER DECALS

85557711 DECAL EPA Label Information (1998)

Read more: 100/115/125 HP 80 JET (4 CYLINDER) - Cat.# 90-1779394

Cat.# Cat.# 908048500  75/90 (4STROKE)

TOP COWL DIAGRAM 2075

827328T 9 TOP COWL ASSEMBLY (BLACK)
827328T10 TOP COWL ASSEMBLY (SILVER)

MERCURY DECALS

804855A00 DECAL SET (Mercury 75)(2000 and Up)(Tracker 2002 and Up)

804857A00 DECAL SET (Mercury 90)(Long)(2002 and Up)(Tracker 2002 and Up)

881841A03 DECAL SET Mercury 90 Saltwater)

881841A01 (Mercury 90)(X- Long)(Saltwater)(2001/2002)

MARINER DECALS

804856A00 DECAL SET (Mariner 75)(2000)

804856A01 DECAL SET (Mariner 75)(2001/2002)

804856A03 DECAL SET (Mariner 75)(2003)

804858A01 DECAL SET (Mariner 90)(2000 thru 2002)

804858A03 DECAL SET (Mariner 90)(2003)

TRACKER DECALS

804859A00 DECAL SET (Tracker 75)(2000/2001)

804860A00 DECAL SET (Tracker 90)(2000/2001)

OTHER DECALS

827887 DECAL Unleaded Fuel  Bodensee

804656A00 DECAL EPA Label Information (2000)

804656A0 DECAL EPA Label Information (2001)

804656A02 DECAL EPA Label Information (2002)

804656A03 DECAL EPA Label Information (2003)

Serial Number: 0T770115 - Model: F9042AY  - Model Version: ELPT SW 4
75/90 (4STROKE) - MERCURY 2003 90
