> Mercury Marine [Updated: Feb. 9, 2021] > Outboard > Force > 15 H.P. (1984-1985) > ARCHIVE CAT 823056
9.9/15 H.P.
SERIAL NUMBER
15 H.P. (1984-1995) . . . . . . . . .1984-A THRU 1992-B
15 H.P. (1984-1995) . . . . . . . . .E000001 THRU E127699
9.9 H.P. (1984-1995) . . . . . . . . 1984-A THRU 1992-B
9.9 H.P. (1984-1995) . . . . . . . . E000001 THRU E127699

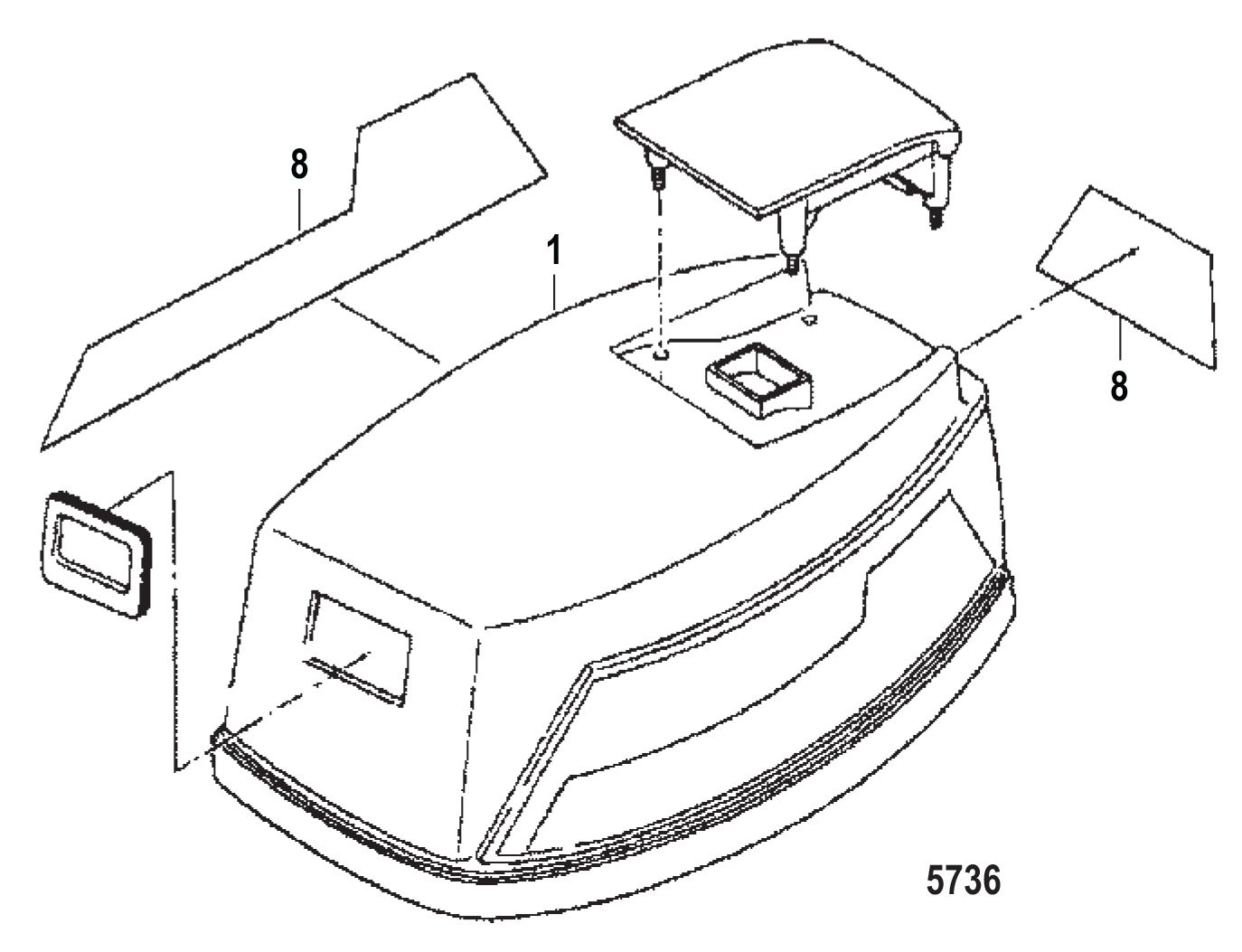

TOP COWL (84A THRU 87A MODELS)
DIAGRAM 823056-P4
FS666712T COWL ASSEMBLY-TOP (WITHOUT DECALS)
13
37-FA312397 DECAL-PORT 1984 - 15 H.P.
37-FA312396 DECAL-STBD 1984 - 15 H.P.
37-FA311397 DECAL-PORT 1984 - 9.9 H.P.
37-FA311396 DECAL-STBD 1984 - 9.9 H.P.
FA627397 DECAL-PORT 1985 - 15 H.P.
FA627396 DECAL-STBD 1985 - 15 H.P.
FA626397 DECAL-PORT 1985 - 9.9 H.P.
FA626396 DECAL-STBD 1985 - 9.9 H.P.
15 37-F685387-2 DECAL-US MARINE (1984/1985)
37-F657397 DECAL-PORT 1986 - 15 H.P.
37-F657396 DECAL-STBD 1986 - 15 H.P.
F656397 DECAL-PORT 1986 - 9.9 H.P.
F656396 DECAL-STBD 1986 - 9.9 H.P.
37-F656528 DECAL-REAR (1986)
37-F667397 DECAL-PORT 1987 - 15 H.P.
37-F667396 DECAL-STBD 1987 - 15 H.P.
37-F666397 DECAL-PORT 1987 - 9.9 H.P.
37-F666396 DECAL-STBD 1987 - 9.9 H.P.
14 37-F685387-2 DECAL-US MARINE (1987)
37-F666528 DECAL-REAR (1987)

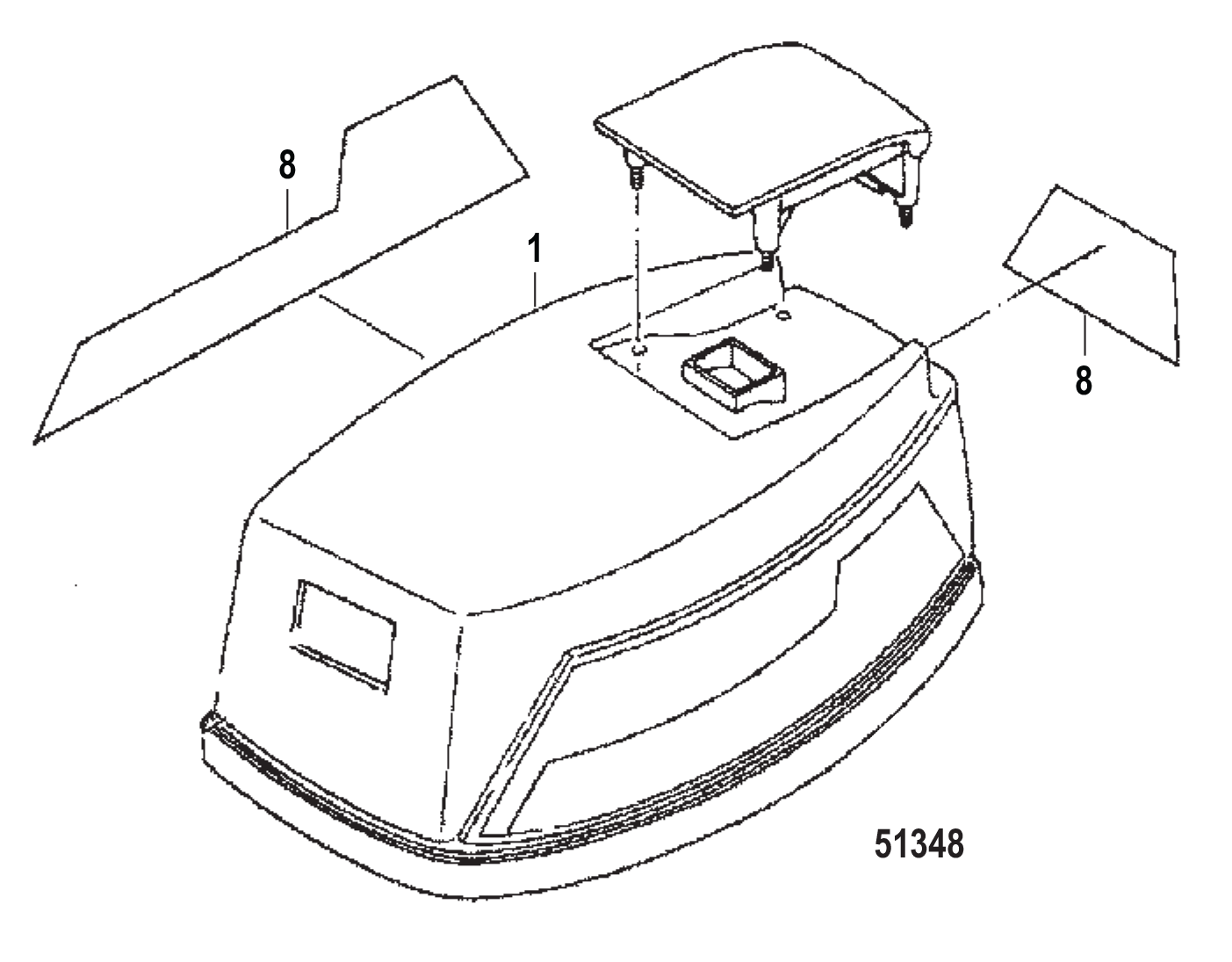

TOP COWL (88A THRU 89B MODELS)
DIAGRAM 823056-P10 12
820154A2 COWL ASSEMBLY-TOP (PAINTED) (WITHOUT DECALS)
9 819169 MEDALLION-FORCE (2)
10 37-F685387-2 DECAL-US MARINE (BLUE)
10 37-817985--1 DECAL-US MARINE (RED)
11 37- F681528 DECAL-REAR 9.9 - 1988 MODELS
12 37-F681396 DECAL-STARBOARD 9.9 - 1988 MODELS
37-F681397 DECAL-PORT 9.9 - 1988 MODELS
11 37-F681528 DECAL-REAR 15 - 1988 MODELS
12 37-F682396 DECAL-STARBOARD 15 - 1988 MODELS
37- F682397 DECAL-PORT 15 - 1988 MODELS
11 37-F688528 DECAL-REAR (9.9 - 1989 MODELS)
37- F689528 DECAL-REAR (15 - 1989 MODELS)
37- FX689528 DECAL-REAR (15 - BLUE FIN)
12 37-F688396 DECAL-STARBOARD 9.9/15 1989 MODELS
37- F688397 DECAL-PORT 9.9/15 1989 MODELS
37- FX689396 DECAL-STARBOARD SPECTRUM/BLUE FIN MODELS
37- FX689397 DECAL-PORT SPECTRUM/BLUE FIN MODELS
13 37-F681390 DECAL-STARTING
TOP COWL (90A THRU 92B & SER. # E000001 THRU E127699)
DIAGRAM 823056-P12 14
820154A2 COWL ASSY-TOP (PAINTED) (W/O DECALS)(FORCE/BAYLINER)
820154A4 COWL ASSY-TOP (PAINTED) (W/O DECALS) (FISH-N-HUNT)
820154A2, 820154A4, 820154A2
820154A2 820154A4 820154A2
1991 - 1995 FORCE Decals
9 819169 MEDALLION-FORCE (NOT ALL MODELS)
9 37-F694366-1 MEDALLION-US MARINE LOGO (90A/91D)
10 37-FP736528 DECAL-REAR (9.9) 9.9/15 - 1992 FORCE MODELS
10 37-FP737528 DECAL-REAR (15) 9.9/15 - 1992 FORCE MODELS
11 37-FP736396 DECAL-STARBOARD 9.9/15 - 1992 FORCE MODELS
11 37-FP736397 DECAL-PORT 9.9/15 - 1992 FORCE MODELS
10 37-F736528 DECAL-REAR 9.9 - 1991 FORCE MODELS
11 37-F736396 DECAL-STARBOARD 9.9 - 1991 FORCE MODELS
11 37-F736397 DECAL-PORT 9.9 - 1991 FORCE MODELS
10 37-F737528 DECAL-REAR
11 37-F736396 DECAL-STARBOARD
11 37-F736397 DECAL-PORT
10 37-F714528 DECAL-REAR
11 F714396 DECAL-STARBOARD
11 F714397 DECAL-PORT
10 37-FX714528 DECAL-REAR 9.9 - 1990 BAYLINER MODELS
11 37-FX715396 DECAL-STARBOARD 9.9 - 1990 BAYLINER MODELS
11 37-FX715397 DECAL-PORT 9.9 - 1990 BAYLINER MODELS
10 37-F715528 DECAL-REAR 15 - 1990 FORCE MODELS
11 F715396 DECAL-STARBOARD 15 - 1990 FORCE MODELS
11 F715397 DECAL-PORT 15 - 1990 FORCE MODELS
10 37-FX715528 DECAL-REAR 15 - 1990 BAYLINER MODELS
11 37-FX715396 DECAL-STARBOARD 15 - 1990 BAYLINER MODELS
11 37-FX715397 DECAL-PORT 15 - 1990 BAYLINER MODELS
12 37-F681390 DECAL-STARTING (90A/92B & SER. # E000001 - E090399)
37-826339A94 DECAL SET (9.9 FISH-N-HUNT)
37-820482A93 DECAL SET (9.9/15 FORCE) (SER. # E000001 - E090399) | 1993-1994
37-820731A95 DECAL SET (9.9 FORCE) (SER. # E090400 THRU E127699)SER. # E090400 THRU E127699)
37-820732A95 DECAL SET (15 FORCE) (SER. # E090400 THRU E127699)
IGNITION SYSTEM (84A THRU 87A MODELS)
4 FA609853 DECAL KIT-SHIFT TO NEUTRAL
IGNITION SYSTEM (88A/92B & SER. # E000001 THRU E034999
3 FA609853 DECAL KIT-SHIFT TO NEUTRAL
STARTER (SER. # E090400 THRU E127699
23 FA609853 DECAL KIT-SHIFT TO NEUTRAL
TILLER HANDLE AND THROTTLE LINKAGE (84A/92B & SER. # E00000
44 37-F712894 DECAL-SPEED/SHIFT INDICATOR (RED).
37- F286894-3 DECAL-SPEED SHIFT INDICATOR (SILVER).
TILLER HANDLE/TWIST GRIP THROTTLE (SER. # E090400 THRU E127
28 37-F712894 DECAL-SPEED INDICATOR NOTE: PIN IS NO LONGER AVAILABLE
SWIVEL BRACKET AND DRIVESHAFT HOUSING (ALL MODELS)
24 37-F688585 DECAL-TILT LOCK (89A/92B & SER. # E000001 - E127699)
37- F676585 DECAL-TILT LOCK (88A/88B)
37- F286585-2 DECAL-TILT LOCK (84A/87A)
44 37-818029 DECAL-FUEL MIX
FUEL TANK AND LINE (METAL - 6.0 GALLON
37- F310398 DECAL-TOTE TANK (USA - NOT SHOWN)
37- F224394-3 DECAL-FUEL MIX 84A/85B MODELS
Read more: 9.9/15 H.P. - ARCHIVE CAT 823056
