> Mercury Marine [Updated: Oct. 5, 2020] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) 3.0L > [1B417702 THRU 1B504988] - USA - Cat.# 90-803485007

TOP COWL DIAGRAM 1330

881288T03 TOP COWL ASSEMBLY Black - Includes All Decals Except Horsepower [1B446999] & Below

881288T62 TOP COWL ASSEMBLY (Black) [1B447000] & Up

881288T04 TOP COWL ASSEMBLY Silver [1B446999] & Below

881288T65 TOP COWL ASSEMBLY (Silver) [1B447000] & Up Supersedes: 881288T04

8M0075369 TOP COWL ASSEMBLY Mercury, Without decals

8M0075371 TOP COWL ASSEMBLY Mariner, Without decals

8M0075372 TOP COWL ASSEMBLY Mercury, Without decals ProXS

881288T03, 881288T62, 881288T04, 881288T65, 8M0075369, 8M0075371, 8M0075372,
881288T03 881288T62 881288T04 881288T65 8M0075369 8M0075371 8M0075372

MERCURY DECALS

855412A07 DECAL SET Mercury 200
892564005 DECAL Horsepower 200 - Supersedes: 892564005

855408A07 DECAL SET Mercury 225

892564006 DECAL Horsepower 225 - Supersedes: 892564006

MARINER DECALS

855413A03 DECAL SET (200)(Mariner) - Supersedes: 855413A01, 855413A98, 855414A00, 855414A99, 855414A98

855409A03 DECAL SET (225)(Mariner)

OTHER DECALS

804658A06 DECAL, EPA Label Information

Serial Number:1B480893 - Model: 1225D83HY - Model Version: XL DIG SW

MERCURY 3.0L DFI OPTIMAX SALTWATER 225DFI XL DIG SW
MERCURY 2006 225DFI 200/225 (3.0L)(MECHANICAL)

MARINER > 200 (DFI) 3.0L
MARINER > 225 (DFI) 3.0L

Serial Number:
1B480893
MAR 2007
225XL OPT
Max RPM 5750
HP 225 KW 165
LB 528 KG 240
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE 0575 [07]

Cat.# 90-814840

40 (TWIN CARB) (W/OIL INJECTION) - [6E9-015001 & UP] , [6E9-150001 & UP], [6E9-350001 & UP], [6E9-450001 & UP] - Belgium

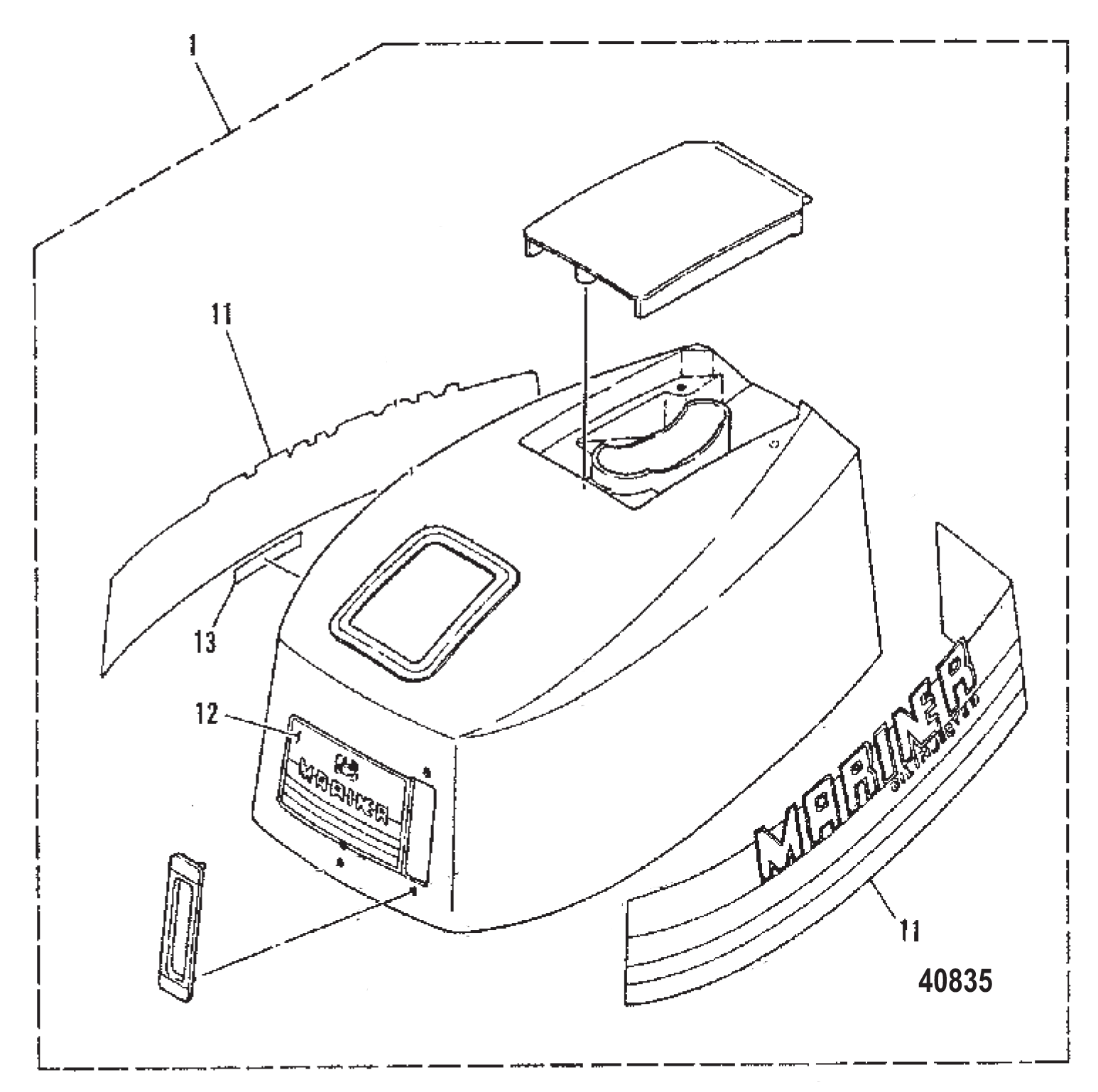

TOP COWLING DIAGRAM 40835

811860M TOP COWL ASSEMBLY (MANUAL) [M-018006/ML-358041/E-151006/EL-453891] & Up - Supersedes: 811989M, 814495M
811989M TOP COWL ASSEMBLY (MANUAL) [M-015616/ML-351381/E-150276/EL-451766] THRU [M-018005ML-358040/E-151005/EL-453890]
814495M TOP COWL (MANUAL) [M-015615/ML-351380/E-150275/EL-451765] & Below

811860M TOP COWL ASSEMBLY

811861M TOP COWL ASSEMBLY (ELECTRIC) [M-018006/ML-358041/E-151006/EL-453891] & Up - Supersedes: 811988M, 814503M
811988M TOP COWL ASSEMBLY (ELECTRIC) [M-015616/ML-351381/E-150276/EL-451766] THRU[M-018005ML-358040/E-151005/EL-453890]
814503M TOP COWL ASSEMBLY (ELECTRIC) [M-015615/ML-351380/E-150275/EL-451765] & Below

811860M TOP COWL ASSEMBLY

MARINER DECALS

11 810935A92 DECAL SET(MANUAL/ELECTRIC)[M-015616/ML-351381/E-150276/EL-451766] & Up Supersedes: 810935A90
    810935A90 DECAL SET SANSHIN

12 DECAL FRONT (PART OF 810935A92)[M-015616/ML-351381/E-150276/EL-451766] & Up

11 814516M DECAL SET (MANUAL) [M-015615/ML-351380/E-150275/EL-451765] & Below
11 95445M DECAL SET SIDE

11 814517M DECAL SET (ELECTRIC) [M-015615/ML-351380/E-150275/EL-451765] &Below

12 814518M DECAL FRONT [M-015615/ML-351380/E-150275/EL-451765] & Below

13 81202M DECAL Shift Indicator

1986 1990 1992 MARINER 40HP DECAL SET

810935A92  DECAL SET (MANUAL/ELECTRIC)
This Mercury Marine DECAL SET (MANUAL/ELECTRIC) is used on these models:

1986 7040706, 7040716
1990 7040201SU, 7040211SU, 7040312SU
1992 7040302AW, 7040312AV

 > Mercury Marine [Updated: Dec. 17, 2019] > Outboard > 4 Stroke > 40 (4-STROKE) > [0G760300 THRU 0T408999] - USA - Cat.# 90-803941
 > Mercury Marine [Updated: Dec. 17, 2019] > Outboard > 4 Stroke > 30 (4-STROKE) > [0G760300 THRU 0T408999] - USA - Cat.# 90-803941

TOP COWL DIAGRAM 9147

834785T5 TOP COWL ASSEMBLY (MANUAL - BLACK)
+ 834785T17 TOP COWL ASSEMBLY (MANUAL - BLACK)

834785T6 TOP COWL ASSEMBLY (MANUAL - SILVER)

834785T7 TOP COWL ASSEMBLY (ELECTRIC - BLACK)
+ 834785T22 TOP COWL ASSEMBLY (ELECTRIC - BLACK)

834785T8 TOP COWL ASSEMBLY (ELECTRIC - SILVER)

834785T17, 834785T5, 834785T6, 834785T22, 834785T7, 834785T8
834785T17 834785T5 834785T6 834785T22 834785T7 834785T8

MERCURY DECALS

803640A00 DECAL SET (BLACK 30)(1999 MODEL YEAR AND ABOVE)
+ 803640A99 DECAL SET (BLACK 30)

803644A99 DECAL SET (BLACK 40 BIGFOOT)(1999 MODEL YEAR)
+ 803644A00 DECAL SET (BLACK 40 BIGFOOT)(2000 MODEL YEAR AND ABOVE)
+ + 8M0099557 DECAL SET-MERCURY

803641A99 DECAL SET (BLACK 40)(1999 MODEL YEAR)
+ 803641A00 DECAL SET (BLACK 40)(2000 MODEL YEAR AND ABOVE)

MARINER DECALS

803642A99 DECAL SET (GRAY 30)(1999/2000 MODEL YEARS)
+ 803642A03 DECAL SET

803643A99 DECAL SET (GRAY 40)(1999/2000 MODEL YEARS)
+ 803643A03 DECAL SET

803645A99 DECAL SET (GRAY 40 BIGFOOT)(1999/2000 MODEL YEARS)
+ 803645A01 DECAL SET (GRAY 40 BIGFOOT)(2001 MODEL YEAR)

803642A01 DECAL SET (GRAY 30)(2001 MODEL YEAR)
+ 803642A03 DECAL SET

803643A01 DECAL SET (GRAY 40)(2001 MODEL YEAR)
+ 803643A03 DECAL SET

803645A01 DECAL SET (GRAY 40 BIGFOOT)(2001 MODEL YEAR)

TRACKER DECALS

803946A99 DECAL SET (TRACKER 30)
803947A99 DECAL SET (TRACKER 40)

OTHER DECALS

856985A22 DECAL EPA Label Information (1999)
804654A00 DECAL EPA Label Information (2000)
804654A01 DECAL EPA Label Information (2001)

Serial Number: 0G961010 - Model: 7F4S412JF - Model Version: ELPT 4
2000 MARINER 4 STROKE 50H/P DETUNED ITALY 40 ELPT 4

> Mercury Marine [Updated: Aug. 13, 2019] > Outboard > 2 Stroke Carb > 40, 400 (4 CYL.) > [0C159200 & Up] - USA - Cat.# 90-814698
> Mercury Marine [Updated: Sep. 29, 2017] > Outboard > 2 Stroke Carb > 40, 400 (4 CYL.) > [0C159200 & Up] - USA - Cat.# 90-814698

TOP COWL DIAGRAM 38057

1
9868A9 TOP COWL ASSEMBLY (BLACK) MANUAL
+ 9868T9 BL-MAN.TOP COWL

9868A8 TOP COWL ASSEMBLY (GRAY) MANUAL
9868A13 TOP COWL ASSEMBLY (SILVER) MANUAL
+ 9868T13 TOP COWL

2
9868A10 TOP COWL ASSEMBLY (BLACK) ELECTRIC
+ 9868T10 BL-ELE TOP COWL

9868A1 TOP COWL ASSEMBLY (GRAY) ELECTRIC
9868A14 TOP COWL ASSEMBLY (SILVER) ELECTRIC
+ 9868T14 COWL-TOP-SILVER

9868A12 TOP COWL ASSEMBLY (GRAPHITE GRAY) ELECTRIC

+ 9868T12 TR.ELEC TOP COWL

9868A9,9868T9,9868A8,9868A13,9868T13,9868A10,9868T10,9868A1,9868A14,9868T14,9868A12,9868T12
9868A9 9868T9 9868A8 9868A13 9868T13 9868A10 9868T10 9868A1 9868A14 9868T14 9868A12 9868T12

MERCURY DECALS

DECALS DIAGRAM 38056

814323A90 DECAL SET (DESIGN I)(BLACK)

814323A94 DECAL SET (DESIGN II)(BLACK)

814323A96 DECAL SET (DESIGN III)(BLACK)

822166A92 DECAL SET (SUPER AMERICA)(BLACK)

826323A95 DECAL SET (BLACK-JET 30)(DESIGN II)

826323A96 DECAL SET (BLACK-JET 30)(DESIGN III)

MARINER DECALS

810462A94 DECAL SET (GRAY)(DOMESTIC ENGINES) [USA- 0G437999/BEL-9926999] & Below

810462A97 DECAL SET (GRAY)(DOMESTIC ENGINES) [USA- 0G438000/BEL-9927000] & Up

826324A95 DECAL SET (GRAY-JET 30) [USA- 0G437999/BEL-9926999] & Below

826324A97 DECAL SET (GRAY-JET 30) [USA- 0G438000/BEL-9927000] & Up

815626A93 DECAL SET (GRAY-EXPORT ENGINES)

TRACKER DECALS

824732A94 DECAL SET (TRACKER) [0G290584] & Below

824732A96 DECAL SET (TRACKER) [0G290585] & Up

Serial Number:0G023995 - Model: 1040203PD - Model Version: MH/ALT
This assembly is found in these models: MERCURY  30 JET - MERCURY  40 (4 CYL.)

1994 MERCURY 40 MH/ALT

SERIAL NUMBER:
0G023995
MERCURY MARINE
A DIVISION OF
BRUNSWICK CORP.
FOND DU LAC, WIS.
54935 USA
MADE IN USA

Serial Number: 0D086436 - Model: 1040312MD - Model Version: ELO
1992 MERCURY 40 ELO
