115 PRO XS (4-STROKE) - Cat.# 90-8M0114280

> Mercury Marine [Updated: Jan. 27, 2023] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Mar. 29, 2022] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Jul. 28, 2018] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Oct. 16, 2019] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280


Top Cowl Diagram 55117

8M0114282 TOP COWL ASSEMBLY Mercury Pro XS Decaled
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled

Will also fit on:
8M0087994 TOP COWL ASSEMBLY Mercury Decaled Horse Power, Command Thrust and Jet Decals not included
8M0159539 TOP COWL ASSEMBLY Mercury Decaled New models [2B679490] & Up
8M0090833 TOP COWL ASSEMBLY Mariner Decaled Horse Power, Command Thrust and Jet Decals not included
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled
8M0087995 TOP COWL ASSEMBLY Gray, Non-Decaled
8M0096296 TOP COWL ASSEMBLY Mercury, Decaled SeaPro

8M0114282, 8M0091789, 8M0087994, 8M0159539, 8M0090833, 8M0091789, 8M0087995, 8M0096296
8M0114282 8M0091789 8M0087994 8M0159539 8M0090833 8M0091789 8M0087995 8M0096296



MERCURY DECALS

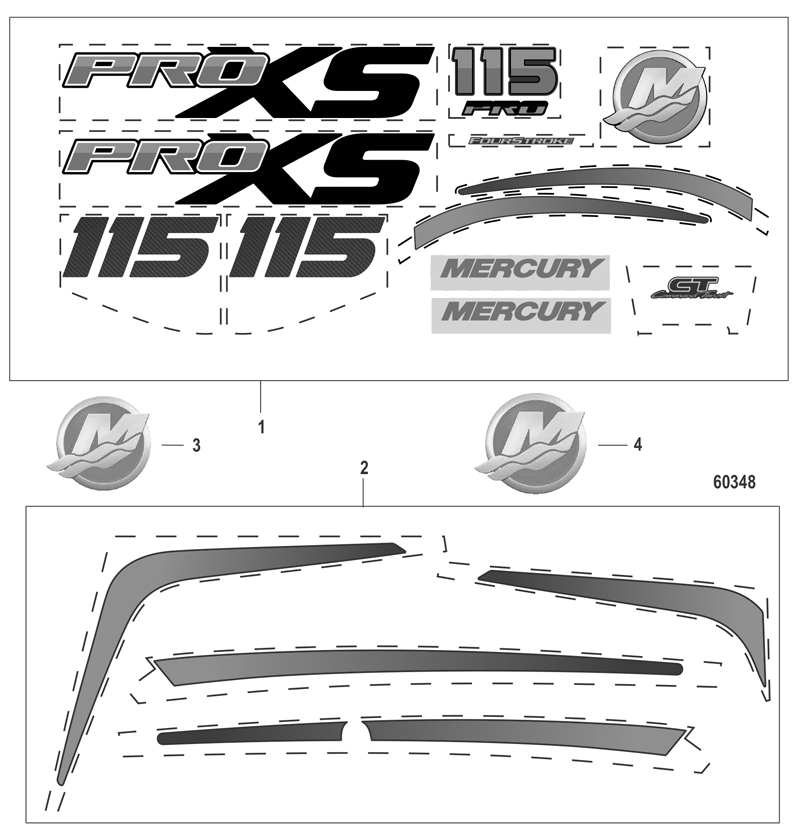

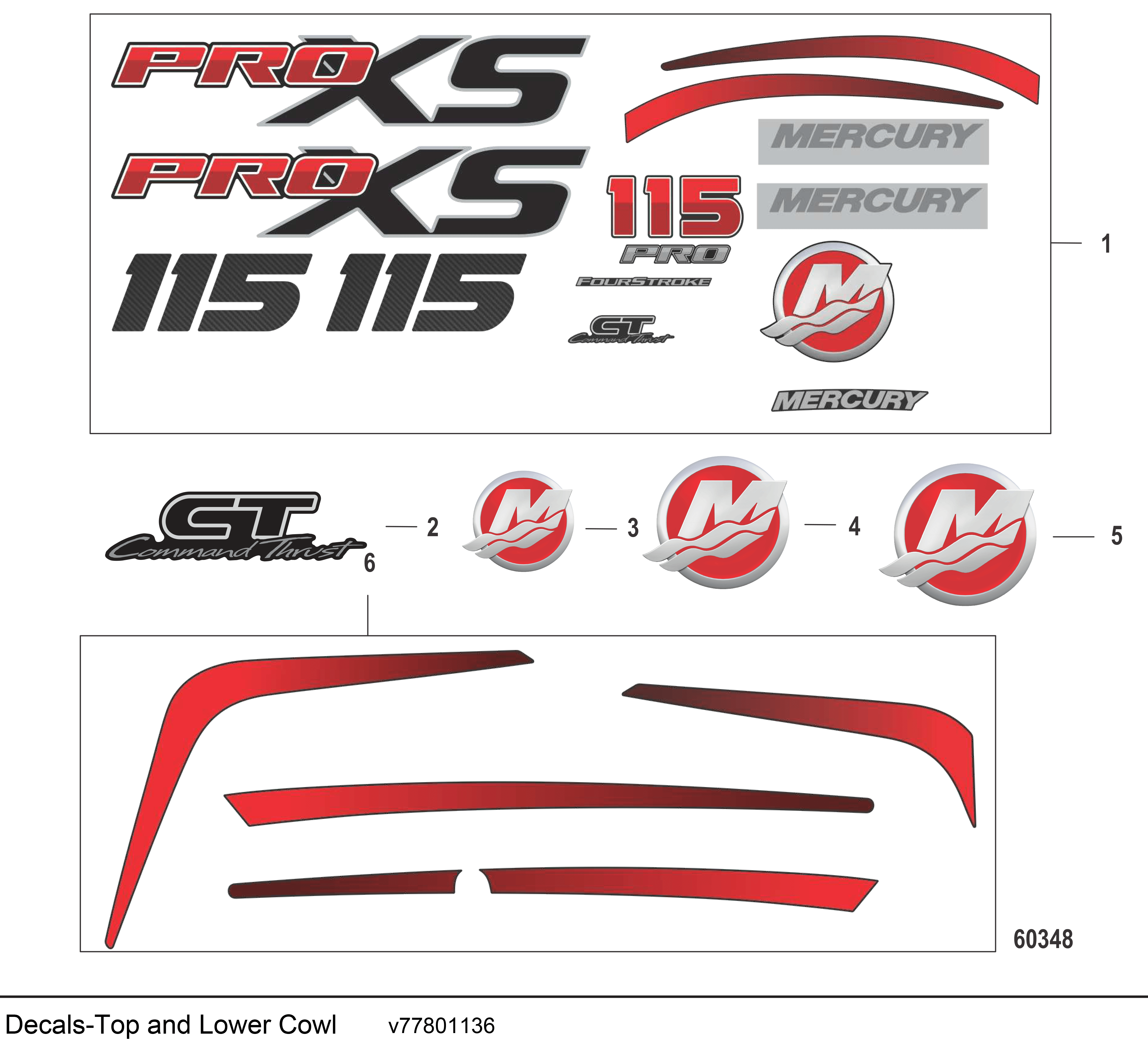

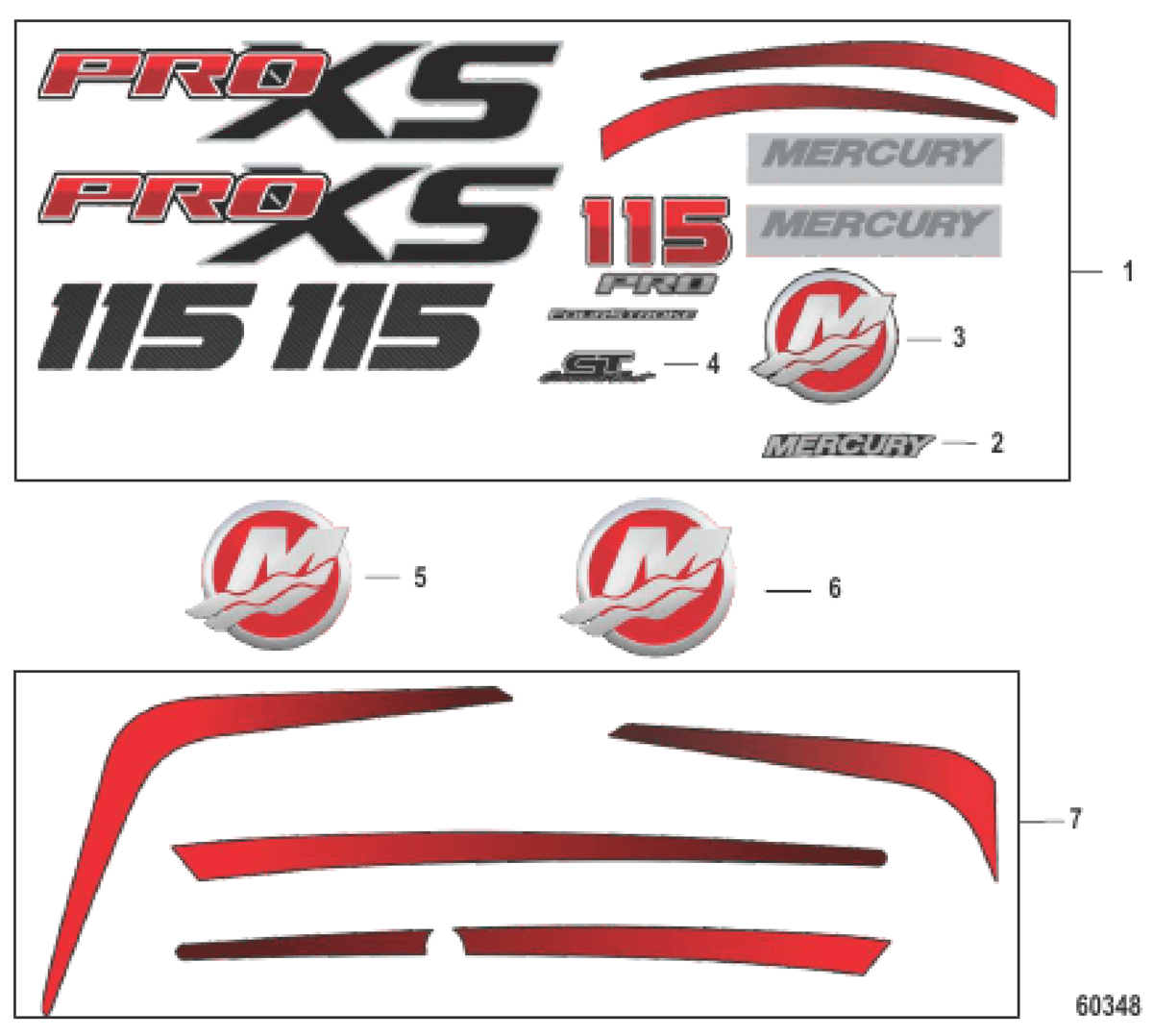

Decals-Top and Lower Cowl Diagram 60348

1) 8M0114440 DECAL SET Top Cowl 115 HP ProXS

N2) 8M0159386 DECAL CT - Command Thrust

N3) 8M0178226 DECAL M-ICON, Red - Top M Logo
3) 8M0080155 DECAL - M ICON 29 MM Red - Rear M Logo
4) 8M0085373 DECAL M-Icon, 60mm Red - Front M Logo

2-N6) 8M0114441 DECAL SET Lower Cowl 115 HP ProXS - Lower cowl stripes



(14x29 2.07:1) Ratio decal for the lower unit

Gear Housing, Driveshaft 2.07:1 Standard Rotation
Gear Housing, Propeller Shaft 2.07:1 Standard Rotation

8M0088072 GEARCASE Complete Long

8M0144823 GEARCASE Complete, Long Silver
+ 8M0227980 GC ASSY-L SLVR ST

8M0088074 GEARCASE Complete X-Long

8M0144824 GEARCASE Complete, X-Long Silver
+ 8M0227981 GC ASY-XL SLVR ST

8M0091538 GEARCASE Basic

8M0145316 GEAR HOUSING Basic Silver
+ 8M0227985 GEARCASE-BASIC ST



(13x31 2.38:1) Ratio decal for the lower unit

Gear Housing, Driveshaft 2.38:1 Standard Rotation

8M0057747 GEAR HOUSING Basi
8M0145314 GEAR HOUSING Basic (CT) Silver


Gear Housing, Propeller Shaft 2.38:1 Standard Rotation

8M0088073 GEARCASE Complete CT Long

8M0144825 GEARCASE Complete CT Long
+ 8M0227982 GC ASY-L SLVR CT

8M0088075 MERCURY OEM GC X-LONG CT
8M0144826 GEARCASE Complete CT X-Long
+ 8M0227983 GC ASY-XL SLVR CT

Read more: 115 PRO XS (4-STROKE) - Cat.# 90-8M0114280

75/80/90/100/115 EFI 4-STROKE - Cat.# 90-898101362

> Mercury Marine [Updated: Feb. 13, 2023] > Outboard > 4 Stroke > 75 HP EFI > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362> Mercury Marine [Updated: Jan. 13, 2022] > Outboard > 4 Stroke > 75 HP EFI > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Apr. 26, 2021] > Outboard > 4 Stroke > 115 HP EFI > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Mar. 23, 2021] > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Aug. 24, 2019] > Outboard > 4 Stroke > 90 EFI  (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Apr. 1, 2019]  > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: May. 15, 2018] > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Feb. 6, 2018]  > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362

Top Cowl 1B943218 and below DIAGRAM 17160
Top Cowl 1B943219 and above DIAGRAM 17160

899341T01 TOP COWL ASSEMBLY Mercury
8M0050004 TOP COWL

8M0074089 TOP COWL ASSEMBLY Mercury
+ 8M0075360 TOP COWL ASSEMBLY Mercury

899341T02 TOP COWL ASSEMBLY Mariner
+ 8M0050005 COWL-TOP

8M0075361 TOP COWL ASSEMBLY Mariner

899341T01, 8M0050004, 8M0074089, 8M0075360, 899341T02, 8M0075361
899341T01 8M0050004 8M0074089 8M0075360 899341T02 8M0075361



MERCURY DECALS - 1B943218 and below

889246A01 DECAL SET Mercury 75
+ 8M0063408 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061175 DECAL Horsepower (75)
+ 8M0115000 DECAL-SERVICE KIT

889246A01, 8M0063408, 8M0114993, 8M0061175, 8M0115000
889246A01 8M0063408 8M0114993 8M0061175 8M0115000

889246A02 DECAL SET Mercury 80
+ 8M0114993 DECAL-SERVICE KIT
8M0061176 DECAL Horsepower (80)

889246A02, 8M0114993, 8M0061176
889246A02 8M0114993 8M0061176

889246A03 DECAL SET Mercury 90
+ 8M0063408 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061177 DECAL Horsepower (90)
+ 8M0115000 DECAL-SERVICE KIT
+ 8M0114993 DECAL-SERVICE KIT

889246A03, 8M0063408, 8M0114993, 8M0061177, 8M0115000, 8M0114993
889246A03 8M0063408 8M0114993 8M0061177 8M0115000 8M0114993

889246A04 DECAL SET Mercury 100
+ 8M0063419 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061178 DECAL Horsepower (100)

889246A04, 8M0063419, 8M0114993, 8M0061178
889246A04 8M0063419 8M0114993 8M0061178

889246A05 DECAL SET Mercury 115
+ 8M0063408 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061180 DECAL Horsepower 115
+ 8M0115000 DECAL-SERVICE KIT

889246A05, 8M0063408, 8M0114993, 8M0061180, 8M0115000
889246A05 8M0063408 8M0114993 8M0061180 8M0115000

8592712 DECAL M Icon

897529T CAP Air Dam - Mercury

21) 897924A01 DECAL Back Lenz and Graphic Assembly
+ 8M0022127 DECAL
++ 8M0114993 DECAL-SERVICE KIT



MERCURY DECALS -  1B943219 and above

8M0074090 DECAL SET 80/100
8M0063366 DECAL Horsepower (80)
8M0063368 DECAL Horsepower (100)

8M0074092 DECAL SET 75/90/115
8M0063365 DECAL Horsepower (75)
8M0063367 DECAL Horsepower (90)
8M0063369 DECAL Horsepower (115)

8M0043706 DECAL M Icon, 60mm-Black

(21) 897924A01 DECAL Back Lenz and Graphic Assembly
   + 8M0022127 DECAL
 ++ 8M0114993 DECAL-SERVICE KIT



MARINER DECALS

898822001 DECAL Wrap Mariner 75

898822002 DECAL Wrap Mariner 80

898822003 DECAL Wrap Mariner 90

898822004 DECAL Wrap Mariner 100

898822005 DECAL Wrap Mariner 115

Serial Number: 1B508973 - Model: 7F80413ZF  - Model Version: ELPT 4
MARINER 2006 80EFI  - MARINER 4 STROKE L4NA 80EFI ELPT 4

Serial Number:
1B508973
AUG 2007
80ELPT 4S
Max RPM 6000
HP 80 KW 55.9
LB 401 KG 182
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE 0575 [07]


Serial Number: 1B706990- Model: 1115F13HF - Model Version:  ELPT 4
2006 MERCURY 4 STROKE L4NA EUROPE 115EFI ELPT 4 -75/80/90/100/115 EFI 4-STROKE
Serial Number: 1B817794 - Model: 1F90413HD - Model Version: ELPT 4
2006  MERCURY 90EFI 4 STROKE L4NA 90EFI ELPT 4
Serial Number: 1B493766 - Model: 1115F13HD - Model Version: ELPT 4
2006 MERCURY 4 STROKE L4NA 90EFI ELPT 4

Serial Number:
1B493766
JUN 2007
90ELPT 4S
Max RPM 6000
HP 90 KW 67.1
LB 401 KG 182
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE [07]
Serial Number: 1B707856 - Model: 1115F13HD - Model Version: ELPT 4
2006 MERCURY 4 STROKE L4NA 115EFI ELPT 4
Serial Number: 1B983004 - Model: 1F90413ED - Model Version: ELPT 4
2006 MERCURY 90 ELPT 4S L4NA 90EFI ELPT 4
Serial Number: 1B586647 - Model: 1115F23HD - Model Version: EXLPT 4
2006 MERCURY 4 STROKE L4NA 115EFI EXLPT 4

Serial Number:
1B586647
FEB 2008
115 XL 4S
Max RPM 6400
HP 115 KW 85.7
LB 410 KG 186
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
             [08]
Serial Number: 1B782116 - Model: 1115F13ED - Model Version: ELPT 4
2006 MERCURY 4 STROKE EFI L4NA 115EFI ELPT 4

Model Number
1115F13ED
Serial Number:
1B782116
115ELPT4S
HP 115 KW 84.6
LB 401 KG 182
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
CE [09]
Serial Number: 1B695245 - Model: 1F75413HD - Model Version: ELPT 4
2008 MERCURY 4 STROKE L4NA 75EFI ELPT 4
Serial Number: 1B899002 - Model: 1F75413HD - Model Version: ELPT 4
MERCURY 4 STROKE L4NA 75EFI ELPT 4
75 EFI (4-STROKE)  (1B366823 THRU 2B094995) - USA
80 EFI (4-STROKE)  [0P459572 THRU 2B094995] - Belgium
90 EFI (4-STROKE)  (1B366823 THRU 2B094995) - USA
100 EFI (4-STROKE) (0P459572 THRU 2B094995) - Belgium
115 EFI (4-STROKE) (15500825 THRU 2B094995) - USA

2 Stroke Carb - 45/50, 450/500 (4 CYL.) - [8063985 & Up] - Cat.# 90-13287 - (1984-1986)

> Mercury Marine [Updated: Mar. 13, 2024] > Outboard > 2 Stroke Carb > 45, 450 (4 CYL.) > [8063985 & Up] - Cat.# 90-13287
> Mercury Marine [Updated: Mar. 19, 2020] > Outboard > 2 Stroke Carb > 50, 500 (4 CYL.) > [5531630 & Up] - USA - Cat.# 90-13287


COWLING DIAGRAM 38555

1)
7938 TOP COWL ASSEMBLY (MANUAL) (MERCURY)
7937A8 TOP COWL ASSEMBLY (ELECTRIC) (MERCURY)
7938F2 TOP COWL ASSEMBLY (MANUAL) (DARK GRAY)(MARINER)
7938F4 TOP COWL ASSEMBLY (MANUAL) (LIGHT GRAY)(MARINER)
7937F2 TOP COWL ASSEMBLY (ELECTRIC) (DARK GRAY) (MARINER)
7937F4 TOP COWL ASSEMBLY (ELECTRIC) (LIGHT GRAY) (MARINER)

15)
 5642A13 COVER ASSEMBLY Cowl - Front [USA-5796395/Aus-8069214/Bel-9291995/Can-7165752] & Below
7927A5 FRONT COVER MERCURY [USA-5796396/Aus-8069215/Bel-9291996/Can-7165753] & Up
7927A12 FRONT COVER MARINER DARK GRAY [USA-5796396/Aus-8069215/Bel-9291996/Can-7165753] & Up
7927A19 FRONT COVER MARINER LIGHT GRAY  [USA-5796396/Aus-8069215/Bel-9291996/Can-7165753] & Up

25)
3247A3 TOP COWL ASSEMBLY Wrap Around - Mercury
8181A2 WRAP AROUND COWL MARINER DARK GRAY
8181A4 TOP COWL ASSEMBLY Wrap Around - Mariner LIGHT GRAY



MERCURY DECALS

93151A81 DECAL SET (BLUE)(MERC 50) (1981)
43198A84 DECAL SET (BROWN)(MERC 50) (1984)
13482A86 DECAL SET (MERC 45) (1986)

MARINER DECALS

94260A81 DECAL SET (DARK GRAY COWLS)(MARINER 50) (1981)
11621A85 DECAL SET (LIGHT GRAY COWLS)(MARINER 50) (1985)
11621A86 DECAL SET (MARINER 45) (1986)



This Mercury Marine 43198A84 DECAL SET (BROWN)(MERC 50) 1984 is used on these models and components:

1980 1050200, 1050220, 1050500, 1050520, 1050530, 1050550, 1050620, 7050200, 7050220, 7050500, 7050520, 7050550.
1982 1050202, 1050222, 1050502, 1050522, 1050532, 1050552, 1050622, 7050622.
1983 1050203, 1050223, 1050243, 1050503, 1050523, 1050533, 1050553, 1050623, 7050503, 7050523, 7050553, 7050623.
1984 1050204, 1050224, 1050504, 1050524, 1050534, 1050554, 1050624.
1985 1050205, 1050225, 1050525, 1050555, 1050625, 7050225, 7050525, 7050555, 7050625.
1986 7050716, 7050726.

This Mercury Marine 13482A86 DECAL SET (MERC 45) 1986 is used on these models and components:
1986 1045216, 1045236, 1045716, 1045726, 1045776, 7045226, 7045716, 7045726, 7045776.

Serial Number: 6488535 - Model: 1050624  - Model Version: ELPT
1984 MERCURY 50 ELPT
Serial Number: 0A915842 - Model: 1045726 - Model Version: ELPTO
1986 MERCURY 45 ELPTO

20/25/JET 20 SEAPRO/MARATHON 15XD SUPER 15/JET 20) (2-STROKE) - Cat.# 90-803127

> Mercury Marine [Updated: Mar. 28, 2022] > Outboard > 2 Stroke Carb > 25, 25 SEA PRO, SUPER 15 (2 CYL.) > [0G760300 THRU 0T979999] - USA - Cat.# 90-803127
> Mercury Marine [Updated: Aug. 21, 2019] > Outboard > 2 Stroke Carb > 25, 25 SEA PRO, SUPER 15 (2 CYL.) > [0G760300 THRU 0T979999] - USA - Cat.# 90-803127
> Mercury Marine [Updated: Jan. 4, 2019] > Outboard > 2 Stroke Carb > 25, 25 MARATHON, SUPER 15 (2 CYL.) > [0G760300 THRU 0T979999] - USA - Cat.# 90-803127



TOP COWL DIAGRAM 5083


9163T19 TOP COWL ASSEMBLY (Black)
9163T21 TOP COWL ASSEMBLY (Silver)

Supersedes: 9163A21, 9163A15

9163T19, 9163T21, 9163A21, 9163A15
9163T19 9163T21 9163A21 9163A15



MERCURY DECALS

824091A00 DECAL SET (Black 20/Jet 20) (2000-2004)
+ 8M0098675 DECAL SET

808499A00 DECAL SET (Black 25) (2000-2004)
+ 8M0098675 DECAL SET

826307A95 DECAL SET Black - Super 15/Seapro 15 XD

811304A95 DECAL SET (Black Seapro 25) (1995-1999)
811304A00 DECAL SET (Black Seapro 25) (2000-2004)
+ 8M0098711 DECAL-SERVICE KIT

852103A00 DECAL SET (Black - 32 H.P. - Export Only) (2000)



MARINER DECALS

824092A97 DECAL SET (Gray 20) (1997-2000)
824092A01 DECAL SET (Gray 20) (2001/2002)
824092A03 DECAL SET (Gray 20) (2003-2004)

824088A97 DECAL SET (Gray 25) (1997-2000)
824088A01 DECAL SET (Gray 25) (2001/2002)
824088A03 DECAL SET (Gray 25) (2003-2004)

826322A97 DECAL SET (Gray Jet 20) (1997-2000)

824092A01 DECAL SET (Gray 20) (2001-2004)
+ 824092A03 DECAL SET (Gray 20)

811305A95 DECAL SET (Marathon 25) (1995 Through 1999)
826308A95 DECAL SET Gray - Super 15/Marathon 15 XD (1995 Through 1999)
8588361 DECAL SET Gray - Super 15/Marathon 15 XD/Marathon 25 (2000 and Above)

852103A98 DECAL SET (Gray - 32 H.P. - Export Only) (1998 and 1999)
852104A98 DECAL SET

TRACKER DECALS

808649A96 DECAL SET (Tracker 20)
824731A96 DECAL SET (Tracker 25)



OTHER DECALS

(15) 134254 DECAL Starting Procedures
(16) 111851 SHIFT DECAL (Jet)

856985A5 DECAL EPA Label Information (1999 - USA)
804663A00 DECAL EPA Label Information (2000 - USA)
804663A01 DECAL EPA Label Information (2001 - USA)
804663A02 DECAL EPA Label Information (2002 - USA)
804663A03 DECAL EPA Label Information (2003 - USA)
804663A04 DECAL EPA Label Information (2004 - USA)
855920 DECAL EPA Label Information (Export-1999)

Read more: 20/25/JET 20 SEAPRO/MARATHON 15XD SUPER 15/JET 20) (2-STROKE) - Cat.# 90-803127

More Articles …

  1. 25 (4-STROKE) - Cat.# 90-80301502
  2. 250 PRO XS (3.0L) - Cat.# 90-898101403
  3. MERCURY GEN 2 135/150/175/200 4-STROKE VERADO - Cat.# 90-898164008
  4. 9.9/13.5/15 (323CC) 8/9.9/15 BODENSEE 4-STROKE - Cat.# 90-803183

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
