EVINRUDE 1972 9.50 HP
Evinrude/Johnson EVINRUDE 1972 9.50 HP
Models: 9222M 9223M

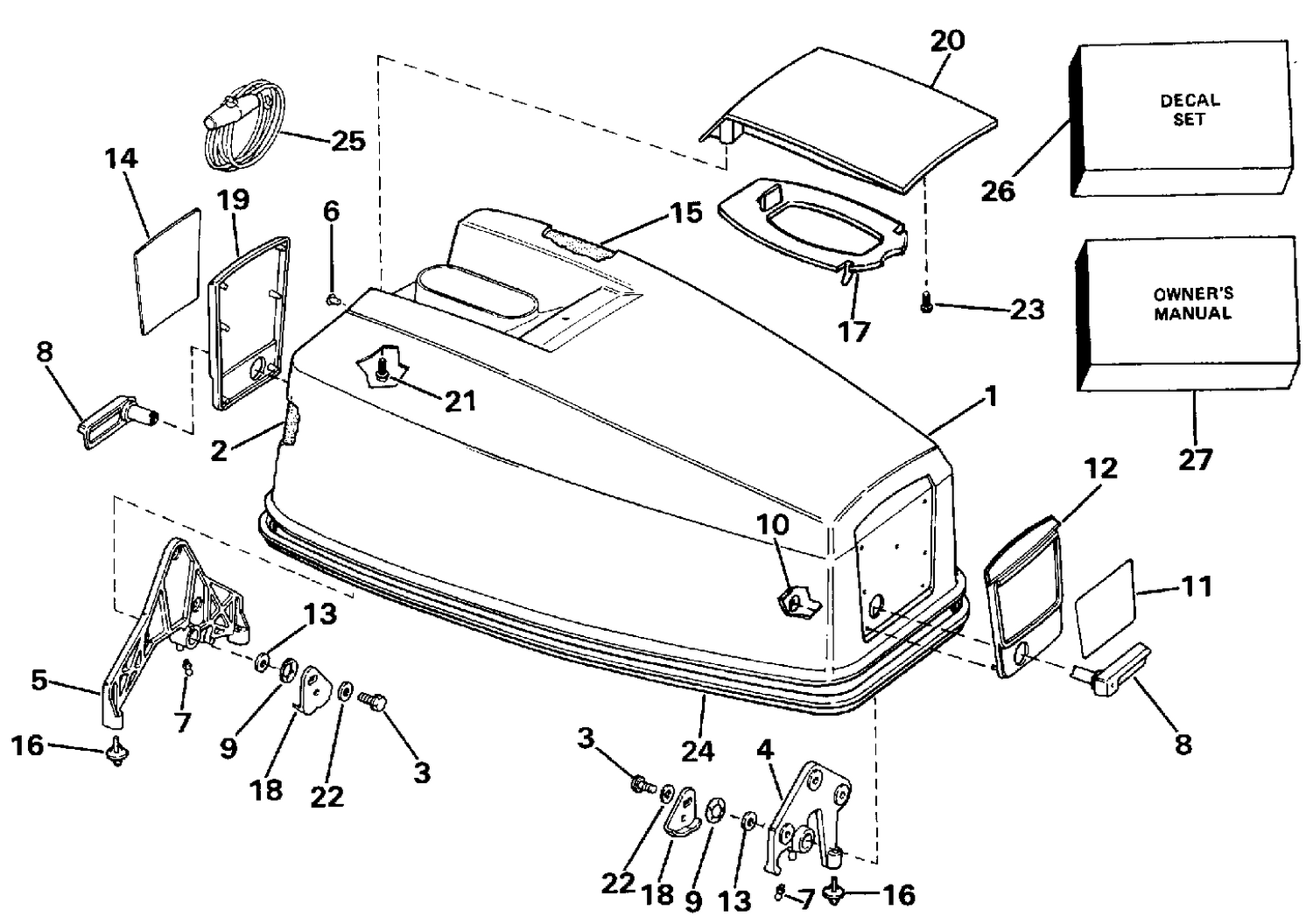

MOTOR COVER
1) 0279395 MOTOR COVER ASSEMBLY
4) 0206569 APPLIQUE, Front
19) 0315792 CONTROL PANEL
Evinrude/Johnson EVINRUDE 1972 9.50 HP
Models: 9222M 9223M
MOTOR COVER
1) 0279395 MOTOR COVER ASSEMBLY
4) 0206569 APPLIQUE, Front
19) 0315792 CONTROL PANEL
Evinrude/Johnson EVINRUDE 2007 90 E90DSLSUA
ENGINE COVER
0285671 ENGINE COVER Assy - BLUE | Includes all decals except 'HP' This part replaces 0285650 ENGINE COVER Assy - BLUE
0285672 ENGINE COVER Assy - WHITE| Includes all decals except 'HP' This part replaces 0285651 ENGINE COVER Assy - WHITE
0285671, 0285650, 0285672, 0285651,
0285671 0285650 0285672 0285651
EVINRUDE DECALS WHITE MODELS
1) 0215545 EVINRUDE | Included with 'ENGINE COVER Assy'
1) 0215665 EVINRUDE - Front | Included with 'ENGINE COVER Assy'
2) 0352506 *BRP LOGO | Included with 'ENGINE COVER Assy'
3) 0215547 EVINRUDE E-TEC - Port | Included with 'ENGINE COVER Assy'
4) 0215546 EVINRUDE E-TEC - Starboard | Included with 'ENGINE COVER Assy'
5) 0215559 STRIPE, - Port | Included with 'ENGINE COVER Assy'
6) 0215560 STRIPE - Starboard | Included with 'ENGINE COVER Assy'
7) 0215544 90 HP Rear
8) 0215663 90 HP Front
9) 0351222 SALTWATER EDITION - Port
10) 0351237 SALTWATER EDITION - Starboard
0215545, 0215665, 0215547, 0215546, 0351222, 0351237, 0215559, 0215560, 0215544, 0215663, 0352506,
0215545 0215665 0215547 0215546 0351222 0351237 0215559 0215560 0215544 0215663 0352506
11) 0216969 EU, RCD II Compliant – Lower This part replaces 0215558.
12) 0334435 **DECAL Owner Attn.
PROFILE DRAWING
Evinrude/Johnson
EVINRUDE 1997 100 E100WTLEUA
0438774 ENGINE COVER ASSY., Johnson
0284740 ENGINE COVER ASSY., Evinrude
0438774, 0284740
0438774 0284740
0438778 DECAL SET, Johnson
0284842 DECAL SET, Evinrude
| COLOR NAME | OMC SPRAY CAN |
OMC CODE |
OMC SPEC* |
PPG CODE(1) |
PPG CODE (2) |
| PRIMER | 500103 | - | 1655 | DP40401 | - |
| BLACK | 330446 | 85BJ1 | 1748 | 9696 | - |
| BLUE | 211699 | 92BE1 | 1796 | 18319 | 18320 |
| SMOKE | 340416 | 94SMJ1 | 1821 | 35718 | - |
* IN HOUSE REFERENCE ONLY
(1) ONE COAT FINISH FOR MIDSECTION AND GEARCASE
(2) BASE COAT PLUS CLEARCOAT FOR UPPER AND LOWER ENGINE COVERS

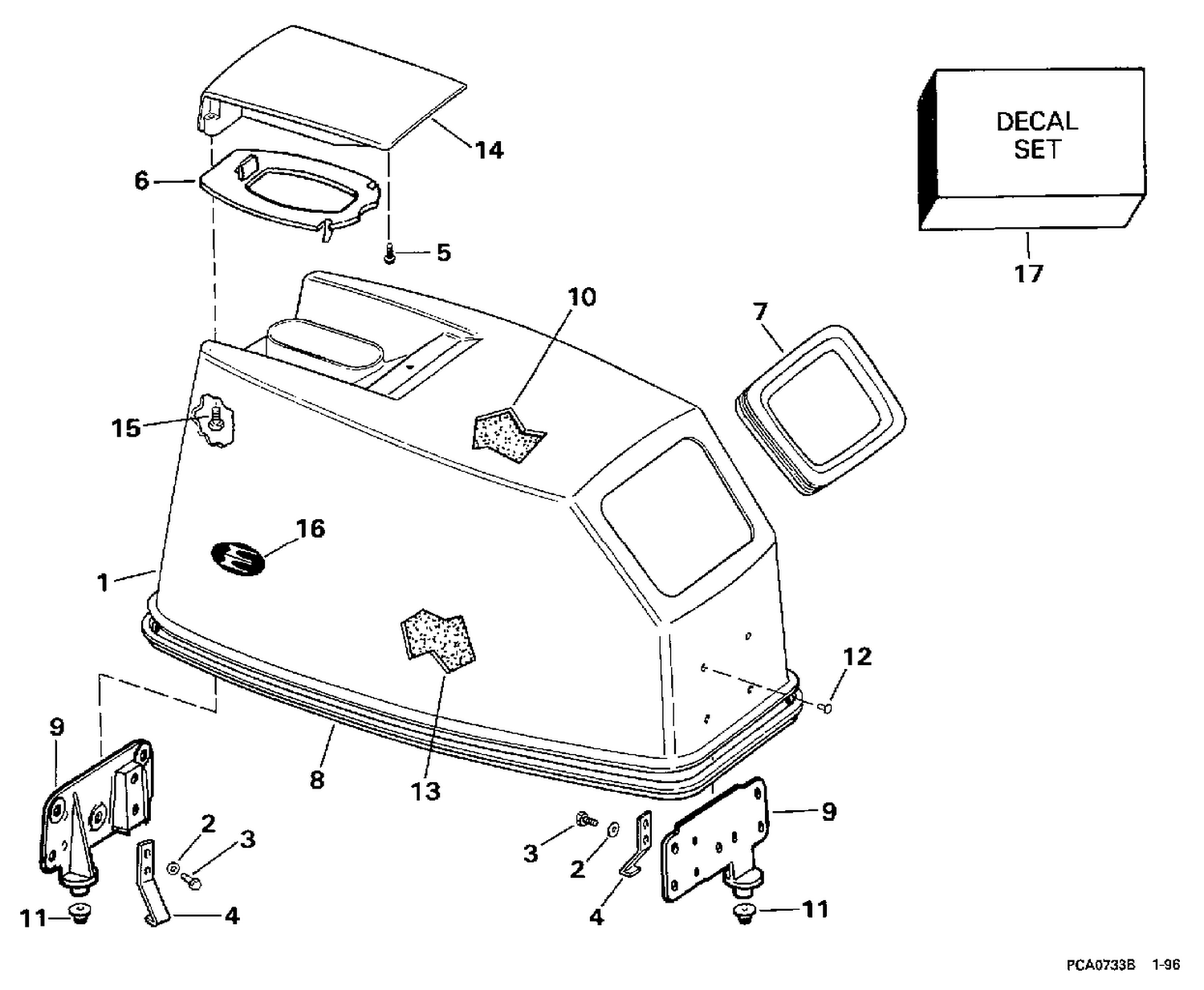

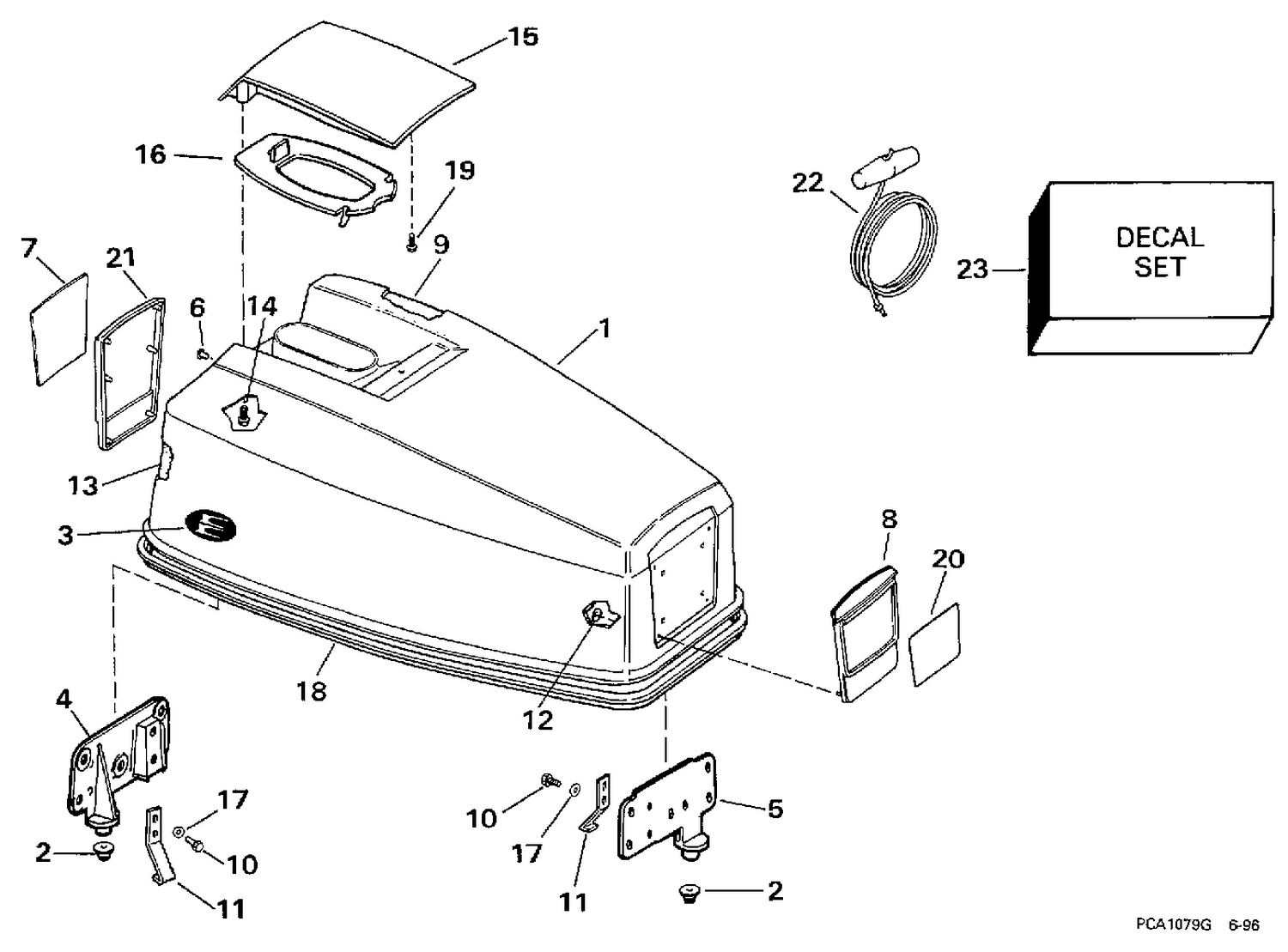

Evinrude/Johnson 1998 EVINRUDE 1998 6 BE6DRECR
ENGINE COVER PCA0289C 2-95
1
0284974 ENGINE COVER, Ev., 5DR
0284975 ENGINE COVER, Ev., 6DR, 6R
0284977 ENGINE COVER
0284978 ENGINE COVER, Ev., 8 Sail
0438908 ENGINE COVER, Jo., 5DR
0438909 ENGINE COVER, Jo., 6DR, 6R
0438911 ENGINE COVER
0438912 ENGINE COVER, Jo., 8 Sail
0284974, 0284975, 0284977, 0284978, 0438908, 0438909, 0438911, 0438912,
0284974 0284975 0284977 0284978 0438908 0438909 0438911 0438912
0284974, 0284975, 0284977, 0284978, 0438908, 0438909, 0438911, 0438912, 0283984, 0283985, 0283986, 0283987, 0434075, 0434076, 0434077, 0434078,
0284974 0284975 0284977 0284978 0438908 0438909 0438911 0438912 0283984 0283985 0283986 0283987 0434075 0434076 0434077 0434078
11 0285033 DECAL SET, Ev., 5 Models
11 0285034 DECAL SET, Ev., 6 Models
11 0285035 DECAL SET
11 0285036 DECAL SET, Ev., 8 Sail
11 0438914 DECAL SET, Jo., 5 Models
11 0438915 DECAL SET, Jo., 6 Models
11 0438916 DECAL SET
IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
NOTE:After completing installation, place these instructions with the product for the owner's future use.
IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.
Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
time for out gassing.
Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.
IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
surface cleaning preparation.
1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
2. Rinse cowl with clean water.
3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
4. Avoid detergents or preparations that contain waxes, oils, or lotions.
1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
isopropyl alcohol and water solution.
5. Ensure the surface has no contamination and is completely dry.
6. Start to apply the decals immediately after solvent cleaning.
1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.
90-8M0143239 eng MARCH 2018 © 2018 Mercury Marine - Page 1 / 16
