1987 Evinrude Johnson 9.9/15 HP


ENGINE COVER - EVINRUDE Diagram 398619-04


1 0283071 ENGINE COVER ASSEMBLY. 9.9 Models Only
1 0283073 ENGINE COVER ASSEMBLY. 15 Models Only
1 0283072 ENGINE COVER ASSEMBLY. SEL Model Only

0283071, 0283073, 0283072, 0397718, 0397720, 0397719,

4 0210696 APPLIQUE, Front

8 0210342 PLATE. Applique, front. 9.9 Models Only 15 Models Only
8 0210342 PLATE, Applique, front. 9.9 Models Only 15 Models Only


0283332 DECAL SET. 9.9 Models Only
0283345 DECAL SET. SEL Model Only
0283333 DECAL SET. 15 Models Only



PAINT CHART



ENGINE COVER - JOHNSON 398619-05

1 0397718 ENGINE COVER ASSEMBLY. 9.9 Models Only
1 0397720 ENGINE COVER ASSEMBLY. 15 Models Only
1 0397719 ENGINE COVER ASSEMBLY. SEL Model Only

0397718, 0397720, 0397719

4 0331907 APPLIQUE, Front

8 0332715 PLATE, Applique. 15
8 0332710 PLATE, Applique. 9.9


0398973 DECAL SET. 9.9
0398974 DECAL SET. 15
0398992 DECAL SET. SEL

Read more: 1987 Evinrude Johnson 9.9/15 HP

1983 Evinrude/Johnson - 4 E4BRHCTA-E4BRHLCTA

ENGINE COVER DIAGRAM 393577-04

1 0282025 STARTER HOUSING ASSY.,Evinrude. BRH MODELS ONLY
1 0281904 STARTER HOUSING ASSY.,Evinrude. SAIL MODELS ONLY
1 0282022 STARTER HOUSING ASSY.,Evinrude std. models. BRH MODELS ONLY
1 0392801 STARTER HOUSING ASSY.,Johnson. BRH MODELS ONLY
1 0392689 STARTER HOUSING ASSY.,Johnson. SAIL MODELS ONLY
1 0392703 STARTER HOUSING ASSY.,Johnson std. models. BRH MODELS ONLY

0282025, 0281904, 0282022, 0392801, 0392689, 0392703

DECALS

0282049 DECAL SET,Evinrude. BRH MODELS ONLY Not Shown
0281915 DECAL SET,Evinrude
0392358 DECAL SET,Johnson. SAIL MODELS ONLY Not Shown
0393640 DECAL SET,Johnson. BRH MODELS ONLY Not Shown

Read more: 1983 Evinrude/Johnson - 4 E4BRHCTA-E4BRHLCTA

2007 Evinrude 150 HP "BLUE" - HL models

1 0285632 ENGINE COVER Assy, "BLUE" - HL models.

285630 — ENGINE COVER ASSY, "BLUE" PL MODELS.
0285630 - UMC AY 6V6 GE BLU

285632 — ENGINE COVER AY, "BLUE" DHL MODELS ONLY
0285632 - UMC AY,150-HO BLU - Upper Motor Cover Assembly, 150-HO Blu

285631 — ENGINE COVER ASSY, "WHITE"
0285631 - L/P 1152.90

285681 — ENGINE COVER ASSY, "WHITE" HSL MODELS ONLY
0285681 - UMC AY 150HO WHT

EVINRUDE 150hp-200hp Engine Cover 0285632
285630, 0285630, 285632, 0285632, 285631, 0285631, 285681, 0285681,
285630 0285630 285632 0285632 285631 0285631 285681 0285681

2007 150 HP: E150DHLSUC, E150DHLSUF
2008 150 HP: E150DBXSCF, E150DBXSCR, E150DCXSCF, E150DCXSCR, E150DHLSCF, E150DHLSCR, E150DPLSCR, E150DPXSCF, E150DPXSCR, E150DSLSCR, E150HSLSCF, E150HSLSCS
2008 175 HP: E175DCXSCF, E175DCXSCR, E175DPLSCR, E175DPXSCF, E175DPXSCR, E175DSLSCR
2008 200 HP: - (60° V6, 2.6 L): E200DCXSCA, E200DCXSCF, E200DPLSCA, E200DPXSCA, E200DPXSCF, E200DSLSCA

EVINRUDE DECALS USA FLAG

1 0215735 EVINRUDE FLAG - Port. STARS-BL VINTGE
2 0215736 EVINRUDE FLAG - Stbd.
3 0215737 RED STRIPE - Port
4 0215738 RED STRIPE - Stbd
5 0215666 EVINRUDE - Front
5 0215536 EVINRUDE - Rear
6 0215741 E-TEC - Port & Stbd. 2 Submit
7 0215748 150 H.O. - Front & Rear 2 Submit

0215735, 0215736, 0215737, 0215738, 0215666, 0215536, 0215741, 0215748

8 0352505 BRP Logo - Front & Rear.  2 Submit
9 0215558 EU 2006 - Lower
NS 0215774 3-Star.

2007 E150DHLSUC, E150DHLSUF
2008 E150DHLSCF, E150DHLSCR, E150HSLSCF, E150HSLSCS

(2018) Evinrude - AF Models (60° V4) 90/115/HO - 115/130 HP

Evinrude - EN > AF Models > 115 - (60° V4) > E115DSLAFB

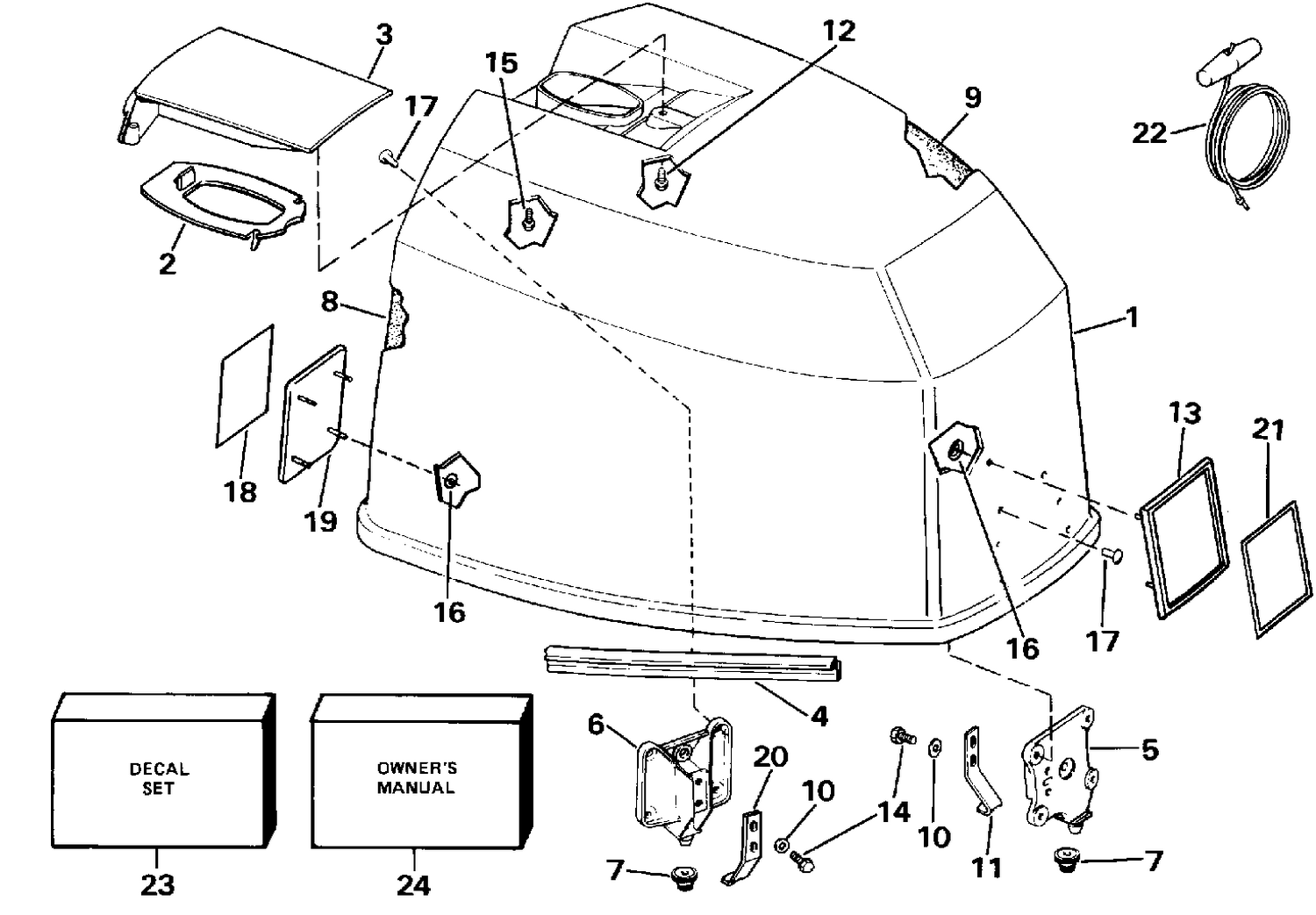

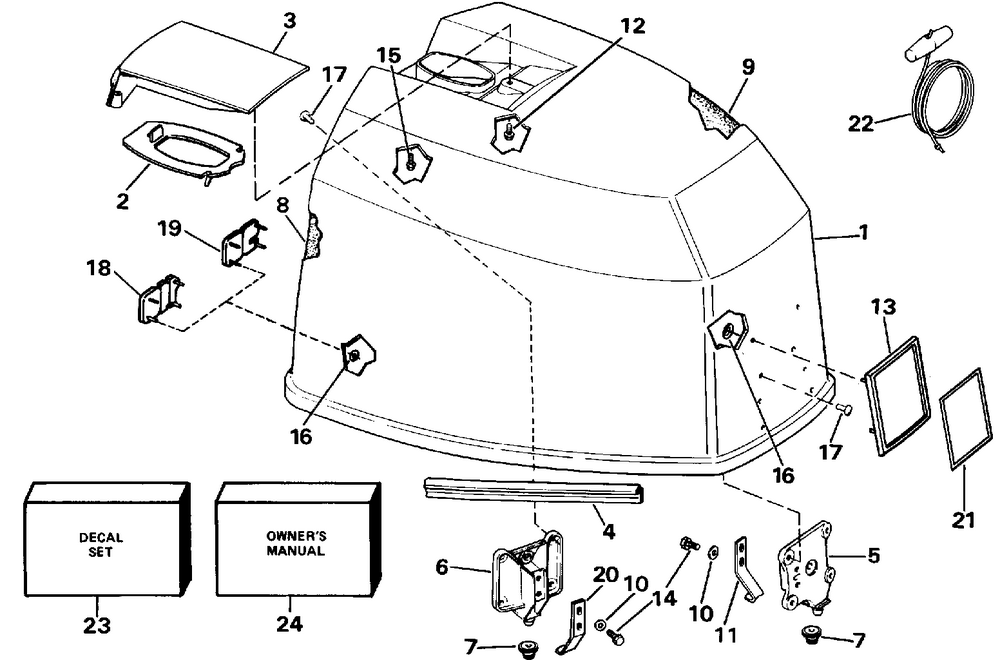

01-2_ENGINE COVER Diagram EPC4330


0285815 ENGINE COVER, Blue – 90 H.O., 115 H.O.
0285816 ENGINE COVER, White – 90 H.O., 115 H.O.
0285817 ENGINE COVER, Blue – 115, 130.
0285818 ENGINE COVER, White – 115, 130.
0285861 ENGINE COVER, Graphite – 90 H.O., 115 H.O.
0285862 ENGINE COVER, Graphite – 115, 130



01-1_DECALS Diagram EPC4644

EVINRUDE BLUE MODELS
1 0216438 EVINRUDE E–TEC – Port & Starboard. Blue Models. Order 2
2 0216378 DECAL, Stripe – Port. Blue Models.
3 0216379 DECAL, Stripe – Starboard. Blue Models.
7 0216405 "EVINRUDE 115" HP – Blue (front)
11 0216411 "115" HP – Blue (rear)
9 0216397 "EVINRUDE 130" HP – Blue (front)
13 0216399 "130" HP – Blue (rear)

4 0216358 DECAL, Stripe HO – Port. Blue Models.
5 0216360 DECAL, Stripe HO – Starboard. Blue Models.
6 0216554 "EVINRUDE 90 HO" – Blue (front)
10 0216552 "90 HO" – Blue (rear)
8 0216415 "EVINRUDE 115 HO" – Blue (front)
12 0216416 "115 HO" HP – Blue (rear)

EVINRUDE WHITE MODELS
1 0216443 EVINRUDE E–TEC – Port & Starboard. White Models. Order 2
2 0216423 DECAL, Stripe – Port. White Models.
3 0216424 DECAL, Stripe – Starboard. White Models.
7 0216425 "EVINRUDE 115" HP – White (front)
11 0216427 "115" HP – White (rear)
9 0216426 "EVINRUDE 130" HP – White (front)
13 0216428 "130" HP – White (rear)

4 0216418 DECAL, Stripe HO – Port. White Models.
5 0216419 DECAL, Stripe HO – Starboard. White Models.
10 0216553 "90 HO" – White (rear)
6 0216555 "EVINRUDE 90 HO" – White (front)
8 0216420 "EVINRUDE 115 HO" – White (front)
12 0216421 "115 HO" HP – White (rear)

EVINRUDE GRAPHITE MODELS
1 0216760 EVINRUDE E–TEC – Port & Starboard, H.O.. Graphite H.O. Models only. Order 2
4 0216677 DECAL, Stripe HO – Port. Graphite Models.
5 0216677 DECAL, Stripe HO – Starboard. Graphite Models.
6 0216681 "EVINRUDE 90 HO" – Graphite (front)
10 0216682 "90 HO" – Graphite (rear)
8 0216683 "EVINRUDE 115 HO" – Graphite (front)
12 0216684 "115 HO" HP – Graphite (rear)


1 0216698 EVINRUDE E–TEC – Port & Starboard. Graphite Models. Order 2
2 0216679 DECAL, Stripe – Port. Graphite Models.
3 0216680 DECAL, Stripe – Starboard. Graphite Models.
7 0216685 "EVINRUDE 115" HP – Graphite (front)
11 0216686 "115" HP – Graphite (rear)
9 0216666 "EVINRUDE 130" HP – Graphite (front)
13 0216667 "130" HP – Graphite (rear)


14 0352505 BRP LOGO. Included with Engine Cover Assembly Order 2
15 0355633 DECAL, Owner Attention.
16 0215558 EVINRUDE "EU" 2006
17 0215774 DECAL, Calif – 3 Star. See Administrative Bulletin 2004–02(A) for order requirements
18 0215896 APPROVED FOR SALTWATER
19 0216515 DECAL, "Pontoon Series". E115SNL only

Read more: (2018) Evinrude - AF Models (60° V4) 90/115/HO - 115/130 HP
