Evinrude/Johnson JOHNSON 1997 130 BJ130TLEUB

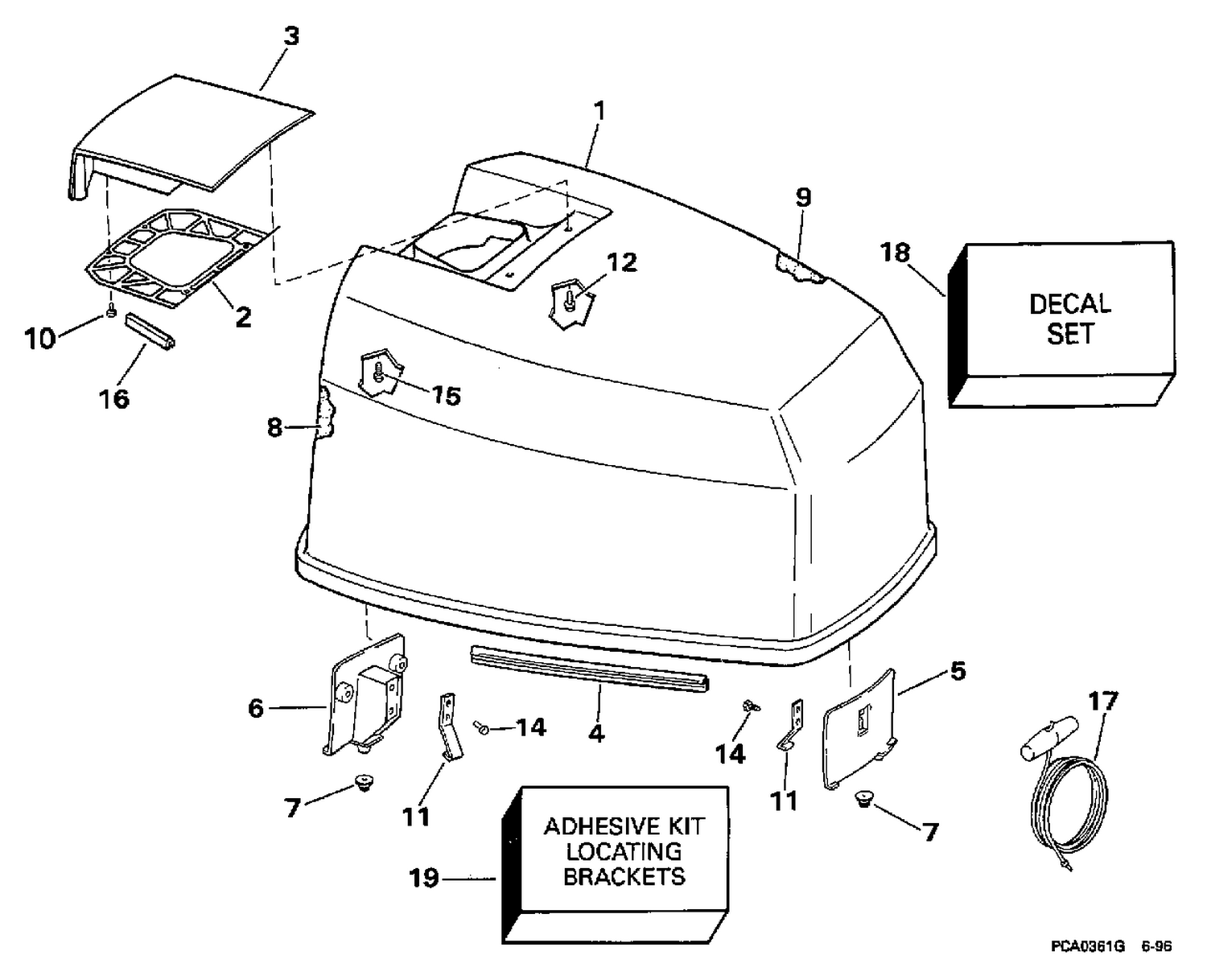

ENGINE COVER - JOHNSON Diagram PCA0361G 6-96

1 0438354 ENGINE COVER ASSY.
1 0438355 ENGINE COVER ASSY.

18 0438468 DECAL SET

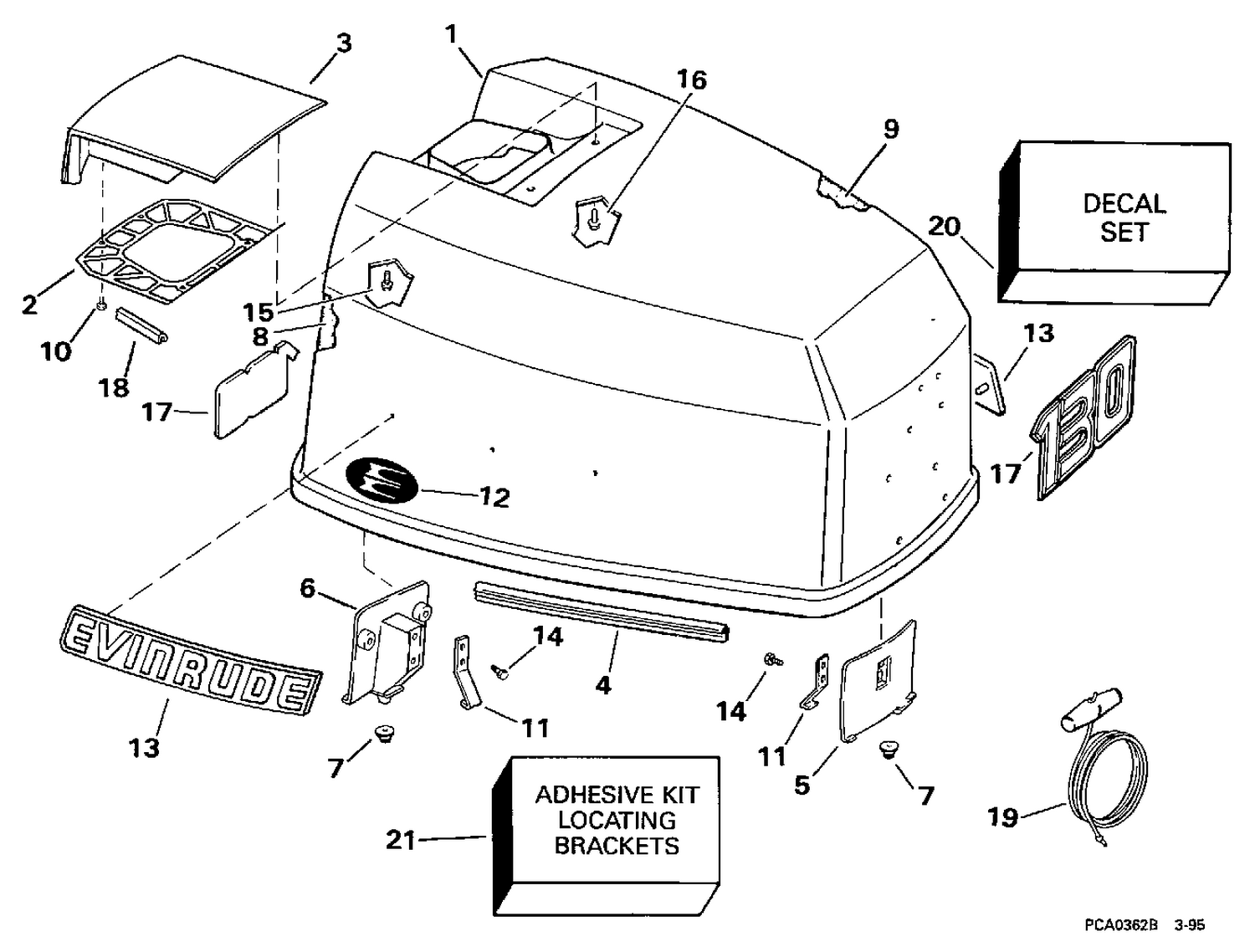

ENGINE COVER - EVINRUDE Diagram PCA0362B 3-95


0284799 ENGINE COVER ASSY.

12 0212478 APPLIQUE, Ev., port & stbd
13 0212480 LENS, Evinrude

17 0212533 LENS, Front & rear

20 0284877 DECAL SET



This Johnson 0438468 DECAL SET fits the following models :

Johnson Outboard 130HP 1997 HJ130TXAUM, BJ130TLEUB, J130TLEUB, J130TXAUM, HJ130CXAUM,

Johnson Outboard 130HP 1998 HJ130TXACB, J130TLECE, J130TXACB, BJ130TLECE,



Evinrude/Johnson EVINRUDE 1984 V6

Evinrude/Johnson EVINRUDE 1984 150 E150TLCRD 1984

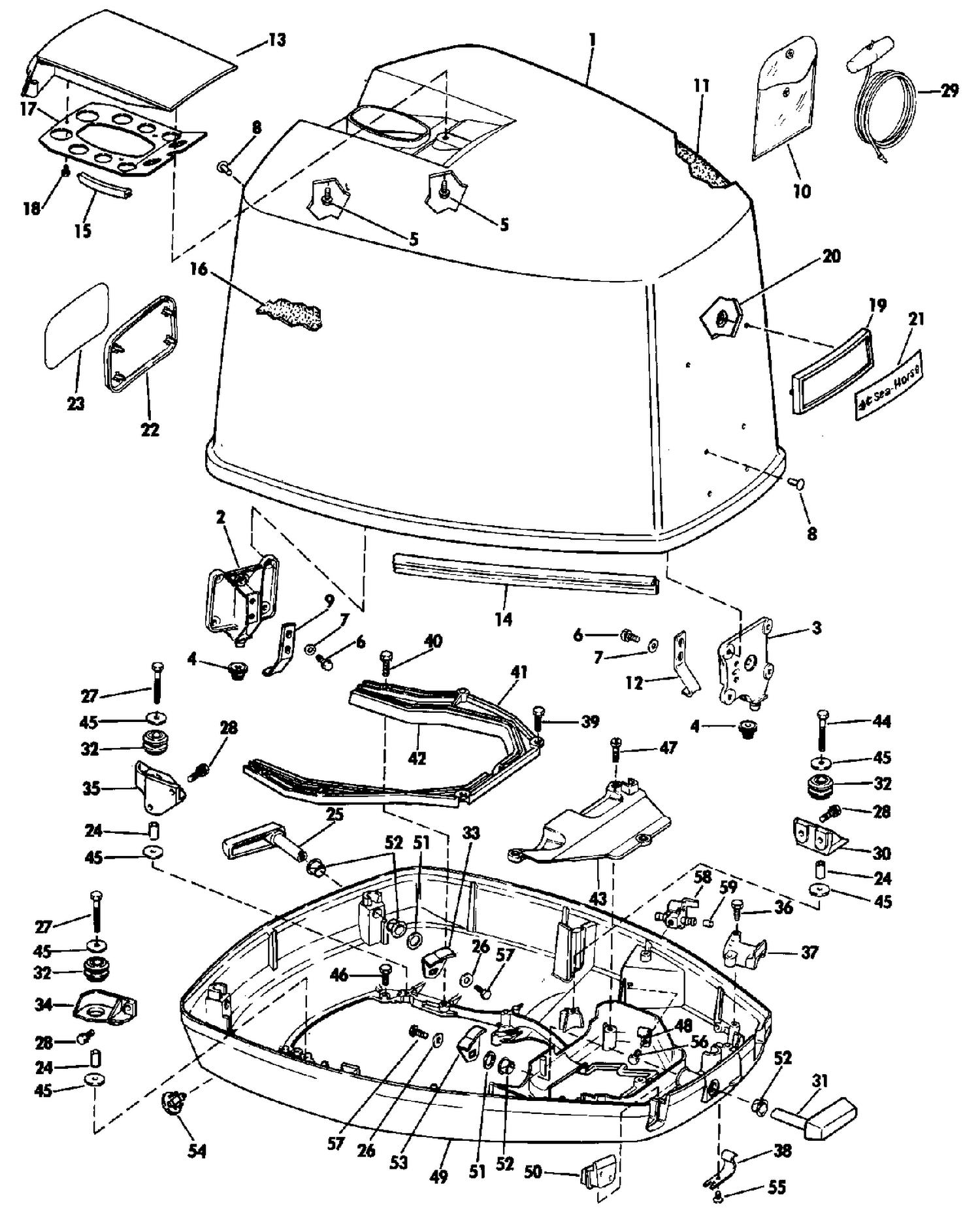

ENGINE COVER - EVINRUDE

0282197 ENGINE COVER ASSY., 150
0282198 ENGINE COVER ASSY., 185
0282200 ENGINE COVER ASSY., 235

0282197, 0282198, 0282200
0282197 0282198 0282200



12) 0209493 APPLIQUE, Evinrude, stbd. & port.
13) 209492 APPLIQUE, Front

23) 0209859 APPLIQUE, Engine cover, rear, 150
23) 0210032 APPLIQUE, Engine cover, rear, 185
23) 0209863 APPLIQUE, Engine cover, rear, 235

0292249 DECAL SET



ENGINE COVER - JOHNSON

0393700 ENGINE COVER ASSY., 150
0394390 ENGINE COVER ASSY., 185
0393703 ENGINE COVER ASSY., 235

0393700, 0394390, 0393703
0393700 0394390 0393703



21) 0330233 PLATE, Applique front
22) 0328942 APPLIQUE, Engine cover, rear

23) 0328943 PLATE, Applique, rear 150
23) 0329715 PLATE, Applique, rear 185
23) 0328946 PLATE. Applique, rear 235

0393974 DECAL SET

Evinrude/Johnson 1995 25/40 50HP ROPE START

 EVINRUDE 1995 50 E50TLEOD

ENGINE COVER - EVINRUDE 50 Diagram 0c4ae442-9038-4dba-82e8-1e24a26214cd

1) 0284722 ENGINE COVER ASSY. - 50BE - 50BEL - 50TL - 50TEL
1) 0284724 ENGINE COVER ASSY. - 50JE (JET)

0284722, 0284724
0284722 0284724


23) 0284830 DECAL SET
3) 0212497 LENS, Ev.

20) 0212895 PLATE, Front This part replaces 0212771. - 50BE - 50BEL - 50TL - 50TEL
7) 0212772 PLATE, Rear - 50BE - 50BEL - 50TL - 50TEL


20) 0212767 PLATE, Front - 50JE (JET)
7) 0212768 PLATE, Rear - 50JE (JET)




ENGINE COVER - EVINRUDE 25-40 Diagram a2fc7f29-d72c-4971-95df-6034e22a8c95


1) 0284721 ENGINE COVER ASSY.  - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
1) 0284184 ENGINE COVER ASSY., - 25DE - 25DT


24) 0284830 DECAL SET - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
22) 0212497 LENS, Ev. - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
20) 0212769 PLATE, Applique - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL
7) 0212770 PLATE, Rear - 40EE - 40EL - 40TL 40TEE - 40TEL - 40TTL


24) 0284337 DECAL SET - 25DE - 25DT
20) 0211942 PLATE, Applique - 25DE - 25DT
7) 0211943 PLATE, Rear - 25DE - 25DT
3) 0211537 APPLIQUE - 25DE - 25DT



ENGINE COVER - EVINRUDE ROPE START ONLY Diagram 92fc9d67-6c69-4f0a-9814-aeac673cd44f


1) 0284797 ENGINE COVER ASSY.
1) 0284135 ENGINE COVER ASSY.

16) 0212478 APPLIQUE, Ev., port & stbd
17) 0284834 DECAL SET
17) 0284336 DECAL SET



ENGINE COVER - JOHNSON 25-40 Diagram 0d6582fd-009d-4d12-99de-385b049bd93b

1) 0435158 ENGINE COVER ASSY.
1) 0437191 ENGINE COVER ASSY.
1) 0436209 ENGINE COVER ASSY.

7) 0337665 PLATE, Rear
7) 0341139 PLATE, Rear
7) 0335407 PLATE, Rear

20) 0337653 PLATE, Applique
20) 0341138 PLATE, Front
20) 0335378 PLATE, Front
23) 0435625 DECAL SET
23) 0437076 DECAL SET
23) 0435190 DECAL SET




ENGINE COVER - JOHNSON 50 7f0d86ad-5585-451a-b132-05073d86ae21

1) 0435160 ENGINE COVER ASSY.
1) 0437192 ENGINE COVER ASSY.
1) 0436579 ENGINE COVER ASSY.
7) 0337661 PLATE, Rear
7) 0341141 PLATE, Rear
7) 0340268 PLATE, Rear

20) 0337653 PLATE, Applique
20) 0341140 PLATE, Front
20) 0340269 PLATE, Applique

23) 0435625 DECAL SET
23) 0437076 DECAL SET




ENGINE COVER - JOHNSON ROPE START ONLY ebf389ca-722d-4d88-b7f7-7073afc23a61


1) 0436208 ENGINE COVER ASSY.
1) 0438336 ENGINE COVER ASSY. This part replaces 0435157.
1) 0438338 ENGINE COVER ASSY This part replaces 0437190.
16) 0335375 PLATE, Frame
17) 0331420 APPLIQUE, Engine cover
18) 0335376 PLATE, Rear
22) 0435189 DECAL SET
22) 0435624 DECAL SET
22) 0437755 DECAL SET

2001 Evinrude 40/50 4-STROKE EFI

2001 Evinrude 40 E40PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft
2001 Evinrude 50 E50PL4SIR 4-Stroke, Elec Start, TNT, 20 IN. shaft
ENGINE COVER Diagram epc1430



1 5032535 ENGINE COVER ASSY



Evinrude Decals

4 5032536 DECAL, Stbd
5 5032537 DECAL, Port
6 5032599 DECAL, Front

8 5032538 DECAL, Rear. (40 Models Only.)
9 5032539 DECAL, Rear. (50 Models Only.)

5032536, 503253, 5032599, 5032539 (50 Models Only.)
5032536 503253 5032599 5032539

5032536, 503253, 5032599, 5032538 (40 Models Only.)
5032536 503253 5032599 5032538

7 5032527 LABEL, Fuel limitation
10 5030336 DECAL, Caution

 PAINT

771227 0771227 Primer. (PPG Code - DP40401. One Coat Finish For Midsection And Gearcase)
771234 0771234 Black - 1. (PPG Code - 9696. One Coat Finish For Midsection And Gearcase)()
771230 0771230 Blue. (PPG Code - 18319. One Coat Finish For Midsection And Gearcase)(PPG Code - 18320. Base Coat Plus Clearcoat For Upper And Lower Engine Covers)
772414 0772414 Clearcoat

More Articles …

  1. 1989 JOHNSON J175STLCEB 175 JOHNSON 175STL ONLY
  2. Evinrude/Johnson JOHNSON 1970 115 115ESL70D 1970
  3. EVINRUDE 1983 V6 150/175/200/235 HP TLX TRL MODELS
  4. Evinrude/Johnson 1995 48 HP

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.
