> Mercury Marine [Updated: Feb. 26, 2019] > Outboard > 4 Stroke > 3.5 (4-STROKE) Carb > [0R131842 & Up] - Cat.# 90-898101374

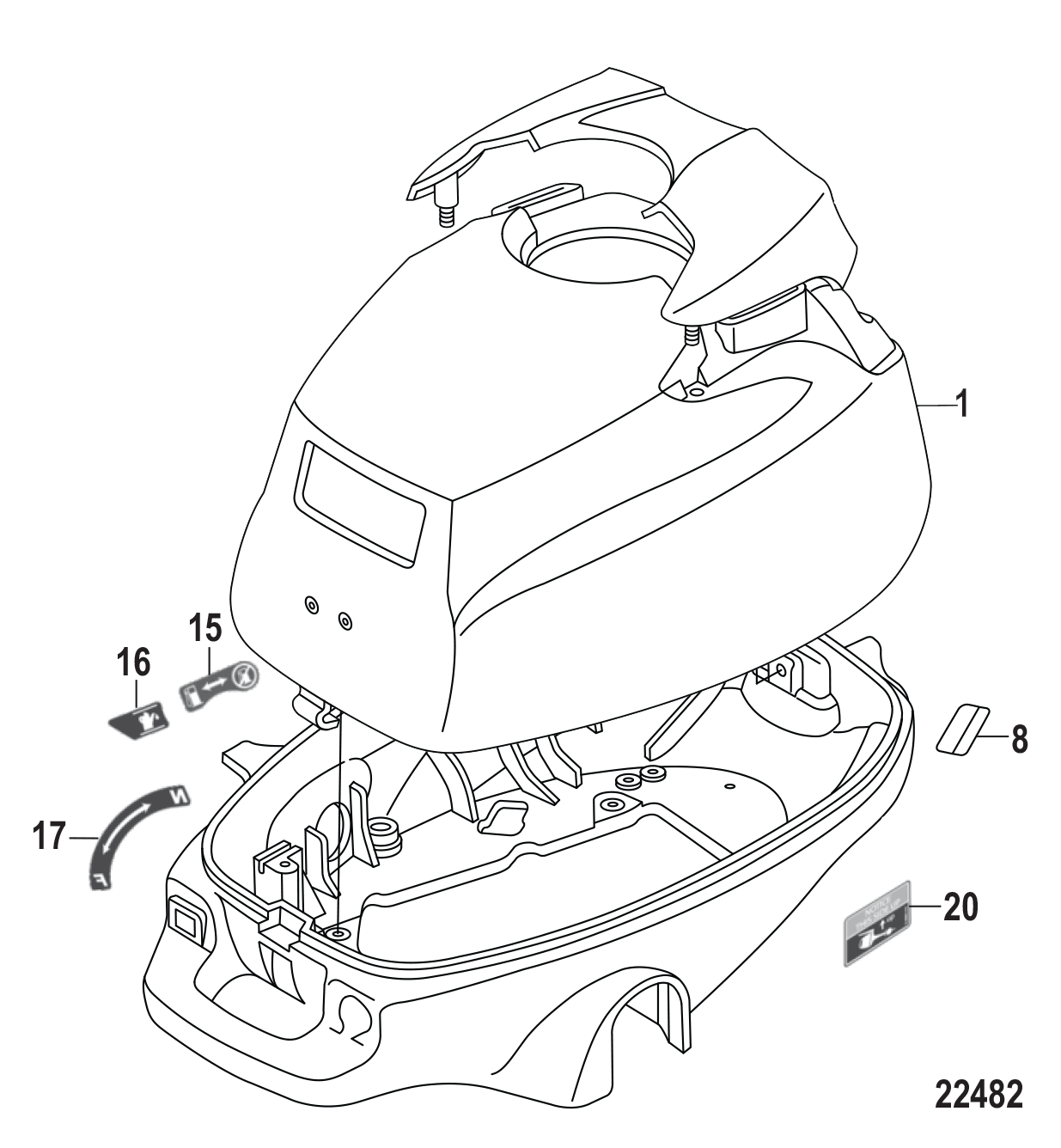

Cowling Diagram 22482

1 898103T78 TOP COWL ASSEMBLY Mercury [0R399905] & Below
1 8M0061798 TOP COWL ASSEMBLY Black, no decals [0R399906] & Up

1 898103T80 TOP COWL ASSEMBLY Mariner [0R399905] & Below
1 8M0058617 TOP COWL ASSEMBLY Silver, no decals [0R399906] & Up

898103T78, 8M0061798, 898103T80, 8M0058617
898103T78 8M0061798 898103T80 8M0058617

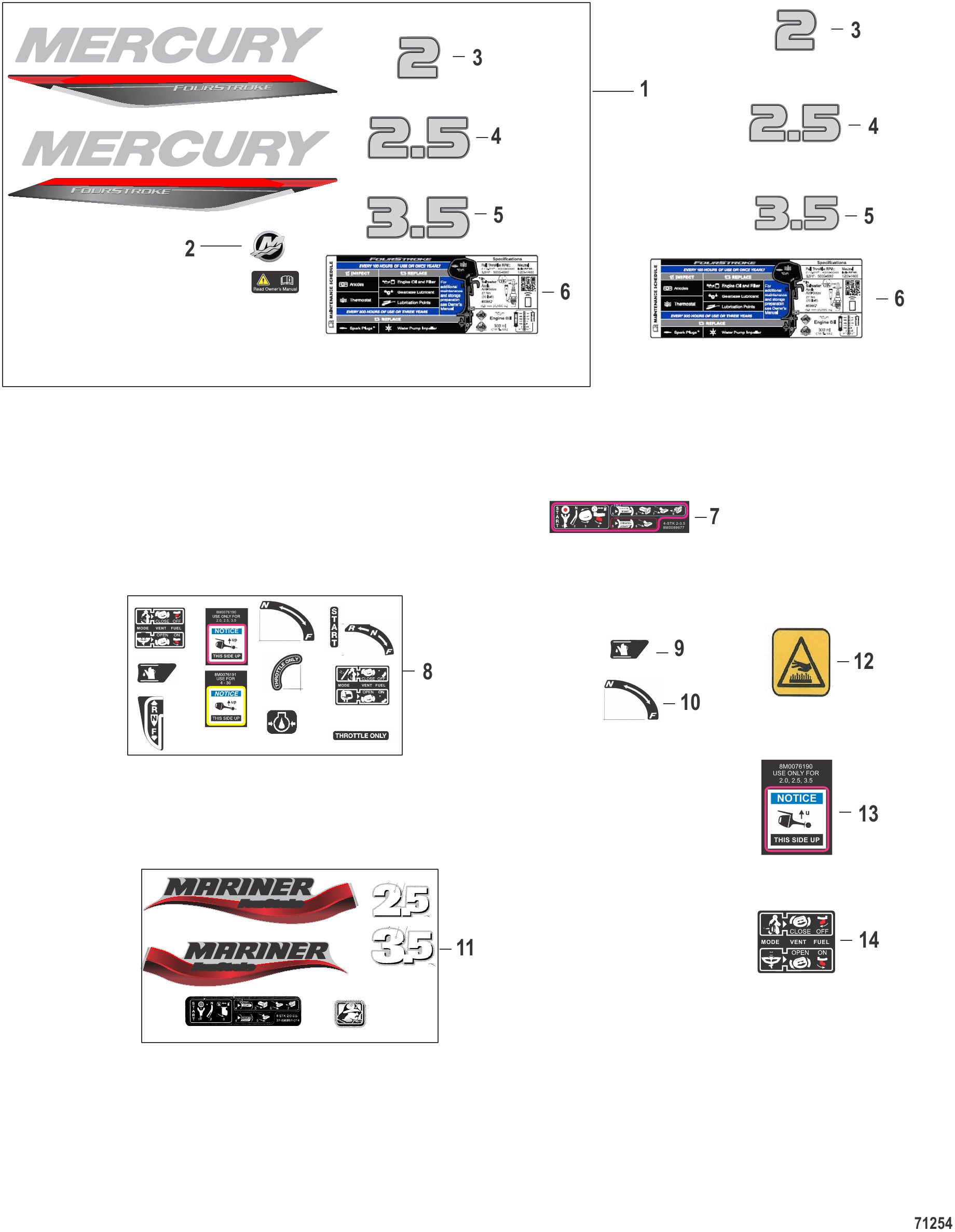

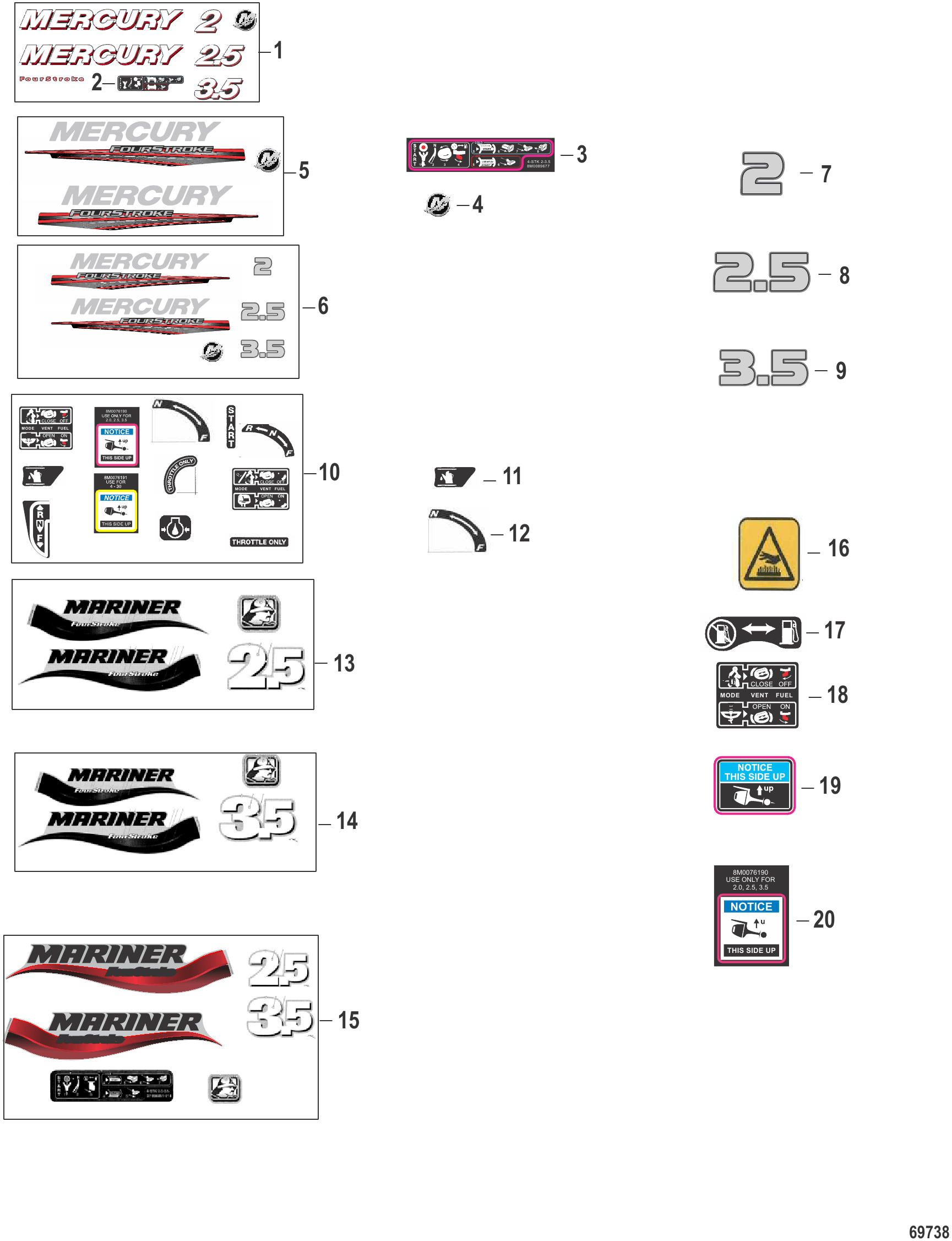

MERCURY DECALS

- 889246T14 DECAL SET Mercury 3.5 [0R399905] & Below
- 889246T12 DECAL SET Mercury 2.5 [0R399905] & Below
- 816014A06 DECAL SET Mercury 2 [0R399905] & Below
15 896851009 DECAL Fuel Lever [0R550755] & Below
- 896851014 DECAL Start Procedure [0R550755] & Below
20 896851010 DECAL Notice This Side Up [0R550755] & Below

- 8M0072620 DECAL SET Mercury, 2, 2.5, 3.5 [0R399906] THRU [0R550755]

- 8M0081455 DECAL SET Mercury Top Cowl [0R550756] & Up
- 8M0081456 DECAL SET Mercury, Lower Cowl [0R550756] & Up
- 8M0073668 DECAL Horsepower 2 [0R550756] & Up
- 8M0073669 DECAL Horsepower 2.5 [0R550756] & Up
- 8M0073670 DECAL Horsepower 3.5 [0R550756] & Up
- 8M0050645 DECAL M-icon [0R550756] & Up
15 8M0089675 DECAL Fuel Lever [0R550756] & Up
- 8M0076192 DECAL Start Procedure [0R550756] & Up
- 8M0129225 DECAL High Temperature Caution [0R719246] & Up

MARINER DECALS

- 889246T15 DECAL SET Mariner 3.5 [0R399905] & Below
- 889246T13 DECAL SET Mariner 2.5 [0R399905] & Below

- 8M0072621 DECAL SET Mariner, 2.5-3.5 [0R399906] & Up

OTHER DECALS

8 NSS NOT SOLD SEPARATE Decal Spark Plug
16 896851013 DECAL Oil Lever
17 896851012 DECAL Shift (N-R)

Serial Number: 0R893160 - Model: 1F03201EK - MH
2017 2018 MERCURY ME 3.5 MH 4S 3.5 MH

Model number
1F03201EK
Serial Number
0R893160
F3.5MH
HP 3.5 KW 2.57
LB 41 KG 18.4
Mercury Marine
Brunswick Corp.
Made in Japan
CE 0098 [AH]

> Mercury Marine [Updated: Feb. 26, 2019] > Outboard > 4 Stroke > 5 (4-STROKE) > [0R411838 & Up] - USA - Cat.# 90-8M0056559
> Mercury Marine [Updated: May. 7, 2020]  > Outboard > 4 Stroke > 6 (4-STROKE) > [0R411838 & Up] - USA - Cat.# 90-8M0056559

Cowling Top Diagram 46686

Cowling Top Diagram 69739

1 8M0056433 COWL ASSEMBLY Black Mercury
1 8M0056434 COWL ASSEMBLY Silver Mariner

Cowling Top Diagram 68784 (69739)

1. 8M0155483 COWL ASSEMBLY Top Non- decaled

8M0155483, 8M0056433, 8M0056434
8M0155483 8M0056433 8M0056434

MERCURY DECALS - MARINER DECALS

Decals Serial #0R991812 and Below Diagram 69753

2016-2012 Mercury Decals

- 8M0057104 DECAL SET Mercury [0R549315] & Below
1 8M0098720 DECAL SET Mercury

2013-2019 Mercury Decals

2 8M0081470 DECAL SET Mercury, Top Cowl [0R549316] & Up

3 8M0161226 DECAL SET Mercury
4 8M0073674 DECAL Horsepower 4 [0R549316] & Up
5 8M0073675 DECAL Horsepower 5 [0R549316] & Up
6 8M0073676 DECAL Horsepower 6 [0R549316] & Up
7 8M0073679 DECAL Sailpower [0R549316] & Up
8 8M0050645 DECAL M-icon Mercury

Mariner decals

9 8M0057105 DECAL SET Mariner
10 8592711 DECAL M-Icon Mariner
+ 8M0085745 DECAL M-ICON

11 8M0046013 DECAL Start Procedure [0R549315] & Below
12 8M0076193 DECAL Start Procedure [0R549316] & Up
+ 8M0089678 DECAL-START

13 8M0081456 DECAL SET Mercury Lower Cowl
14 896854007 DECAL Oil Pressure

15 892904010 DECAL Notice-This Side Up
+ 8M0157275 DECAL Notice-This Side Up

16 8M0089676 DECAL Fuel Valve
17 8M0089675 DECAL Fuel Lever
18 896851013 DECAL Oil Lever
19 896851012 DECAL Shift (N-R)
20 859278003 DECAL Throttle Only
21 859278004 DECAL Start
22 8M0012079 DECAL Shift

Decals Serial #0R991813 and Above Diagram 71255

1 8M0170755 DECAL SET 4,5,6 HP
2 8M0050645 DECAL M-icon Mercury
3 8M0073674 DECAL Horsepower 4
4 8M0073675 DECAL Horsepower 5
5 8M0073676 DECAL Horsepower 6
6 8M0073679 DECAL Sailpower

7 8M0057105 DECAL SET Mariner
8 8592711 DECAL M-Icon Mariner
9 8M0046013 DECAL Start Procedure [0R549315] & Below

10 8M0076193 DECAL Start Procedure [0R549316] & Up

11 8M0081456 DECAL SET Mercury, Lower Cowl
12 896854007 DECAL Oil Pressure
13 892904010 DECAL Notice-This Side Up
14 8M0089676 DECAL Fuel Valve
15 8M0089675 DECAL Fuel Lever
16 896851013 DECAL Oil Lever
17 896851012 DECAL Shift (N-R)
18 859278003 DECAL Throttle Only
19 859278004 DECAL Start
20 8M0012079 DECAL Shift

Serial Number: 0R886659 - Model: 1F1X5201EK - MH
2017 2018 MERCURY ME 5MH 5 MH

Model number
1F1X5201EK
Serial Number
0R886659
F5MH
HP 5 KW 3.68
LB 57 KG 26.2
Mercury Marine
Brunswick Corp.
Made in Japan
CE 0098 [AH]

Serial Number: 0R930282 - Model: 1FX6201EK
2019 MERCURY ME 6MH 6 MH

Serial Number: 0R500734 - Model:1F06201HL
2006 MERCURY 4 STROKE TMC 6 M 4

Model Number
1F06201HL
0R500734
F6M
HP 6 KW 4.41
LB 57 KG 26.2
Mercury Marine
Brunswick Corp.
Made in Japan
CE [12]

> Mercury Marine [Updated: Dec. 13, 2023] > Outboard > 4 Stroke > 15 HP  EFI 2 CYL > [0R833820 & Up] - Cat.# 90-8M0125267
> Mercury Marine [Updated: Sep. 15, 2022] > Outboard > 4 Stroke > 9.9 HP EFI 2 CYL > [1R008146 THRU 1R162636] - Cat.# 90-8M0125267
> Mercury Marine [Updated: Mar. 14, 2022] > Outboard > 4 Stroke > 9.9 HP EFI 2 CYL > [1R008146 & Up] - Cat.# 90-8M0125267
> Mercury Marine [Updated: Oct. 8, 2021]  > Outboard > 4 Stroke > 9.9 HP EFI 2 CYL > [1R008146 & Up] - Cat.# 90-8M0125267
> Mercury Marine [Updated: Feb. 25, 2019] > Outboard > 4 Stroke > 15 EFI (2CYL)(4-STROKE) > [0R833820 & Up] - Cat.# 90-8M0125267 >

Decals Top Cowl

Top Cowl Diagram 65113

1 8M0134515 TOP COWL ASSEMBLY Black, Non Decaled
1 8M0134516 TOP COWL ASSEMBLY Silver, Non Decaled

8M0134515, 8M0134516
8M0134515 8M0134516

Decals Top Cowl

MERCURY DECALS

Decals Top Cowl - Serial #0R991812 and Below
Diagram 65115

1 8M0132330 DECAL SET Mercury
2 8M0132331 DECAL SET SeaPro
3 8M0082467 DECAL Horsepower 10 Non-SeaPro
4 8M0073690 DECAL Horsepower 15
5 8M0073691 DECAL Horsepower 20 Non-SeaPro
6 8M0050645 DECAL M-icon
7 8M0056643 DECAL Read Manual

9  8M0132332 DECAL SET ProKicker
10 8M0076191 DECAL NOTICE THIS SIDE UP
+ https://garzonstudio.com/catalogsearch/result/?q=8M0157275 DECAL Notice This Side Up
11 859278004 DECAL Start
12 896854007 DECAL Oil Pressure

13 https://garzonstudio.com/catalogsearch/result/?q=8M0043700 M-ICON Red, 39mm

MARINER DECALS

8 8M0132333 DECAL SET Mariner

Decals Top Cowl - Serial #0R991813 and Above
DIAGRAM 71257

1 8M0170757 DECAL SET 10, 15, 20 HP
2 8M0082467 DECAL Horsepower 10 Non-SeaPro
3 8M0073690 DECAL Horsepower 15
4 8M0073691 DECAL Horsepower 20 Non-SeaPro
5 8M0050645 DECAL M-icon
6 8M0056643 DECAL Read Manual
7 8M0161263 DECAL Rear 9.9 HP Non-SeaPro

8 8M0132331 DECAL SET SeaPro

9 8M0132333 DECAL SET Mariner

10 8M0132332 DECAL SET ProKicker
11 8M0173449 DECAL Rear, 9.9 HP ProKicker
12 8M0173831 DECAL Rear, 15 HP Prokicker
13 8M0043700 M-ICON Red, 39mm
17 8M0180068 DECAL Maintenance, 9.9 ProKicker

14 8M0076191 DECAL NOTICE THIS SIDE UP
    + 8M0157275 DECAL Notice This Side Up

15 859278004 DECAL Start
16 896854007 DECAL Oil Pressure

Read more: 10/15/20 EFI (2CYL)(4-STROKE) - Cat.# 90-8M0125267

> Mercury Marine [Updated: Dec. 13, 2023] > Outboard > 4 Stroke > 175 HP 3.4L V6 Pro XS > [2B529482 & Up] - USA - Cat.# 90-8M0142638

Top Cowl Diagram 68740

1  8M0142179 TOP COWL ASSEMBLY Pro XS, Decaled without Horsepower
+ 8M0182322 COWL TOP PROXS

FIT OTHER COVERS:

8M0142178 TOP COWL ASSEMBLY Black
8M0142180 TOP COWL ASSEMBLY Cold Fusion
8M0142181 TOP COWL ASSEMBLY Warm Fusion
8M0142182 TOP COWL ASSEMBLY Pearl Fusion
8M0142183 TOP COWL ASSEMBLY Sea Pro

8M0142179, 8M0182322, 8M0142178, 8M0142180, 8M0142181, 8M0142182, 8M0142183
8M0142179 8M0182322 8M0142178 8M0142180 8M0142181 8M0142182 8M0142183

11) 8M0142233 DOOR ASSEMBLY Black
15) 8M0148533 DECAL Latch Position

Lower Cowl

Lower Cowl Diagram 66952

1)    8M0142219 LOWER COWL ASSEMBLY Port and Starboard
41) 8M0142577 DECAL Read Manual, Clear
41) 8M0142371 DECAL Read Manual, Black
-    8M0142187 DECAL SET Pro XS Lower Chaps

MERCURY DECALS

Decals diagram 66976

1) 8M0142188 DECAL SET Pro XS Top Cowl
    2) 8M0214839 DECAL Fourstroke - Front Decal
    3) 8M0153042 DECAL Mercury, Silver - Rear Top MERCURY (13,16)
    4) 8M0214840 DECAL M-Icon, Red Service Door (18)

5) 8M0214849 DECAL SET Pro XS
    6) 8M0085373 DECAL M-Icon, 60mm Red - Front Logo (20)
    7) 8M0142371 DECAL Read Manual, Black - Front label

8) 8M0142198 DECAL SET 175 HP - Rear and Side carbon Numbers
    9) 8M0217482 DECAL 175 PXS Rear Numbers (12, 17)

10) 8M0214851 DECAL 175 HP Side Required for Top Cowl Replacement - Sides carbon Numbers

11) 8M0145995 DECAL 175 HP - Rear MERCURY - 175 - Pro
     12) 8M0217482 DECAL 175 PXS - Rear Numbers (9, 17)
     13) 8M0153042 DECAL Mercury, Silver - Rear Top MERCURY (3,16)

14) 8M0214850 DECAL 175 HP Required for Top Cowl Replacement
     15) 8M0159717 DECAL M Icon, 53 MM Red - Rear Bottom Logo
     16) 8M0153042 DECAL Mercury, Silver - Rear Top MERCURY (3, 13)
     17) 8M0217482 DECAL 175 PXS - Rear Numbers (9, 12)
     18) 8M0214840 DECAL M-Icon, Red Service Door (4)
     19) 8M0214841 DECAL V6 - Rear Emblem for new models - was not included on the first models
     20) 8M0085373 DECAL M-Icon, 60mm Red - Front Logo (6)

21) 8M0142187 DECAL SET Pro XS Lower Cowl - Chap stripes only

22) 8M0187221 DECAL 3D Circles, Black
23) 8M0187223 DECAL 3D Circles, White

Installation instructions V8 Accent panels

REDLINE RED V6: 8M0142211
PACIFIC BLUE V6: 8M0142212
MERCURY SILVERV6: 8M0142213
GRAPHITE GREYV6: 8M0142214
PRO BLACK (MATTE) V6: 8M0142215
READY-FOR-PAINT V6: 8M0142216

> Mercury Marine [Updated: Sep. 15, 2022] > Outboard > 4 Stroke > 175 HP 3.4L V6 Pro XS > [2B529482 & Up] - USA - Cat.# 90-8M0142638
> Mercury Marine [Updated: Feb. 18, 2019] > Outboard > 4 Stroke > 175 3.4L V6 PRO XS (4-STROKE) > [2B529482 & Up] - USA - Cat.# 90-8M0142638

Old Version

Decals diagram 66976 - old version

1) 8M0142188 DECAL SET Pro XS Top Cowl
2) 8M0145995 DECAL 175 HP
3) 8M0153042 DECAL Mercury, Silver
4) 8M0142198 DECAL SET 175 HP
5) 8M0043707 DECAL M-Icon, 53mm Red Front
6) 8M0085373 DECAL M-Icon, 60mm Red Rear
7) 8M0142187 DECAL SET Pro XS Lower Cowl

8) 8M0187221 DECAL 3D Circles, Black
9) 8M0187223 DECAL 3D Circles, White

Serial Number: 3B143966 - Model: 11750002A - Model Version: XL PROXS
MERCURY 175XL PXS 4.8" 1.85 175EFI XL PROXS
