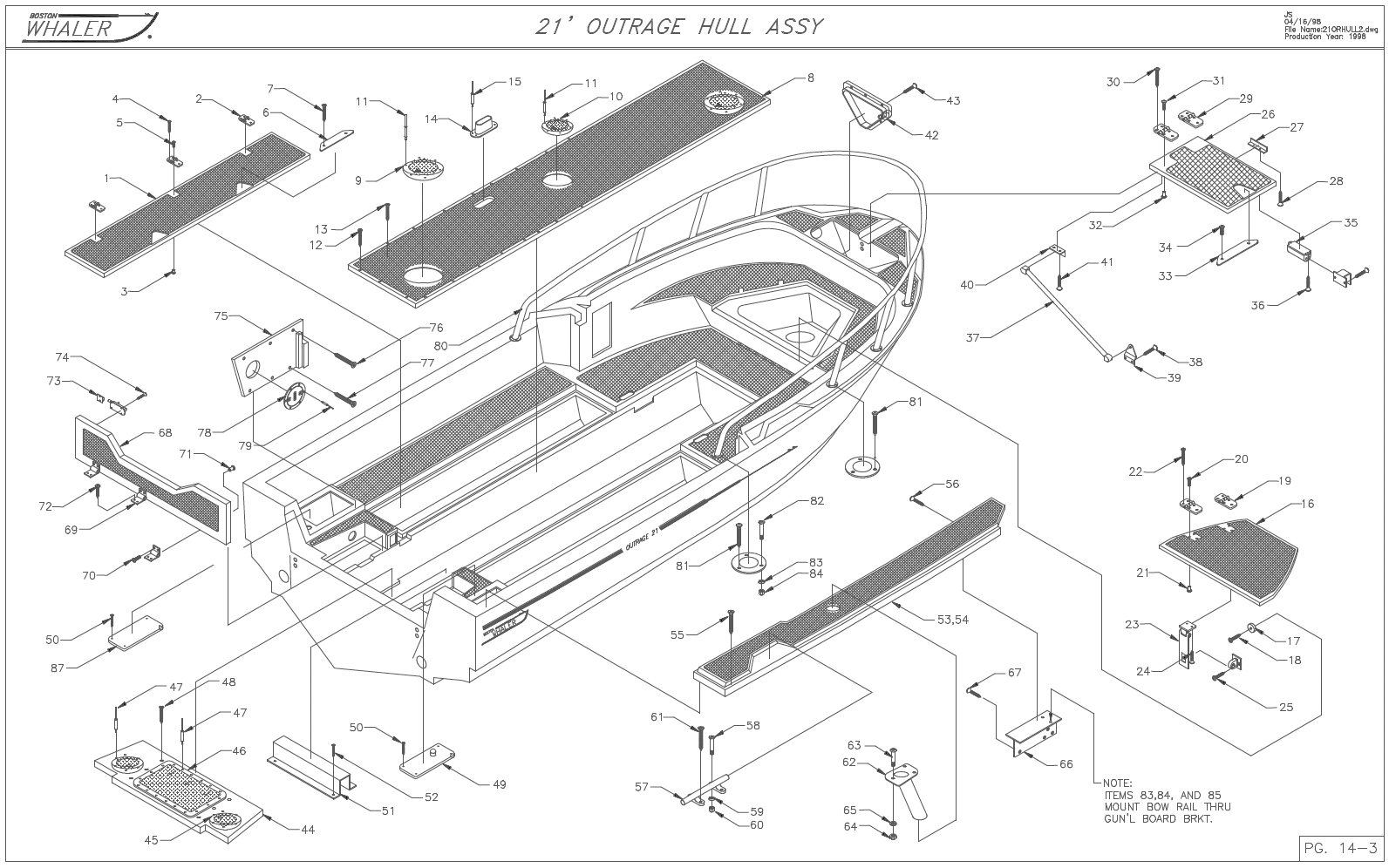

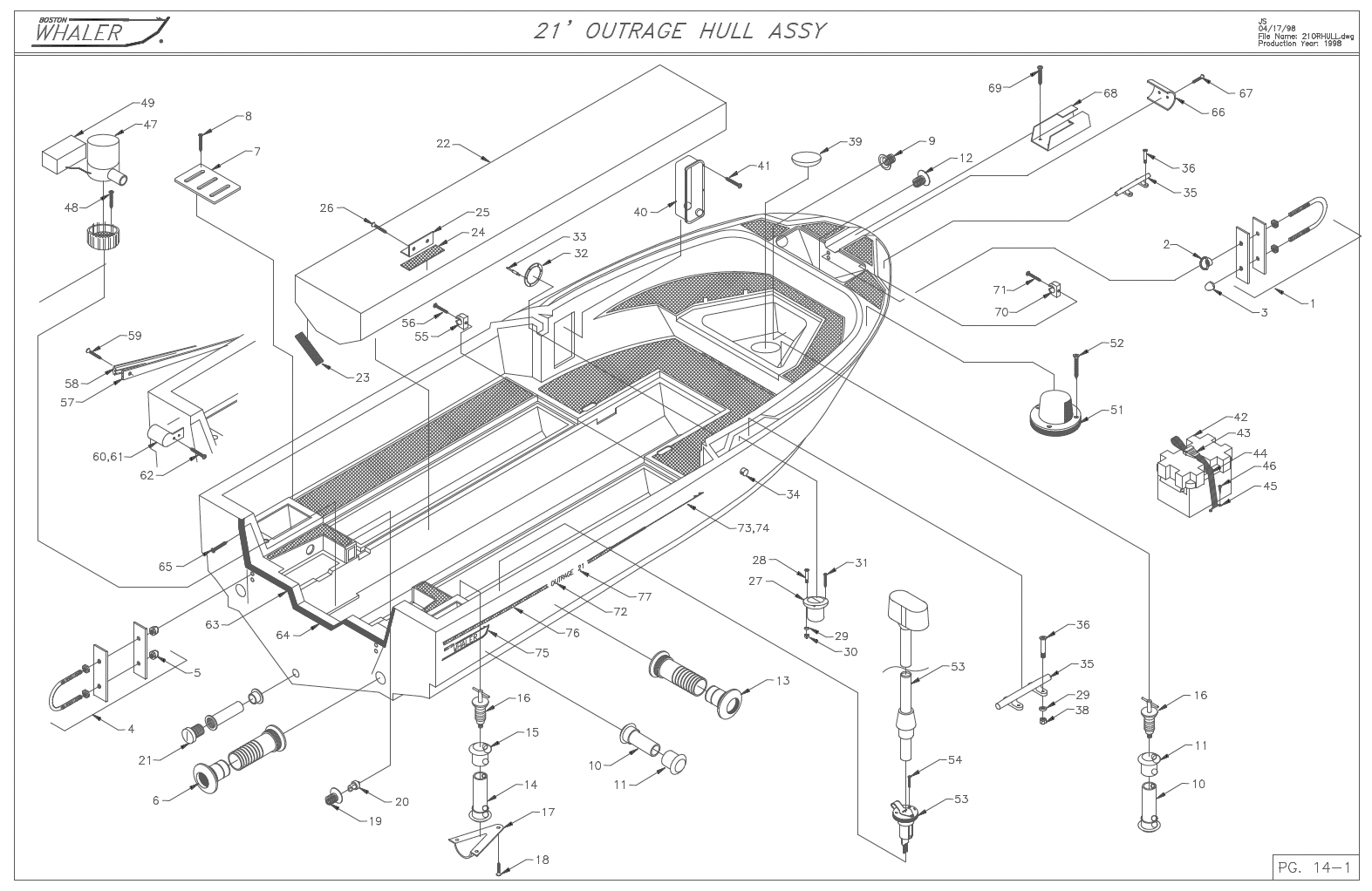

HULL ASSY- GRAPHICS

72) 998732 DECAL, OR DK GRY HIBOSSCAL ORDER 2 (HIBOSCAL, HIB or HIBO probably means Emblem, 3D, Raised or Embosed decal)

73) 998559 DECAL, HARP PORT FIRE RED ORDER 1
74) 998609 DECAL, . HARP STD FIRE RED ORDER 1
75) 998104 DECAL, BW LOGO 28" FIRE RED SET
76) 1038009 TAPE, SOLID 1" FIRE RED W/PIN ORDER 26’
77) 997882 DECAL. 'BW 21 FIRE RED HIBO ORDER 2

73) 9988450 DECAL, HARP PORT CORBIN D BLU ORDER 1
74) 998476 DECAL, HARP STD CORBIN DK BLU ORDER 1
75) 998088 DECAL, BW LOGO 28" CORBIN DK BLU SET
76) 1037985 TAPE, SOLID 1" CORBIN DK BLU W/PIN ORDER 26’
77) 997866 DECAL. 'BW 21 CORBIN DK BLU HIB ORDER 2

73) 998542 DECAL, HARP PORT DK GRN ORDER 1
74) 998591 DECAL, HARP STBD, DK GRN ORDER 1
75) 998096 DECAL, W LOGO 28" DK GRN SET
76) 1037993 TAPE, SOLID 1" DK GRN W/PIN ORDER 26’
77) 997874 DECAL, 21' DK GRN HIB ORDER 2

HULL ASSEMBLY - LABELS

NOT SHOWN

1) 1016898 LABEL, VENT HOSE NO DRILL
2) 1016443 LABEL, FUEL TANK NO DRILL
3) 1016484 LABEL, NO SMOKING FUEL VENT
4) 995704 PLATE, WARNING FUEL HAZARD
5) 1016963 LABEL, WARN WIRES BENEATH
6) 995829 PLATE NMMA

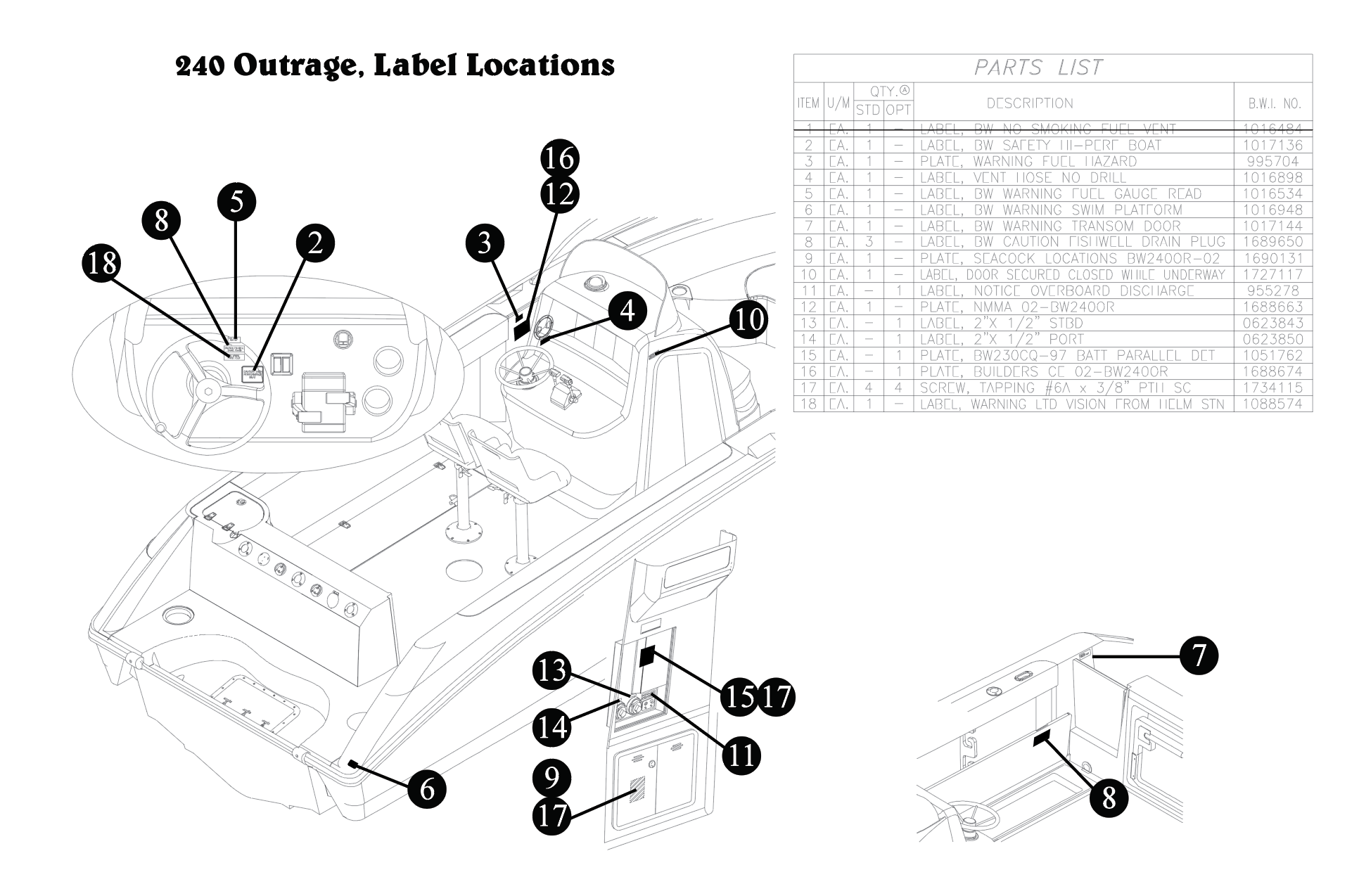

2004 Boston Whaler 240 outrage labels location diagram

Item | B.WI. NO |  DESCRIPTION
1 1016124 LABEL, BW NO SMOKING FUEL VENT
2 1017136 LABEL, BW SAFETY - PERF BOAT
3 995704 PLATE, WARNING FUEL HAZARD
4 1016898 LABEL. VENT HOSE NO DRILL
5 1016534 LABEL, BW WARNING FUEL GAUGE READ
6 1016948 LABEL, BW WARNING SWIM PLATFORM
7 1017144 LABEL, BW WARNING TRANSOM DOOR
8 1689650 LABEL, BW CAUTION FISHWELL DRAIN PLUG
9 1690131 PLATE, SEACOCK LOCATIONS BW2400R-02
10 1727117 LABEL, DOOR SECURED CLOSED WHILE UNDERWAY
11 955278 LABEL. NOTICE OVERBOARD DISCHARGE
12 1688663 PLATE, MMA 02-BW2400R
13 623843 LABEL, 2” X ½ “STBD
14 623850 LABEL, 2” X ½ “PORT
15 1051762 PLATE, BW230CQ-97 BATT PARALLEL DET
16 1688674 PLATE. BUILDERS CE 02-BW2400R
17 1734115 SCREW, TAPPING #6A x 3/8” PTH SC
18 1088574 LABEL. WARNING LTD VISION FROM HELM STN

Other Models found

1998 - 130 GLS - 40th Anniversay Edition Assembly
here says it will be a Red 18 inches long logo

13' 40TH ANNIVERSARY EDITION

63) 0997999 1 DECAL. LOGO 18" FIRE RED
64) 1020064 1 PLATE NMMA 97-BW134SPORT

1998 - 130 GLS - Assembly
13' GLS

37) 0997999 2 DECAL, BW LOGO 18" FIRE RED
38) 0998559 1 DECAL, HARPOON PORT SIDE - FIRE RED
39) 0998609 1 DECAL, HARPOON STARBOARD FIRE RED
40) 1038009 1 TAPE SOLID 1' W/ PIN STRIPE
41) 0998401 3 DECAL FIRE RED EXP VINYL

80) 1020064 1 PLATE NMMA 97

1998 - 130 GLS - Base Assembly
13'BASE / BAREHULL

31)
0997999 DECAL, BW LOGO 18" FIRE RED
0998047 DECAL, BW LOGO 18" CORBIN DARK BLUE
0998054 DECAL, BW LOGO 18" DARK GREEN

32)
1038009 22' TAPE, SOLID 1" FIRE RED W/PIN
1037985 22' TAPE, SOLID 1" CORBIN DARK BLUE W/PIN
1037993 22' TAPE, SOLID 1" DARK GREEN W/PIN

1999 - 130 GLS - Assembly and Options
1999 - 130 GLS - Assembly and Options Parts List

2000 - 130 GLS - Assembly and Optional Equipment
2000 - 130 GLS - Assembly and Optional Equipment Parts List

Read more: Boston Whaler Boats - Decals - Stripes - logos - Labels
