1989 Johnson GT 300 V8 - J300PLCEM

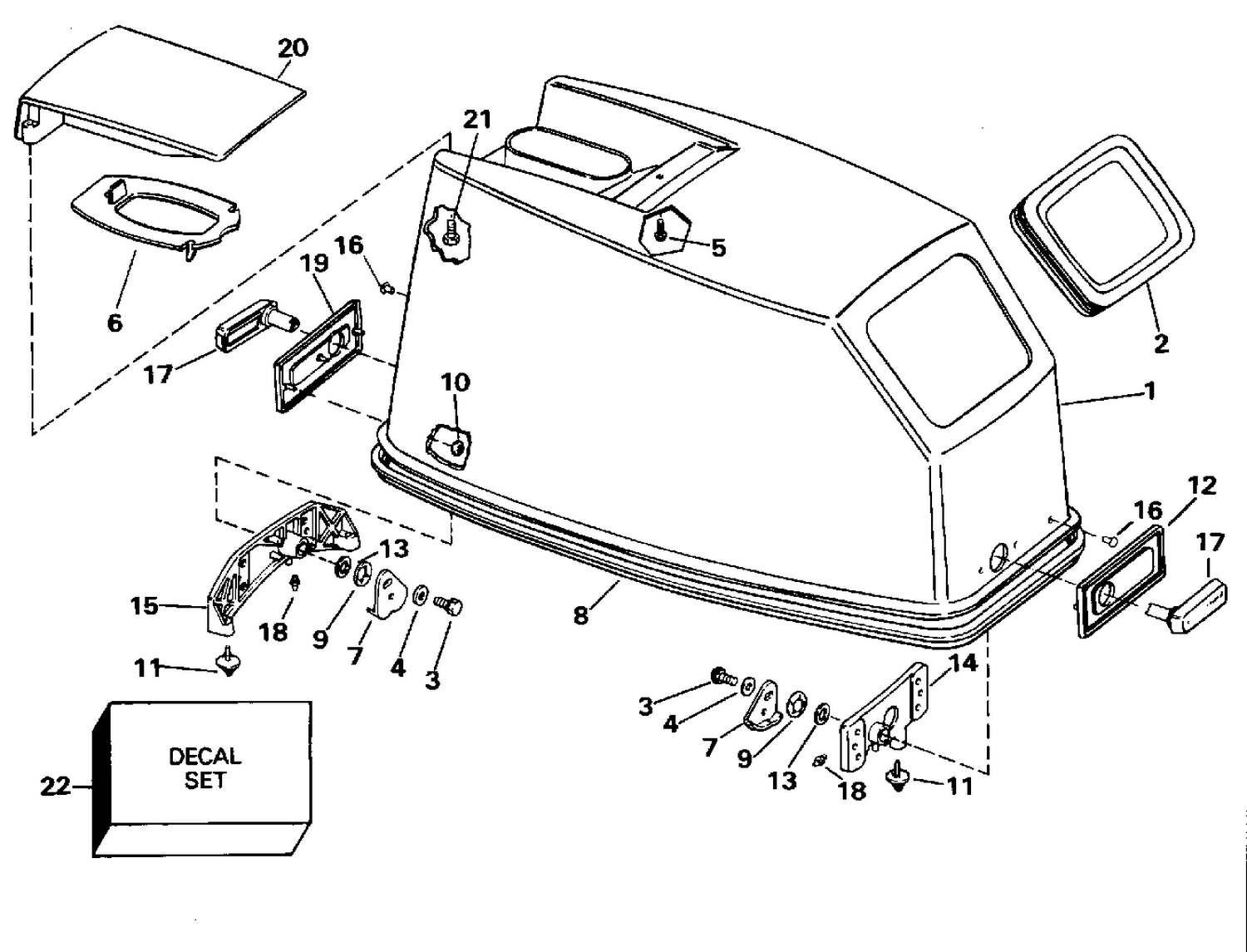

ENGINE COVER - JOHNSON 300 MODELS

1 0432726 ENGINE COVER ASSY. Standard Rotation White Cover
1 0432725 ENGINE COVER ASSY. Standard Rotation Metallic Gray Cover
1 0432727 ENGINE COVER ASSY. Counter Rotation White Cover

ENGINE COVER - EVINRUDE 300 MODELS
0283665-0283981, 0283666-0283982

0432726, 0432725, 0432727 - 0283665, 0283666
0432726 0432725 0432727 - 0283665 0283666

Johnson Decals

0433141 DECAL SET

10 0334172 APPLIQUE, 300 rear
11 0334784 PLATE, Rear (VRO)
12 0330086 APPLIQUE, V, front & rear (2x Vs)

15 0334785 PLATE, V, front (V)
16 0330076 APPLIQUE, Rear (GT)

19 0330088 APPLIQUE, Front & rear (2x 8s)

21 0334783 PLATE, Applique front (8)

25 0334783 PLATE, Rear (8)
27 0334785 PLATE, Rear (V)

1989 Johnson 300 HP - J300PLCEM - Ser. No.: G02318943
Engine: 1989 Johnson GT 300 V8

EVINRUDE 2005 40/50/60 hp E-TEC - Bombardier

2005 EVINRUDE E-TEC - BOMBARDIER - RED STRIPE

E40DELSOR, E40DPLSOR, E40DRLSOR
E50DPLSOR
E60WDRLSOS
E60WDRYSOS

ENGINE COVERS



ENGINE COVER DIAGRAM EPC3696

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\045005316\EPC3696.tif&ilSC=55&ilIV=0&ilBR=0&ilIF=P&ilRE=8

0285603 ENGINE COVER Assy - (DR & W Models)
0285604 ENGINE COVER Assy - (DE, DP Models)


ENGINE COVER DIAGRAM EPC4272

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\065006498\EPC4272.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8

0285648 ENGINE COVER Assy - (DR Models)



0285603, 0285604, 0285648
0285603 0285604 0285648



EVINRUDE DECALS

DIAGRAM EPC3695


http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\055006027\EPC3695.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8


1 0215536 EVINRUDE - Front/Rear. 2
2 0215331 LENS, BOMBARDIER logo. 2
3 0215537 EVINRUDE E-TEC - Port.
4 0215538 EVINRUDE E-TEC - Starboard.
5 0215559 STRIPE, - Port.
6 0215560 STRIPE - Starboard.

7 0215532 "40" HP Front/Rear 2
8 0215533 "50" HP Front/Rear 2


9 0215558 EVINRUDE "EU" 2006
10 0333979 SHIFT, Instruction - (DR & W Models)
11 0334435 OWNER, Attention

12 0215534 "60" HP Front/rear (W Models only) 2

13 0215652 "Commercial", Decal (W Models only)

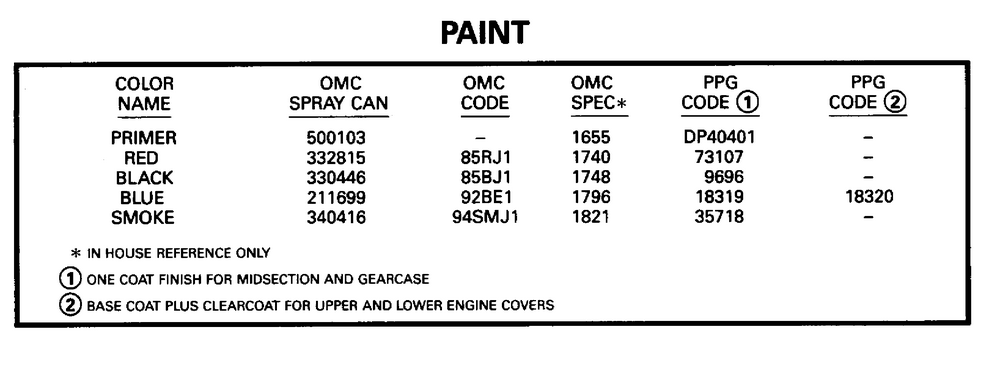

PAINT

0777172 Primer Spray Can. (PPG Code - DP40401. One Coat Finish For Midsection And Gearcase)
0777179 Black Spray Can. (PPG Code - 9696. - Cylinder/Crankcase paint
0351907 Blue Spray Can. (SAC61243 PPG Code - One coat finish for Midsection And Gearcase), Base coat plus clearcoat for Upper and Lower engine covers.
0777171 White Spray Can. (SAC61243 PPG Code - One coat finish for Midsection And Gearcase), Base coat plus clearcoat for Upper and Lower engine covers.

EVINRUDE 2006-2007 40/50/60/ hp E-TEC - BRP

2006-2007 EVINRUDE E-TEC - BRP - RED STRIPE

2006-2007
40: E40DELSDA, E40DPLSDA, E40DRLSDA, E40DPLSUM, E40DRLSUM
50: E50DPLSDA, E50DPLSUM
60: E60DPLSDA, E60DPLSUM
E40DELSDA E40DPLSDA E40DRLSDA E40DPLSUM E40DRLSUM
E50DPLSDA E50DPLSUM
E60DPLSDA E60DPLSUM


ENGINE COVERS





ENGINE COVER EPC3696


http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\045005316\EPC3696.tif&ilSC=50&ilIV=0&ilBR=0&ilIF=P&ilRE=8

PROFILE DRAWING 065006498-Falcon
http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\065006498\Falcon.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8

0285649 ENGINE COVER Assy - (DE, DP Models)







ENGINE COVER EPC4272

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\065006498\EPC4272.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8

0285648 ENGINE COVER Assy - (DR Models)

0285649,0285648
0285649 0285648



EVINRUDE DECALS

DIAGRAM EPC3695


http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\065006498\EPC3695a.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8

1 0215536 EVINRUDE - Front/Rear 2
2 0352506 BRP Logo 2
3 0215537 EVINRUDE E-TEC - Port
4 0215538 EVINRUDE E-TEC - Starboard
5 0215559 STRIPE, - Port
6 0215560 STRIPE - Starboard

7 0215532 "40" HP Front/Rear 2
8 0215533 "50" HP Front/Rear 2
9 0215534 "60" HP Front/Rear 2

10 0215558 EVINRUDE "EU" 2006
11 0333979 SHIFT, Instruction - (DR Models)
12 0334435 OWNER, Attention
NS 0215774 3 Star



PAINT

1 0777172 Primer. PPG Code - DP40401
2 0777179 Black. PPG Code - 9696
3 0777171 White. PPG Code - 90538
4 0772414 Clearcoat. Use with base color on upper and lower engine covers.
5 0777177 Graphite. PPG Code - 35718
6 0777175 D.I. Blue. PPG Code - 18319
7 0351907 E-TEC Blue. PPG Code - SAC61243



More Articles …

  1. 1991 Johnson 88/90/100/115 Jet TJ
  2. Johnson - 2004 40 hp decals
  3. Johnson 1995 25 hp J25REOR
  4. Johnson 1988 8 hp decals

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.
