Outboard decal Replicas - Find them here!

1998 & Newer MERCRUISER ALPHA TRANSOM W/ENGINE ALPHA - Cat.# 90-80975998

> Mercury Marine [Updated: Oct. 5, 2020] > Sterndrive > Drives > ALPHA ONE (GEN.II)    1998 AND UP > [0L100040 & Up] - Cat.# 90-80975998

DIAGRAM 2496

861063A4 HOUSING ASSEMBLY Driveshaft

DRIVESHAFT HOUSING AND DRIVESHAFT DECALS

DIAGRAM 5067


861431A98 DECAL SET (STANDARD ROTATION)
 861431A99 DECAL SET (STANDARD ROTATION)
861431A04 DECAL SET (STANDARD ROTATION) [0W535000] & Up 1
+ 861431A05 DECAL SET
861446A98 DECAL SET (COUNTER ROTATION)
861446A99 DECAL SET (COUNTER ROTATION)
898111A04 DECAL SET (COUNTER ROTATION) [0W535000] & Up 1
+ 898111A05 DECAL SET



Serial Number: 0L212113 & Up
Model: 6111001LS
Model Version: TRANSOM

225/250 EFI (3.0L) XL EFI - Cat.# 90-80917095

 > Mercury Marine [Updated: Oct. 28, 2020] > Outboard > 2 Stroke EFI > 225 (3.0L EFI) > [0G129222 THRU 0G760299] - USA - Cat.# 90-80917095


TOP COWL DIAGRAM  37783

814277A14 TOP COWL ASSEMBLY (BLACK)
+814277T14 TOP COWL ASSEMBLY
814277A15 TOP COWL ASSEMBLY (SILVER)
+814277T15 TOP COWL ASSEMBLY
814277A25 TOP COWL ASSEMBLY (WHITE)
+814277T25 TOP COWL ASSEMBLY

MERCURY DECALS

824105A96 DECAL SET (225 BLACK LONG)
+824105A00 DECAL SET

809693A96 DECAL SET (225 BLACK XL/XXL)
+809693A00 DECAL SET

809167A96 DECAL SET (250 BLACK)
+809167A00 DECAL SET

MARINER DECALS

809709A96 DECAL SET (225 GRAY LONG) [0G437999] & Below
+809709A97 DECAL SET

827438A96 DECAL SET (225 GRAY XL/XXL) [0G437999] & Below
+827438A01 DECAL SET

809168A96 DECAL SET (250 GRAY) [0G437999] & Below
+809168A01 DECAL SET

809709A97 DECAL SET (225 GRAY LONG)(ALSO ORDER STRIPING DECAL BELOW) [0G438000] & Up

827438A97 DECAL SET (225 GRAY XL/XXL)(ALSO ORDER STRIPING DECAL BELOW) [0G438000] & Up
+827438A01 DECAL SET

809168A97 DECAL SET (250 GRAY)(ALSO ORDER STRIPING DECAL BELOW) [0G438000] & Up
+809168A01 DECAL SET

TRACKER DECALS

809848A96 DECAL SET (TRACKER BY MERCURY)
809854A96 DECAL SET (TRACKER BY MARINER)

OTHER DECALS

850497A97 DECAL SET (225 WHITE)(ALSO ORDER STRIPING DECAL BELOW) [0G438000] & Up
850498A97 DECAL SET (250 WHITE)(ALSO ORDER STRIPING DECAL BELOW) [0G438000] & Up
824911A25 DECAL Striping (ROLL OF 25 FT. - NEED 7.2 FT.) (GRAY AND WHITE) [0G438000] & Up






60R EFI 4STROKE RACING - Cat.# 90-8M0169885

 > Mercury Marine [Updated: Sep. 3, 2020] > Outboard > 4 Stroke > 60R EFI FourStroke Racing > [1C615064 & Up] - Cat.# 90-8M0169885

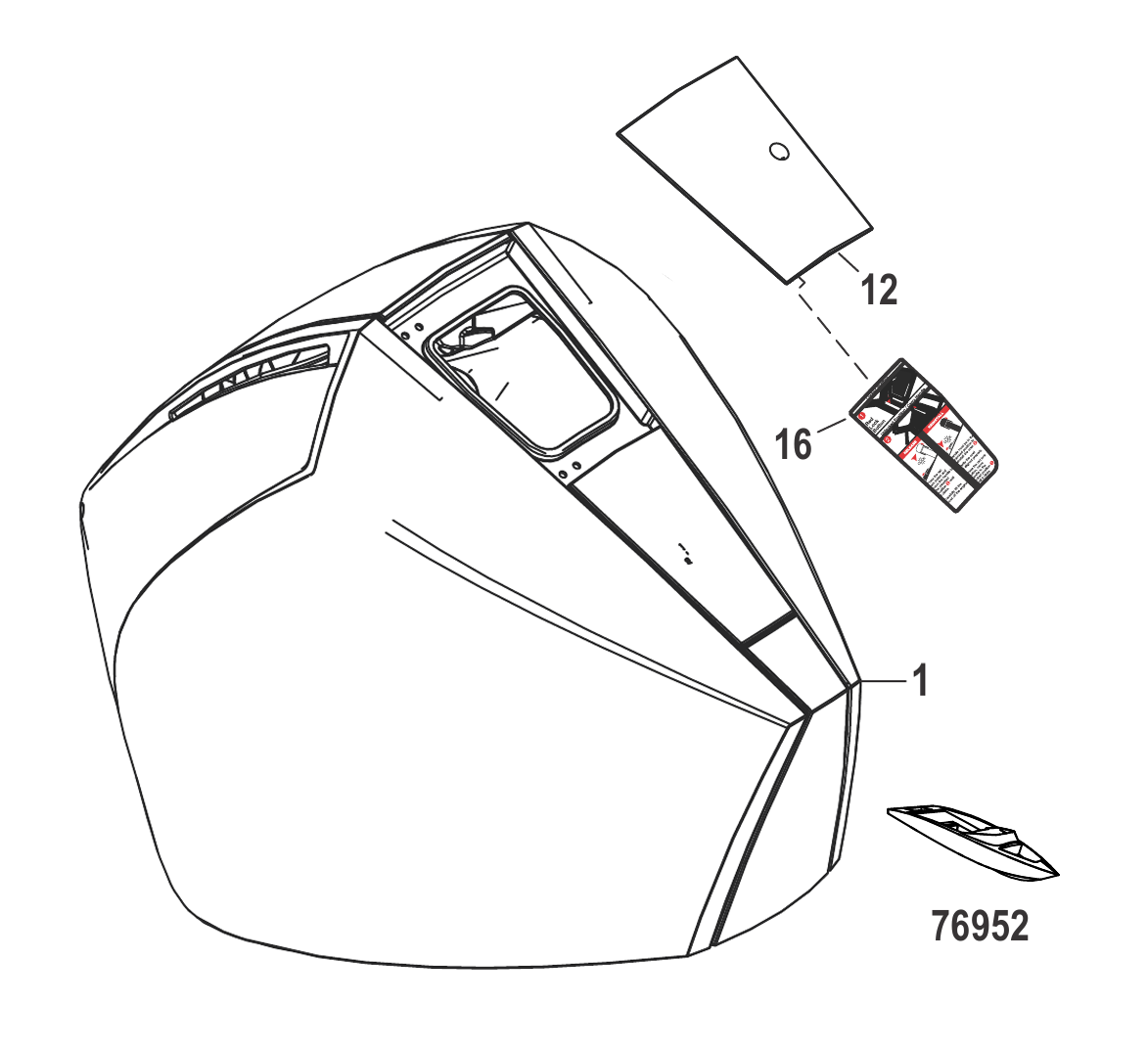

TOP COWL DIAGRAM 70940

8M0118165 TOP COWL ASSEMBLY Mercury, Non Decaled

MERCURY DECALS

8M0171547 DECAL SET Top Cowl
8M0080154 DECAL M-ICON, Blue Front
8M0151525 DECAL MICON 53 MM, Racing Rear
8M0056643 DECAL Read Manual Rear
8M0159886 DECAL Lenz, Mercury

8M0171547, 8M0080154, 8M0151525, 8M0056643 DECAL, 8M0159886,
8M0171547 8M0080154 8M0151525 8M0056643 DECAL 8M0159886



Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
