> Mercury Marine [Updated: Aug. 16, 2018] > Outboard > Sears > 9.9 HP > ARCHIVE CAT 8302103

Sears 9.9 H.P (OUTBOARD MOTOR) W/6 GAL. REMOTE TANK
SERIAL NUMBER
9.9 H.P. (1996-1997 1/2) . . . . . . . . . . . . 225.581988
9.9 H.P. (1996-1997 1/2) . . . . . . . . . . . . 225.581998

COWL ASSEMBLY - TOP AND BOTTOM

820154A5 COWL ASSEMBLY-TOP (WITH DECALS) (PAINTED)
820154A2 COWL ASSEMBLY-TOP (WITHOUT DECALS) (PAINTED)

820154A5, 820154A2
820154A5 820154A2

SEARS GAMEFISHER DECALS

10) 826342-13 DECAL-REAR
11) 826342-11 DECAL-STARBOARD
11) 826342-12 DECAL-PORT
12) 826342-17 DECAL-FRONT-STARTER INSTRUCTIONS

STARTER ASSEMBLY
FA609853 DECAL KIT-SHIFT TO NEUTRAL

STEERING HANDLE/TWIST GRIP THROTTLE
28) F712894 DECAL-SPEED INDICATOR

SWIVEL BRACKET AND DRIVESHAFT HOUSING
22) F688585 DECAL-TILT LOCK
40) 818029 DECAL-FUEL MIX

 > Mercury Marine [Updated: Aug. 16, 2018] > Outboard > Sears > 9.9 HP > [225.591990 225.591980 THRU 225.591980] - Belgium - Cat.# 90-855600 > COWL ASSEMBLY TOP AND BOTTOM

COWL ASSEMBLY TOP AND BOTTOM

820154A9 TOP COWL ASSEMBLY (WITH DECALS) (PAINTED)
820154A8 TOP COWL ASSEMBLY (WITHOUT DECALS) (PAINTED)

820154A9, 820154A8
820154A9 820154A8

SEARS GAMEFISHER DECALS

10) 82634213 DECAL (REAR)
11) 82634211 DECAL (STARBOARD)
11) 82634212 DECAL (PORT)
12) 82408812 DECAL Shift
13) 8263425 DECAL (FRONT)-Starter Instructions
14) 835495A3 BOTTOM COWL ASSEMBLY (Painted)

31) 85557736 DECAL EPA Label Information (Applied Inside The Top Cowl)

> Mercury Marine [Updated: Aug. 2, 2018] > Outboard > 2 Stroke DFI (OptiMax) > 150 Pro XS (2.5L) > [1B690542 THRU 2B535572] - USA - Cat.# 90-8M0047641

TOP COWL DIAGRAM 2113

1

883013T03 TOP COWL ASSEMBLY Includes all Decals except Horsepower [1B934545] & Below
8M0070603 TOP COWL ASSEMBLY Includes all Decals except Horsepower [1B934546] & Up
8M0083588 TOP COWL
8M0075373 TOP COWL ASSEMBLY Mercury, Without decals
8M0075375 TOP COWL ASSEMBLY Mariner, Without decals

883013T03, 8M0070603, 8M0083588, 8M0075373, 8M0075375
883013T03 8M0070603 8M0083588 8M0075373 8M0075375

MERCURY DECALS

897136A07 DECAL SET ProXS, HP decal not included [1B934545] & Below
892565003 DECAL Horsepower (150) [1B934545] & Below
+ 8M0061183 DECAL, 150

8M0073124 DECAL SET ProXS, HP Decal not included [1B934546] & Up
+ 8M0083587 DECAL SET

8M0065744 DECAL Horsepower (150) [1B934546] & Up

OTHER DECALS

8M0043699 DECAL M-ICON Red, 66mm
8M0043700 M-ICON Red, 39mm [1B934546] & Up

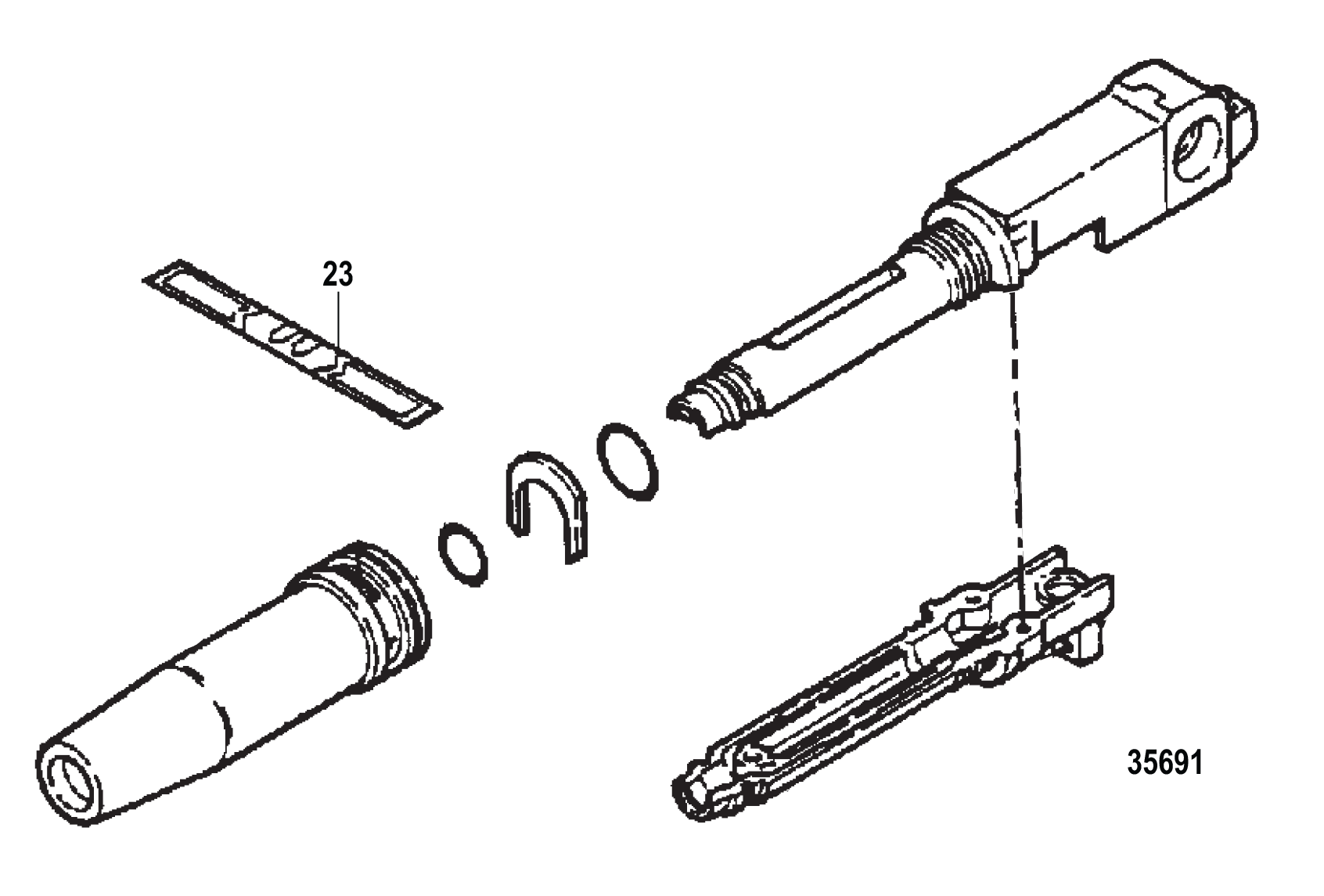

23 Decal-Counter Rotation
24 Decal-Break-In
- DECAL, EPA (2009 & Up)

> Mercury Marine [Updated: Jan. 27, 2023] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Mar. 29, 2022] > Outboard > 4 Stroke > 115 HP EFI Pro XS > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Jul. 28, 2018] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280
> Mercury Marine [Updated: Oct. 16, 2019] > Outboard > 4 Stroke > 115 PRO XS (4-STROKE) > [2B225488 & Up] - USA - Cat.# 90-8M0114280

Top Cowl Diagram 55117

8M0114282 TOP COWL ASSEMBLY Mercury Pro XS Decaled
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled

Will also fit on:
8M0087994 TOP COWL ASSEMBLY Mercury Decaled Horse Power, Command Thrust and Jet Decals not included
8M0159539 TOP COWL ASSEMBLY Mercury Decaled New models [2B679490] & Up
8M0090833 TOP COWL ASSEMBLY Mariner Decaled Horse Power, Command Thrust and Jet Decals not included
8M0091789 TOP COWL ASSEMBLY Black, Non-Decaled
8M0087995 TOP COWL ASSEMBLY Gray, Non-Decaled
8M0096296 TOP COWL ASSEMBLY Mercury, Decaled SeaPro

8M0114282, 8M0091789, 8M0087994, 8M0159539, 8M0090833, 8M0091789, 8M0087995, 8M0096296
8M0114282 8M0091789 8M0087994 8M0159539 8M0090833 8M0091789 8M0087995 8M0096296

MERCURY DECALS

Decals-Top and Lower Cowl Diagram 60348

1) 8M0114440 DECAL SET Top Cowl 115 HP ProXS

N2) 8M0159386 DECAL CT - Command Thrust

N3) 8M0178226 DECAL M-ICON, Red - Top M Logo
3) 8M0080155 DECAL - M ICON 29 MM Red - Rear M Logo
4) 8M0085373 DECAL M-Icon, 60mm Red - Front M Logo

2-N6) 8M0114441 DECAL SET Lower Cowl 115 HP ProXS - Lower cowl stripes

Read more: 115 PRO XS (4-STROKE) - Cat.# 90-8M0114280
