> Mercury Marine [Updated: Feb. 28, 2018] > Outboard > 2 Stroke Carb > 40 MXL MARATHON > [0N037781 THRU 0N056164] - Cat.# 90-80263898 > Service/Support Material

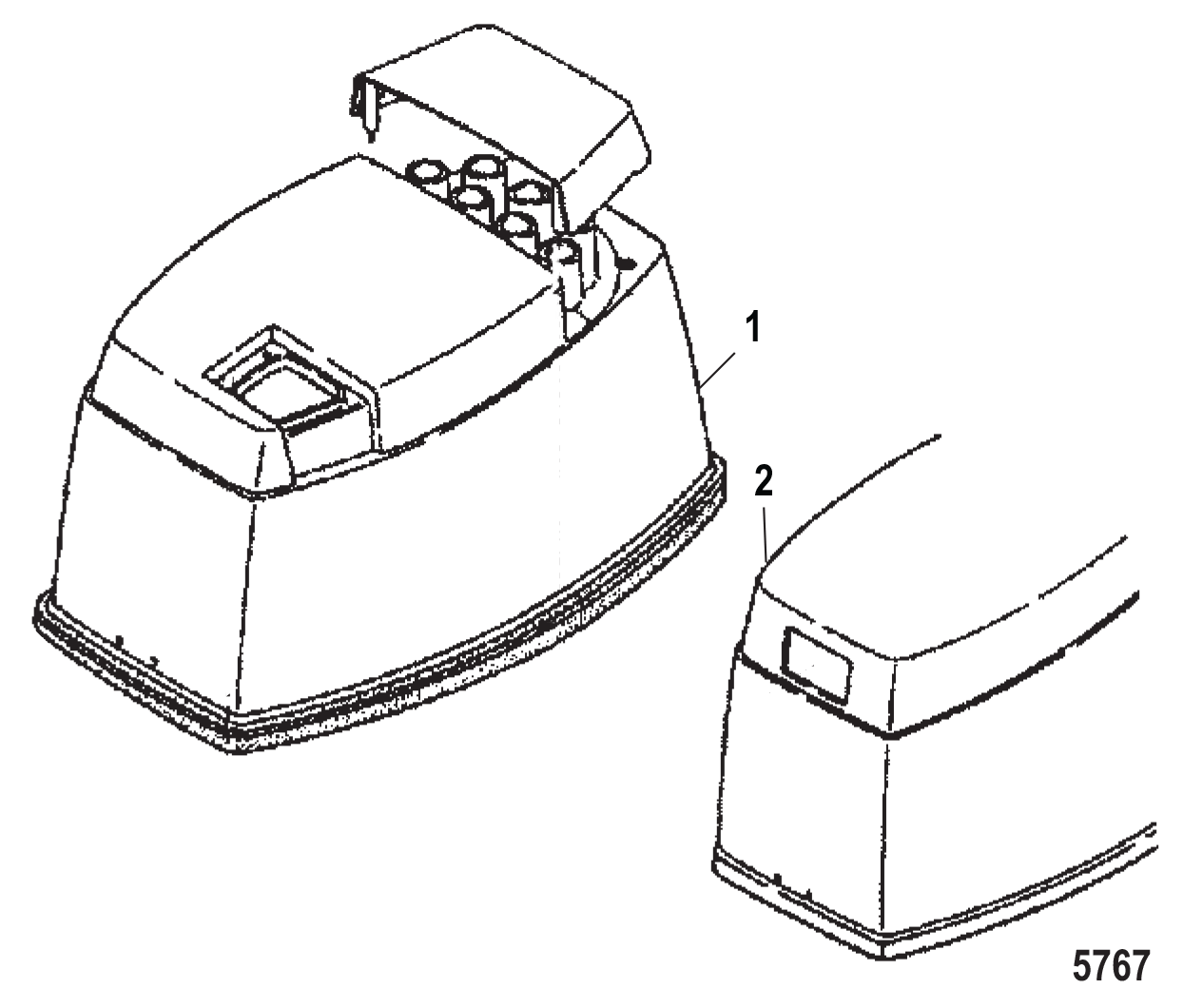

Top Cowl Diagram 5767

853778A3 TOP COWL ASSEMBLY (Black-Electric 40)
853778A4 TOP COWL ASSEMBLY (Silver-Electric 40)
853778A13 TOP COWL ASSEMBLY (Black-Electric-Un-Decaled)
853778A14 TOP COWL ASSEMBLY (Silver-Electric-Un-Decaled)
853778A7 TOP COWL ASSEMBLY (Black-Manual 40)
853778A8 TOP COWL ASSEMBLY (Silver-Manual 40)
853778A11 TOP COWL ASSEMBLY (Black-Manual-Un-Decaled)
853778A12 TOP COWL ASSEMBLY (Silver-Manual-Un-Decaled)

853778A3, 853778A4, 853778A13, 853778A14, 853778A7, 853778A8, 853778A11, 853778A12.

***Nissan - Tohatsu Top Cowl

Mercury Decals

855973A98 DECAL SET (40 Black Lightning)
856927 DECAL SET (40 Black Lightning XR)(Sheet of 4 Decals)
877864A00 DECAL SET (40 Black Lightning XR)(2000)
892639A04 DECAL SET (SeaPro 40)

Mariner Decals

855975A98 DECAL SET (40 Gray Lightning)(1998-2000)
856926 DECAL SET (40 Gray Lightning XR)(Sheet of 4 Decals)(1998-2000)

855975A01 DECAL SET (All Gray 40)(2001/2002)
855975A03 DECAL SET (Gray 40)(2003 and Above)
888722A03 DECAL SET (Gray 40 Lightning)(2003 and Above)
858842001 DECAL Gang Run (Marathon 40)

Other Decals

(50)(Decals not required-Military Only)

87819110 DECAL Shift (F-N-R) (Gray)
85926610 DECAL Shift (F-N-R) (Black)

> Mercury Marine [Updated: Apr. 29, 2023] > Outboard > 2 Stroke DFI (OptiMax) > 200 HP 6 CYL (3.0L) > [0T801000 THRU 1B417701] - USA - Cat.# 90-803485004
> Mercury Marine [Updated: Feb. 15, 2020] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) 3.0L > [0T801000 THRU 1B417701] - USA - Cat.# 90-803485004
> Mercury Marine [Updated: Feb. 22, 2018] > Outboard > 2 Stroke DFI (OptiMax) > 200 (DFI) 3.0L > [0T801000 THRU 1B417701] - USA - Cat.# 90-803485004

Top Cowl Diagram 1330

881288T1 TOP COWL ASSEMBLY (Black)
+ 8M0059965 COWL-TOP-BLACK
881288T2 TOP COWL ASSEMBLY (Silver)
+ 8M0059966 COWL-TOP-SILVER

OTHER TOP COWLS

881288T62 TOP COWL ASSEMBLY (Black) Includes All Decals Except Horsepower
881288T67 TOP COWL ASSEMBLY (Black) (250 EU) Includes All Decals Except Horsepower
881288T65 TOP COWL ASSEMBLY (Silver) Includes All Decals Except Horsepower
881288T66 TOP COWL ASSEMBLY (Black) (200 PRO XS) Includes All Decals Except Horsepower
8M0075369 TOP COWL ASSEMBLY Mercury, Without decals
8M0075370 TOP COWL ASSEMBLY Mercury, Without decals 250 EU
8M0075371 TOP COWL ASSEMBLY Mariner, Without decals
8M0075372 TOP COWL ASSEMBLY Mercury, Without decals ProXS

881288T1, 8M0059965, 881288T2, 8M0059966, 881288T62, 881288T67, 881288T65, 881288T66, 8M0075369, 8M0075370, 8M0075371, 8M0075372
881288T1 8M0059965 881288T2 8M0059966 881288T62 881288T67 881288T65 881288T66 8M0075369 8M0075370 8M0075371 8M0075372

22 NSS NOT SOLD SEPARATE Decal- Break-In
23 NSS NOT SOLD SEPARATE Decal- Counter Rotation

MERCURY DECALS

855410A04 DECAL SET (200)(Mercury/Tracker)(Red)
+ 8M0065127 DECAL SET
++ 8M0099561 DECAL SET-MERCURY

855412A04 DECAL SET (200)(Mercury Saltwater)(Blue)
+ 8M0065131  DECAL SET
++ 8M0099562 DECAL SET-MERCURY

855405A04 DECAL SET (225)(Mercury/Tracker)(Red)
+ 8M0065127 DECAL SET
++ 8M0099561 DECAL SET-MERCURY

855408A04 DECAL SET (225)(Mercury Saltwater)(Blue)
+ 8M0065131  DECAL SET
++ 8M0099562 DECAL SET-MERCURY

855412A06 DECAL SET-MERCURY - (200)(All 2006 Models)

855408A06 DECAL SET (225)(All 2006 Models)

MARINER DECALS

855413A03 DECAL SET (200)(Mariner)

855409A03 DECAL SET (225)(Mariner)
+ 8M0065129 DECAL SET

Serial Number: 0T931324 - Model: 1225D93CY - Model Version: XXL DIG SW
2004 MERCURY 3.0L DFI OPTI DIGITAL SALT 225DFI XXL DIG SW

Serial Number: 1B372751 - Model: 1200D84FY - Model Version:CXL DIG SW
2006 MERCURY 3.0L DFI OPTIMAX DIGITAL SALT 200DFI CXL DIG SW

2003 MERCURY 225 HP: 1225E73AD, 1225E73AE, 1225E83AC, 1225E83AE, 1225E83AY, 1225E84AC, 1225E84AE, 1225E84AY, 1225E93AC, 1225E93AE, 1225E93AY, 1225E94AC, 1225E94AE, 1225E94AY, 7225E73MD, 7225E83MY, 7225E84MY.
2004 MERCURY 200 HP: 1200D73CD, 1200D73CE, 1200D73CT, 1200D83CC, 1200D83CD, 1200D83CE, 1200D83CY, 1200D84CC, 1200D84CE, 1200D84CY, 1200D93CY, 1200D94CY, 7200D73RD, 7200D83RY.
2004 MERCURY 225 HP: 1225D73CD, 1225D73CE, 1225D73CT, 1225D83CC, 1225D83CD, 1225D83CE, 1225D83CY, 1225D84CC, 1225D84CE, 1225D84CY, 1225D93CC, 1225D93CY, 1225D94CC, 1225D94CY, 1225E73CD, 1225E73CE, 1225E84CC, 1225E84CE, 1225E84CY, 1225E94CC, 1225E94CY, 7225D83RY, 7225E73RD, 7225E84RY.
2005 MERCURY 200 HP: 1200D73DD, 1200D73DT, 1200D83DC, 1200D83DD, 1200D83DY, 1200D84DC, 1200D84DY, 1200E73DD, 1200E83DC, 1200E83DY, 1200E84DC, 1200E84DY, 7200D73TD, 7200D83TY.
2005 MERCURY 225 HP: 1225D73DD, 1225D73DT, 1225D83DC, 1225D83DD, 1225D83DY, 1225D84DC, 1225D84DY, 1225D93DC, 1225D93DY, 1225D94DC, 1225D94DY, 1225E73DD, 1225E83DC, 1225E83DD, 1225E83DY, 1225E84DC, 1225E84DY, 1225E93DC, 1225E93DY, 1225E94DC, 1225E94DY, 7225D73TD, 7225D83TY.
2006 MERCURY 200 HP: 1200D73FT, 1200D73FY, 1200D83FC, 1200D83FY, 1200D84FC, 1200D84FY, 1200E73FY, 1200E83FC, 1200E83FY, 1200E84FC, 1200E84FY, 7200D73UY, 7200D83UY.
2006 MERCURY 225 HP: 1225D73FT, 1225D73FY, 1225D83FC, 1225D83FY, 1225D84FC, 1225D84FY, 1225D93FC, 1225D93FY, 1225D94FC, 1225D94FY, 1225E73FY, 1225E83FC, 1225E83FY, 1225E84FC, 1225E84FY, 1225E93FC, 1225E93FY, 1225E94FC, 1225E94FY, 7225D73UY, 7225D83UY.

Serial Number: 1B386276 - Model: 1200D84FY - Model Version: CXL DIG SW
2006 MERCURY 3.0L DFI OPTIMAX DIGITAL SALT 200DFI CXL DIG SW

Serial Number: 1B388587 - Model: 1200D83FY - Model Version: XL SW
MERCURY 3.0L DFI OPTIMAX SALTWATER 200DFI XL SW

> Mercury Marine [Updated: Feb. 17, 2018] > Outboard > 2 Stroke DFI (OptiMax) > 225 (DFI) 3.0L > [1B504989 & Up] - USA - Cat.# 90-803485008

TOP COWL DIAGRAM 1330

881288T62 TOP COWL ASSEMBLY (Black) Includes All Decals Except Horsepower
881288T67 TOP COWL ASSEMBLY (Black) (250 EU) Includes All Decals Except Horsepower
881288T65 TOP COWL ASSEMBLY (Silver) Includes All Decals Except Horsepower
881288T66 TOP COWL ASSEMBLY (Black) (200 PRO XS) Includes All Decals Except Horsepower
8M0075369 TOP COWL ASSEMBLY Mercury, Without decals
8M0075370 TOP COWL ASSEMBLY Mercury, Without decals 250 EU
8M0075371 TOP COWL ASSEMBLY Mariner, Without decals
8M0075372 TOP COWL ASSEMBLY Mercury, Without decals ProXS

881288T62, 881288T67, 881288T65, 881288T66, 8M0075369, 8M0075370, 8M0075371, 8M0075372
881288T62 881288T67 881288T65 881288T66 8M0075369 8M0075370 8M0075371 8M0075372

MERCURY DECALS

897136A07 DECAL SET ProXS, HP decal not included 200 PRO XS

855412A07 DECAL SET Mercury 200
892564005 DECAL Horsepower 200
8M0061185 DECAL, 200

855408A07 DECAL SET Mercury 225
892564006 DECAL Horsepower 225
8M0061186 DECAL, 225

895252A08 DECAL SET Mercury 250
892564007 DECAL Horsepower 250
8M0061187  DECAL, 250

MARINER DECALS

855413A03 DECAL SET 200 - Mariner
855409A03 DECAL SET 225 - Mariner

OTHER DECALS

22 NSS NOT SOLD SEPARATE Decal - Break-In
23 NSS NOT SOLD SEPARATE Decal - Counter Rotation

Read more: 200/225/250/200 PRO XS (3.0L)(MECHANICAL) - Cat.# 90-803485008

> Mercury Marine [Updated: May. 24, 2021] > Outboard > 2 Stroke Carb > 45 JET > [0G760300 THRU 0T129554] - USA - Cat.# 90-803022
> Mercury Marine [Updated: Feb. 6, 2018] > Outboard > 2 Stroke Carb > 60 (3 CYL.) > [0G760300 THRU 0T979999] - USA - Cat.# 90-803022

Cat.# 90-803022 55/60 JET 40/45 (3 CYLINDER)

TOP COWL DIAGRAM 4837

813010T8 TOP COWL ASSEMBLY Black- Electric
8M0107016 COWL-TOP, BLACK

813010T14 TOP COWL ASSEMBLY Silver- Electric

816534T8 TOP COWL ASSEMBLY Black- Manual
8M0107142 COWL-TOP, BLACK

816534T14 TOP COWL ASSEMBLY Silver-Manual

813010T8, 8M0107016, 813010T14, 816534T8, 8M0107142, 816534T14,

813010T8 8M0107016 813010T14 816534T8 8M0107142 816534T14

MERCURY DECALS

821573A95 DECAL SET (Black 55 SeaPro)(1995-2000)

821573A01 DECAL SET (Black 55 SeaPro) (Black 55 SeaPro)(2001 and up)
826313A01 DECAL SET (Black 60 SeaPro) (Black 60 SeaPro)

811212A00 DECAL SET (Black 60 Electric) (Black 60 Electric)

804704A00 DECAL SET (Black 60 Bigfoot) (Black 60 Bigfoot)
826325A01 DECAL SET (Black Jet 40) (Black Jet 40)(2001-2004)

826325A00 DECAL SET (Black Jet 45)(2000)

826325A96 DECAL SET (Black - Jet 45)(1996-1999)

MARINER DECALS

811211A01 DECAL SET (Gray 60 Electric)(2001/2002)
811211A03 DECAL SET (Gray 60 Electric) (Gray 60 Electric)

852081A01 DECAL SET (Gray 60 Electric Bigfoot)(2001/2002)
852081A03 DECAL SET (Gray 60 Electric Bigfoot) (Gray 60 Electric Bigfoot)(2003/2004)

8M0098295 DECAL SET MA 60HP 3CYL 2S [1C262470] & Up

826326A01 DECAL SET (Gray Jet 40) (Gray-Jet 40)(2001-2004)
826326A97 DECAL SET (Gray -Jet 45)(1997-2000)

879697A01 DECAL SET (Gray 55 Bigfoot Marathon/Magnum)(2001)
8588372 DECAL SET (Gray Marathon 60) (Gray Marathon 60)
8588371 DECAL SET (Gray Marathon 55) (Gray Marathon 55)(2000-2004)

821424A95 DECAL SET (Gray 55)(1995-1999)

TRACKER DECALS

824733A96 DECAL SET (Tracker 60) (Tracker 60)

831846A97 DECAL SET (Tracker Bigfoot 60) (Tracker Bigfoot 60)

OTHER DECALS

856985A7 DECAL EPA Label Information (1999)
804665A00 DECAL EPA Label Information (2000)
804665A01 DECAL EPA Label Information (2001)
804665A02 DECAL EPA Label Information (2002)
804665A03 DECAL EPA Label Information (2003)
804665A04 DECAL EPA Label Information (2004)

Read more: 55/60 JET 40/45 (3 CYLINDER) - Cat.# 90-803022
