Evinrude/Johnson 1992 EVINRUDE 85 HP E85TTLEND

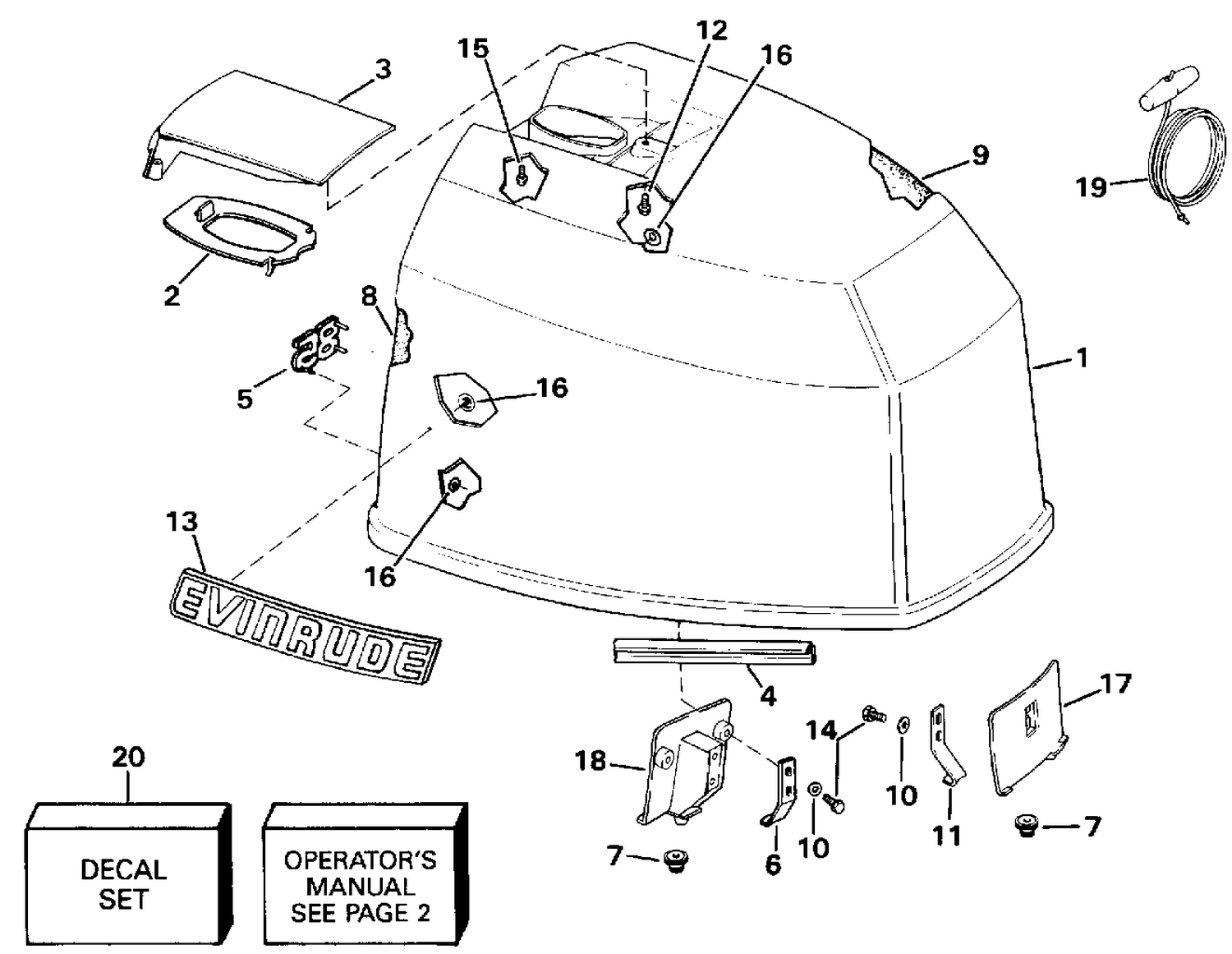

ENGINE COVER - EVINRUDE
1. 0284106 - ENGINE COVER ASSY. (Evinrude)
2. 0211688 - APPLIQUE, Evinrude (Replaces 0211749)
3. 0284344 - DECAL SET (Evinrude)

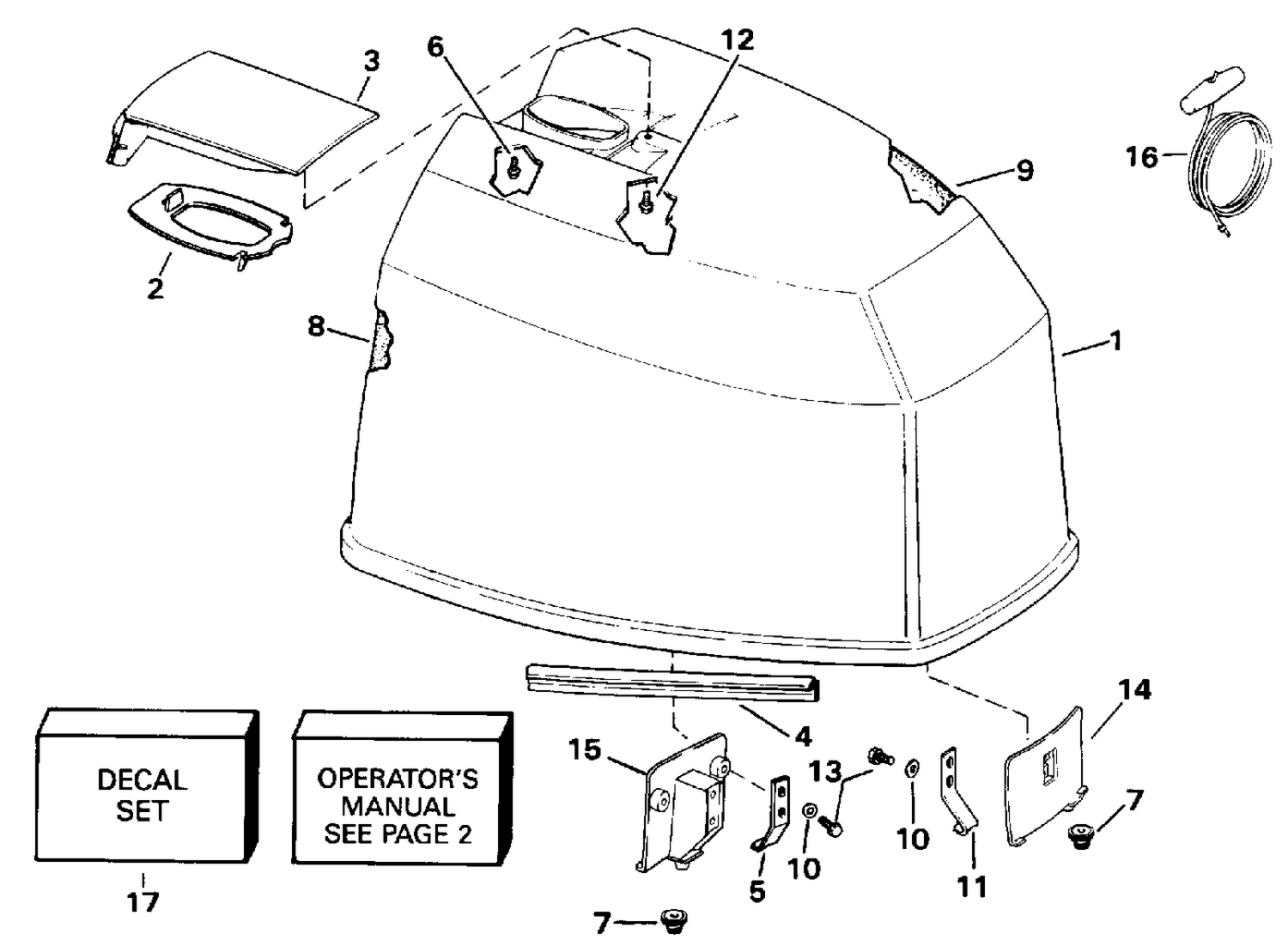

ENGINE COVER - JOHNSON
4. 0434917 - ENGINE COVER ASSY. (Johnson)
5. 0435633 - DECAL SET (Johnson)
ENGINE COVER
1. 5005152 - ENGINE COVER ASSY. | Includes all decals, except "HP" decal

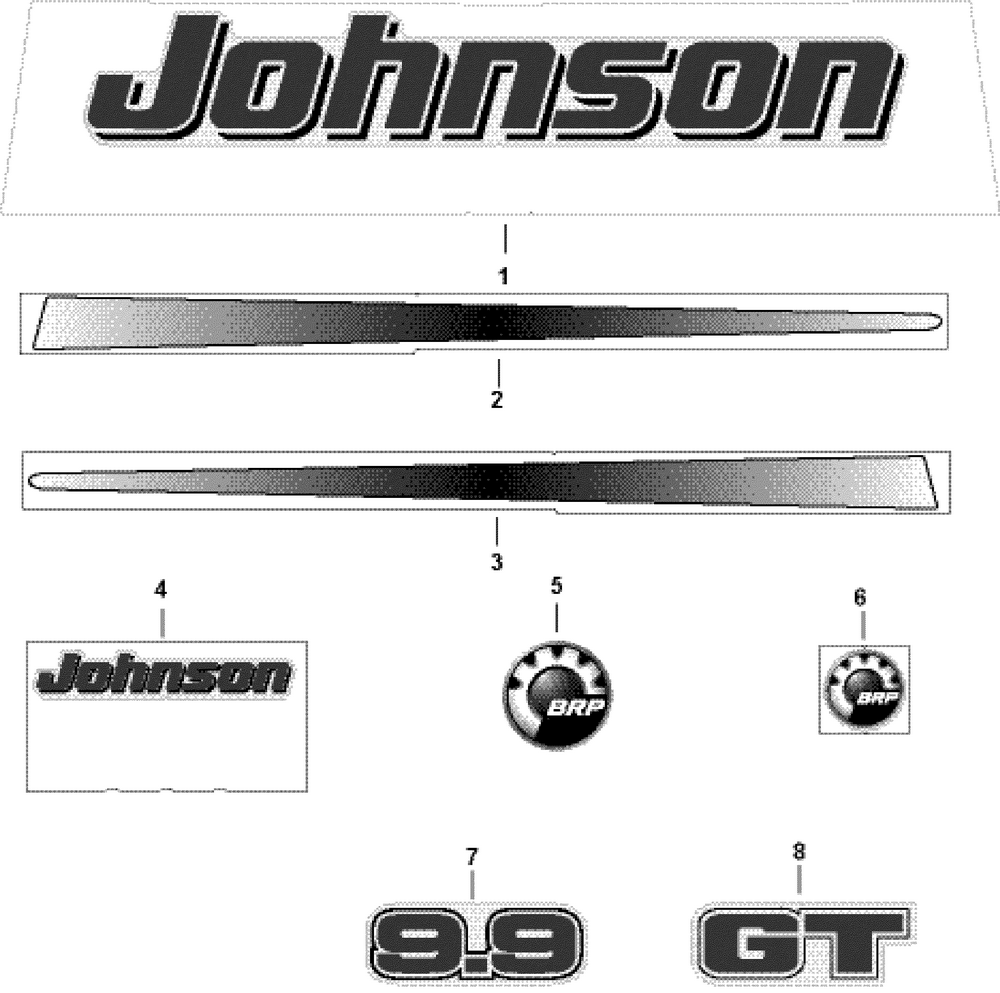

DECALS
2. 0350293 - "Johnson" - Port, Stbd | Included with "ENGINE COVER Assy".
3. 0350295 - *DECAL, Stripe - Port | Included with "ENGINE COVER Assy".
4. 0350294 - *DECAL, Stripe - Stbd | Included with "ENGINE COVER Assy".
5. 0350298 - Johnson - Rear | Included with "ENGINE COVER Assy".
6. 0352506 - *BRP LOGO | Included with "ENGINE COVER Assy".
7. 0352517 - BRP Logo - Front | Included with "ENGINE COVER Assy".
8. 0350221 - 9.9 - Rear
9. 0350383 - GT - Rear | 10RH Models Only
10. 0334435 - **DECAL | Not Shown
11. 0339216 - DECAL, Emergency restart clip | Not Shown
12. 0350382 - HP, RH Models | Not Shown
Evinrude/Johnson JOHNSON 2006 15 HP J15RSDR

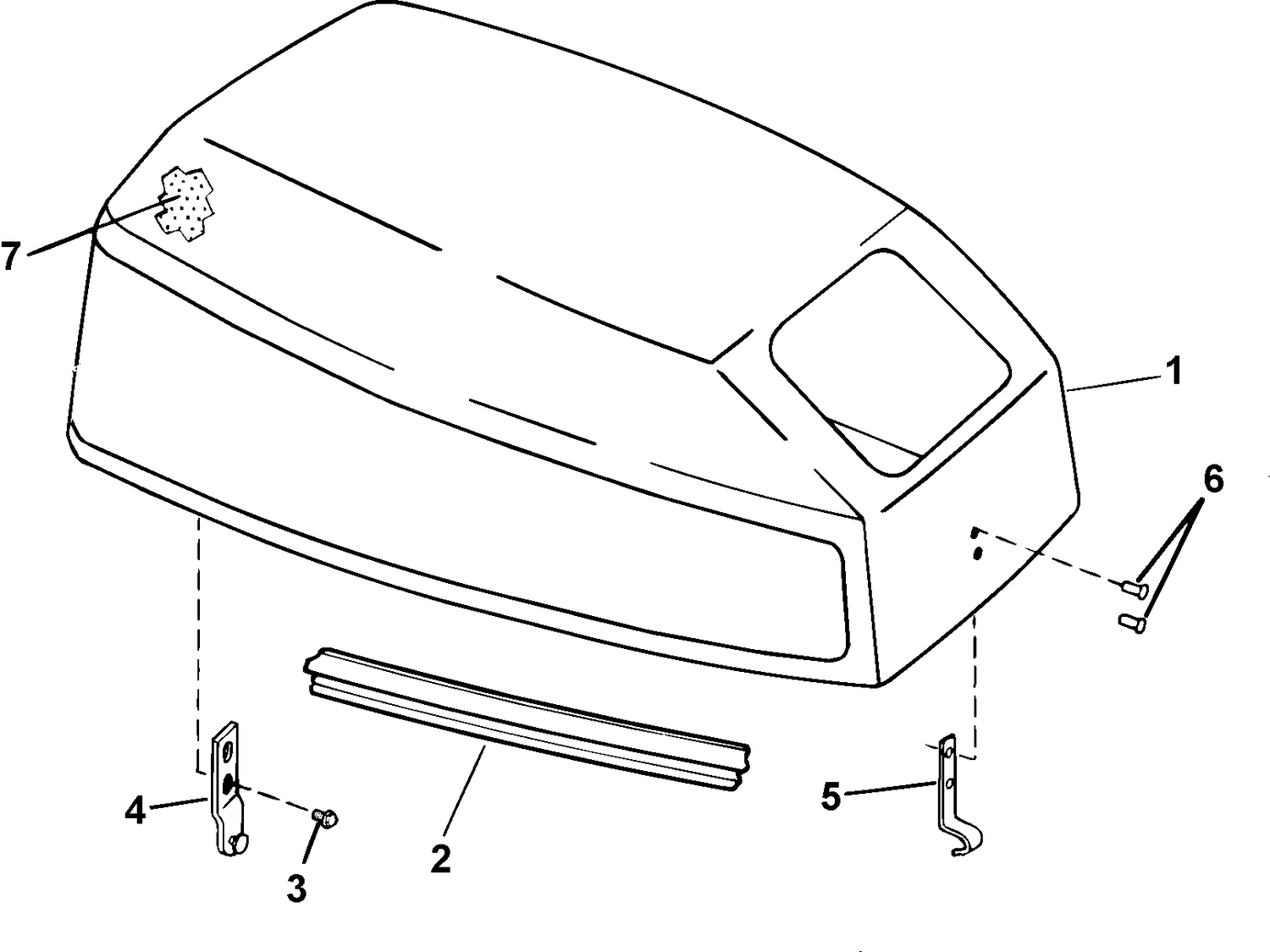

ENGINE COVER
1. 5005152 - ENGINE COVER ASSY. | Includes all decals, except "HP" decal

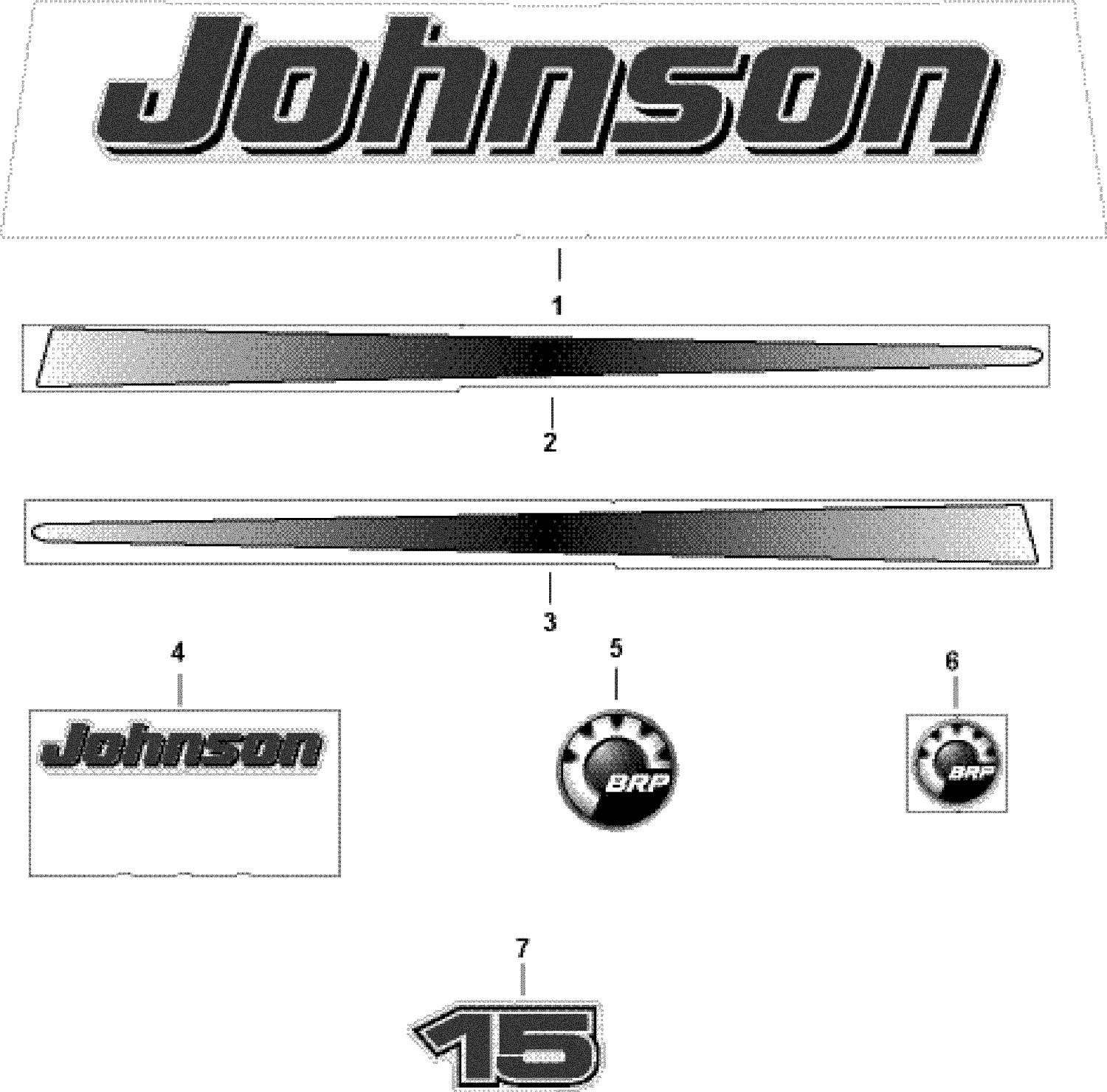

JOHNSON DECALS
2. 0350293 - "Johnson" - Port, Stbd | Included with "ENGINE COVER Assy".
3. 0350295 - *DECAL, Stripe - Port | Included with "ENGINE COVER Assy".
4. 0350294 - *DECAL, Stripe - Stbd | Included with "ENGINE COVER Assy".
5. 0350298 - Johnson - Rear | Included with "ENGINE COVER Assy".
6. 0352506 - *BRP LOGO | Included with "ENGINE COVER Assy".
7. 0352517 - BRP Logo - Front | Included with "ENGINE COVER Assy".
8. 0350222 - 15 - Rear
9. 0334435 - **DECAL | Not Shown
10. 0339216 - DECAL, Emergency restart clip | Not Shown
Evinrude/Johnson 1984 JOHNSON 40 HP J40ELCRM
1984 Johnson 40 HP J40ELCRM - Electric Start
1) 0395308 ENGINE COVER ASSY., Johnson
25) 0329123 PLATE, Front latch handle
26) 0329122 PLATE, Applique
23) 0330957 PLATE, Rear applique
27) 0329132 APPLIQUE
1984 Johnson 40 HP - Rope Start Only
1) 0395309 ENGINE COVER ASSY., Johnson
14) 0329121 APPLIQUE, Front handle
15) 0325675 APPLIQUE, Front
22) 0329122 PLATE, Applique
23) 0329123 PLATE, Front latch handle
24) 0328937 APPLIQUE
25) 0330958 PLATE, Rear
28) 0393971 DECAL SET, Johnson
Evinrude Engine Cover – Electric Start Models
1) 0281676 ENGINE COVER ASSY., Evinrude
11) 0210241 PLATE, Applique, front
12) 0209542 APPLIQUE, Front
14) 0210242 PLATE, Applique, rear
19) 0209543 APPLIQUE, Rear
31) 0282244 DECAL SET
Evinrude Engine Cover – Rope Start Only
1) 0281677 ENGINE COVER ASSY., Evinrude
12) 0209736 APPLIQUE, Front
19) 0209737 APPLIQUE, Rear
24) 0282245 DECAL SET, Evinrude
