TOP COWL DIAGRAM 1122

885355T03 TOP COWL ASSEMBLY (Mercury)

+ 8M004999 ORD 100-8M0063711

885355T02 TOP COWL ASSEMBLY (Mariner)

+ 8M0050000 COWL-TOP MARINER

MERCURY DECALS

892564A05 DECAL SET (Mercury 200)

859271A05 DECAL SET (Mercury 225)

895252A05 DECAL SET (Mercury 250)

895253A05 DECAL SET (Mercury 275)

MARINER DECALS

892571A05 DECAL SET (Mariner 200)
+ 892571A07 DECAL SET (Mariner 200)

892871A05 DECAL SET (Mariner 225)
+ 892871A05 DECAL SET (Mariner 225)

895254A05 DECAL SET (Mariner 250)
+ 895254A07 DECAL SET (Mariner 250)

895255A05 DECAL SET (Mariner 275)
+ 895255A07 DECAL SET (Mariner 275)

Serial Number:

1B230501 MERCURY 2006 275 1275V23FD  200/225/250/275 4-STROKE VERADO XL 4   - MERCURY 06MY 4 STROKE VERADO L6SC 275 XL 4
1B231860 MERCURY 2006 275 1275V33FD  200/225/250/275 4-STROKE VERADO XXL 4 - MERCURY 06MY 4 STROKE VERADO L6SC 275 XXL 4
1B232339 MERCURY 2006 275 1275V24FD  200/225/250/275 4-STROKE VERADO CXL 4 - MERCURY 06MY 4 STROKE VERADO L6SC 275 CXL 4

Cat.# 90-896280006 200/225/250/275 4-STROKE VERADO

> Mercury Marine [Updated: Jan. 30, 2024] > Outboard > 4 Stroke > 200 HP Verado 4 CYL > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008
> Mercury Marine [Updated: Jan. 13, 2022] > Outboard > 4 Stroke > 200 HP Verado 4 CYL > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008
> Mercury Marine [Updated: Jun. 4, 2021]  > Outboard > 4 Stroke > 135 HP EFI Verado 4 CYL > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008
> Mercury Marine [Updated: Sep. 21, 2020] > Outboard > 4 Stroke > 135 VERADO (4-STROKE)(4 CYL.) > [1B517159 THRU 2B576734] - USA - Cat.# 90-898164008

TOP COWL DIAGRAM 29429

895844T09 TOP COWL ASSEMBLY Mercury
+ 8M0050003 ORD 100-8M0063714
++ 8M0063714 TOP COWL, MERCURY
+++ 8M0113898 TOP COWL, MERCURY

895844T10 TOP COWL ASSEMBLY Mariner
8M0113901 COWL ASSY - TOP

8M0075362 TOP COWL ASSEMBLY Mercury
8M0113899 TOP COWL,NON DECAL

8M0075363 TOP COWL ASSEMBLY Mariner
8M0113900 TOP COWL,NON DECAL

895844T09, 8M0050003, 8M0063714, 8M0113898, 895844T10, 8M0113901, 8M0075362, 8M0113899, 8M0075363, 8M0113900,
895844T09 8M0050003 8M0063714 8M0113898 895844T10 8M0113901 8M0075362 8M0113899 8M0075363 8M0113900

MERCURY DECALS

892565A08 DECAL SET (Generic) Mercury
+8M0063728 DECAL SET, MERCURY
++ 8M0102449 DECAL SET-SERVICE

8M0024865 DECAL Rear Mercury 135
+ 8M0034095 DECAL- REAR 135
++ 8M0110604 DECAL REAR

8M0024865, 8M0034095, 8M0110604 DECAL Rear Mercury 135

8M0024866 DECAL Rear Mercury 150 [1B699945] & Below
+ 8M0034096 DECAL REAR
++ 8M0110605 DECAL -150 REAR

8M0034096 DECAL Rear Mercury 150 [1B699946] & Up
+ 8M0110605 DECAL - 150 REAR

8M0024867 DECAL Rear Mercury 175 [1B700324] & Below
+ 8M0034097 DECAL REAR
++ 8M0110606 DECAL - 175 REAR

8M0034097 DECAL Rear Mercury 175 [1B700325] & Up
+ 8M0110606 DECAL - 175 REAR

8M0024868 DECAL Rear Mercury 200 [1B689452] & Below
+ 8M0034098 DECAL REAR
++ 8M0110607 DECAL - 200 REAR

8M0034098 DECAL Rear Mercury 200 [1B689453] & Up
+ 8M0110607 DECAL -200 REAR

MARINER DECALS

892870A08 DECAL SET (Generic) Mariner

892870A01 DECAL SET Port And Starboard Mariner

892870003 DECAL Rear Mariner 135
892870004 DECAL Rear Mariner 150
892870005 DECAL Rear Mariner 175
8M0024880 DECAL Rear Mariner 200

OTHER DECALS

2
8M0024861 DECAL Vinyl Lenz Air Dam Cap Decal - Mercury

Read more: MERCURY GEN 2 135/150/175/200 4-STROKE VERADO - Cat.# 90-898164008

> Mercury Marine [Updated: Feb. 23, 2023] > Outboard > Force > 40 H.P. (1999) > [0E345000 THRU 0E369299] - USA - Cat.# 90-855373R2
> Mercury Marine [Updated: Aug. 10, 2018] > Outboard > Force > 40 H.P. (1999) > [0E345000 THRU 0E369299] - USA - Cat.# 90-855373R2

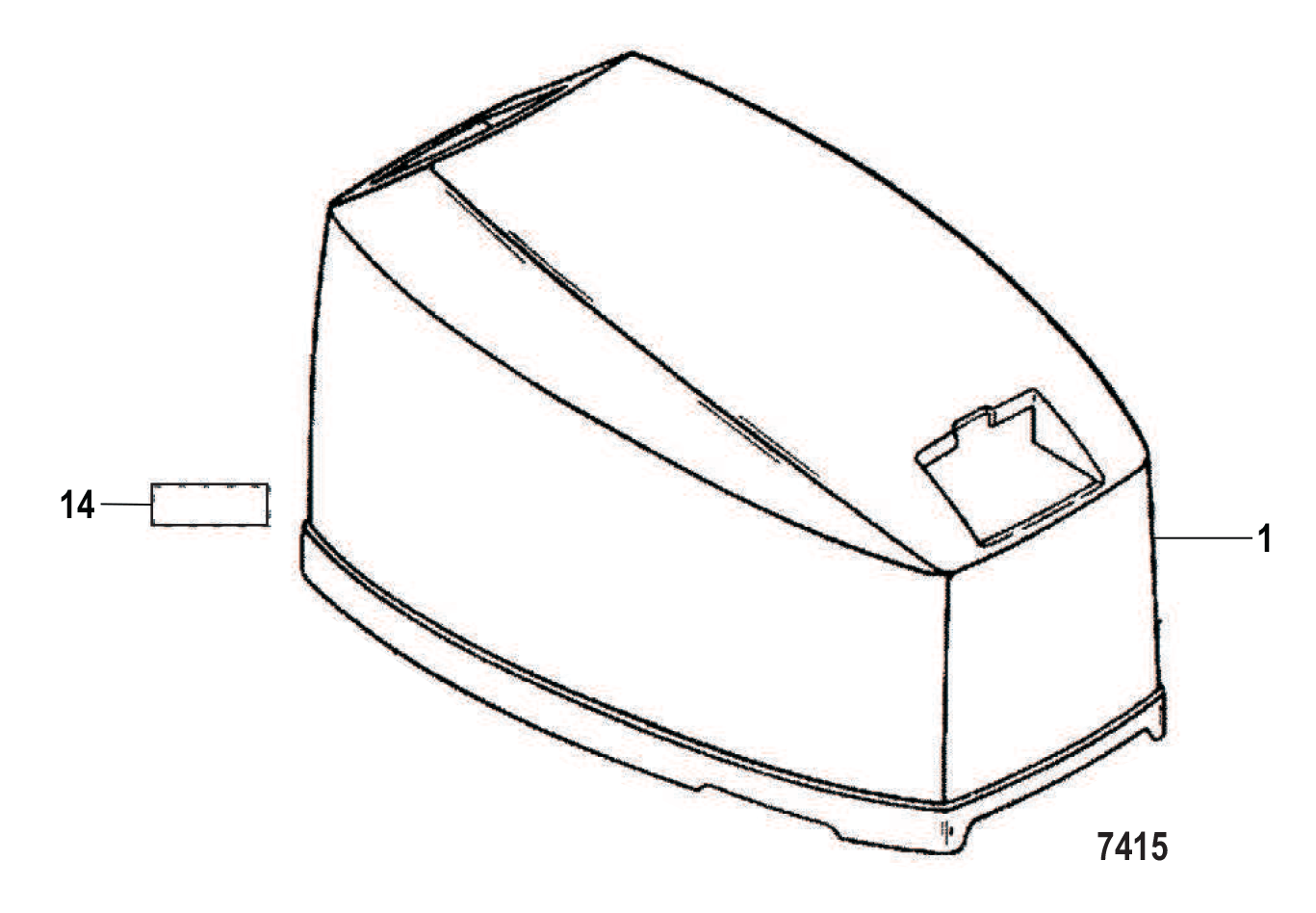

TOP COWL DIAGRAM 35758

819748A6 TOP COWL ASSEMBLY
819748T6 COWL ASSY-BASIC

819748A6, 819748T6
819748A6 819748T6

FORCE DECALS

13
855393A98 DECAL SET (FORCE-40 HP) (FRONT REAR-PORT STARBOARD)
855394A98 DECAL SET (FORCE-50 HP) (FRONT REAR-PORT STARBOARD)
835012A96 DECAL SET (NORTHWOOD-40 HP)(FRONT-REAR-PORTSTARBOARD)

TRACKER DECALS

852950A97 DECAL SET (TRACKER-40 HP)(FRONT AND WRAP AROUND SYTLE)[0E288000] THRU[0E357204]
+ 809858A96 DECAL SET TRACKER 40

803908A99 DECAL SET (TRACKER-40 HP)(FRONT AND WRAP AROUND SYTLE)[0E357205] THRU[0E369299]

852951A97 DECAL SET (TRACKER-50 HP)(FRONT AND WRAP AROUND SYTLE)[0E288000] THRU[0E344999]
+ 809859A96 DECAL SET TRACKER 50

OTHER DECALS

14
85557718 DECAL EPA Label Information (Applied To The Top Inside Of The Top Cowl)

Serial Number: 0E359213 - Model: H040412VT - Model Version: ELPT
FORCE TRACKER 40 ELPT - FORCE 1999 40

Serial Number: 0E362978 - Model: H040412VT - Model Version: ELPT
1999 FORCE TRACKER 40 ELPT Outboard 40

> Mercury Marine [Updated: Feb. 13, 2023] > Outboard > 4 Stroke > 75 HP EFI > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362> Mercury Marine [Updated: Jan. 13, 2022] > Outboard > 4 Stroke > 75 HP EFI > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Apr. 26, 2021] > Outboard > 4 Stroke > 115 HP EFI > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Mar. 23, 2021] > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Aug. 24, 2019] > Outboard > 4 Stroke > 90 EFI  (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Apr. 1, 2019]  > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: May. 15, 2018] > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362
> Mercury Marine [Updated: Feb. 6, 2018]  > Outboard > 4 Stroke > 115 EFI (4-STROKE) > [1B366823 THRU 2B094995] - USA - Cat.# 90-898101362

Top Cowl 1B943218 and below DIAGRAM 17160
Top Cowl 1B943219 and above DIAGRAM 17160

899341T01 TOP COWL ASSEMBLY Mercury
8M0050004 TOP COWL

8M0074089 TOP COWL ASSEMBLY Mercury
+ 8M0075360 TOP COWL ASSEMBLY Mercury

899341T02 TOP COWL ASSEMBLY Mariner
+ 8M0050005 COWL-TOP

8M0075361 TOP COWL ASSEMBLY Mariner

899341T01, 8M0050004, 8M0074089, 8M0075360, 899341T02, 8M0075361
899341T01 8M0050004 8M0074089 8M0075360 899341T02 8M0075361

MERCURY DECALS - 1B943218 and below

889246A01 DECAL SET Mercury 75
+ 8M0063408 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061175 DECAL Horsepower (75)
+ 8M0115000 DECAL-SERVICE KIT

889246A01, 8M0063408, 8M0114993, 8M0061175, 8M0115000
889246A01 8M0063408 8M0114993 8M0061175 8M0115000

889246A02 DECAL SET Mercury 80
+ 8M0114993 DECAL-SERVICE KIT
8M0061176 DECAL Horsepower (80)

889246A02, 8M0114993, 8M0061176
889246A02 8M0114993 8M0061176

889246A03 DECAL SET Mercury 90
+ 8M0063408 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061177 DECAL Horsepower (90)
+ 8M0115000 DECAL-SERVICE KIT
+ 8M0114993 DECAL-SERVICE KIT

889246A03, 8M0063408, 8M0114993, 8M0061177, 8M0115000, 8M0114993
889246A03 8M0063408 8M0114993 8M0061177 8M0115000 8M0114993

889246A04 DECAL SET Mercury 100
+ 8M0063419 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061178 DECAL Horsepower (100)

889246A04, 8M0063419, 8M0114993, 8M0061178
889246A04 8M0063419 8M0114993 8M0061178

889246A05 DECAL SET Mercury 115
+ 8M0063408 DECAL SET
++ 8M0114993 DECAL-SERVICE KIT

8M0061180 DECAL Horsepower 115
+ 8M0115000 DECAL-SERVICE KIT

889246A05, 8M0063408, 8M0114993, 8M0061180, 8M0115000
889246A05 8M0063408 8M0114993 8M0061180 8M0115000

8592712 DECAL M Icon

897529T CAP Air Dam - Mercury

21) 897924A01 DECAL Back Lenz and Graphic Assembly
+ 8M0022127 DECAL
++ 8M0114993 DECAL-SERVICE KIT

MERCURY DECALS -  1B943219 and above

8M0074090 DECAL SET 80/100
8M0063366 DECAL Horsepower (80)
8M0063368 DECAL Horsepower (100)

8M0074092 DECAL SET 75/90/115
8M0063365 DECAL Horsepower (75)
8M0063367 DECAL Horsepower (90)
8M0063369 DECAL Horsepower (115)

8M0043706 DECAL M Icon, 60mm-Black

(21) 897924A01 DECAL Back Lenz and Graphic Assembly
   + 8M0022127 DECAL
 ++ 8M0114993 DECAL-SERVICE KIT

MARINER DECALS

898822001 DECAL Wrap Mariner 75

898822002 DECAL Wrap Mariner 80

898822003 DECAL Wrap Mariner 90

898822004 DECAL Wrap Mariner 100

898822005 DECAL Wrap Mariner 115

Serial Number: 1B508973 - Model: 7F80413ZF  - Model Version: ELPT 4
MARINER 2006 80EFI  - MARINER 4 STROKE L4NA 80EFI ELPT 4

Serial Number:
1B508973
AUG 2007
80ELPT 4S
Max RPM 6000
HP 80 KW 55.9
LB 401 KG 182
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE 0575 [07]

Serial Number: 1B706990- Model: 1115F13HF - Model Version:  ELPT 4
2006 MERCURY 4 STROKE L4NA EUROPE 115EFI ELPT 4 -75/80/90/100/115 EFI 4-STROKE

Serial Number: 1B817794 - Model: 1F90413HD - Model Version: ELPT 4
2006  MERCURY 90EFI 4 STROKE L4NA 90EFI ELPT 4

Serial Number: 1B493766 - Model: 1115F13HD - Model Version: ELPT 4
2006 MERCURY 4 STROKE L4NA 90EFI ELPT 4

Serial Number:
1B493766
JUN 2007
90ELPT 4S
Max RPM 6000
HP 90 KW 67.1
LB 401 KG 182
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
CE [07]

Serial Number: 1B707856 - Model: 1115F13HD - Model Version: ELPT 4
2006 MERCURY 4 STROKE L4NA 115EFI ELPT 4

Serial Number: 1B983004 - Model: 1F90413ED - Model Version: ELPT 4
2006 MERCURY 90 ELPT 4S L4NA 90EFI ELPT 4

Serial Number: 1B586647 - Model: 1115F23HD - Model Version: EXLPT 4
2006 MERCURY 4 STROKE L4NA 115EFI EXLPT 4

Serial Number:
1B586647
FEB 2008
115 XL 4S
Max RPM 6400
HP 115 KW 85.7
LB 410 KG 186
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA
from US and foreign
components
             [08]

Serial Number: 1B782116 - Model: 1115F13ED - Model Version: ELPT 4
2006 MERCURY 4 STROKE EFI L4NA 115EFI ELPT 4

Model Number
1115F13ED
Serial Number:
1B782116
115ELPT4S
HP 115 KW 84.6
LB 401 KG 182
Mercury Marine
Brunswick Corp.
Fond du Lac, WI 54935
Assembled in the USA from
US and foreign components
CE [09]

Serial Number: 1B695245 - Model: 1F75413HD - Model Version: ELPT 4
2008 MERCURY 4 STROKE L4NA 75EFI ELPT 4

Serial Number: 1B899002 - Model: 1F75413HD - Model Version: ELPT 4
MERCURY 4 STROKE L4NA 75EFI ELPT 4

75 EFI (4-STROKE)  (1B366823 THRU 2B094995) - USA
80 EFI (4-STROKE)  [0P459572 THRU 2B094995] - Belgium
90 EFI (4-STROKE)  (1B366823 THRU 2B094995) - USA
100 EFI (4-STROKE) (0P459572 THRU 2B094995) - Belgium
115 EFI (4-STROKE) (15500825 THRU 2B094995) - USA
