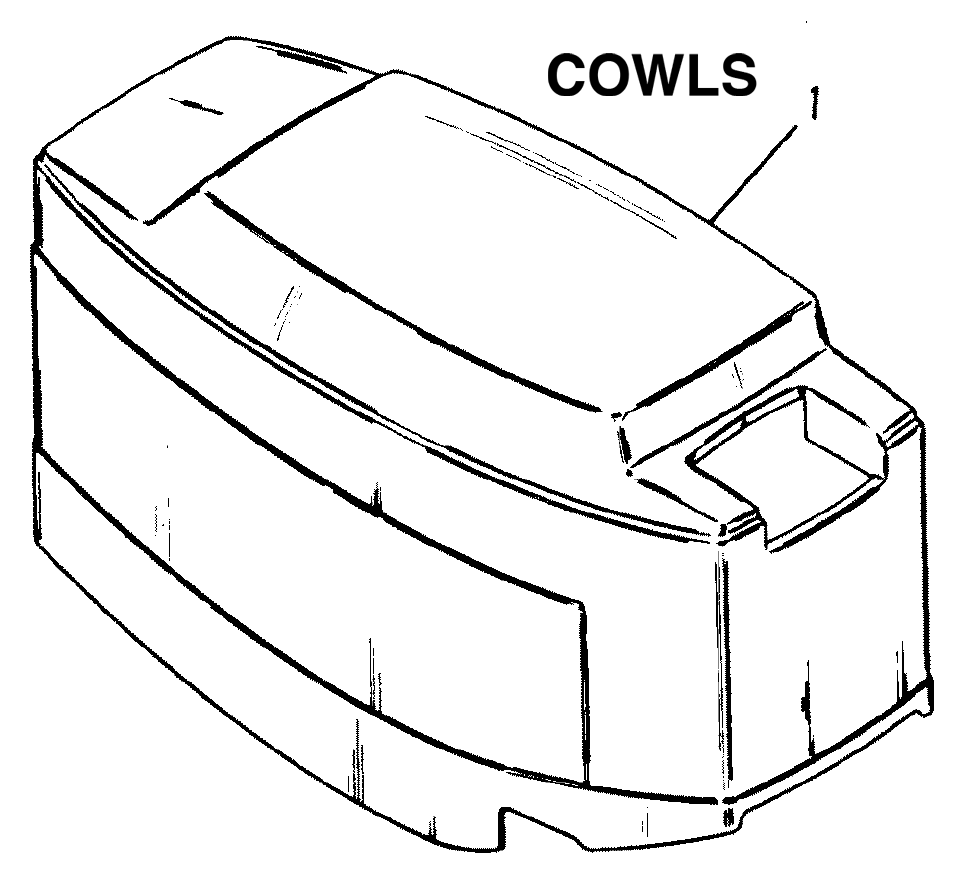

Cat.# 90-13767 MERC 25XS 85A001 AND UP
TOP COWL DIAGRAM 13767

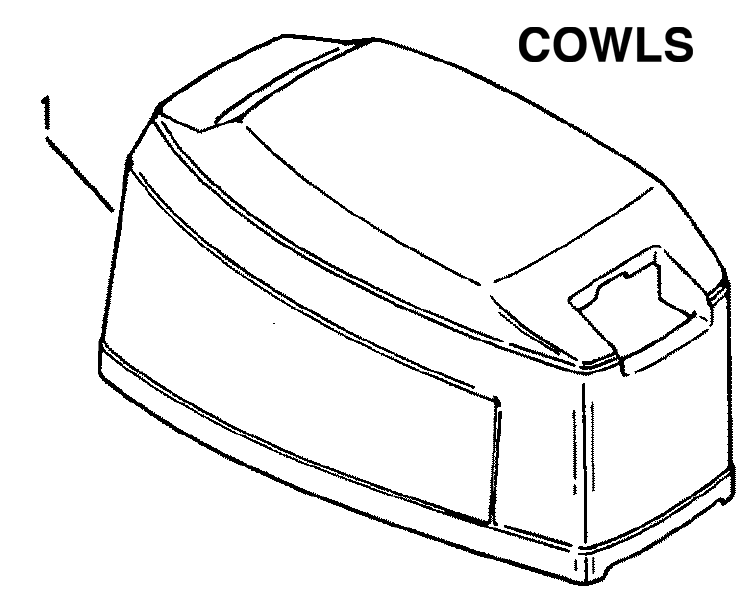

Cat.# 90-813665 MERC 25XS B290347 AND UP
TOP COWL DIAGRAM 813665
9163A22, 8869A8 TOP COWL ASSEMBLY (1984-1987)
8869A26 TOP COWL (1988)
12622A1 DECAL SET (MERCURY 25XS)
Model: 19049058H - 1988 MERCURY 25XS
1
821528T5 TOP COWL ASSEMBLY (Black-Manual)
821528T11 TOP COWL ASSEMBLY (Silver-Manual)
2
821528T7 TOP COWL ASSEMBLY (Black-Electric)
821528T8 TOP COWL ASSEMBLY (Silver-Electric)
824093A00 DECAL SET (Merc 40)(2005)
897510A02 DECAL SET (Mercury 40) (2006 - 2B099571)
8M0094901 DECAL SET 40/60 (2B099572 and up)
804705A00 DECAL SET (El Pescador)
808615A01 DECAL SET (40 Seapro)
8582522 DECAL SET (40 Marathon)
808682A03 DECAL SET (Mariner 30)
824094A03 DECAL SET (Mariner 40)
54321A03 DECAL SET (Mariner 40 Arrluk/Greenland)
27
82409316 DECAL F-N-R Shift
804664A05 DECAL EPA Label Information (2005)
804664A06 DECAL EPA Label Information (2006)
Serial Number: N/A - Model: 1041412FF - Model Version: N/A
Cat.# 90-803194R1 FORCE 75/90
TOP COWL DIAGRAM 35701
1
819364A9 TOP COWL ASSEMBLY (Painted) (WITHOUT DECALS)
803188A9 (FORCE-75 HP) (FRONT REAR-PORT-STARBOARD)
855398A98 (FORCE-90 HP) (FRONT REAR-PORT-STARBOARD)
803189A99 (TRACKER 75)(FRONT AND WRAP AROUND [0E345000] THRU [0E357646]
803909A99 DECAL SET (TRACKER 75)(FRONTREAR-PORTSTARBOARD [0E357647] THRU[0E369299]
852953A97 (TRACKER 90)(FRONT AND WRAP AROUND [0E345000] THRU[0E357646]
803910A99 DECAL SET (TRACKER 90)(FRONT-REAR-PORT-STARBOARD [0E357647] THRU[0E36929]
Serial Number: 0E365177 - Model:H090412VD - Model Version: ELPT - FORCE 1999 90
> Mercury Marine [Updated: Aug. 6, 2020] > Outboard > 2 Stroke Carb > 18XD > [6443973 THRU 0B238463] - USA - Cat.# 90-13286 > COWLS (MERCURY)
> Mercury Marine [Updated: Jan. 30, 2020] > Outboard > 2 Stroke Carb > 25XD > [6443973 THRU 0B238463] - USA - Cat.# 90-13286
DIAGRAM 38466
8869A8 TOP COWL ASSEMBLY COWLS (MERCURY)
+ 9163A22 COWL-TOP-BLACK
9163A8, 8869A8, 9163A22
9163A8 8869A8 9163A22
DIAGRAM 38467
9163A8 TOP COWL ASSEMBLY COWLS (MARINER)
43170A84 DECAL SET (MERC 18) (BROWN)
43477A85 DECAL SET (MERC 20)(BROWN)
+ 13480A86 DECAL SET
43173A84 DECAL SET (MERC 25)(BROWN)
+ 13239A86 DECAL SET
13480A86 DECAL SET (MERC 20)(SILVER)
13239A86 DECAL SET (MERC 25)(SILVER)
11181A85 DECAL SET (MARINER 20)
+ 810461A92 DECAL SET
11627A85 DECAL SET (MARINER 25)
+ 810461A92 DECAL SET
