HIGH PERFORMANCE 450R 4S XL 4 - Cat.# 90-8M0155664

 > Mercury Marine [Updated: Jul. 1, 2020] > Outboard > 4 Stroke > 450 4.6L V8 RACING > [1E083006 & Up] - USA - Cat.# 90-8M0155664



TOP COWL DIAGRAM  68552

8M0159576 TOP COWL ASSEMBLY Black
8M0159577 TOP COWL ASSY COLD FUSION

FIT OTHERS:
8M0142173, 8M0182329, 8M0142172, 8M0142174, 8M0142175, 8M0142176, 8M0142177, 8M0143491, 8M0143492, 8M0159576, 8M0159577
8M0142173 8M0182329 8M0142172 8M0142174 8M0142175 8M0142176 8M0142177 8M0143491 8M0143492 8M0159576 8M0159577

MERCURY DECALS

68556

Decals Diagram 68556

8M0159581 DECAL SET Top Cowl, 450R
8M0143773 DECAL SET Lower Cowl
8M0151525 DECAL MICON 53 MM, Racing
8M0080153 M-ICON 66 MM Racing
8M0146963 DECAL AMS



Accent Panel Diagram 68558

1 8M0147691 ACCENT COWL ASSEMBLY Devil Eye Red
1 8M0147689 ACCENT COWL ASSEMBLY Graphite Grey
1 8M0148622 ACCENT COWL ASSEMBLY Carbon Fiber

8M0147691, 8M0147689, 8M0148622


1 NSS NOT SOLD SEPARATE Accent Cowl Assembly Paint Ready

2 8M0159923 DECAL SET Accent Panel, 450R
3 8M0149565 DECAL Mercury, Black Devil Eye Red or Graphite Grey
3 8M0147920 DECAL Mercury, Silver Carbon Fiber
4 8M0080153 DECAL M-ICON 66 MM Racing
5 8M0159582 DECAL REAR 450R
6 8M0149566 DECAL Red, R Graphite Grey or Carbon Fiber option
7 8M0149568 DECAL Black, R Devil Eye Red

1998 & Newer MERCRUISER ALPHA TRANSOM W/ENGINE ALPHA - Cat.# 90-80975998

> Mercury Marine [Updated: Oct. 5, 2020] > Sterndrive > Drives > ALPHA ONE (GEN.II)    1998 AND UP > [0L100040 & Up] - Cat.# 90-80975998

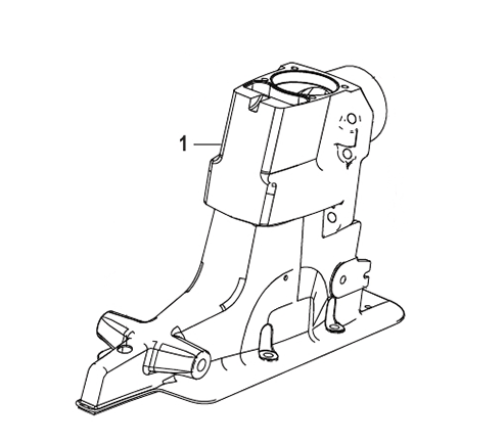

DIAGRAM 2496

861063A4 HOUSING ASSEMBLY Driveshaft

DRIVESHAFT HOUSING AND DRIVESHAFT DECALS

DIAGRAM 5067


861431A98 DECAL SET (STANDARD ROTATION)
 861431A99 DECAL SET (STANDARD ROTATION)
861431A04 DECAL SET (STANDARD ROTATION) [0W535000] & Up 1
+ 861431A05 DECAL SET
861446A98 DECAL SET (COUNTER ROTATION)
861446A99 DECAL SET (COUNTER ROTATION)
898111A04 DECAL SET (COUNTER ROTATION) [0W535000] & Up 1
+ 898111A05 DECAL SET



Serial Number: 0L212113 & Up
Model: 6111001LS
Model Version: TRANSOM

1995 Evinrude 88 HP

ENGINE COVER - EVINRUDE E88TSLEOC XE88TSLEOC Diagram 437488-02A

http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\437488\02A.tif&ilSC=1500&ilIV=0&ilBR=0&ilIF=P&ilRE=8

0284718 ENGINE COVER ASSY., 88. Blue Engine Cover
0284828 ENGINE COVER ASSY., 88. White Engine Cover
0284719 ENGINE COVER ASSY., 112. Blue Engine Cover
0284829 ENGINE COVER ASSY., 112. White Engine Cover



http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\437487\02A.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8

ENGINE COVER - EVINRUDE E88MSLEOS Diagram 437487-02A
0284738 ENGINE COVER ASSY., 90 models
0284725 ENGINE COVER ASSY., 90 Jet, (65)
0284739 ENGINE COVER ASSY., 115
0284726 ENGINE COVER ASSY., 115 Jet, (80)



ENGINE COVER - JOHNSON
0437258 ENGINE COVER ASSY., 88. Smoke Engine Cover
0437742 ENGINE COVER ASSY., 88. White Engine Cover
0437259 ENGINE COVER ASSY., 112. Smoke Engine Cover
0437743 ENGINE COVER ASSY., 112. White Engine Cover

0434916 ENGINE COVER ASSY., 88. White Engine Cover
0436148 ENGINE COVER ASSY., 90. White Engine Cover
0436518 ENGINE COVER ASSY., 90. Smoke Engine Cover
0436580 ENGINE COVER ASSY., 90 Jet, (65)
0436149 ENGINE COVER ASSY., 115. White Engine Cover
0436519 ENGINE COVER ASSY., 115. Smoke Engine Cover
0436581 ENGINE COVER ASSY., 115 Jet, (80)

E: 0284718, 0284828, 0284719, 0284829 - 0284738, 0284725, 0284739, 0284726
J: 0437258, 0437742, 0437259, 0437743 - 0434916, 0436148, 0436518, 0436580, 0436149, 0436519, 0436581



EVINRUDE DECALS

20 0284843 DECAL SET, 88. Blue Engine Cover
20 0284844 DECAL SET, 112. Blue Engine Cover
20 0284845 DECAL SET. White Engine Cover

OTHERS

18 0341774 PLATE, Front & rear, 88. White Engine Cover
18 0341775 PLATE, Front & rear, 112. White Engine Cover


1995 Evinrude 88 hp E88TSLEOC

40/50/60 EFI (4 CYLINDER) 4-STROKE Cat.# 90-883875003

> Mercury Marine [Updated: Jul. 11, 2020] > Outboard > 4 Stroke > 50 EFI (4 CYL.)(4-STROKE) > [1C000001 THRU 1C050251] - USA - Cat.# 90-883875003
> Mercury Marine [Updated: May. 28, 2020] > Outboard > 4 Stroke > 60 EFI (4 CYL.)(4-STROKE) > [1C000001 THRU 1C050251] - USA - Cat.# 90-883875003

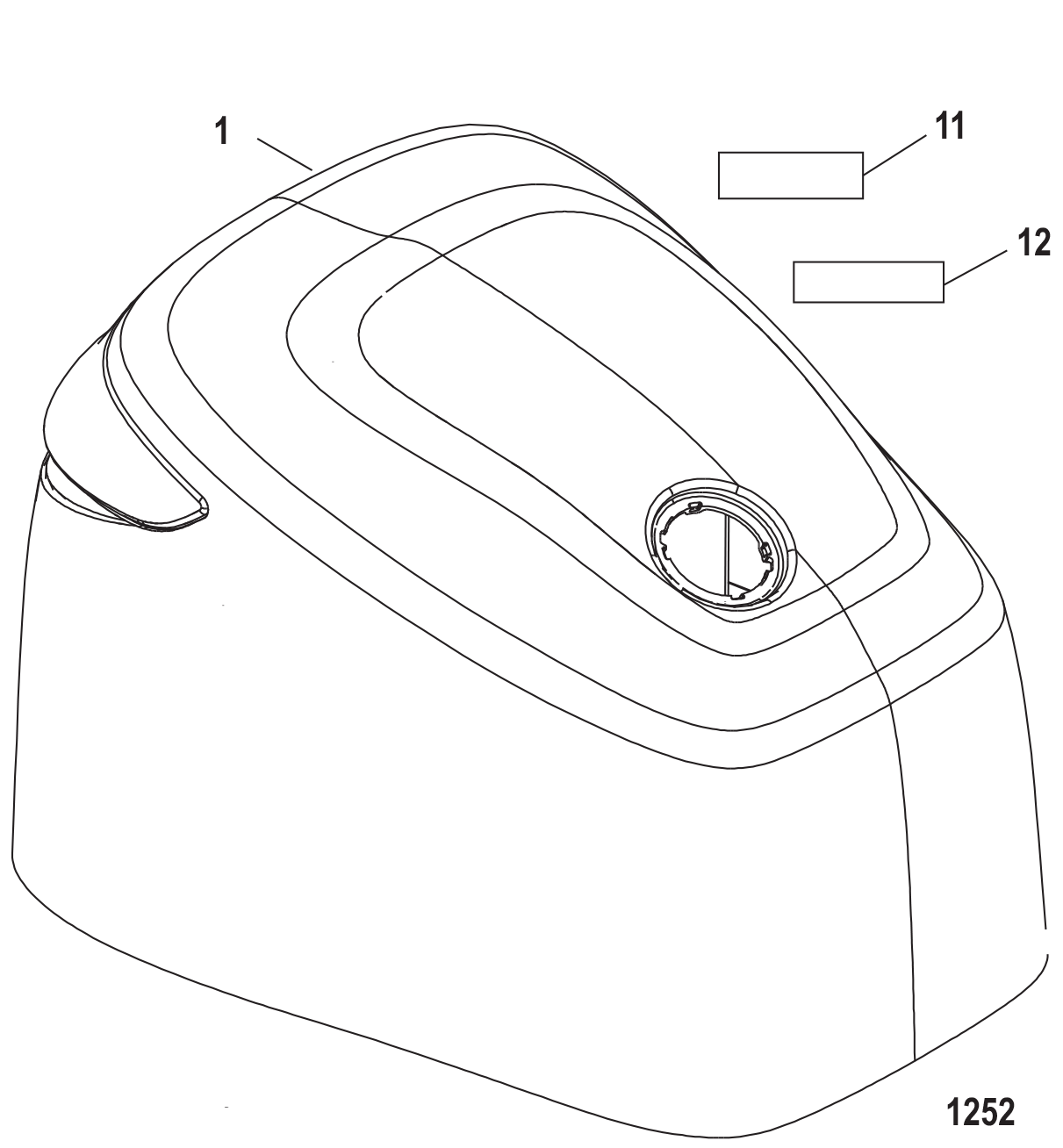

TOP COWL DIAGRAM 1747

825239T3 TOP COWL ASSEMBLY(Black)
+ 875300T36 TOP COWL BLACK

825239T4 TOP COWL ASSEMBLY (Silver)

825239T3, 875300T36, 825239T4
825239T3 875300T36 825239T4



MERCURY DECALS

883592A06 DECAL SET (Merc 40)
883525A06 DECAL SET (Merc 50)

883526A06 DECAL SET (Merc 60)

+ 8M0114767 DECAL SET Mercury

MARINER DECALS

883541A03 DECAL SET (Mariner 40)
883533A03 DECAL SET (Mariner 50)
883534A03 DECAL SET (Mariner 60)

8M0098289 DECAL SET MA 40HP EFI 4CYL 4S[1C262470 ] & Up
8M0098290 DECAL SET MA 50HP EFI 4CYL 4S [1C262470] & Up
8M0098291 DECAL SET MA 60HP EFI 4CYL 4S [1C262470] & Up

TRACKER DECALS

883592A06 DECAL SET (Tracker 40)
883525A06 DECAL SET (Tracker 50)

883526A06 DECAL SET (Tracker 60)

+ 8M0114767 DECAL SET Mercury





Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
