1998 EVINRUDE 90/115 80 JET

ENGINE COVER Diagram 439309-02A


http://epc.brp.com/cgi-bin/ImgServ.exe/convert?ilFN=E:\\EmpartWeb\\data\\41\\439309\02A.tif&ilSC=15&ilIV=0&ilBR=0&ilIF=P&ilRE=8

ENGINE COVER -- EVINRUDE

0285101 ENGINE COVER ASSY., 115JTL
0285007 ENGINE COVER ASSY.. 90EL
0285008 ENGINE COVER ASSY.. 115EL
0284645 ENGINE COVER ASSY.. 90SL, SX
0284646 ENGINE COVER ASSY.. 115SL, SX
0285009 ENGINE COVER ASSY.. 115GL
0284951 ENGINE COVER ASSY.. L115GL Red - Lund
0284853 ENGINE COVER ASSY.. L115GL Green - Lund
0284952 ENGINE COVER ASSY.. L115GL Blue - Lund
0284953 ENGINE COVER ASSY.. L115GL Beige - Lund
0285163 ENGINE COVER ASSY.. L90GL Red - Lund
0285164 ENGINE COVER ASSY.. L90GL Green - Lund
0285165 ENGINE COVER ASSY.. L90GL Blue - Lund

ENGINE COVER -- JOHNSON

0439236 ENGINE COVER ASSY., 115JTL
0438843 ENGINE COVER ASSY.. L115GL Beige - Lund
0439549 ENGINE COVER ASSY.. 115GL
0438347 ENGINE COVER ASSY.. 90HP White
0438348 ENGINE COVER ASSY.. 115HP White
0436873 ENGINE COVER ASSY.. 90SL, SX
0436874 ENGINE COVER ASSY.. 115SL, SX
0438841 ENGINE COVER ASSY.. L115GL Red - Lund
0437830 ENGINE COVER ASSY.. L115GL Green - Lund
0438842 ENGINE COVER ASSY.. L115GL Blue - Lund
0439897 ENGINE COVER ASSY.. L90GL Red - Lund
0439898 ENGINE COVER ASSY.. L90GL Green - Lund
0439899 ENGINE COVER ASSY.. L90GL Blue - Lund

0285101, 0285007, 0285008, 0284645, 0284646, 0285009, 0284951, 0284853, 0284952, 0284953, 0285163, 0285164, 0285165,
0439236, 0438843, 0439549, 0438347, 0438348, 0436873, 0436874, 0438841, 0437830, 0438842, 0439897, 0439898, 0439899,

0285101 0285007 0285008 0284645 0284646 0285009 0284951 0284853 0284952 0284953 0285163 0285164 0285165
0439236 0438843 0439549 0438347 0438348 0436873 0436874 0438841 0437830 0438842 04398970439898 0439899



EVINRUDE DECALS

0285041 DECAL SET, 115JTL
0285061 DECAL SET. 90EL
0285062 DECAL SET. 115GL
0284681 DECAL SET. 90SL, SX
0284682 DECAL SET. 115SL, SX
0285062 DECAL SET. 115GL

0284963 DECAL SET. L115GL Beige

0285166 DECAL SET. L90GL Red
0284961 DECAL SET. L115GL Red

0285167 DECAL SET. L90GL Green
0284861 DECAL SET. L115GL Green

0285168 DECAL SET. L90GL Blue
0284962 DECAL SET. L115GL Blue

Read more: 1998 EVINRUDE 90/115 80 JET

25 (4-STROKE) - Cat.# 90-803015

 > Mercury Marine [Updated: Apr. 30, 2018] > Outboard > 4 Stroke > 25 (4-STROKE) > [0G760300 THRU 0T408999] - USA - Cat.# 90-803015

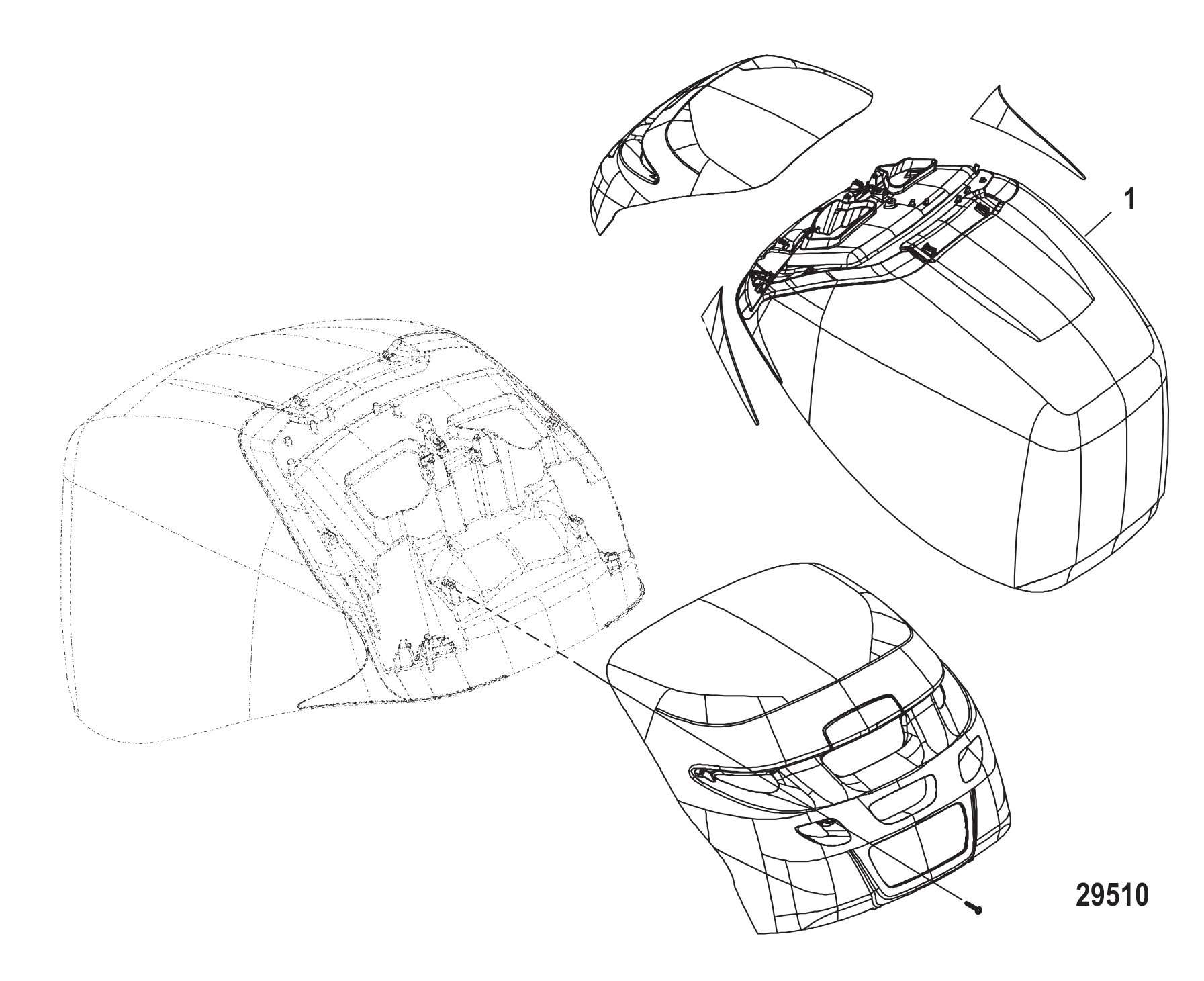

Top Cowl Diagram 1240

1
830562T5 TOP COWL ASSEMBLY Manual-Black
830562T6 TOP COWL ASSEMBLY Manual Silver

2
830562T7 TOP COWL ASSEMBLY Electric-Black
830562T8 TOP COWL ASSEMBLY Electric-Silver

830562T5, 830562T6, 830562T7, 830562T8
830562T5 830562T6 830562T7 830562T8

MERCURY DECALS

854693A00 DECAL SET Mercury
854693A05 DECAL SET (MERCURY/TRACKER)(2005)



MARINER DECALS

854692A98 DECAL SET Mariner 1998 thru 2000
854692A01 DECAL SET (MARINER)(2001)

854692A03 DECAL SET (MARINER)(2003 AND ABOVE)



TRACKER DECALS

856144A98 DECAL SET Tracker



Other decals

856985A21 DECAL EPA Label Information (1999)
804653A00 DECAL EPA Label Information (2000)
804653A01 DECAL EPA Label Information (2001)

Read more: 25 (4-STROKE) - Cat.# 90-803015

150/175/200 XRI - Cat.# 90-81741892

> Mercury Marine [Updated: Feb. 24, 2022] > Outboard > 2 Stroke EFI > V-150XRI (EFI) > [0D082000 THRU 0G303045] - USA - Cat.# 90-81741892
> Mercury Marine [Updated: Feb. 15, 2022] > Outboard > 2 Stroke EFI > V-200XRI (EFI) > [0D082000 THRU 0G303045] - USA - Cat.# 90-81741892
> Mercury Marine [Updated: Aug. 20, 2018] > Outboard > 2 Stroke EFI > V-150XRI (EFI) > [0D082000 THRU 0G303045] - USA - Cat.# 90-81741892

Top Cowl And Front Shield DIAGRAM 11991













1 9742A92 TOP COWL ASSEMBLY Black (Long)
+ 9742T92 TOP COWL ASY-BLK

1 9742A93 TOP COWL ASSEMBLY Gray (Long)
1 9743A10 TOP COWL ASSEMBLY Silver (Long)
9743T10 TOP COWL

1 9742A88 TOP COWL ASSEMBLY Black (X-Long)
9742T88 TOP COWL ASSY BLK

1 9742A89 TOP COWL ASSEMBLY Gray (X-Long)
1 9743A11 TOP COWL ASSEMBLY Silver (X-Long)
9743T11 TOP COWL
1 9743A8 TOP COWL ASSEMBLY (Tracker)

9742A92, 9742T92, 9742A93, 9743A10, 9743T10, 9742A88, 9742T88, 9742A89, 9743A11, 9743T11, 9743A8
9742A92 9742T92 9742A93 9743A10 9743T10 9742A88 9742T88 9742A89 9743A11 9743T11 9743A8

23 18755A1 FRONT SHIELD ASSEMBLY
23 18755A2 FRONT SHIELD ASSEMBLY
23 18755A4 FRONT SHIELD ASSEMBLY Silver
23 18755A3 FRONT SHIELD ASSEMBLY

18755A1, 18755A2, 18755A4, 18755A3
18755A1 18755A2 18755A4 18755A3


MERCURY DECALS

812563A93 DECAL SET (Black 150/175/200XRI) (Design I)
809513A95 DECAL SET (Black 150 Anniversary) (Design II)
808553A94 DECAL SET (Black 150) (Design II)

808559A94 DECAL SET (Black 175) (Design II)
808554A94 DECAL SET (Black 200 Long) (Design II)  - Possible 200XRI ELPTO (Design II)
808558A94 DECAL SET (Black 200 XL/CXL) (Design II)
  - Possible 200XRI ELPTO (Design II)

MARINER DECALS


815630A92 DECAL SET (Gray 175 Ski) (Design I)
813033A93 DECAL SET (150/175/200 Magnum) (Design I)

809514A95 DECAL SET (Gray 150 Anniversary) (Design II)

813033A94 DECAL SET (Gray 150) (Design II)
808555A94 DECAL SET (Gray 175 Ski) (Design II)
808557A94 DECAL SET (175 Magnum) (Design II)
808556A94 DECAL SET (Gray 200 Long) (Design II)
808561A94 DECAL SET (Gray 200 XL/CXL) (Design II)

TRACKER DECALS

808591A94 DECAL SET (Black-Tracker 150) (Design II)
808680A94 DECAL SET (Black-Tracker 175) (Design II)
808621A94 DECAL SET (Black-Tracker 200) (Design II)

808602A94 DECAL SET (Gray-Tracker 150) (Design II)
808652A94 DECAL SET (Gray-Tracker 175) (Design II)
808641A94 DECAL SET (Gray-Tracker 200) (Design II)

Read more: 150/175/200 XRI - Cat.# 90-81741892

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
