Mercury Racing Outboard 4 Stroke 500R 4.6L V8 Verado - Cat.# 90-8M0211036

 > Mercury Marine [Updated: Aug. 4, 2023] > Outboard > 4 Stroke > 500R 4.6L V8 Verado > [1E099432 & Up] - Cat.# 90-8M0211036

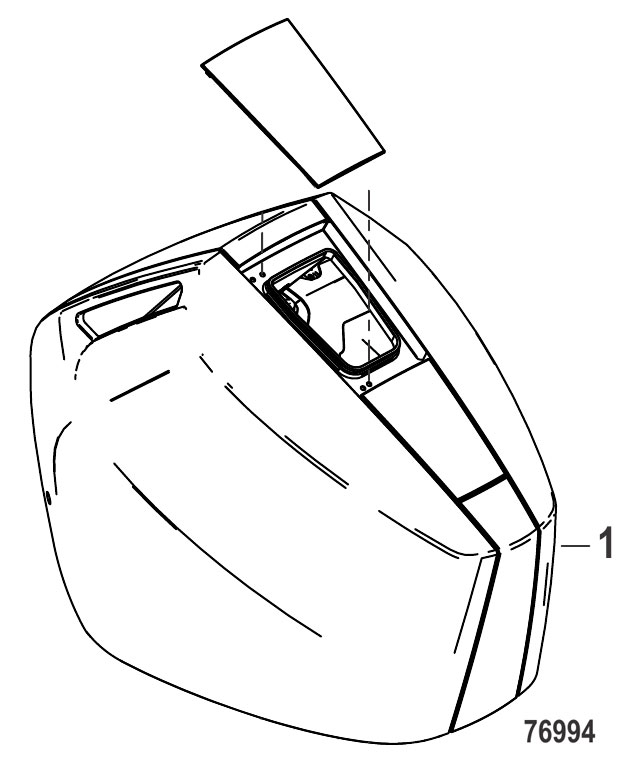

Top Cowl 76560 Diagram

1) 8M0210423 TOP COWL ASSEMBLY Black
1) 8M0210426 TOP COWL ASSEMBLY Cold Fusion White
1) 8M0211061 TOP COWL ASSEMBLY Paint Ready

8M0210423, 8M0210426, 8M0211061
8M0210423 8M0210426 8M0211061



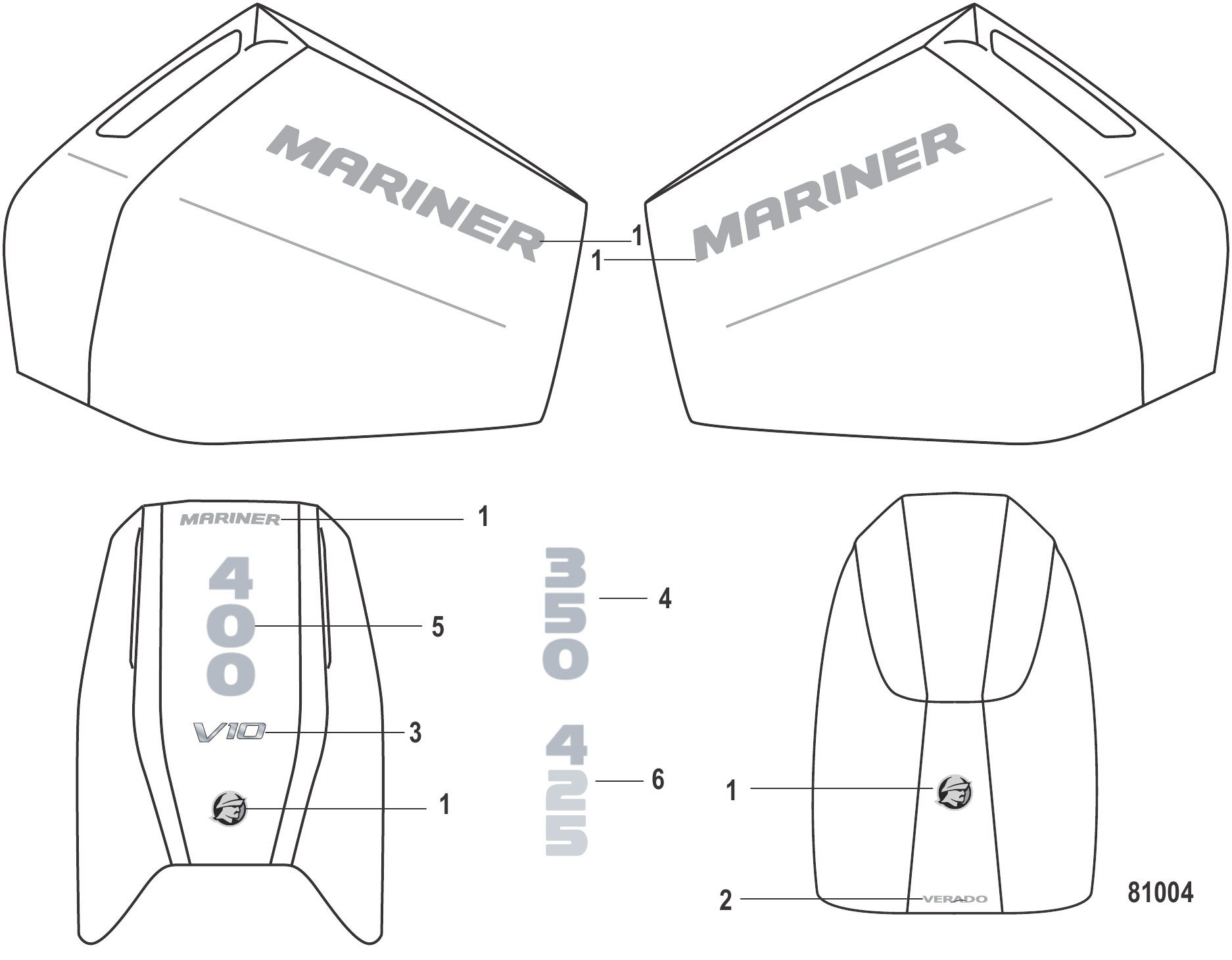

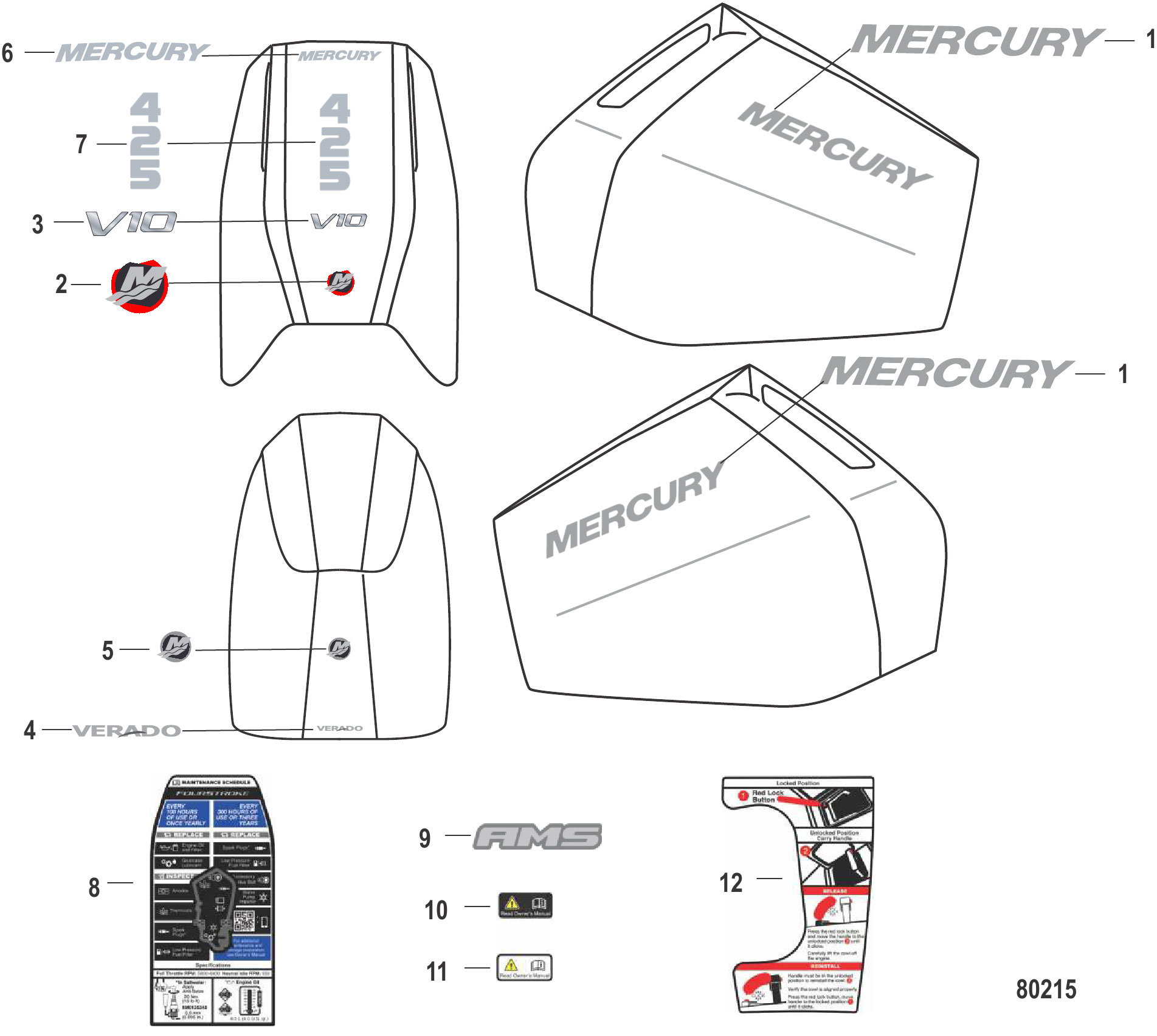

Decals 76566 Diagram

1) 8M0208889 DECAL KIT Paint Ready
2) 8M0142577 DECAL Read Manual, Clear
3) 8M0142371 DECAL Read Manual, Black
4) 8M0149565 DECAL Mercury, Black
5) 8M0147920 DECAL Mercury, Silver
6) 8M0151525 DECAL MI-CON 53 MM, Racing Not defined Placement
7) 8M0213286 DECAL Rear 500
8) 8M0080153 DECAL M-ICON 66 MM Racing Not defined Placement
9) 8M0149566 DECAL Red, R
10) 8M0149568 DECAL Black, R
11) 8M0213288 DECAL SET Top Cowl
12) 8M0151525 DECAL MI-CON 53 MM, Racing Not defined Placement
13) 8M0143773 DECAL SET Lower Cowl
14) 8M0213289 DECAL Check Engine
15) 8M0142569 DECAL Warning
16) 8M0213291 DECAL Maintenance Schedule

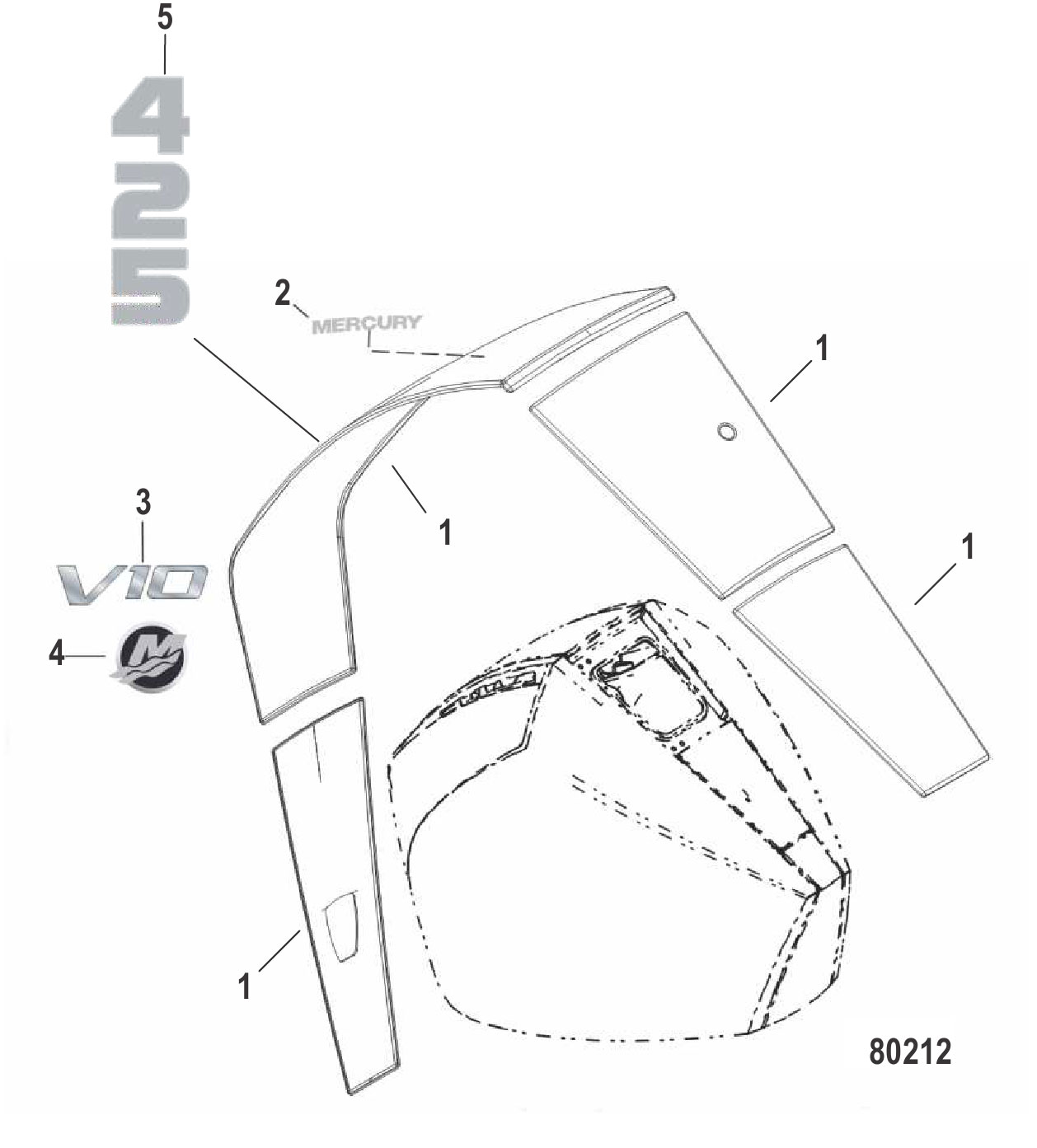

Accent Panel 76562 Diagram

1) 8M0210439 ACCENT PANEL Devil Red-Eye
1) 8M0210440 ACCENT PANEL Graphite Grey
1) 8M0172910 ACCENT COWL ASSEMBLY Carbon Fiber (Non-Decaled) Must Purchase 8M0208889
 -  8M0205360 DECAL KIT Accent Panel
2) 8M0147920 DECAL Mercury, Silver Paint Ready
2) 8M0149565 DECAL Mercury, Black
3) 8M0213286 DECAL Rear 500
4) 8M0149566 DECAL Red, R
4) 8M0149568 DECAL Black, R
5) 8M0080153 DECAL M-ICON 66 MM Racing

Problem found on M Racing logos in this Generation orders a complete kit where a 60 mm logo was received ( No part number marked behind the M logo), instructions or Installation templates points 8M0085374, size not found in descriptions for Racing M logo possibly a 60 mm logo, follow up with Mercury for updates on their part books.

8M0085374 DECAL M-ICON 60 MM Racing Confirm size

Installation instructions V8 Accent panels

2 Stroke Carb 45 JET 50/55/60 SEAPRO MARATHON MAGNUM TRACKER FORMULA (3 CYL.) Cat.# 90-81735296

 > Mercury Marine [Updated: May. 8, 2023] > Outboard > 2 Stroke Carb > 60 (3 CYL.) > [0G290585 THRU 0G589999] - USA - Cat.# 90-81735296

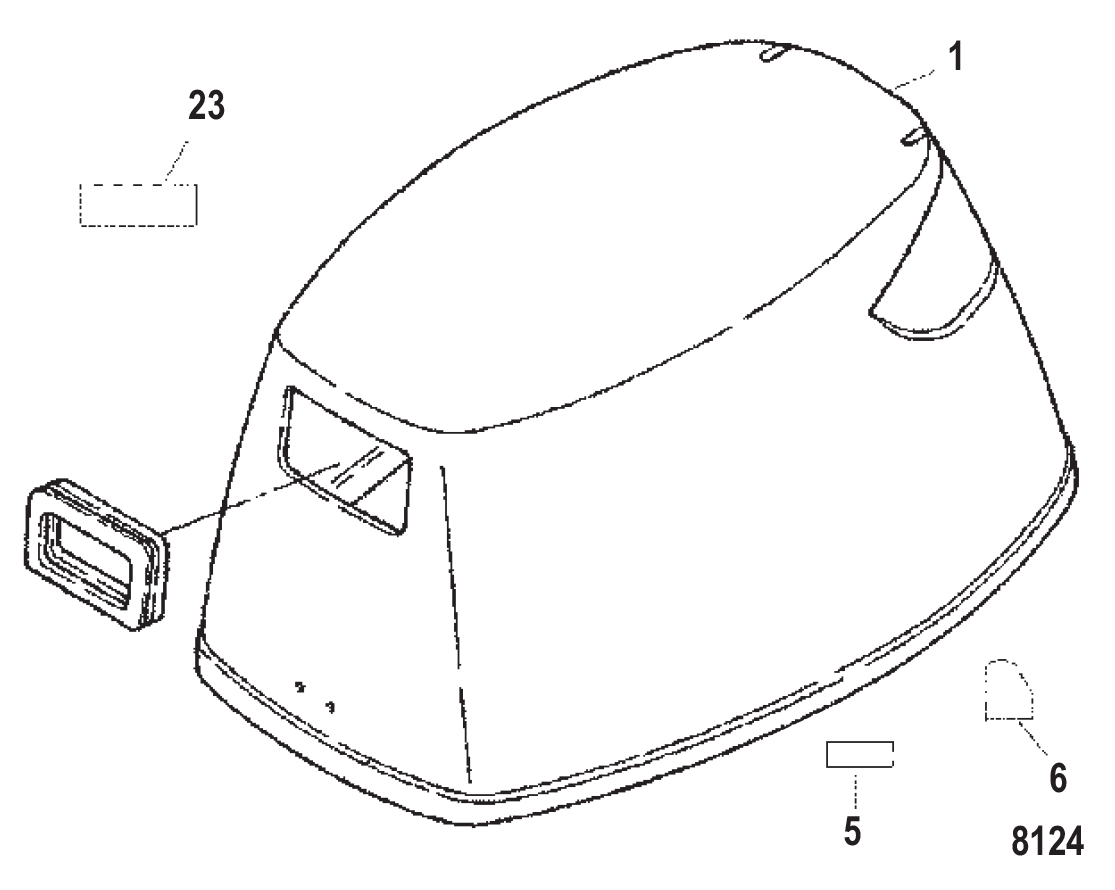

COWLING Diagram 38114

813010A8 TOP COWL ASSEMBLY (BLACK) ELECTRIC
+ 8M0107016 COWL-TOP, BLACK

813010A14 TOP COWL ASSEMBLY (SILVER) ELECTRIC
813010A13 TOP COWL ASSEMBLY (GRAPHITE GRAY) ELECTRIC
+ 813010T14 TOP COWL ASSEMBLY Silver-Electric

816534A8 TOP COWL ASSEMBLY (BLACK) MANUAL
+ 8M0107142 COWL-TOP, BLACK
816534A14 TOP COWL ASSEMBLY (SILVER) MANUAL
+ 816534T14 TOP COWL ASSEMBLY Silver-Manual


813010A8, 8M0107016,  813010A14 , 813010A13, 813010T14 , 816534A8, 8M0107142, 816534A14, 816534T14,
813010A8 8M0107016  813010A14 813010A13 813010T14  816534A8 8M0107142 816534A14 816534T14



MERCURY DECALS

816939A96 DECAL SET (BLACK 50)

811212A96 DECAL SET (BLACK 60)
830163A96 DECAL SET (BLACK 60 PONTOON/BIG FOOT)
826313A95 DECAL SET (BLACK SEAPRO 60)
824097A95 DECAL SET (BLACK FORMULA 60)

821573A95 DECAL SET (BLACK 55)
821424A95 DECAL SET (GRAY 55)

826325A96 DECAL SET (BLACK - JET 45)



MARINER DECALS

816940A94 DECAL SET (GRAY 50) [USA-0G437999/BEL-9926999] & Below
816940A97 DECAL SET (GRAY 50) [USA-0G438000/BEL-9927000] & Up

811211A94 DECAL SET (GRAY 60/BIGFOOT/BEACHING/PONTOON) [USA-0G437999/BEL-9926999] & Below
811211A97 DECAL SET (GRAY 60/BIGFOOT/BEACHING/PONTOON) [USA-0G438000/BEL-9927000] & Up

826326A95 DECAL SET (GRAY - JET 45) [USA-0G437999/BEL-9926999] & Below
826326A97 DECAL SET (GRAY - JET 45) [USA-0G438000/BEL-9927000] & Up

13361A95 DECAL SET (MARATHON 60)
824098A95 DECAL SET (GRAY 60 MAGNUM III)



TRACKER DECALS

824733A94 DECAL SET (TRACKER) [0G290584] & Below
824733A96 DECAL SET (Tracker 60) [0G290585] & Up
831846A97 DECAL SET (Tracker Bigfoot 60)



Force 35 H.P. (1990) - ARCHIVE CAT FOB4488

 > Mercury Marine [Updated: May. 11, 2023] > Outboard > Force > 35 H.P. (1990) > ARCHIVE CAT FOB4488

FORCE 1990 35 H.P. SERIAL NUMBER (1990)
"A" MODELS 357F90A 357X90A
"B" MODELS 352F90B 353F90B 353X90B 356F90B 357F90B 357X90B 358F90B
"C" MODELS 352F90C 353F90C 353X90C 356F90C 357F90C 357X90C 358F90C

ENGINE COVER (FORCE MODELS) Diagram

FS684712 ENGINE COVER (UNPAINTED)
F2C717712 ENGINE COVER COMPLETE (PAINTED W/DECALS)

FS684712, F2C717712, FS684712, 818090A1
FS684712 F2C717712 FS684712 818090A1

2 F717892 DECAL, FRONT
3 37-817985--1 DECAL, US MARINE
4 F717396 DECAL, STARBOARD SIDE
4 F717397 DECAL, PORT SIDE
6 F663366-1 MEDALLION (FORCE)

12 F717528 DECAL, REAR



ENGINE COVER (BAYLINER MODELS)

1 FS684712 ENGINE COVER (UNPAINTED)
100- 818090A1 ENGINE COVER COMPLETE (PAINTED W/DECALS)

FS684712, F2C717712, FS684712, 818090A1
FS684712 F2C717712 FS684712 818090A1

2 FX717892 DECAL, FRONT
4 FX717396 DECAL, STARBOARD SIDE
4 FX717397 DECAL, PORT SIDE
6 F663366-1 MEDALLION (FORCE) Order 3
12 FX717528 DECAL, REAR
17 F694366 MEDALLION

27 F703398 DECAL, FUEL MIX

ELECTRICAL COMPONENTS
36 F510374-1 DECAL, CIRCUIT BREAKER - U.S.A.
40 37-817910--1 DECAL, WIRING


SWIVEL BRACKET AND STERN BRACKETS
26 F544390-1 DECAL, TILT LOCK

MOTOR LEG
18 F716374 DECAL, REAR LEG (FORCE MODELS)
18 F717374 DECAL, REAR LEG (BAYLINER MODELS)
19 F717893 DECAL, SIDE LEG (BAYLINER MODELS) - Order 2

4 Stroke 360 APEX - Cat.# 90-8M0181147

 > Mercury Marine [Updated: May. 26, 2023] > Outboard > 4 Stroke > 360 APEX > [1E054247 THRU 99999999999999999] - Cat.# 90-8M0181147

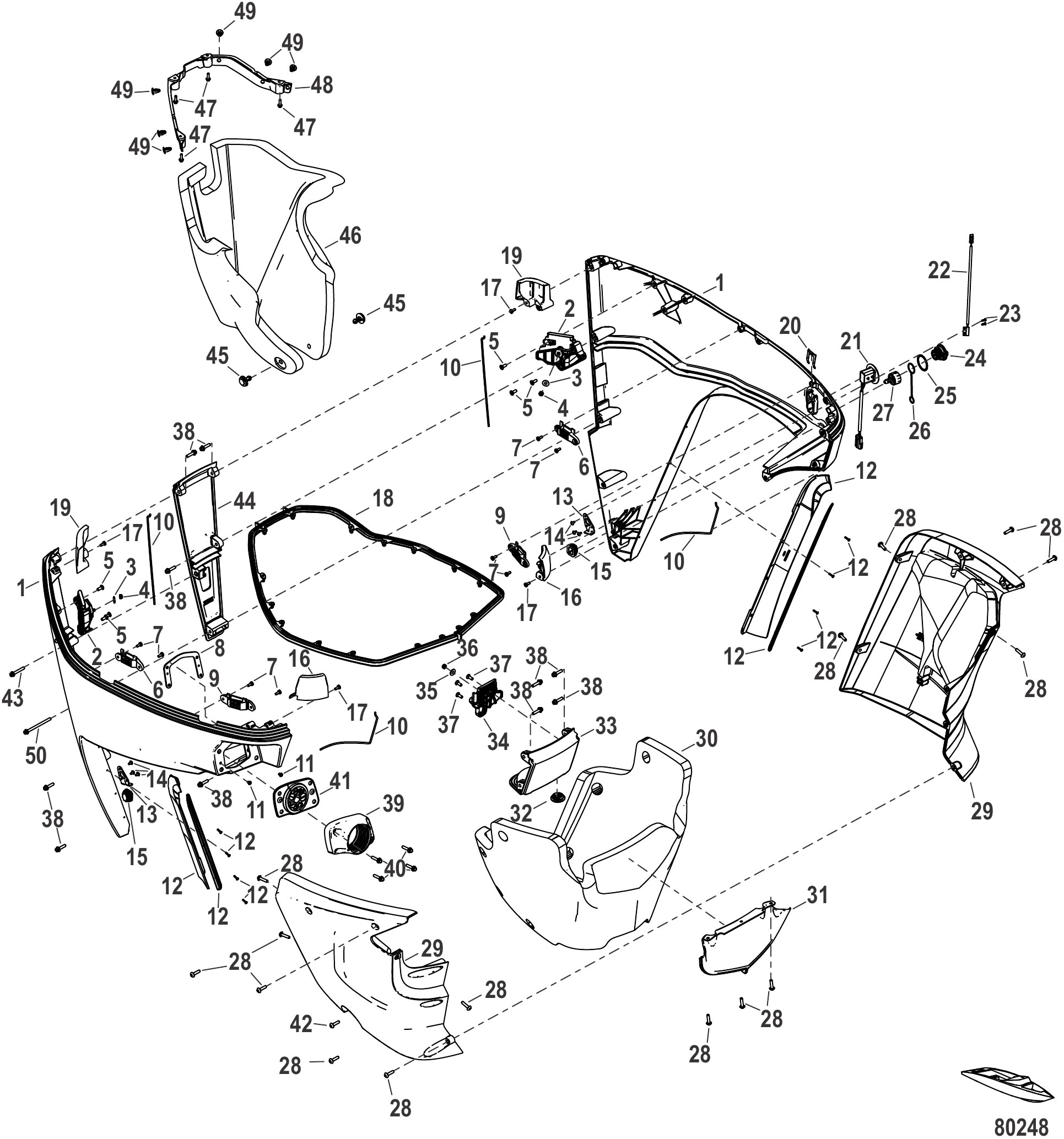

Cowl Diagram 72619

1) 0100 8M0176575 TOP COWL ASSEMBLY
10) 0100 8M0176570 LOWER COWL ASSEMBLY Trimmed
19) 0100 8M0142223 LOWER REAR COWL ASSEMBLY Black
23) 0000 8M0176572 ACCENT PANEL
34) 0100 8M0176574 COVER Driveshaft Housing Starboard
35) 0100 8M0176573 COVER Driveshaft Housing Port





Decals Diagram 72640

1) 0037 8M0176584 DECAL SET Top Cowl
2) 0037 8M0151525 DECAL MI-CON 53 MM, Racing
3) 0037 8M0080153 DECAL M-ICON 66 MM Racing
4) 0037 8M0176585 DECAL SET Chap Set

More Articles …

  1. Force 35 H.P. (1989) - Cat.# 90-FOB4273
  2. 1975-1977 MERC 402 2 Stroke Carb - 40, 400, 402 (2 CYL.) - ARCHIVE CAT 71706
  3. 1970-1971 MERC 400 2 Stroke Carb - 40, 400, 402 (2 CYL.) - ARCHIVE CAT 56971
  4. Force -SPECTRUM & BAYLINER - MAXUM - 50 H.P. (1990) - ARCHIVE CAT FOB4492-1

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.

    90-8M0143239 eng MARCH 2018       © 2018 Mercury Marine      -     Page 1 / 16
