Force > 35 H.P. (1988) - Cat.# 90-FOB4191

 > Mercury Marine [Updated: May. 11, 2023] > Outboard > Force > 35 H.P. (1988) > [0C357F8B & Up] - USA - Cat.# 90-FOB4191

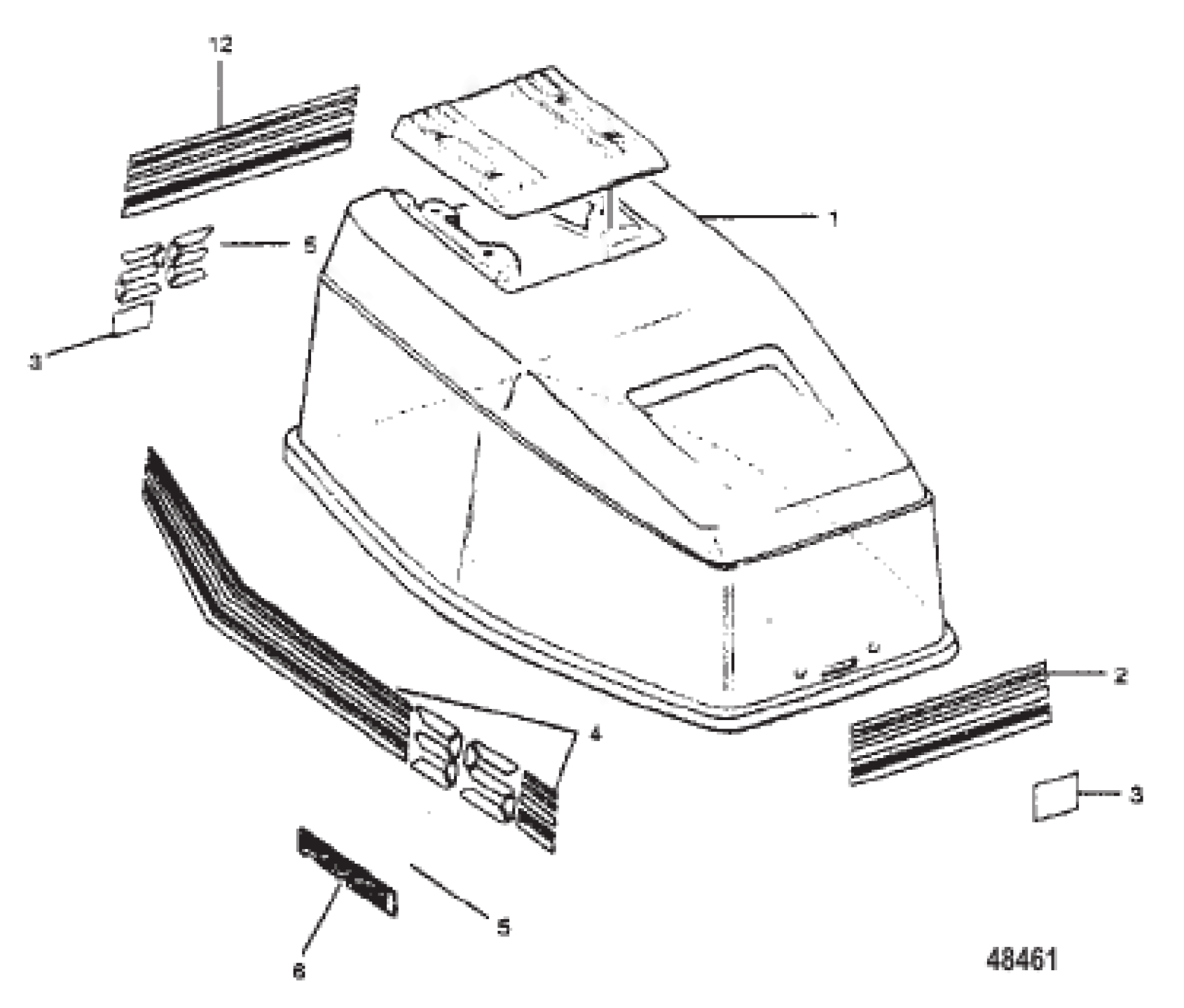

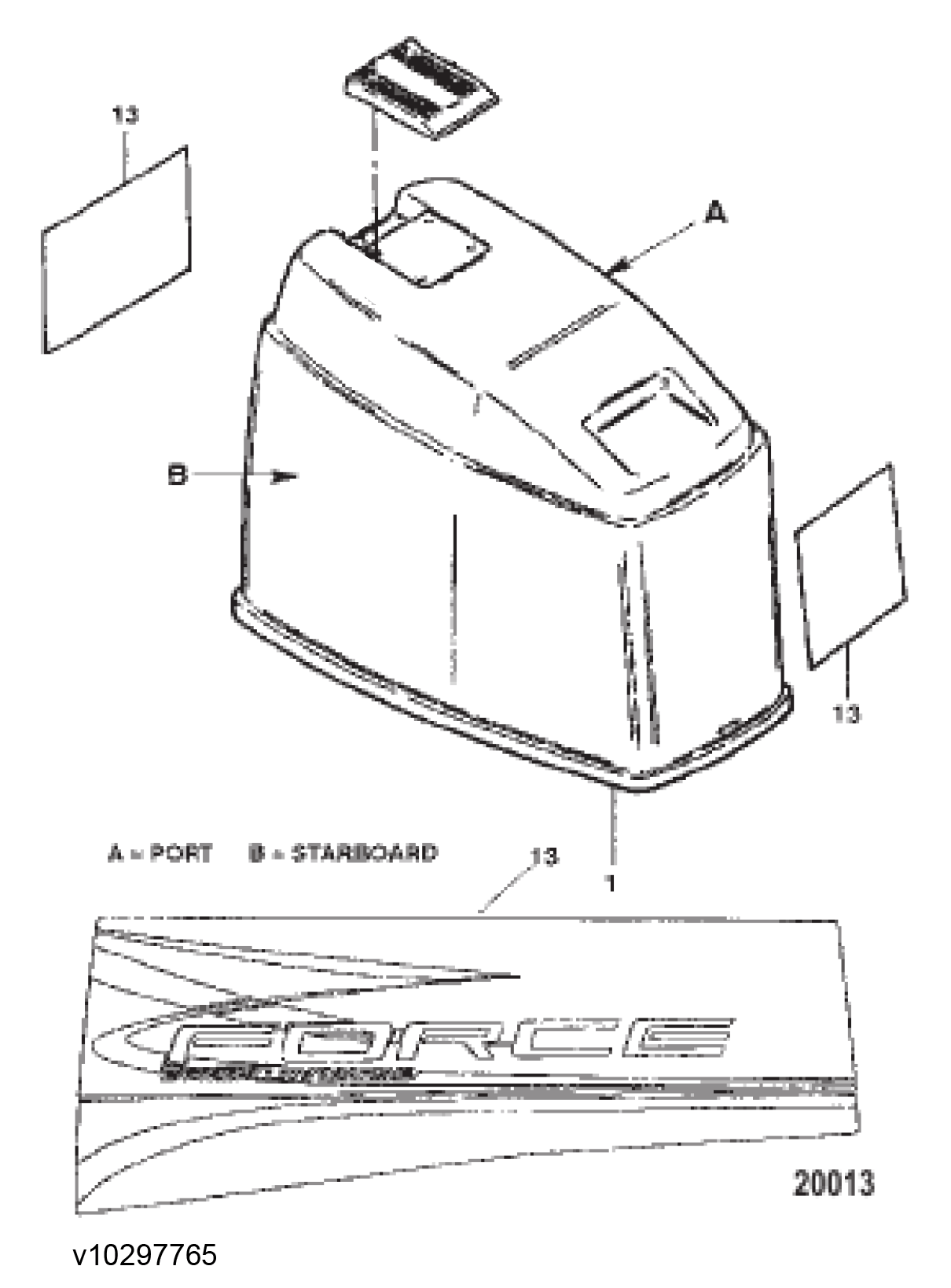

ENGIN COVER Diagram 48461

FS684712 COVER ASSEMBLY (UNPAINTED)
+ 819748T6 COWL ASSY-BASIC
F2C683712 COVER ASSEMBLY (PAINTED W/DECALS)

FS684712 , 819748T6, F2C683712
FS684712  819748T6 F2C683712



FORCE DECALS

2 0037 F683892 DECAL FRONT

3 0000 F685387-1 DECAL US MARINE - Order 2
+ F685387-2 DECAL

4 0037 F683396-1 DECAL STARBOARD SIDE
4 0037 F683397-1 DECAL PORT SIDE

5 0000 F643386 DECAL "35", REAR
+ F685387-2 DECAL-35

6 0000 F663366 MEDALLION Force (FORCE) - Order 2
+ 819169 MEDALLION

12 0037 F683528 DECAL REAR



4 Stroke - 350/400 HP 5.7L V10 Verado SeaPro - Cat.# 90-8M0188523

> Mercury Marine [Updated: May. 13, 2023] > Outboard > 4 Stroke > 400 HP 5.7L V10 Verado > [3B266064 & Up] - USA - Cat.# 90-8M0188523

TOP COWL DIAGRAM 75049

1 0100 8M0200182 TOP COWL ASSEMBLY Black Decaled without horsepower
1 0100 8M0200183 TOP COWL ASSEMBLY Cold Fusion Decaled without horsepower
1 0100 8M0200184 TOP COWL ASSEMBLY Warm Fusion Decaled without horsepower
1 0100 8M0200185 TOP COWL ASSEMBLY Pearl Fusion Decaled without horsepower
1 0100 8M0200186 TOP COWL ASSEMBLY Black SeaPro Decaled with horsepower

2 8M0200187 DOOR ASSEMBLY Black
2 8M0200188 DOOR ASSEMBLY Cold Fusion
2 8M0200189 DOOR ASSEMBLY Warm Fusion
2 8M0200190 DOOR ASSEMBLY Pearl Fusion

Lower Cowl 75035

1 0100 8M0199880 LOWER COWLS Black (Pair)
1 0100 8M0199882 LOWER COWLS Cold Fusion (Pair)
1 0100 8M0199881 LOWER COWLS Warm Fusion(Pair)
1 0100 8M0199883 LOWER COWLS Pearl Fusion (Pair)

52 0100 8M0199910 LOWER COWL ASSEMBLY Rear Black
52 0100 8M0199912 LOWER COWL ASSEMBLY Rear Cold Fusion
52 0100 8M0199911 LOWER COWL ASSEMBLY Rear Warm Fusion
52 0100 8M0199913 LOWER COWL ASSEMBLY Rear Pearl Fusion




MERCURY DECALS Diagram 75021

1) 0037 8M0204796 DECAL SET 350 HP
2) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
3) 0037 8M0204799 DECAL V10
4) 0037 8M0178230 DECAL Verado
5) 0037 8M0043705 DECAL M-Icon, 60 MM Black
6) 0037 8M0153042 DECAL Mercury, Silver
7) 0037 8M0204800 DECAL 350 HP
8) 0037 8M0204797 DECAL SET 400 HP
9) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
10) 0037 8M0204799 DECAL V10
11) 0037 8M0178230 DECAL Verado
12) 0037 8M0043705 DECAL M-Icon, 60 MM Black
13) 0037 8M0153042 DECAL Mercury, Silver
14) 0037 8M0204801 DECAL 400 HP
15) 0037 8M0204798 DECAL SET 350 HP SeaPro
16) 0037 8M0153042 DECAL Mercury, Silver
17) 0037 8M0204802 DECAL 350 HP
18) 0037 8M0204799 DECAL V10
19) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
20) 0037 8M0043705 DECAL M-Icon, 60 MM Black
21) 0037 8M0178230 DECAL Verado
22) 0037 8M0199986 DECAL Check Engine
23) 0037 8M0142569 DECAL Warning
24) 0037 8M0204803 DECAL Maintenance
25) 0037 8M0146963 DECAL AMS - Order 2
26) 0037 8M0204805 DECAL Read Manual Black
27) 0037 8M0204806 DECAL Read Manual White
28) 0037 8M0204807 DECAL Latch



Accent Panel Diagram 75006

1) 0094 8M0203820 ACCENT PANEL Redline Red
1) 0094 8M0203821 ACCENT PANEL Pacific Blue
1) 0094 8M0203822 ACCENT PANEL Mercury Silver
1) 0094 8M0203823 ACCENT PANEL Graphite Grey
1) 0094 8M0203824 ACCENT PANEL Pro Black
1) 0094 8M0203825 ACCENT PANEL Paint Ready
2) 0037 8M0147920 DECAL Mercury, Silver
2) 0037 8M0147987 DECAL Mercury, Dark Silver
2) 0037 8M0149565 DECAL Mercury, Black
3) 0037 8M0204799 DECAL V10
4) 0037 8M0043703 DECAL M-Icon, 66 MM, Black
5) 0037 8M0204800 DECAL 350 HP
6) 0037 8M0204801 DECAL 400 HP
7) 0037 8M0204802 DECAL 350 HP SeaPro


Serial Number: 3B391127 Model: 13500072A Model Version: XL 4
2023/2022 MERCURY 350XL VER 6.4 ES 350 4S XL 4

2 Stroke Carb 45 JET 50/55/60 SEAPRO MARATHON MAGNUM TRACKER FORMULA (3 CYL.) Cat.# 90-81735296

 > Mercury Marine [Updated: May. 8, 2023] > Outboard > 2 Stroke Carb > 60 (3 CYL.) > [0G290585 THRU 0G589999] - USA - Cat.# 90-81735296

COWLING Diagram 38114

813010A8 TOP COWL ASSEMBLY (BLACK) ELECTRIC
+ 8M0107016 COWL-TOP, BLACK

813010A14 TOP COWL ASSEMBLY (SILVER) ELECTRIC
813010A13 TOP COWL ASSEMBLY (GRAPHITE GRAY) ELECTRIC
+ 813010T14 TOP COWL ASSEMBLY Silver-Electric

816534A8 TOP COWL ASSEMBLY (BLACK) MANUAL
+ 8M0107142 COWL-TOP, BLACK
816534A14 TOP COWL ASSEMBLY (SILVER) MANUAL
+ 816534T14 TOP COWL ASSEMBLY Silver-Manual


813010A8, 8M0107016,  813010A14 , 813010A13, 813010T14 , 816534A8, 8M0107142, 816534A14, 816534T14,
813010A8 8M0107016  813010A14 813010A13 813010T14  816534A8 8M0107142 816534A14 816534T14



MERCURY DECALS

816939A96 DECAL SET (BLACK 50)

811212A96 DECAL SET (BLACK 60)
830163A96 DECAL SET (BLACK 60 PONTOON/BIG FOOT)
826313A95 DECAL SET (BLACK SEAPRO 60)
824097A95 DECAL SET (BLACK FORMULA 60)

821573A95 DECAL SET (BLACK 55)
821424A95 DECAL SET (GRAY 55)

826325A96 DECAL SET (BLACK - JET 45)



MARINER DECALS

816940A94 DECAL SET (GRAY 50) [USA-0G437999/BEL-9926999] & Below
816940A97 DECAL SET (GRAY 50) [USA-0G438000/BEL-9927000] & Up

811211A94 DECAL SET (GRAY 60/BIGFOOT/BEACHING/PONTOON) [USA-0G437999/BEL-9926999] & Below
811211A97 DECAL SET (GRAY 60/BIGFOOT/BEACHING/PONTOON) [USA-0G438000/BEL-9927000] & Up

826326A95 DECAL SET (GRAY - JET 45) [USA-0G437999/BEL-9926999] & Below
826326A97 DECAL SET (GRAY - JET 45) [USA-0G438000/BEL-9927000] & Up

13361A95 DECAL SET (MARATHON 60)
824098A95 DECAL SET (GRAY 60 MAGNUM III)



TRACKER DECALS

824733A94 DECAL SET (TRACKER) [0G290584] & Below
824733A96 DECAL SET (Tracker 60) [0G290585] & Up
831846A97 DECAL SET (Tracker Bigfoot 60)



Force 35 H.P. (1990) - ARCHIVE CAT FOB4488

 > Mercury Marine [Updated: May. 11, 2023] > Outboard > Force > 35 H.P. (1990) > ARCHIVE CAT FOB4488

FORCE 1990 35 H.P. SERIAL NUMBER (1990)
"A" MODELS 357F90A 357X90A
"B" MODELS 352F90B 353F90B 353X90B 356F90B 357F90B 357X90B 358F90B
"C" MODELS 352F90C 353F90C 353X90C 356F90C 357F90C 357X90C 358F90C

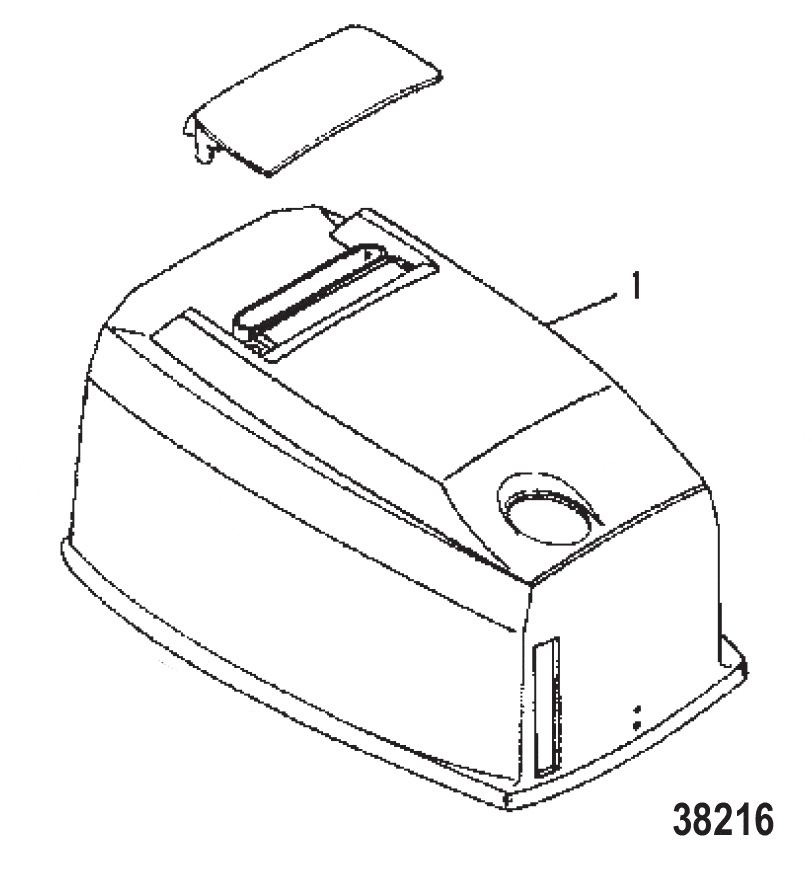

ENGINE COVER (FORCE MODELS) Diagram

FS684712 ENGINE COVER (UNPAINTED)
F2C717712 ENGINE COVER COMPLETE (PAINTED W/DECALS)

FS684712, F2C717712, FS684712, 818090A1
FS684712 F2C717712 FS684712 818090A1

2 F717892 DECAL, FRONT
3 37-817985--1 DECAL, US MARINE
4 F717396 DECAL, STARBOARD SIDE
4 F717397 DECAL, PORT SIDE
6 F663366-1 MEDALLION (FORCE)

12 F717528 DECAL, REAR




ENGINE COVER (BAYLINER MODELS)

1 FS684712 ENGINE COVER (UNPAINTED)
100- 818090A1 ENGINE COVER COMPLETE (PAINTED W/DECALS)

FS684712, F2C717712, FS684712, 818090A1
FS684712 F2C717712 FS684712 818090A1

2 FX717892 DECAL, FRONT
4 FX717396 DECAL, STARBOARD SIDE
4 FX717397 DECAL, PORT SIDE
6 F663366-1 MEDALLION (FORCE) Order 3
12 FX717528 DECAL, REAR
17 F694366 MEDALLION


27 F703398 DECAL, FUEL MIX

ELECTRICAL COMPONENTS
36 F510374-1 DECAL, CIRCUIT BREAKER - U.S.A.
40 37-817910--1 DECAL, WIRING


SWIVEL BRACKET AND STERN BRACKETS
26 F544390-1 DECAL, TILT LOCK

MOTOR LEG
18 F716374 DECAL, REAR LEG (FORCE MODELS)
18 F717374 DECAL, REAR LEG (BAYLINER MODELS)
19 F717893 DECAL, SIDE LEG (BAYLINER MODELS) - Order 2

Subcategories

  • Mercury-Mariner-Tracker-Force Outboard Decals

    DECAL DRY APPLICATION

    IMPORTANT: This document guides our dealers, boatbuilders, and company service personnel in the proper installation or service of our products. If you have not been trained in the recommended servicing or installation procedures for these or similar Mercury Marine products, have the work performed by an authorized Mercury Marine dealer technician. Improper installation or servicing of the Mercury product could result in damage to the product or personal injury to those installing or operating the product.
    NOTE:After completing installation, place these instructions with the product for the owner's future use.
    IMPORTANT: This decal set must be applied dry. Do not use a soap and water mixture to apply this decal set.

    Tools, Materials, and Surface Requirements

    Tools and Materials

    • Decal application squeegee (3M® Applicator PA 1 Gold - recommended)
    • Air release tool (3M Air Release Tool 391x) or a straight pin - used to remove trapped air bubbles
    • Clean microfiber towel (Meguiar’s® Supreme Shine Microfiber Towel - recommended)
    • Spray bottles and labels for each cleaning solution
    • Cleaning solution:
      a. Liquid dishwashing soap
      b. Isopropyl alcohol
      IMPORTANT: Identify each spray bottle of cleaning solution with a label.

    Surface Requirements

    Special attention is required when applying decals to certain surfaces, including primed, painted, and certain plastics. All
    painted surfaces must be cured per the manufacturer's requirements. When applying decals to plastic surfaces, allow proper
    time for out gassing.

    Surface Preparation

    Application Temperature

    Apply the decal when the surface and ambient air temperature is between 16-373 °C (61-99 °F).
    NOTE: Applying the decal near the minimum temperature specification, the adhesive bond will develop more slowly than temperature in the mid to upper specification range.

    Step One General Cleaning

    IMPORTANT: Do not shortcut the cleaning process. All of the surfaces are considered contaminated prior to a thorough
    surface cleaning preparation.

    1. Mix a solution of 29.5 cc (1 fl oz) liquid dishwashing detergent with 3.7 Liter (4 US qt) of warm water.
    2. Rinse cowl with clean water.
    3. Dry the cowl with a clean Meguiar‘s Supreme Shine Microfiber Towel.
    4. Avoid detergents or preparations that contain waxes, oils, or lotions.

    Step Two Solvent Cleaning

    1. Mix a solution of isoprooyl alcohol and water to a 1:1 ratio. Store in a spray bottle and identify the solution with a label.
    2. Saturate a clean paper towel with the isopropyl alcohol and water solution.
    3. Wipe the cowl with the saturated towel followed immediately with a lint-free towel before the solution evaporates.
    NOTE: Isopropyl a/coho/ evaporates quickly. You must Wipe the surface immediately after applying the solution.
    4. When the paper towel becomes contaminated with dirt, discard it and use a clean paper towel saturated with the
    isopropyl alcohol and water solution.
    5. Ensure the surface has no contamination and is completely dry.
    6. Start to apply the decals immediately after solvent cleaning.

    Decal Application

    Application Tips

    1. Ensure that the surrounding work area and the surface are properly cleaned to avoid contamination.
